We’re no strangers to creating custom staircases, but this project came with a special twist.

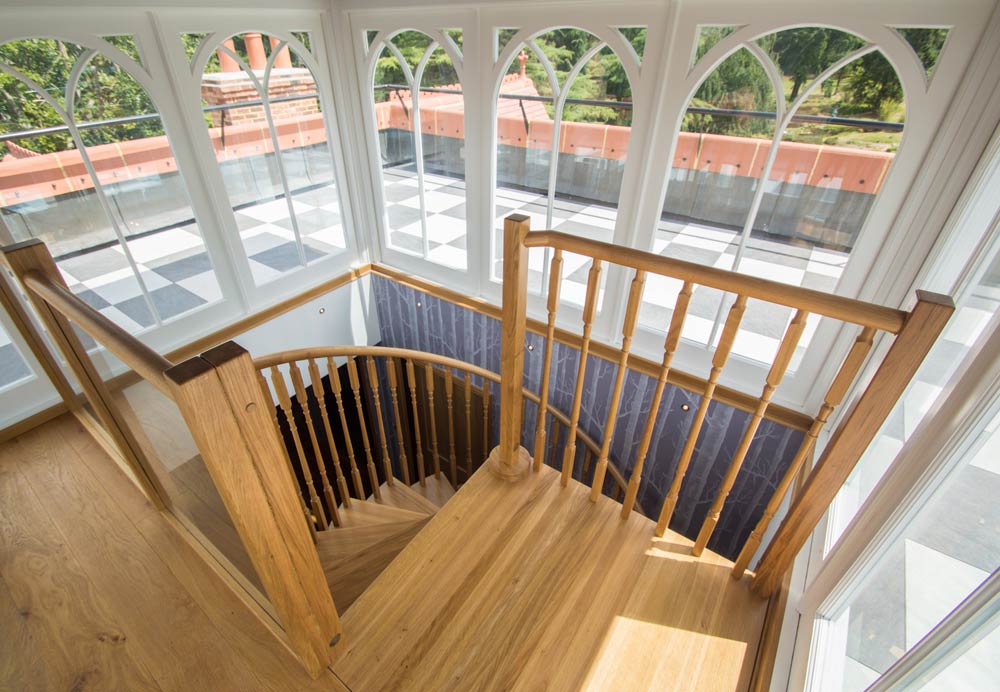

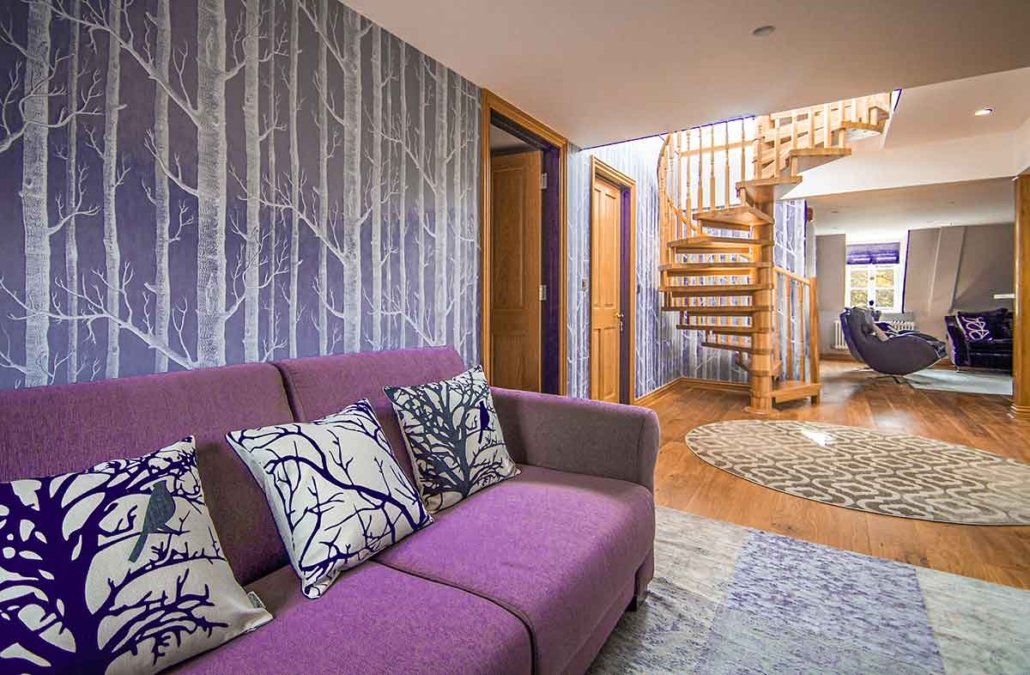

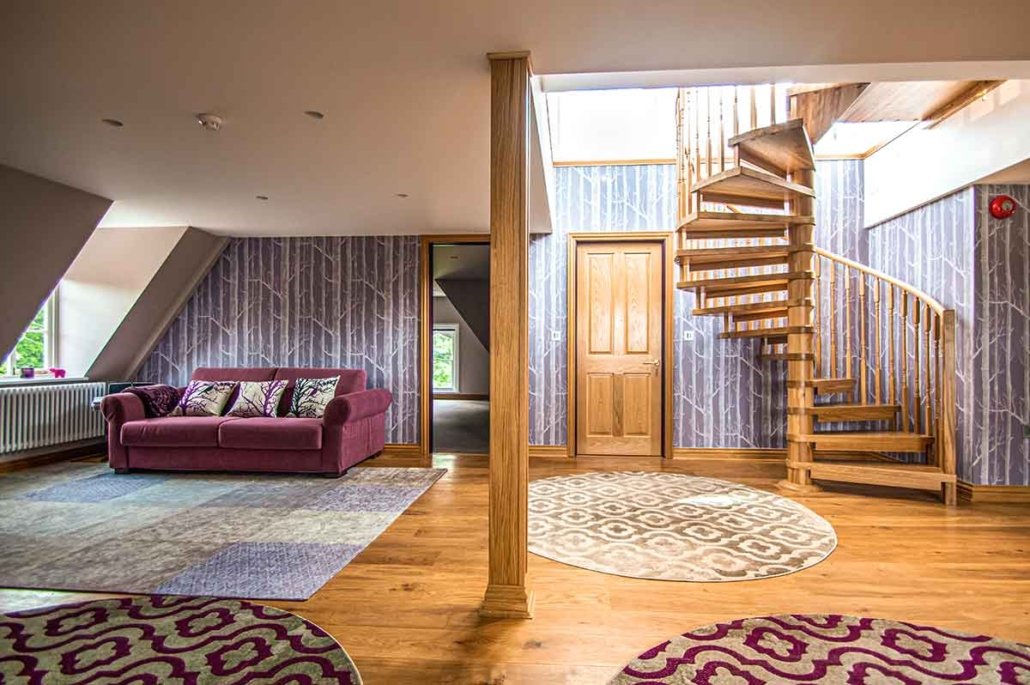

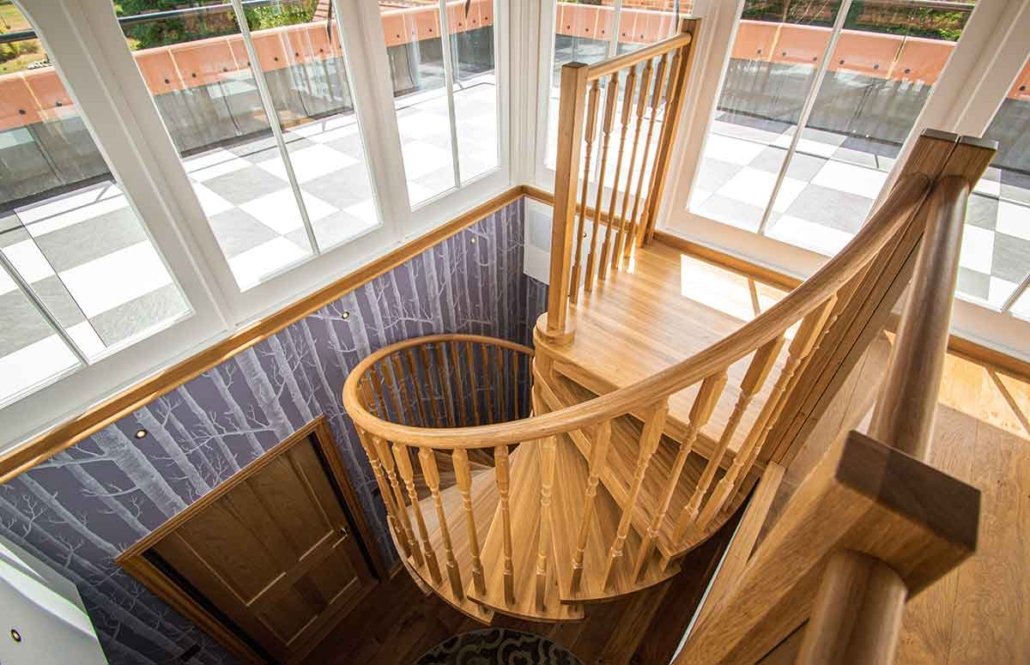

The client wanted a spiral staircase that complemented the charm of his historic listed manor while featuring bespoke spindles designed to match the existing ones in the house. The staircase leads to a glazed stargazing room at the top of the property, offering breathtaking views of the rolling Surrey hills.

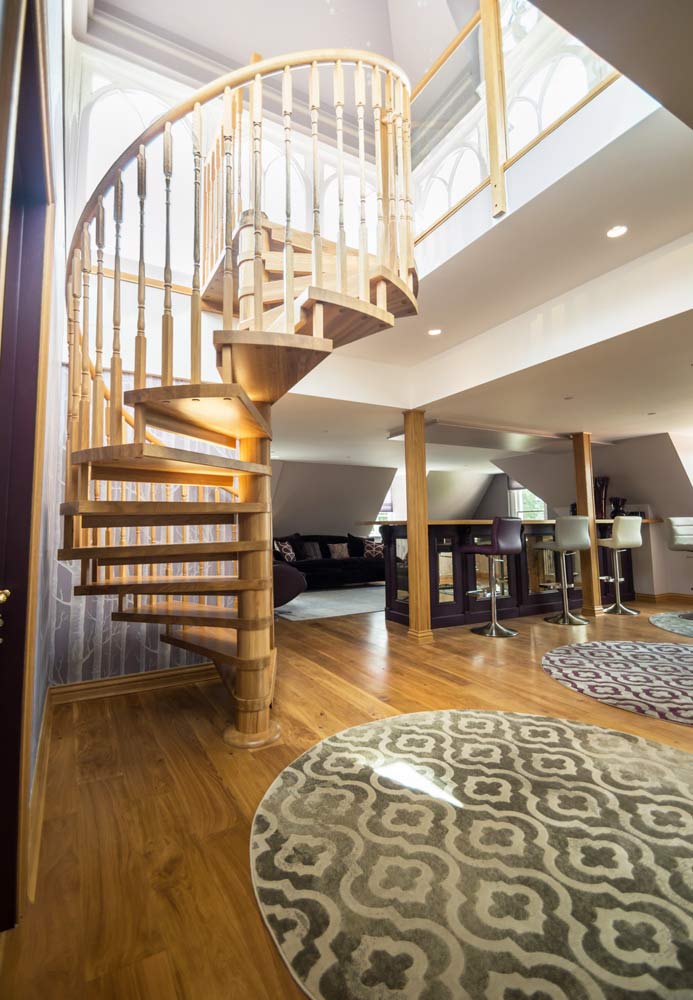

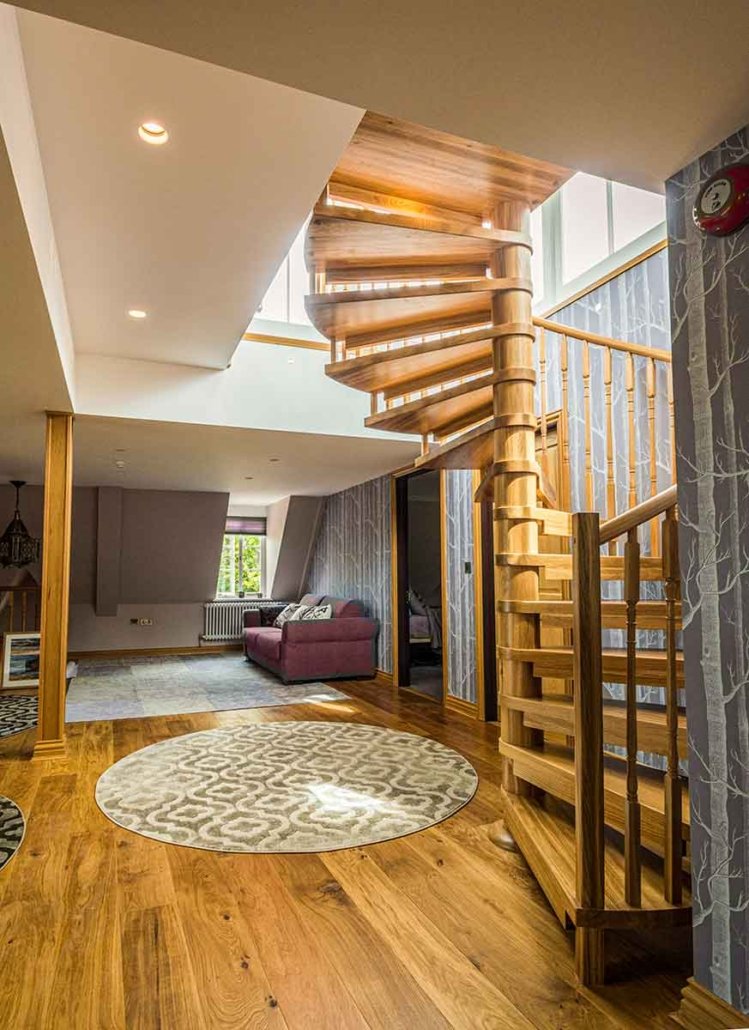

To keep things in harmony with the home’s character, we skipped stainless steel—despite its popularity—and opted for oak centre column barrels that perfectly match the treads, spindles, and balustrade, tying in with the property’s extensive oak features.

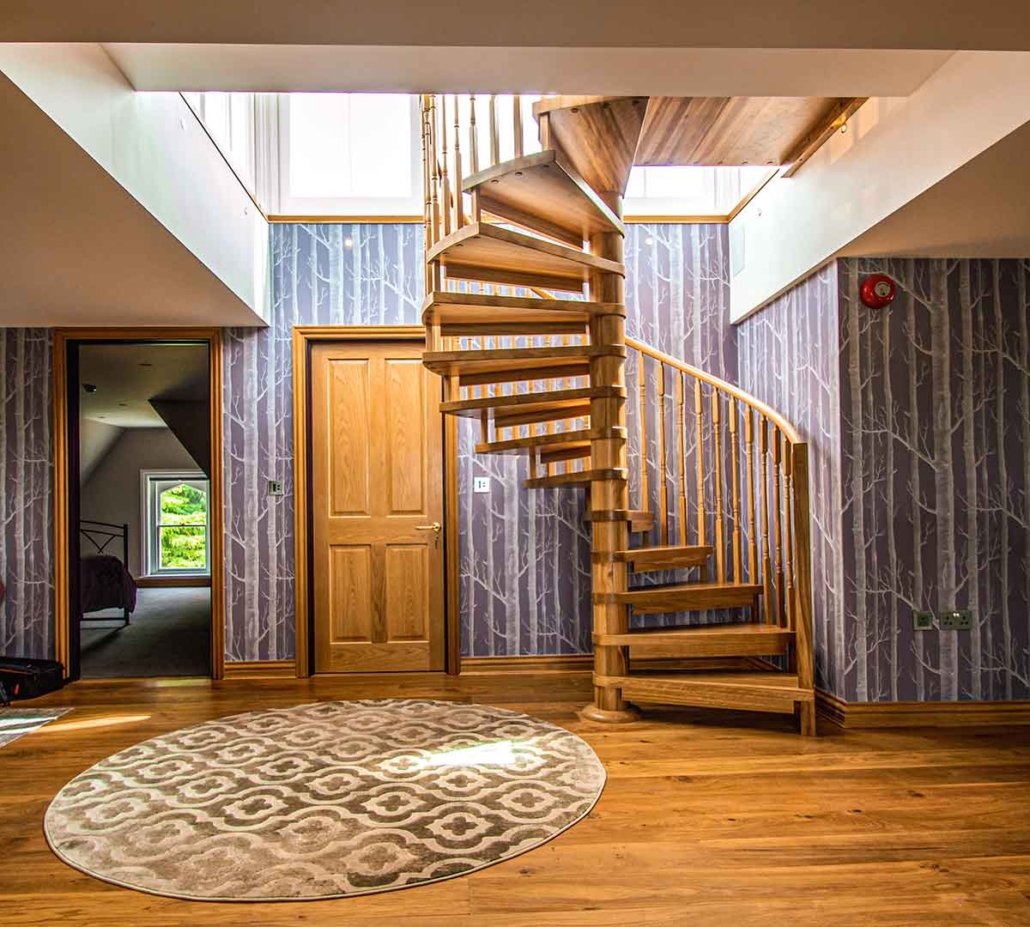

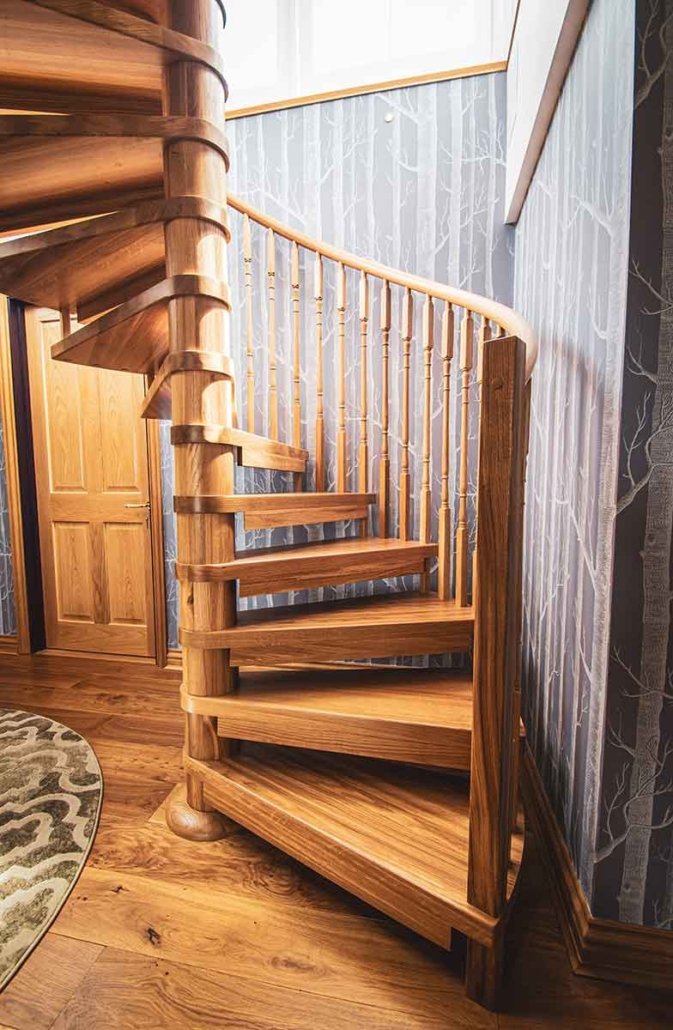

To maximize light flow into the room below, we spaced the spindles as far apart as regulations allow and chose open risers for added openness. The result was a stunning spiral staircase that delighted the client so much, he ordered another one for a different wing of the house.
The Brief
Our customer wanted a spiral staircase that
- Matched the decor of the new loft room
- Was produced all in oak
- To be space saving and the smallest diameter they could have
- Open riser to allow the passage of light from the viewing area above
The Solution
By selecting the model 71 spiral stair, our customer received –
- A custom made solution so precise fit
- Manufactured with oak treads, centre column and handrail all oiled
- 1500mm in diameter being the smallest that would meet regulations
Spiral Staircase Tilford- Technical Specifications
| Floor to floor height | 2748mm |
| Risers | 14 @ 196.28mm |
| Spiral Diameter | 1800mm |
| Clear Tread Width | 765mm |
| Tread Type | 40mm Oak |
| Balustrade Type | Custom Made Oak Spindles |
| Handrail | 50mm Ø Oak – In One Piece |
| Centre Column | Oak Barrels |
| Finish of Timber | Matt Varnished |
| Additional | Square Top Platform |
