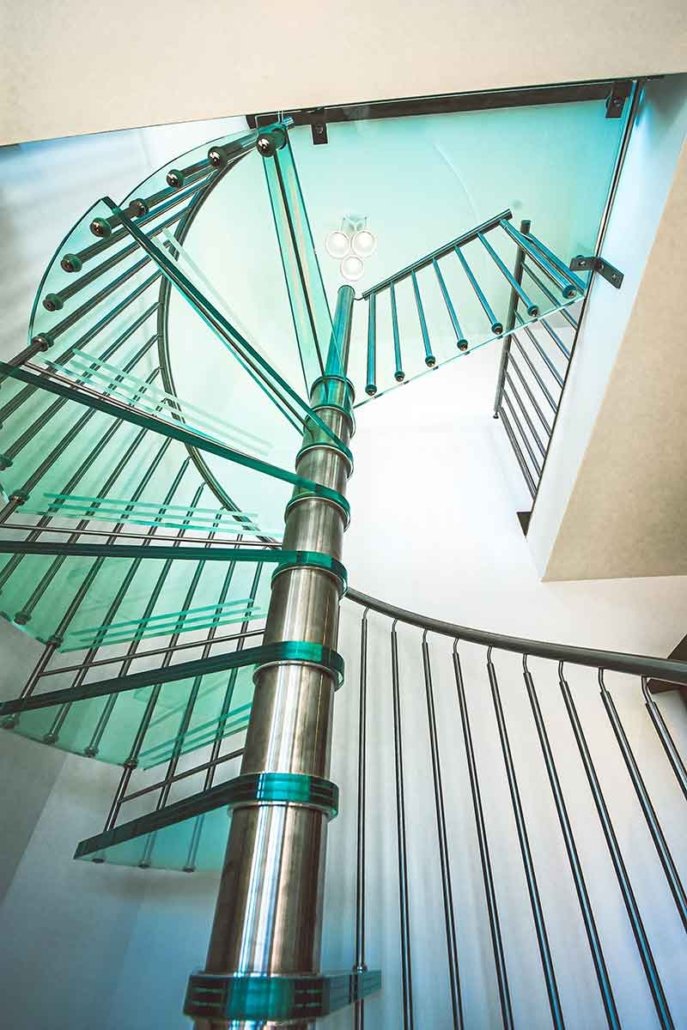

This spiral staircase was supplied to a retired couple renovating a barn in rural Shropshire. They wanted something light, modern, and stylish, and our model 76 spiral was the perfect fit. It led to a bedroom upstairs above the open-plan kitchen/diner, with walls on two sides. Glass treads helped preserve the flow of natural light from the downstairs window and the pendant light above the spiral.

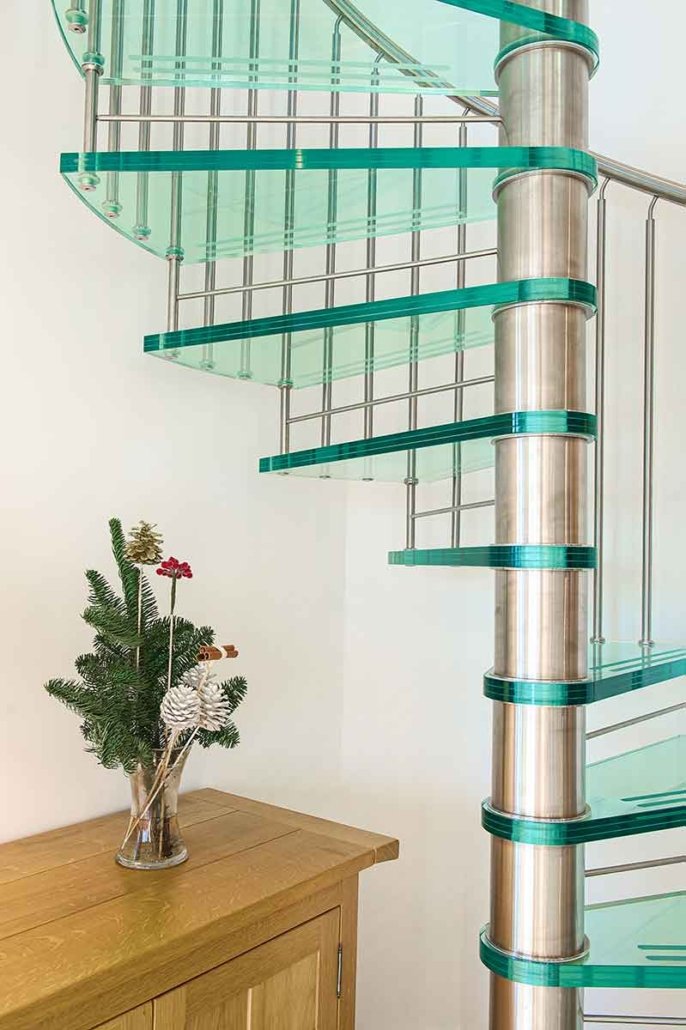

As it needed building control approval, riser bars were added to reduce the gaps between the treads. These 10mm stainless steel bars run horizontally between each step—subtle enough to close the gap without blocking light. The clients took these lovely photos after moving in and were delighted with the result.
The Brief
Our client was looking for a new spiral stair that-
Was light and open in appearance
Was modern and aesthetically pleasing given it was permanently on show
- Complied with building regulations
Produced in modern materials
take up the least amount of space
The Solution
The modern model 76 spiral stair was chosen which-
Was custom made to the diameter and the height required
1500mm diameter to ensure clear tread with compliance
Spiral had open risers to maximise the flow of light

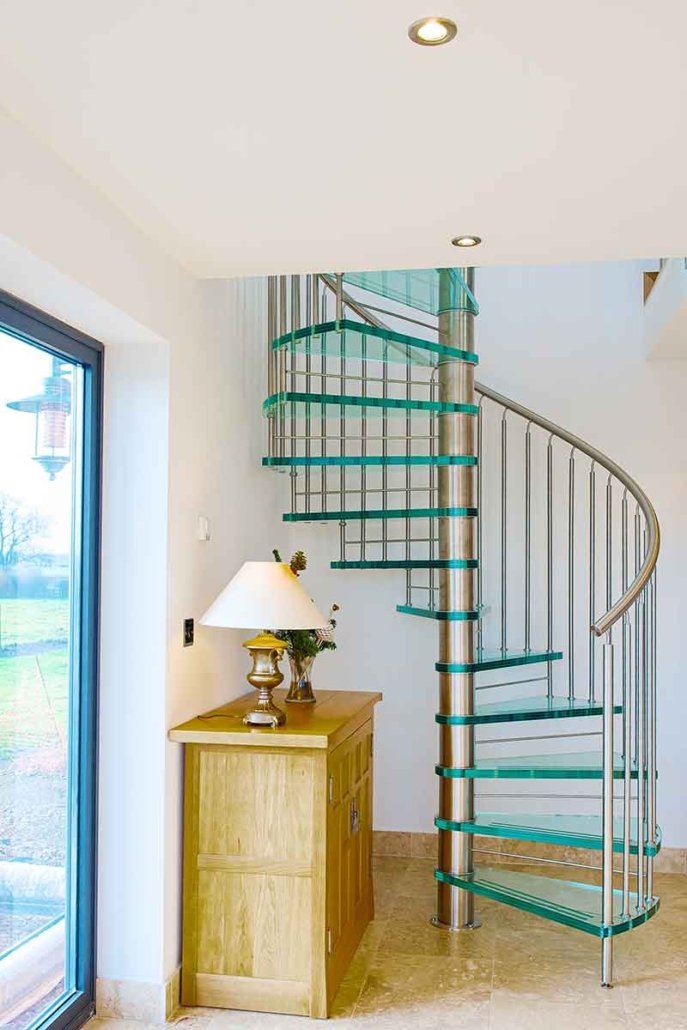

Glass treads for ultimate transparency

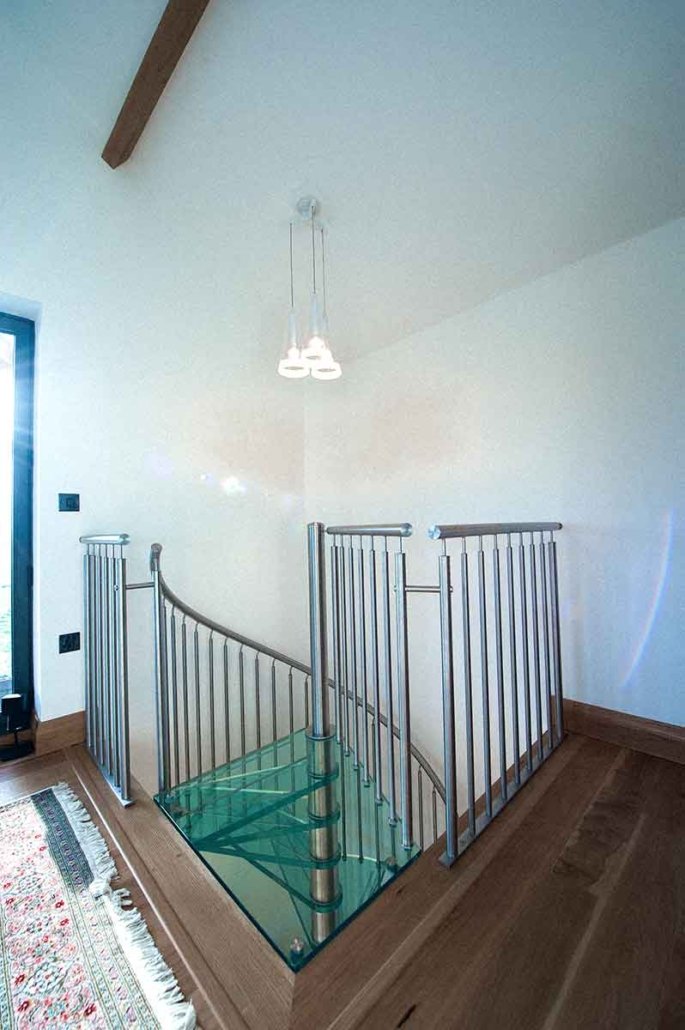

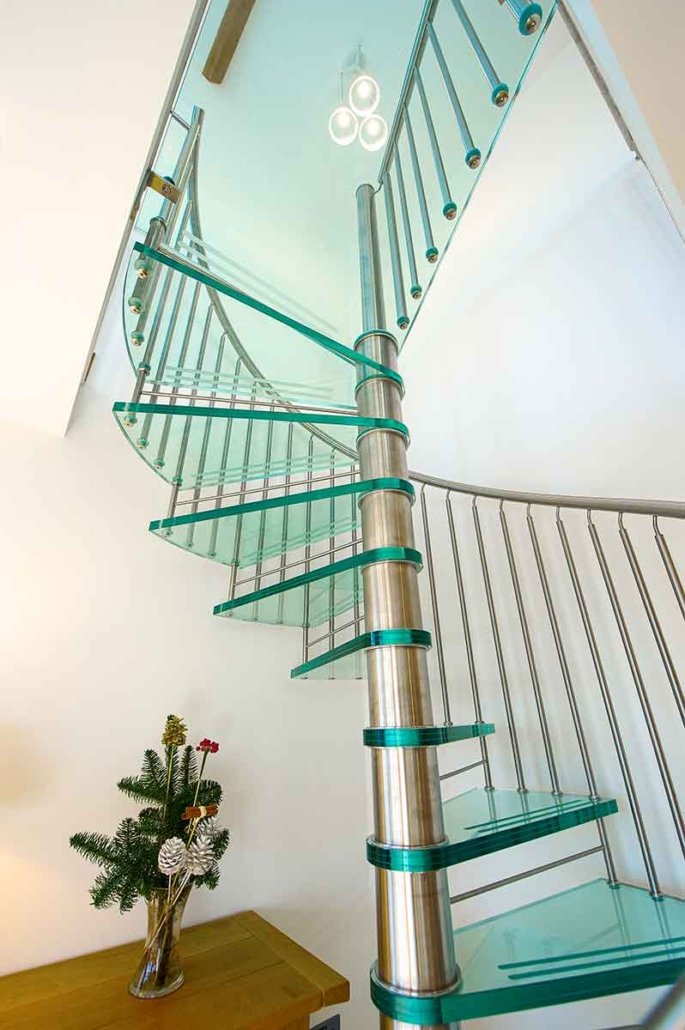

Bespoke glass platform to the top
Sleek stainless steel spindles for protection
Spiral Staircase Shropshire- Technical Specifications
| Floor to floor height | 2740mm |
| Risers | 13 @ 210.7mm |
| Spiral Diameter | 1500mm |
| Clear Tread Width | 610mm |
| Tread Type | 30mm Laminated Glass |
| Balustrade Type | 10mm Ø Stainless Steel Spindles |
| Handrail | 37,7mm Ø Stainless Steel |
| Centre Column | Brushed Stainless Barrels |
| Finish of Steel | Brushed Stainless Steel |

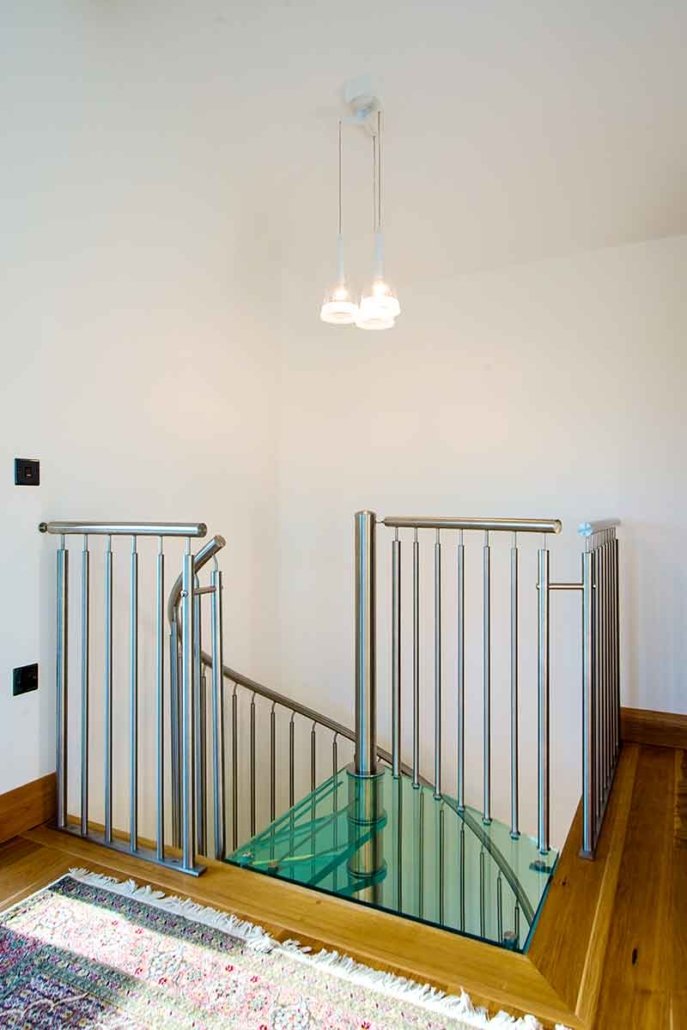

| Additional | Landing Balustrade |
