Just south of Bordeaux, France, our client purchased a property to retire to. Due to its age, planning permission was granted to demolish it and build a new house. The new build featured an airy, open, and light style, and they wanted a bespoke spiral staircase to match. Most of their fixtures and fittings were sourced from the UK, including their model 76 spiral staircase, which we delivered directly to the site.
The spiral’s design and rotation were fairly standard, but the large opening in the floor above meant they wanted it positioned in the middle. This required a 2m x 2m square platform at the top, connecting the column to the floor’s edge. As this was an unusual size, we brought in a structural engineer to ensure the supporting bracket could handle the load over the span.
The result was a stunning, floating transparent floor!
The Brief
Our recently retired customers required
‘A show stopping’ centre piece spiral stair for their new build
Open, modern and transparent in appearance
Centrally positioned in 4 x 4m large void in the floor above
Landing balustrade to match spiral staircase
- Delivery to their site in France
The Solution
The model 76 spiral staircase was selected offering
Custom Made precision so the floor height and rotation worked perfectly for the building

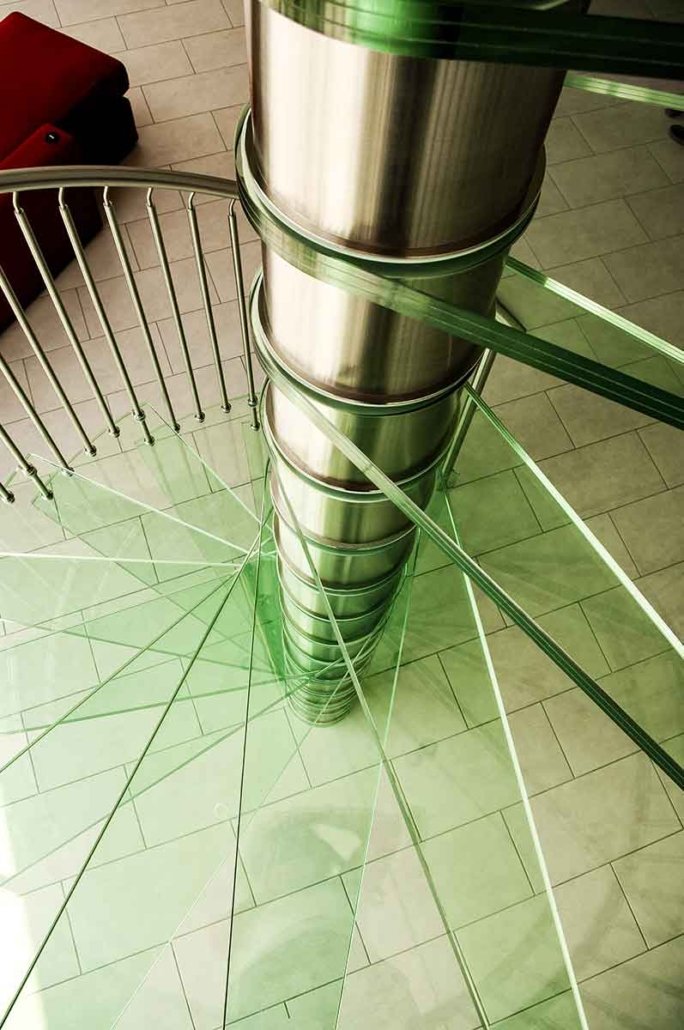

Glass treads allowing light to flood the room from the window behind

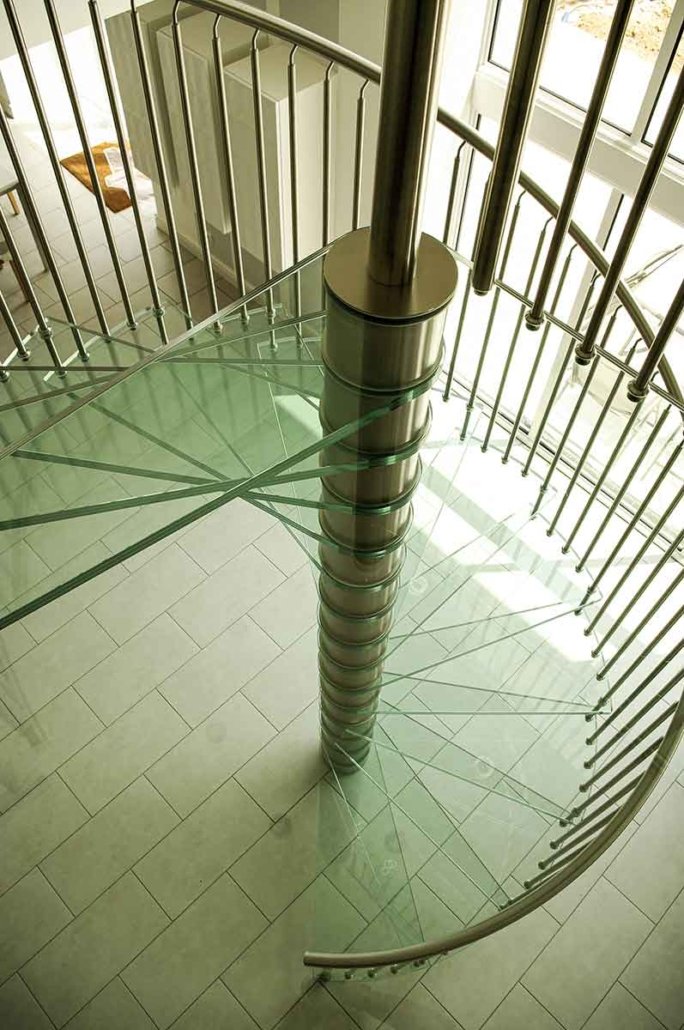

A huge 2 x 2 solid glass platform to position the spiral stair centrally
Delivery direct to France

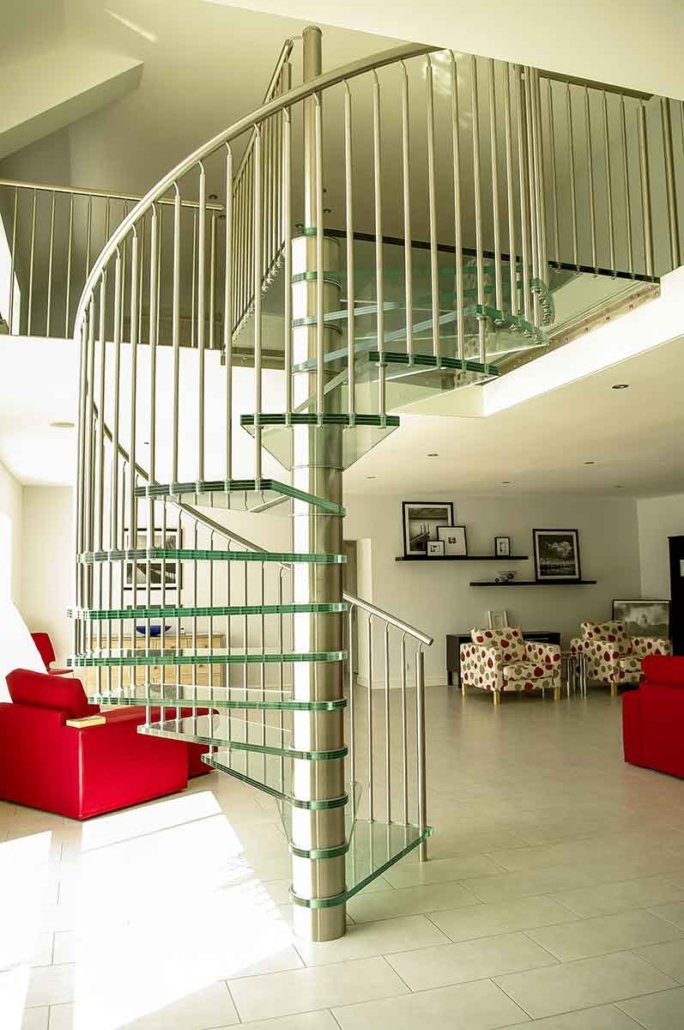

landing balustrade around the opening in the same stainless steel handrail and spindles
Spiral Staircase France- Technical Specifications
| Floor to floor height | 2500mm |
| Risers | 12 @ 208.3mm |
| Spiral Diameter | 2000mm |
| Clear Tread Width | 850mm |
| Tread Type | 30mm Laminated Glass |
| Balustrade Type | 20mm vertical stainless spindles |

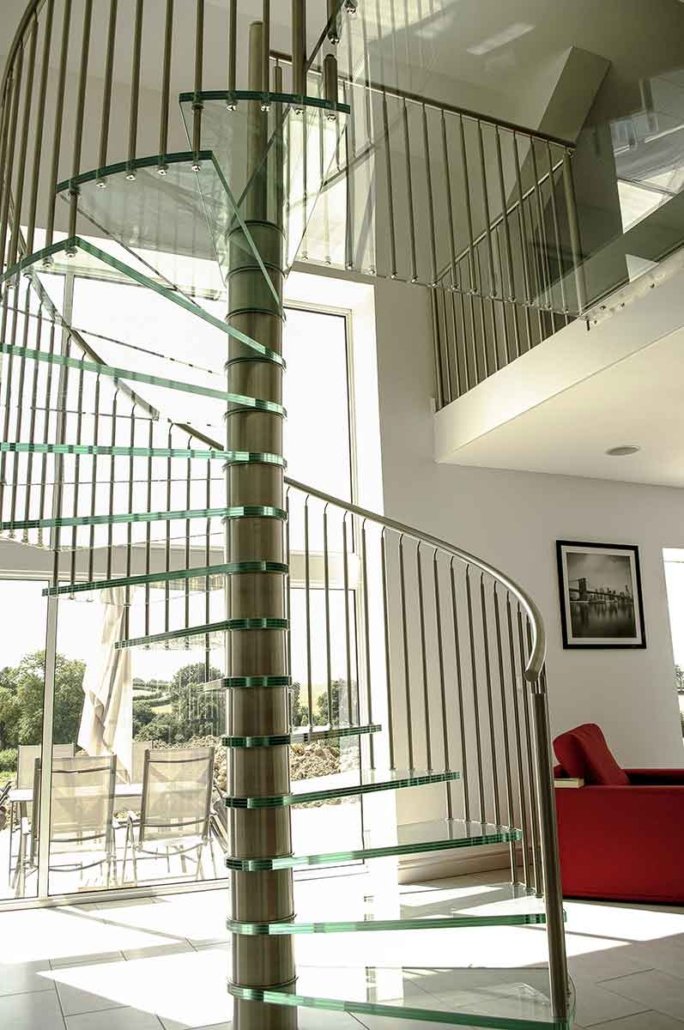

| Handrail | 37,7mm Ø Stainless Steel |
| Centre Column | 146mm Ø |
| Finish of Steel | brushed stainless steel |
| Additional | huge 2 x 2m top platform |
