External Spiral Staircase

Stylish External Spiral Staircases
Galvanised or Powder Coated
Solid & Robust
Balcony Options

External Spiral Staircase

Our selection of external spiral staircases is custom-made to fit any UK location. Crafted from mild steel, they are tailored to the specific height and diameter needed. Customers can choose from various tread and balustrade designs, available in galvanized or powder-coated finishes.

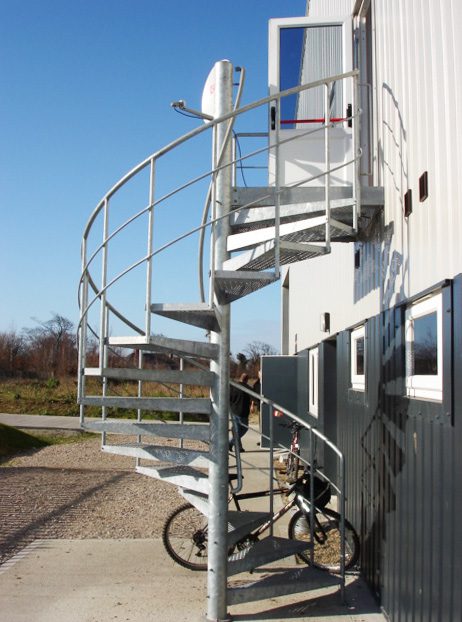

Suitable for domestic settings and small to medium commercial ventures, they can serve as access to roof gardens or act as fire escapes from office buildings.

Each staircase features a central steel column with bolted-on, tapered steel tread arms. Typically, a top platform aligns with the upper floor level.

As they are bespoke, comprehensive technical drawings are produced for each staircase to ensure accurate rotation and height. The manufacturing process takes approximately 8-9 weeks following drawing approval.

1100mm 1200mm 1300mm 1400mm 1500mm 1600mm 1700mm 1800mm 1900mm 2000mm 2100mm 2200mm

Custom Made Diameters

Tread Options

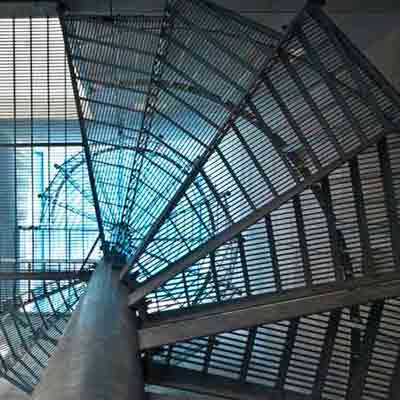

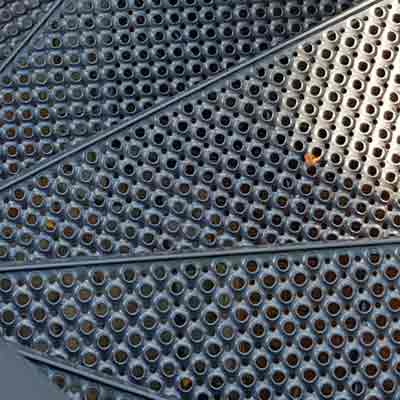

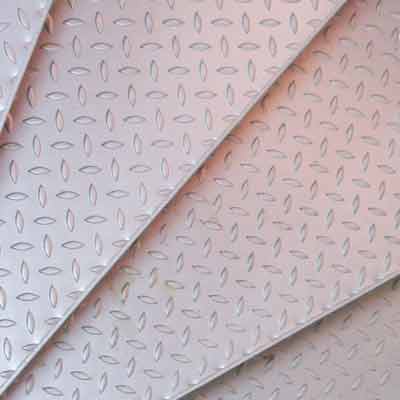

The tapered steel tread are can be supplied with various steel plates welded on the top or left completely flat to take a client supplied finish such as timber decking or millboard. There is even the option to create a steel frame for glass treads.

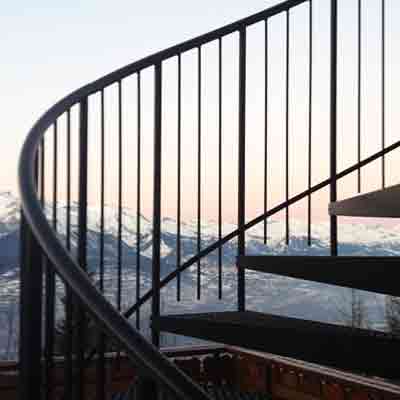

Balustrade Infill Options

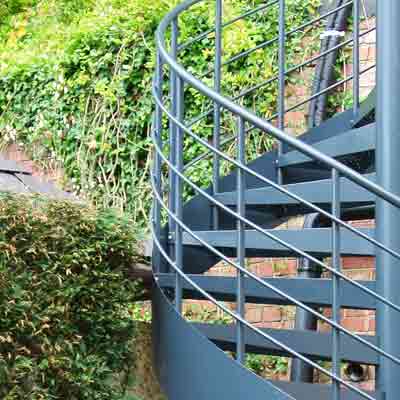

For safety and to support the handrail an infill is require to prevent falling. Please be aware that in the UK for domestic applications, horizontal rails are generally not permitted being considered climbable.

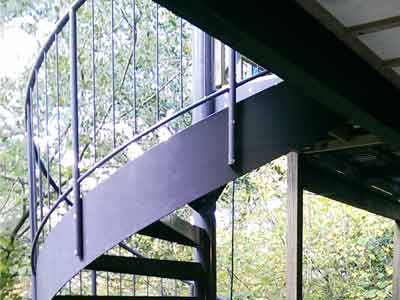

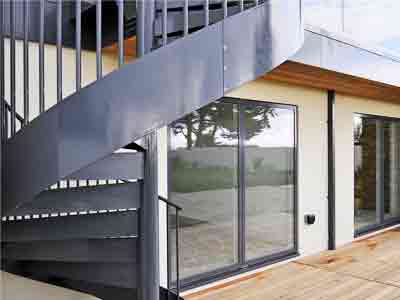

External stringer

An external stringer is a piece of steel that wraps around the perimeter of the spiral, covering the edge of the treads. It added a swooping, twisting feel to the flight. This is either supplied as a structural 8mm piece of mid steel which is bolted directly to the treads or a 1.5mm steel cover piece which gives a similar appearance but it less cost.

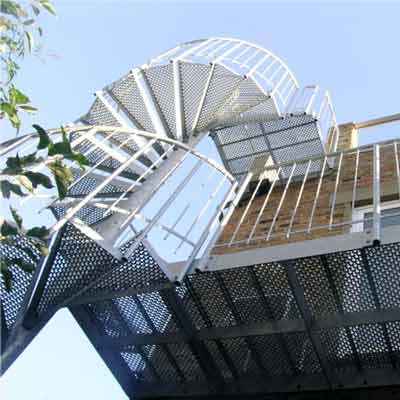

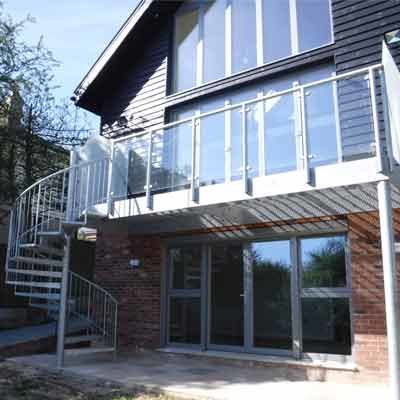

Balconies

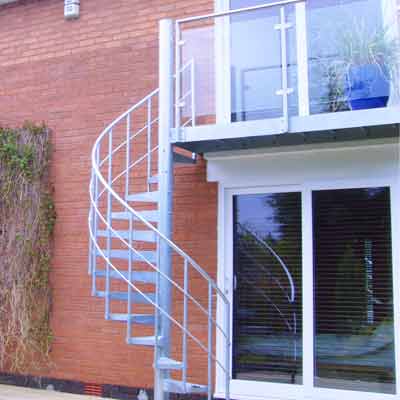

The external spiral staircases come complete with a square top platform. This can be enlarged to incorporate a larger platform or even a substantial balcony area.

External Spiral Staircase Gallery

All 28 /500 - Quarter Turn 0 /500 Half Turn 0 /500 Straight Flight 0 /76 - Acrylic Treads 0 /76 - Curved Panels 0 /76 - Spindles 0 /76-Glass Treads 0 /76-Horizontal Rails 0 /Ash Treads - 71 0 /Beech Treads - 71 0 /cm - Oak Treads 0 /cm- Beech Treads 0 /cm- Steel Handrail 0 /cm-Curved Balustrade Panels 0 /cm-External Stringer 0 /cm-Glass Treads 0 /cm-Horizontal Rails 0 /cm-Maple Treads 0 /cm-Stainless Steel Handrail 0 /cm-Steel Treads 0 /cm-Timber handrail 0 /cm-Vertical Spindles 0 /cm-Walnut Treads 0 /Curved Acrylic Panels - 71 0 /Curved Glass Panels - 71 0 /Download our Staircase Brochure 0 /ex - Galvanised 15 /ex - Galvanised & Powder Coated 13 /Glass Spiral Stair 0 /Horizontal Rails - 71 0 /Kit Stair Website 0 /ks - Outdoor 0 /ks - Steel Steps 0 /ks - Wooden Steps 0 /ks- Indoor 0 /Maple Treads - 71 0 /Metal Spiral Stair 0 /Oak Treads - 71 0 /Outdoor Spiral Stairs 0 /Pained Steel Spindles - 71 0 /Painted Centre Column - 71 0 /Spiral Staircase Gloucester 0 /Spiral Staircase Shropshire 0 /Stainless Centre Column - 71 0 /Stainless Handrail - 71 0 /Stainless Spindles - 71 0 /Timber Centre Column - 71 0 /Timber Handrail - 71 0 /Timber Spindles - 71 0 /timber staircase 0 /View our Timber Stair Website 0 /Visit our Staircase Showroom 0 /WF - Ash 0 /WF - Beech 0 /WF - curved handrail 0 /WF - Half Turn 0 /WF - landing balustrade 0 /WF - Oak 0 /WF - Quarter Turn 0 /WF - Straight Flight 0 /WF - Walnut 0 /Wooden spiral stair 0

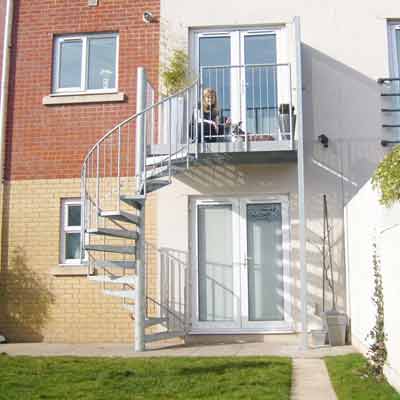

lady on top of an outdoor balcony to back of house with spiral staircase

close up of external stringer of outdoor metal spiral staircase

large external image of modern house with garden

man standing next to an outdoor spiral stair

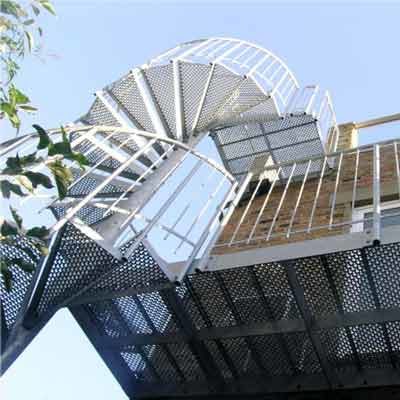

looking up the underside of perforated steps on a outdoor spiral staircase

suspended outdoor balcony with frameless glass balustrade

white outdoor spiral staircase with balcony with purple flowers

galvanised spiral fire escape with trees behind

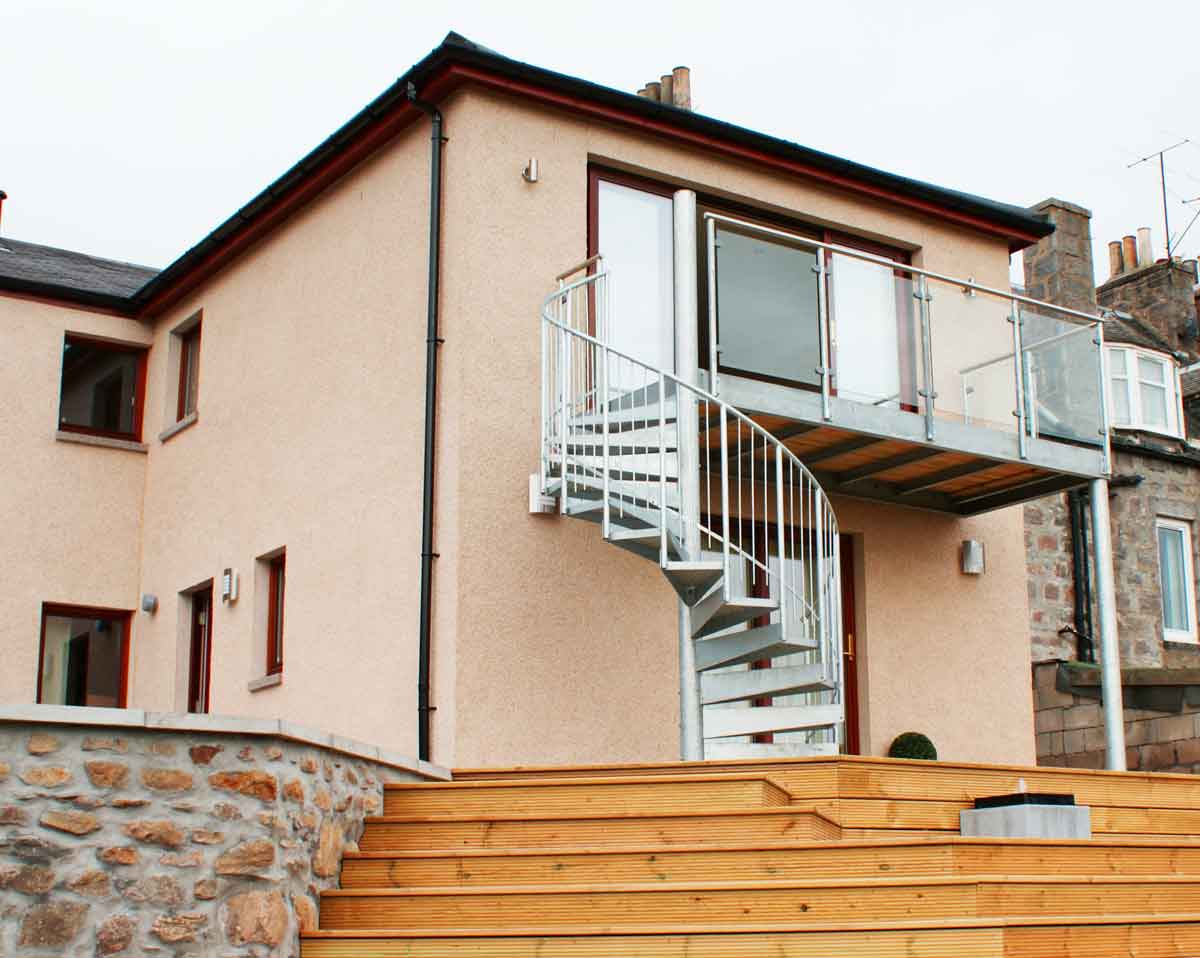

suspended balcony with frameless glass balustrade and a galvanised spiral staircase

steel galvanised spiral leading to building

back of house with two balconies , one with a spiral staircase

looking up at a white outdoor spiral stair with blue sky beyond

perforated grey steel steps on a spiral stair outside

black outdoor spiral staircase with mountains to rear

back of house with large balcony and black spiral staircase

large steel balcony to side a black house with a spiral staircase

underside of spiral stair treads and balcony externally

spiral stair fire escape outside a factory

sky and sea to rear of an outdoor spiral staircase

galvanised outdoor spiral stair leading up to a wooden walkway in a woodland setting

looking up at an external stairwell with glass balsutrade

galvanised spiral stair and balcony to rear of house

external spiral stair leading upto a balcony to the rear of a house

balcony outside with glass balustrade and a spiral staircase in steel

Kit External Spiral Staircases

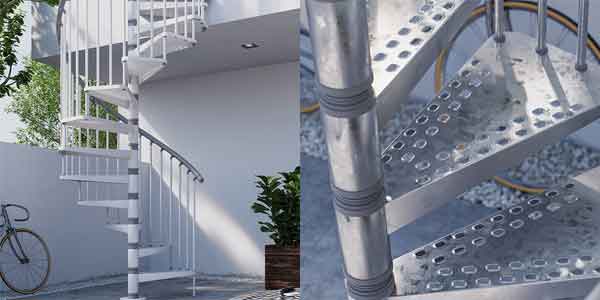

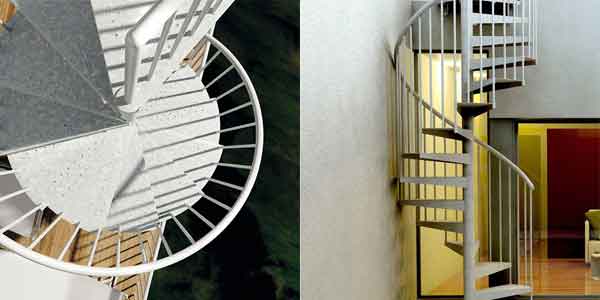

Within our range we also offer several DIY off=the-shelf kit solutions for outdoor use. They are not as versatile as their custom made counterparts but offer terrific value and are available very quickly. Please click the links below for more information.
