Name: Phola Spiral Staircase
SKU: 29728
Availability: InStock

Phola Spiral Staircase

Phola Spiral Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,645.00 – £4,100.00

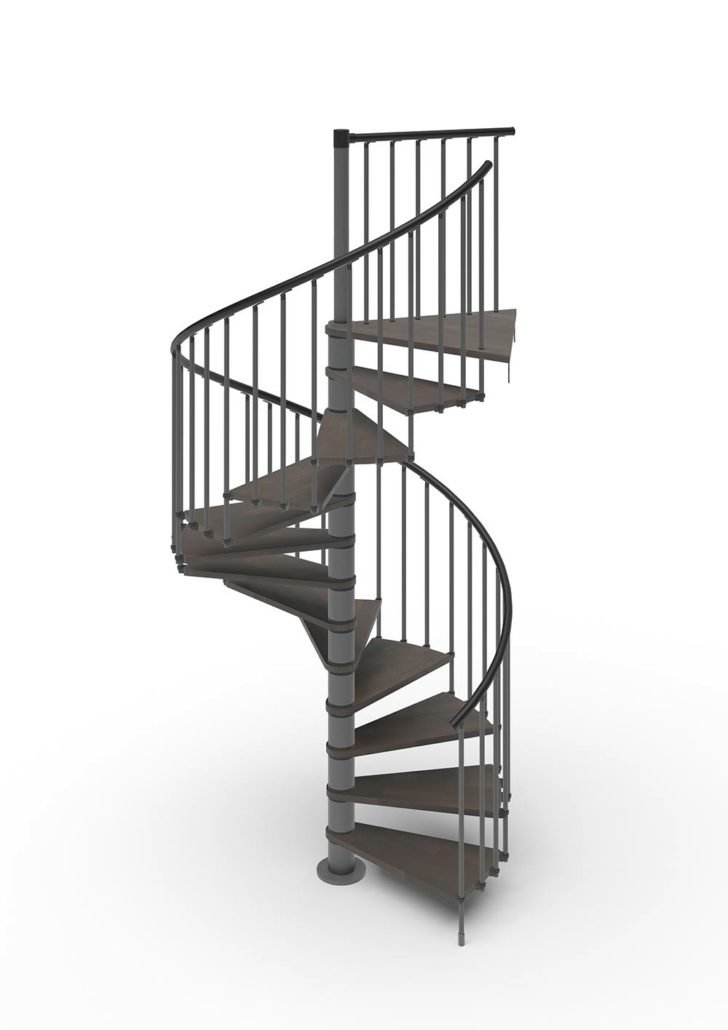

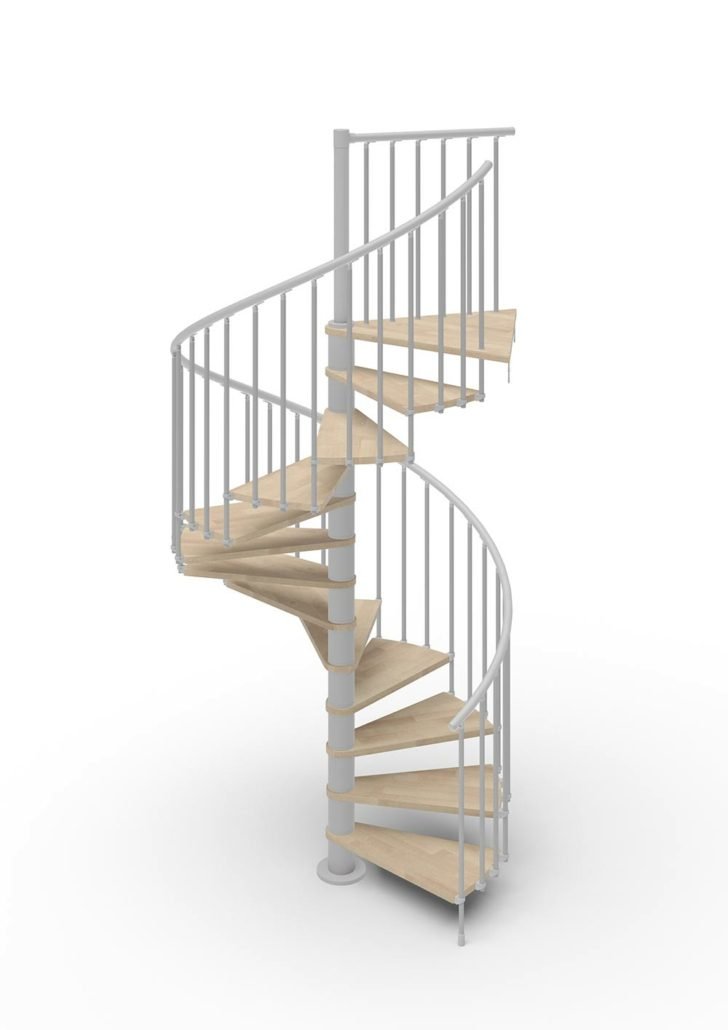

The Phola Spiral Staircase is a splendid kit that marries the natural charm of solid beech with the robustness of steel. It’s intended as a secondary domestic spiral staircase for low-traffic areas, such as a loft conversion or a small mezzanine.

This staircase comes in four different diameters, offering a broad selection of finishes for both the steelwork and the wood. Its unique universal top platform can be trimmed to fit square or circular openings, or even adapted to a trapezoidal shape for corner placement. The Phola Spiral Staircase makes an elegant addition to any room.

Floor to Floor Height

Diameter

Steelwork Finish

Timber Finish

Riser Bars

Landing Balustrade

Clear

SKU: N/A Categories: Phola Spiral Stair, Timber Spiral Staircase, wood spiral stair

Need some assistance? Speak to the spiral experts 01794 522444

Technical Information

Application	Internal Use
Heights	2050-3840mm (for others please contact office)
Diameters	1050mm, 1200mm, 1400mm, 1600mm
Treads	40mm Beechwood
Spindles	20mm diameter steel
Handrail	42mm diameter Nylon White steel -= White handrail Silver steel = Silver handrail Dark Grey steel = Black handrail
Top Platform	Special universal platform
Finish of Steelwork	Powder Coated – White, Light Grey, Dark Grey
Finish of Timber	Natural lacquer White stain Walnut stain Sand stain Cement stain Dove stain Wenge stain

Dark Grey

White

Light Grey

Riser infill Bars

Riser bars are can be added to the order to reduce the gap between the steps.

In the UK the regulations specify a maximum gap between the treads of 100mm. This is to prevent small children falling through the gap.

These riser bars are formed with a 20mm steel bar which is fitted horizontally between the steps which keeps the riser open whilst reducing the gap.

The riser bars can be added to the order above by simply selecting YES on the riser bar drop down.

If you are unsure if you require them, please check with your building control officer.

These can be fitted retrospectively once the stair is assembled but should they are ordered separately, a further delivery charge would be due.

Balustrade for Landing

Landing balustrade is available and sold in 1m length kits. Each kit can be adjusted and cut to suit and can be fitted in a straight run or curved.

An individual kit consists of;-

8 x 20mm diameter Steel spindles
1m length of handrail to match stair
1 x floor support post
1 x handrail to handrail connecting piece
1 x spindle to spindle connector
1 x spindle to wall connector

Building Regulations - Please read and understand before purchase

It is important to check the suitability of your chosen spiral with your local building control department before purchasing. Their requirements will vary depending on the use of the spiral and it’s setting. It is our clients responsibly to ensure the relevant permissions have been sought and granted prior to making any purchase.
We are happy to answer any questions you might have before your purchase but it is your building control officer that will have the final say. We are on 01794 522444

Phola Spiral Staircase Rotations

Gamia Steel-Spiral-clockwise-and-anticlock

Clockwise or Anticlockwise

10 Risers

Clockwise & Anticlockwise

11 Risers

Clockwise & Anticlockwise

12 Risers

Clockwise & Anticlockwise

13 Risers

Clockwise & Anticlockwise

14 Risers

Clockwise & Anticlockwise

15 Risers

Clockwise & Anticlockwise

16 Risers

Clockwise & Anticlockwise

Delivery Info

The Phola Spiral Staircase is considered a custom made order and it is sourced directly from the factory in Italy and delivered to your door.

Delivery times are typically between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery. This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain. A signature will be required to accept the goods and confirm they have arrived in good condition. The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444 info@completestairsystems.co.uk

Frequently asked Questions

What Size of opening do I need in the floor?

The hole in the upper floor should be at least 50mm larger than the spiral diameter you are buying. This is to allow for a knuckle gap clearance as you ascend the spiral. The opening in the floor can be circular or square. For example, a 1500mm diameter spiral would need a 1550mm diameter or 1550 x 1550mm square minimum hole size.

How long does delivery take?

The Phola Spiral is made to order and produced in Italy. It generally takes 4-6 weeks to received your spiral.

What Diameter do I need?

Your requirement will vary depending on the application, the opening you have in the floor above and the building regulations. If you have building control officer involved with the work you are doing, please check what diameter they would be happy with as they are signing off the work. Generally, higher traffic areas would require a larger diameter and low traffic areas would have a smaller diameter.

How difficult is the spiral to install?

In the majority of instances, the spiral is installed in a day by 2 people. This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade. Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

Where does the spiral start and finish?

The entry and exit points of the spiral are a crucial element to consider. If you have a look at the above plan drawings you will be able to see where you get on and get off the spiral. Each model can be assembled clockwise or anticlockwise. If in doubt – please get in touch – 01794 522444.
