Phola Delux Spiral Staircase

Phola Delux Spiral Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£2,020.00£4,605.00

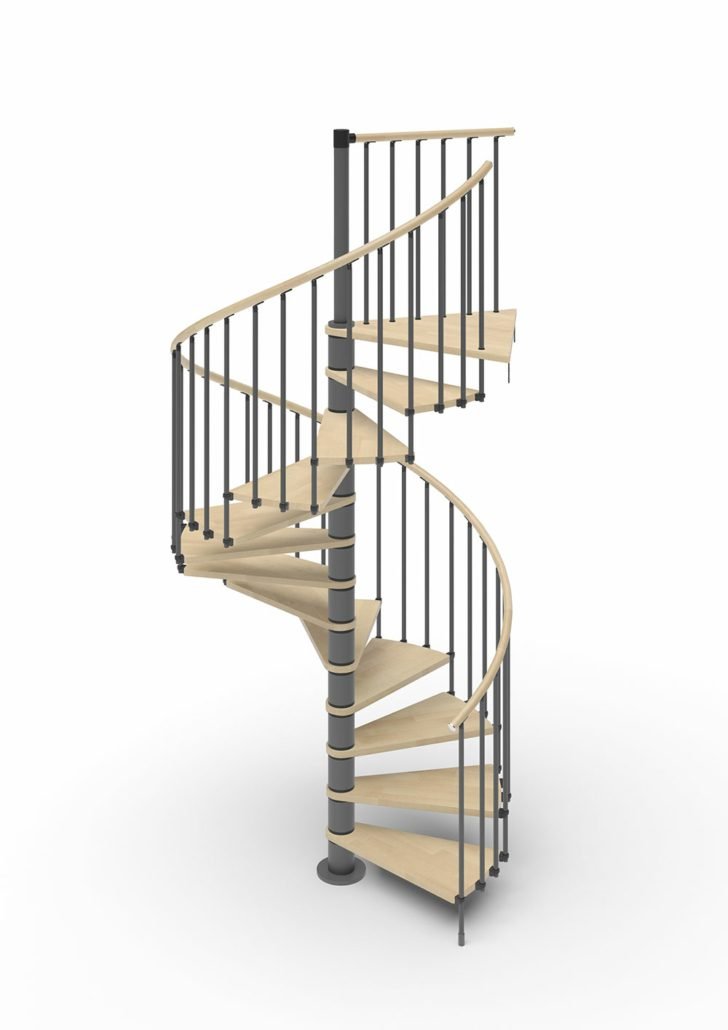

The Phola Delux Spiral Staircase is a sleek, kit stair that melds the durability of steel with the aesthetic appeal of solid beech wood. The Delux version sets itself apart from the standard model through its handrail. While the standard Phola features a Nylon handrail, the Delux boasts a handrail crafted from 50mm solid beech wood, provided in sections. This wooden handrail is designed to match the treads, offering a selection of different stains. The Phola Delux spiral staircase is intended as a secondary domestic spiral stair for areas with low foot traffic.

Available in three diameters, the staircase can reach heights up to 3800mm. Similar to the standard model, it offers a variety of steelwork and timber finishes, with optional riser bars and landing balustrade. The uniquely shaped top platform is delivered slightly oversized, enabling on-site customisation to fit various openings.

The Phola Deluxe Spiral Staircase is an ideal addition to any refurbishment or extension project.

Technical Information

ApplicationInternal Use
Heights2050-3840mm (for others please contact office)
Diameters1200mm, 1400mm, 1600mm
Treads40mm Beechwood
Spindles20mm diameter steel
Handrail50mm diameter Beechwood
Top PlatformSpecial universal platform
Finish of SteelworkPowder Coated – White, Light Grey, Dark Grey
Finish of TimberNatural lacquer
White stain
Walnut stain
Sand stain
Cement stain
Dove stain
Wenge stain
Phola Beech finishes

Riser infill Bars

Riser bars are can be added to the order to reduce the gap between the steps.

In the UK the regulations specify a maximum gap between the treads of 100mm.  This is to prevent small children falling through the gap.

These riser bars are formed with a 20mm steel bar which is fitted horizontally between the steps which keeps the riser open whilst reducing the gap.

The riser bars can be added to the order above by simply selecting YES on the riser bar drop down.

If you are unsure if you require them, please check with your building control officer.

These can be fitted retrospectively once the stair is assembled but should they are ordered separately, a further delivery charge would be due.

Riser Bar Gamia

Balustrade for Landing

Landing balustrade is available and sold in 1m length kits.  Each kit can be adjusted and cut to suit and can be fitted in a straight run or curved.

An individual kit consists of;-

  • 8 x 20mm diameter Steel spindles
  • 1m length of handrail to match stair
  • 1 x floor support post
  • 1 x handrail to handrail connecting piece
  • 1 x spindle to spindle connector
  • 1 x spindle to wall connector
Phola Balustrade
Phola Spiral Staircase layout

Phola Delux Spiral Staircase Rotations

Gamia Steel-Spiral-clockwise-and-anticlock

Clockwise or Anticlockwise

Phola-Spiral-10-risers

10 Risers

Clockwise & Anticlockwise

Phola-Spiral-11--risers

11 Risers

Clockwise & Anticlockwise

Phola-Spiral-12--risers

12 Risers

Clockwise & Anticlockwise

Phola-Spiral-13--risers

13 Risers

Clockwise & Anticlockwise

Phola-Spiral-14-risers

14 Risers

Clockwise & Anticlockwise

Phola-Spiral-15--risers

15 Risers

Clockwise & Anticlockwise

Phola-Spiral-16--risers

16 Risers

Clockwise & Anticlockwise

Delivery Info

The Phola Delux Spiral Staircase is considered a custom made order and it is sourced directly from the factory in Italy and delivered to your door.

Delivery times are typically between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery.  This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain.  A signature will be required to accept the goods and confirm they have arrived in good condition.  The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444    info@completestairsystems.co.uk

Frequently asked Questions

The hole in the upper floor should be at least 50mm larger than the spiral diameter you are buying.  This is to allow for a knuckle gap clearance as you ascend the spiral. The opening in the floor can be circular or square.  For example, a 1500mm diameter spiral would need a 1550mm diameter or 1550 x 1550mm square minimum hole size.

The Phola Spiral is made to order and produced in Italy.  It generally takes 4-6 weeks to received your spiral.

Your requirement will vary depending on the application, the opening you have in the floor above and the building regulations.  If you have building control officer involved with the work you are doing, please check what diameter they would be happy with as they are signing off the work.  Generally, higher traffic areas would require a larger diameter and low traffic areas would have a smaller diameter.

In the majority of instances, the spiral is installed in a day by 2 people.  This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade.  Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

The entry and exit points of the spiral are a crucial element to consider.  If you have a look at the above plan drawings you will be able to see where you get on and get off the spiral.  Each model can be assembled clockwise or anticlockwise. If in doubt – please get in touch – 01794 522444.

Installation Instructions

Phola-Spiral-Staircase-Instructions-3
