Modern Steel & Glass Staircases Edinburgh

You are here: Home1 / Modern Staircases2 / Model 500 Staircase3 / Modern Steel & Glass Staircases Edinburgh

Modern Steel and Glass Staircases on Edinburgh coast – semi detached new builds

  • Right-circled Right-circled

    Edinburgh, Scotland

  • Right-circled Right-circled

    Build Type - 2 x New Build

  • Right-circled Right-circled

    Model - Model 500 Staircase

  • Right-circled Right-circled

    Style - Open and Light

  • Right-circled Right-circled

    Materials - Oak, Steel and Glass

  • Right-circled Right-circled

    Shape - 4 x Straight Flight

The Brief

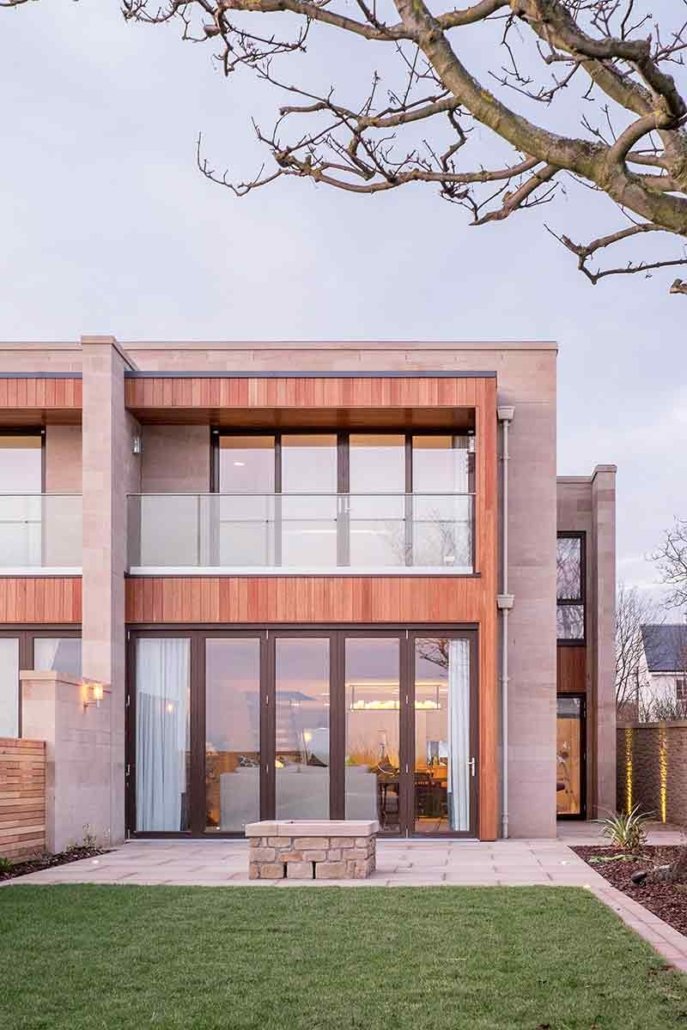

This project involved supplying four straight-flight Model 500 staircases for a new-build residential development on the Edinburgh coast. Each semi-detached home required two staircases that complemented the open-plan interiors and delivered a modern, light, and airy feel.

The brief was to provide a clean, contemporary staircase design that maximised space and natural light, while fitting seamlessly into the layouts of the semi-detached homes and creating a strong architectural feature within each property.

The Solution

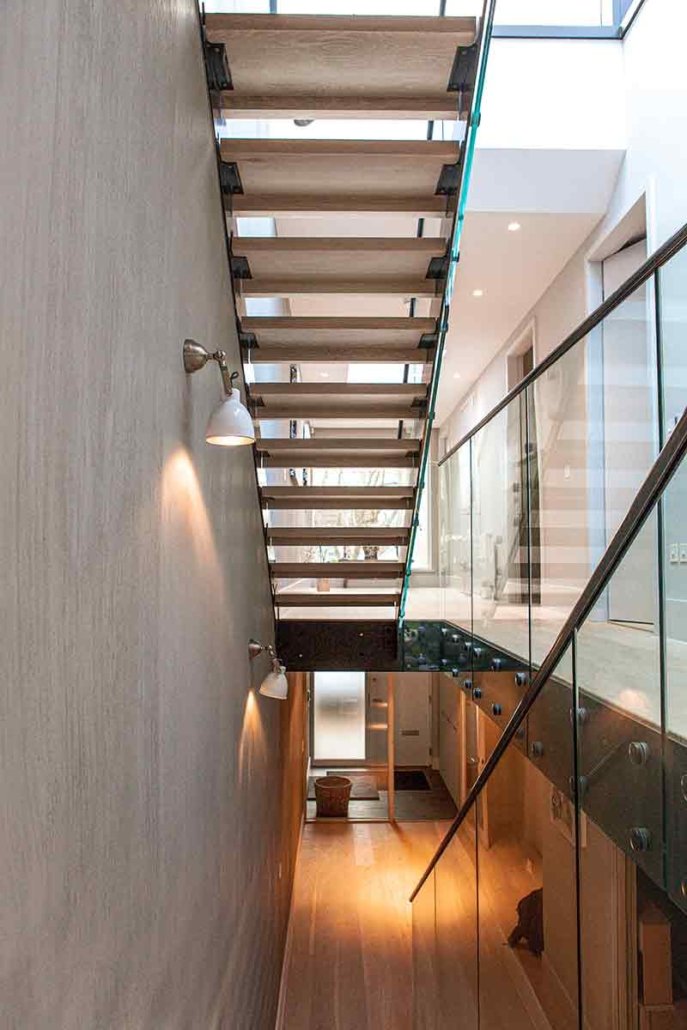

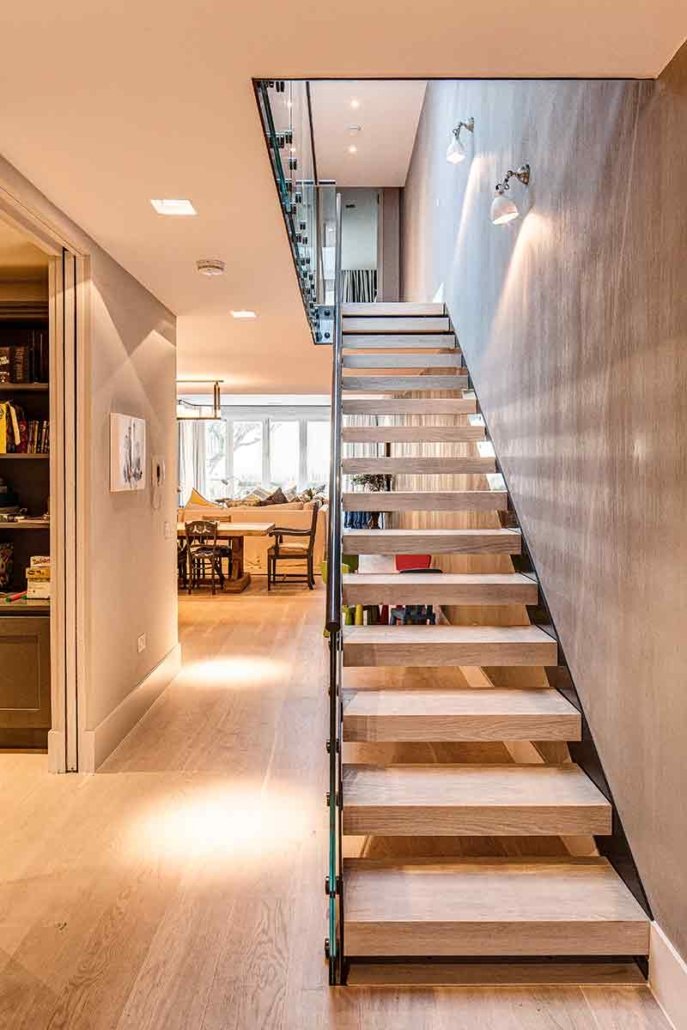

We designed and installed four bespoke straight-flight Model 500 staircases, with two per semi-detached home, using a steel spine for structural integrity and open timber treads to maintain a sense of space.

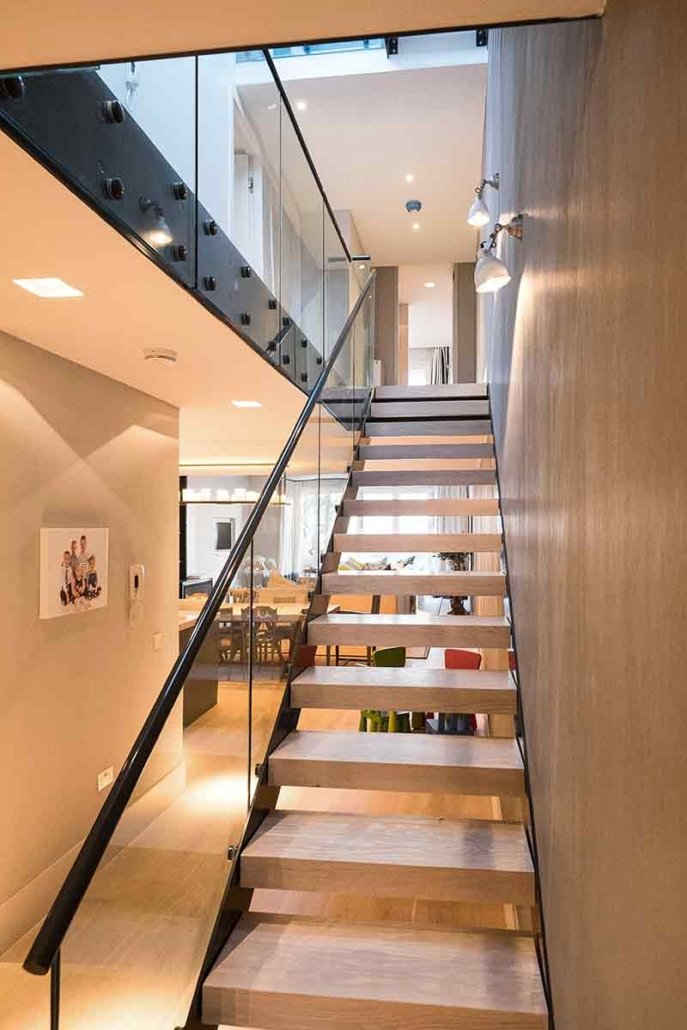

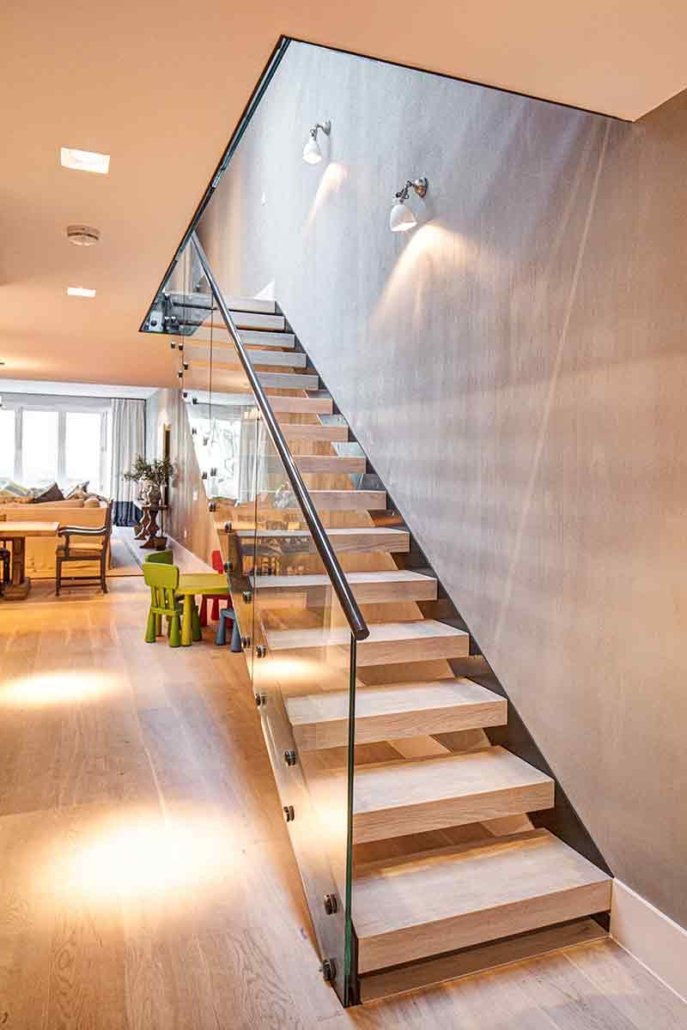

Frameless glass balustrades were installed along each stair flight, enhancing the flow of light through the interiors and creating a minimalist, modern look. The combination of powder-coated steel, oak treads, and clear glass provided a durable yet visually striking design, perfectly suited to the clean, contemporary aesthetic of the development.

The staircases were carefully engineered to ensure consistency across all homes, while fitting precisely within the layouts, creating an elegant and functional solution for each property.

Modern Steel and glass staircase Edinburgh – Technical Specifications

Floor to floor height3310mm
Risers16 @ 206.8mm
Staircase Width1000mm
Staircase Stringers
flat top and bottom
Staircase Treads50mm Oak
Balustrade TypeFrame-less Glass Panels
Handrail42.4mm Ø Stainless Steel
Riser Infill
L shaped treads
Finish of SteelPowder Coated

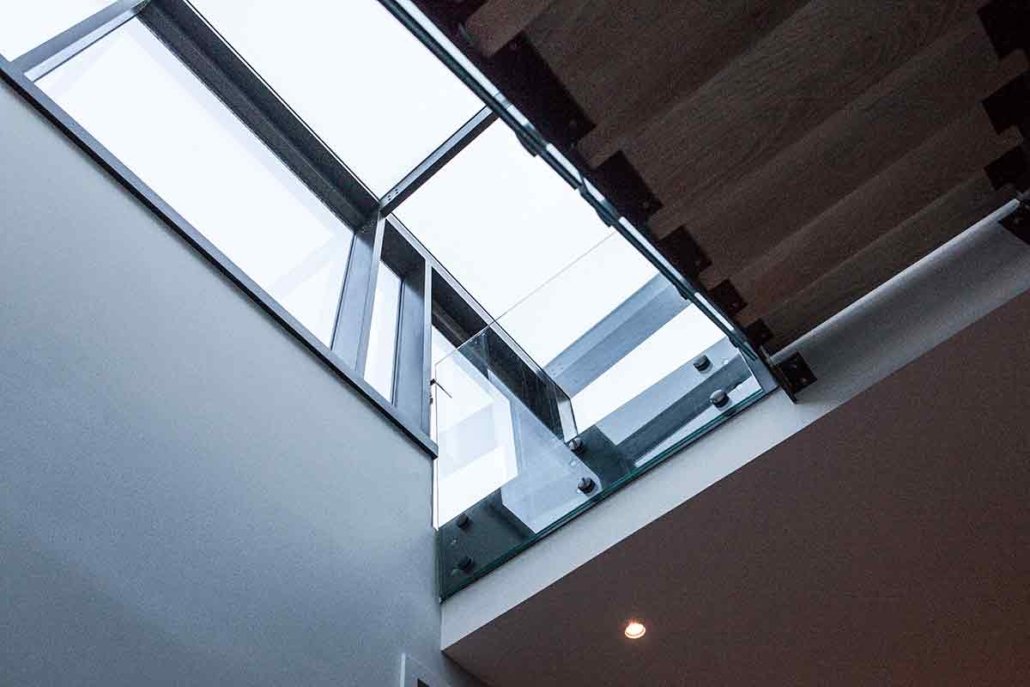

Additional3m matching landing balustrade
