Spiral Staircase Somerset

You are here: Home1 / Spiral Staircases2 / Wooden Spiral Stairs3 / Spiral Staircase Somerset

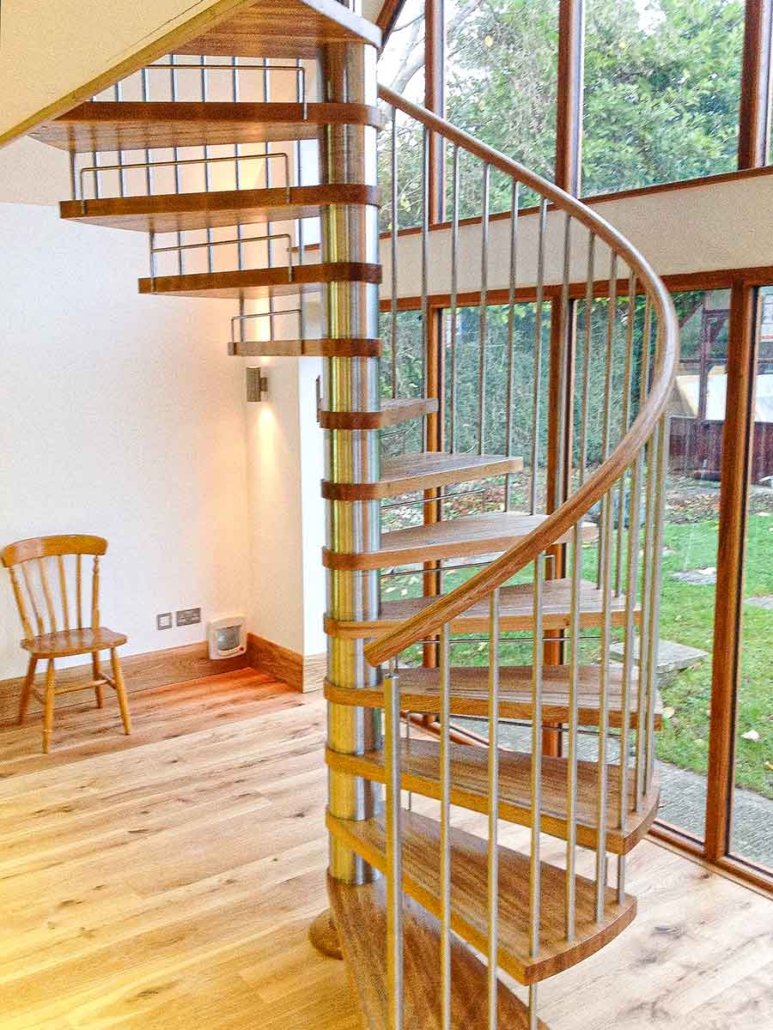

Wood Spiral Staircase in Somerset extension

  • Right-circled Right-circled

    Chard, Somerset

  • Right-circled Right-circled

    Build Type -House Extension

  • Right-circled Right-circled

    Model - Model 71 Spiral Stair

  • Right-circled Right-circled

    Style - Modern and light

  • Right-circled Right-circled

    Materials - Oak treads and open risers

  • Right-circled Right-circled

    Diameter - 1900mm

Our spiral staircase Somerset project was supplied to a couple in the quaint market town of Chard, who were carrying out an impressive two-storey extension to their property.

Brief

The extension was designed to be light, airy and open plan. The client wanted a modern, feature staircase to access a mezzanine space in the extension but also had to respect the original character of the property. They also wanted a staircase that required minimal maintenance, and that was achievable within a tight budget. They also wanted to make sure that the staircase did not impede the flow of light from the large window at the front of the property.

The Solution

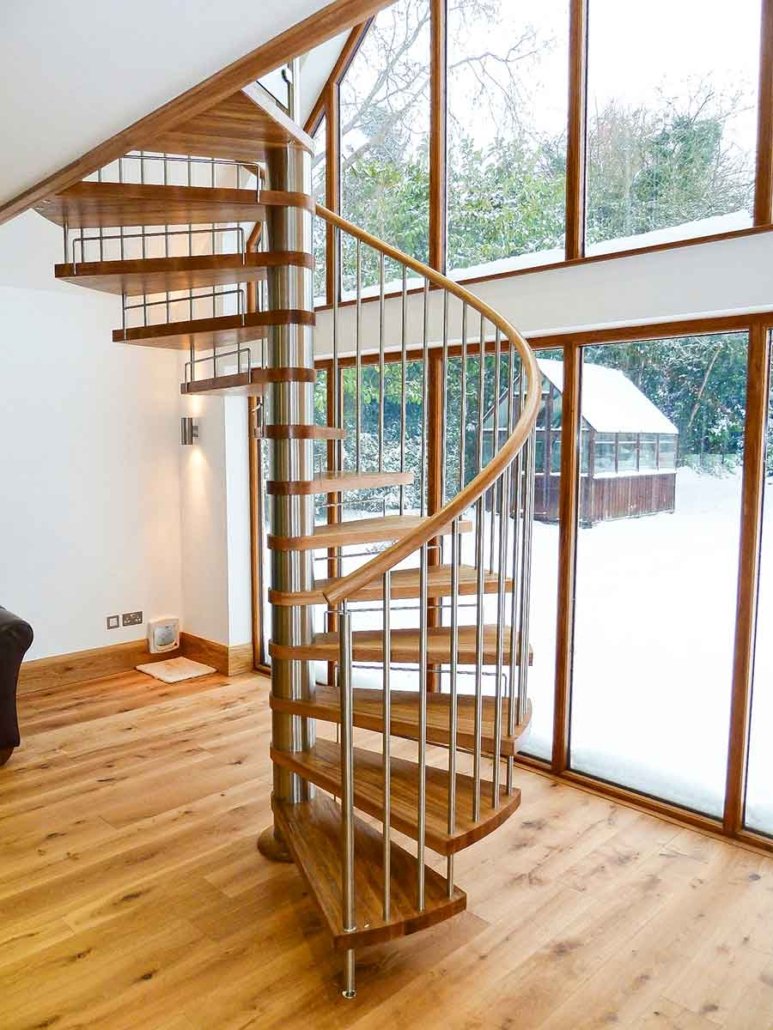

To respect the original character of the property, we proposed hard wearing oak treads with a low maintenance, hard wearing satin lacquer. To keep within budget, we then proposed brushed stainless steel spindles for the balustrade infill. Not only are these easy to maintain, but they also helped to give a modern aesthetic to stay in keeping with the rest of the extension. To stay in keeping with the treads, we finished the balustrade with a curved oak handrail. The open risers on the staircase allowed the light to flow in through the large window at the front of the property.

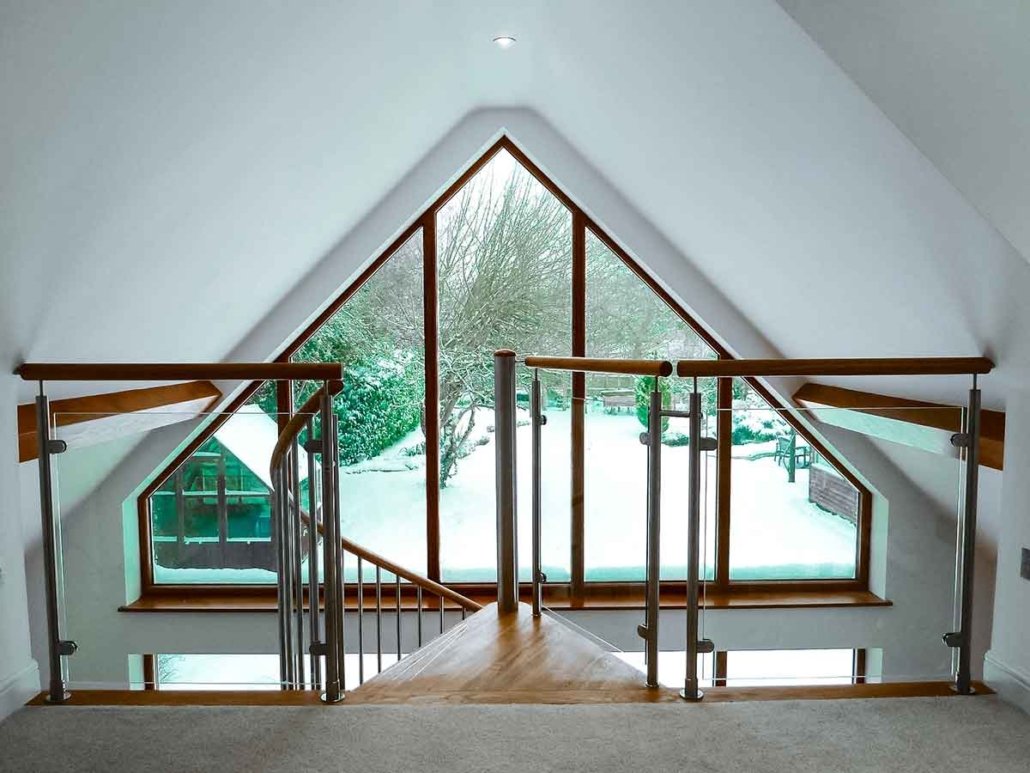

Aside from its appearance, the staircase provided the family with the access they required to the first floor mezzanine and created a real focal point in their new extension.

Project Recap

  • Create a light, open and modern staircase that respected the original character of the property.
  • Create a focal point for the room.
  • Design the stair to allow the maximum flow of light.
  • Deliver the brief within a reasonable budget.

Summary

The final staircase exceeded the clients brief, provided the access solution they required, and came in within budget.

Spiral Staircase Somerset- Technical Specifications

Floor to floor height2840mm
Risers14 @ 202.8mm
Spiral Diameter1900mm
Clear Tread Width810mm
Tread Type50mm Oak
Balustrade Type20mm Ø Stainless Steel Spindles
Handrail50mm Ø Oak
Centre ColumnBrushed Stainless Barrels
Finish of SteelBrushed Stainless Steel

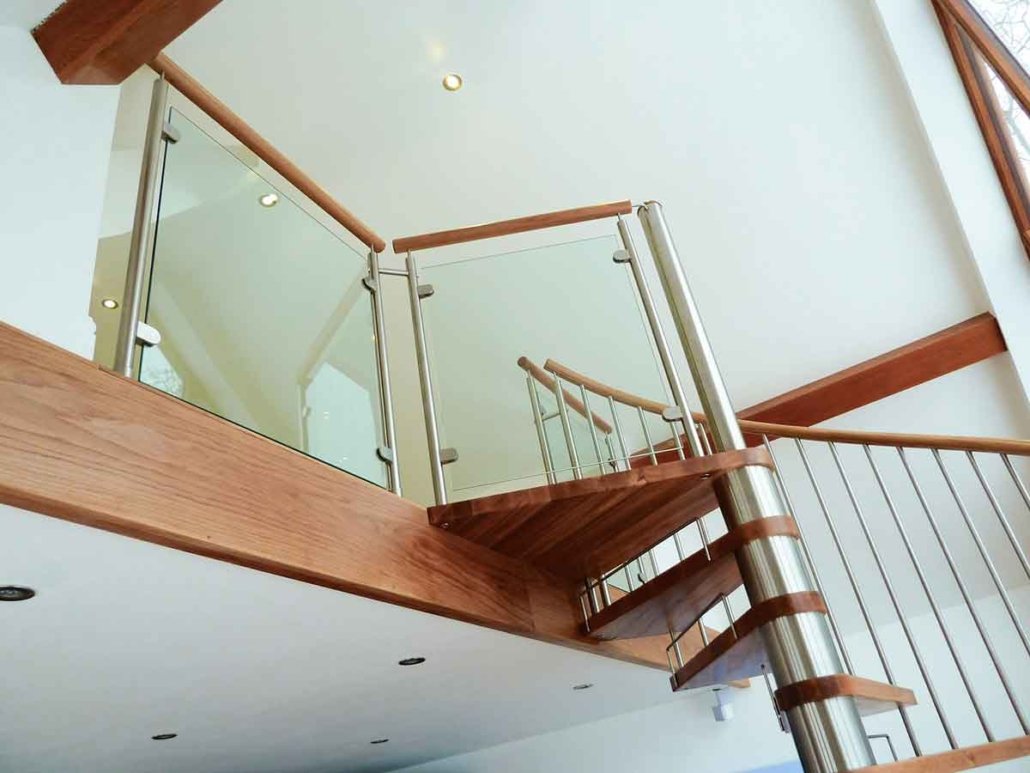

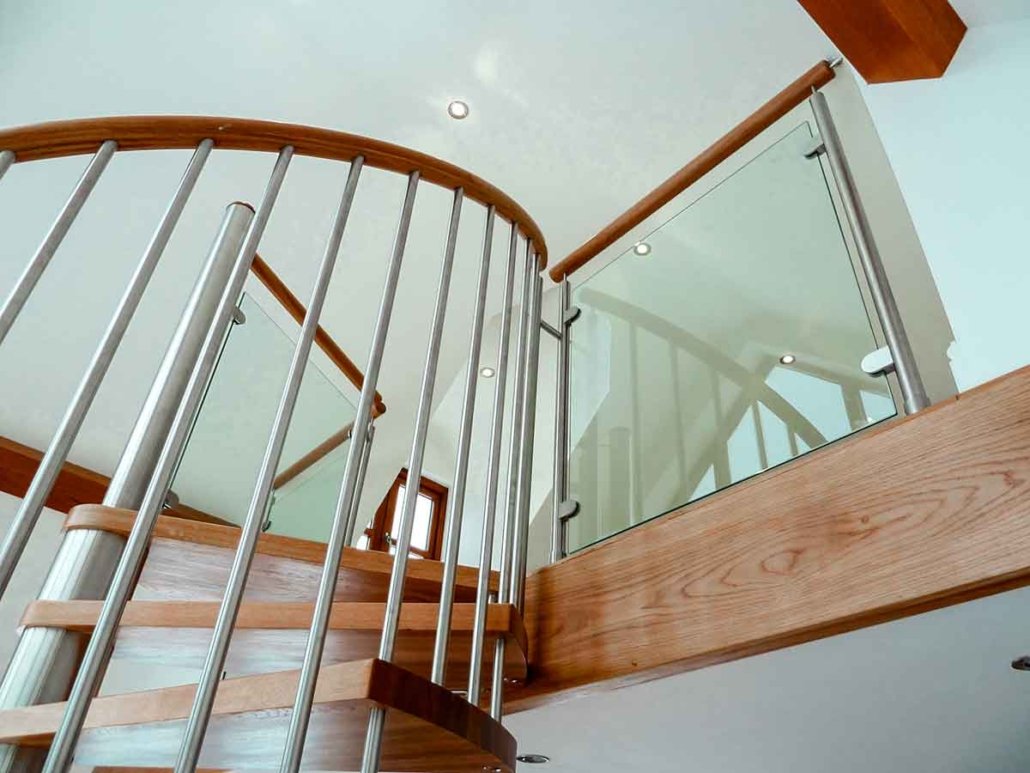

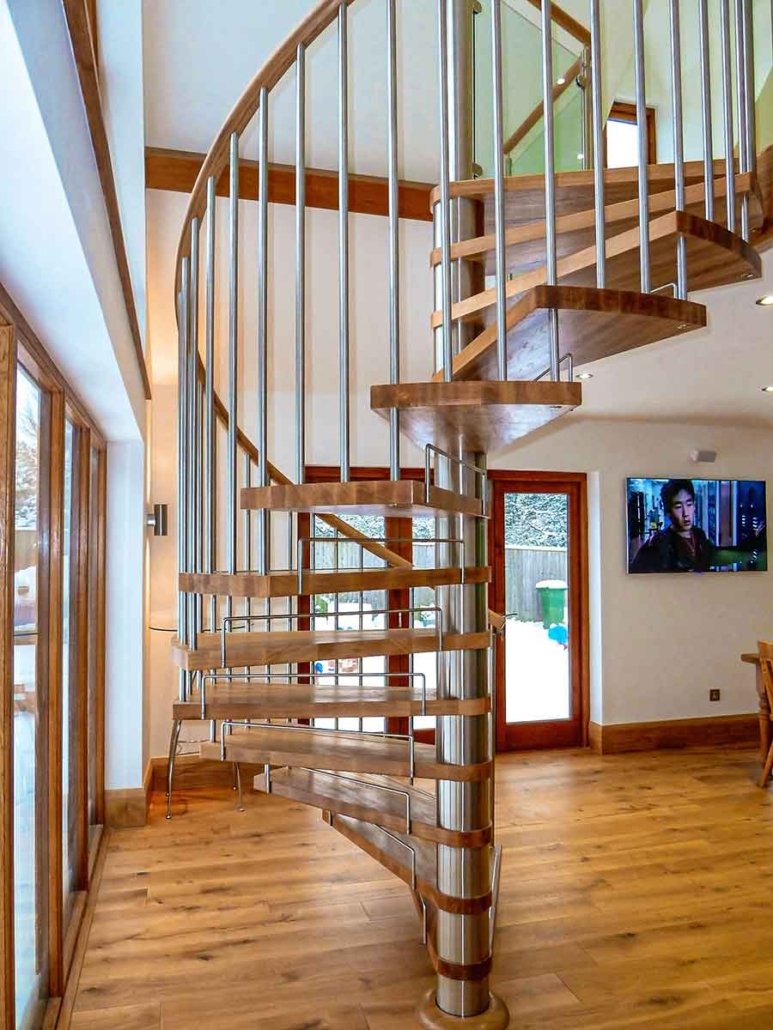

AdditionalRiser bars and glass landing balustrade

Contact us about project Spiral Staircase Somerset- Model 71
