A local client renovating their barn conversion needed to replace a bulky half-turn staircase.

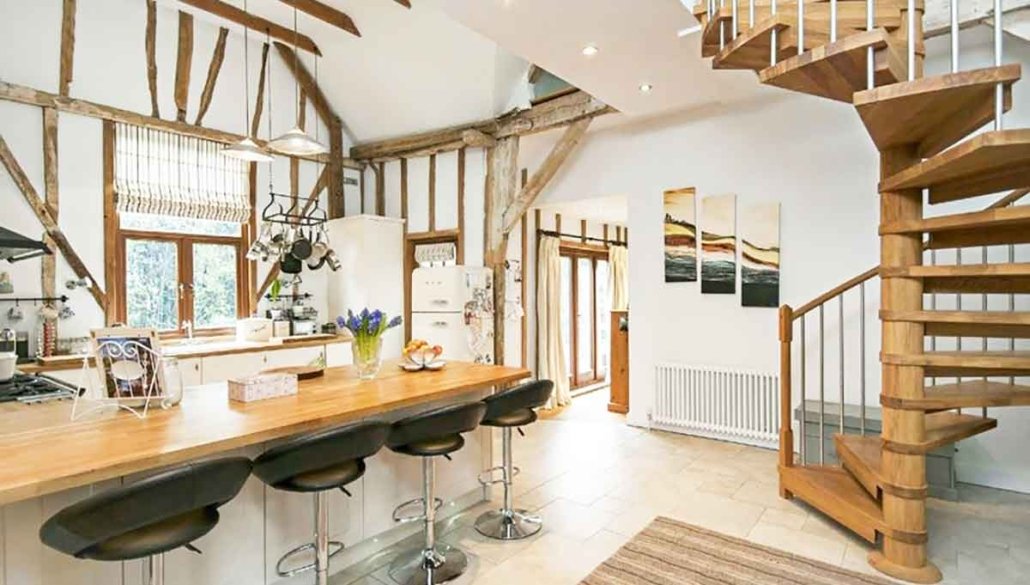

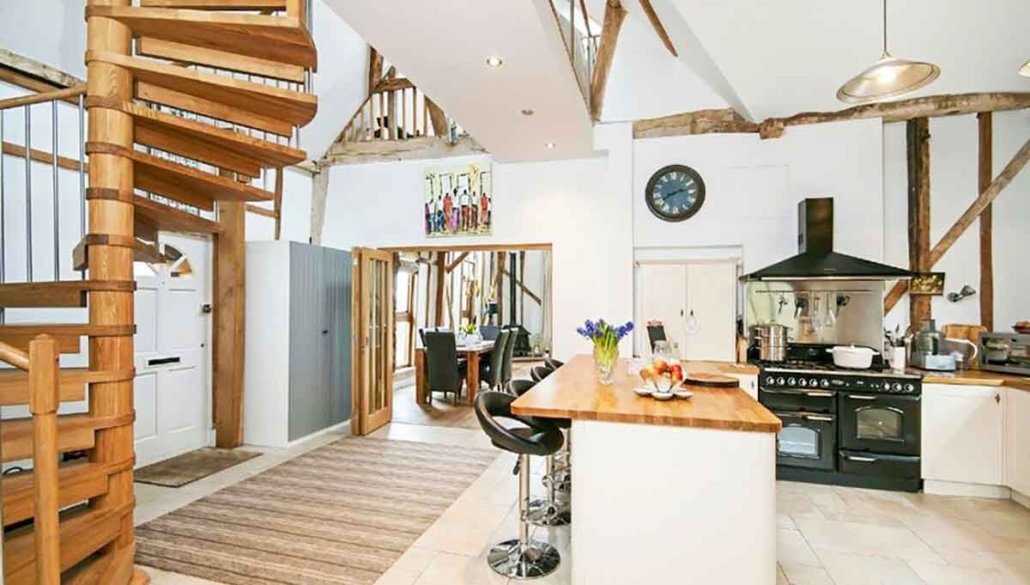

The new spiral staircase would connect a walkway between the study and bedrooms. After plenty of discussions with the client and builder, we decided on a blend of contemporary style—to complement the new kitchen, lighting, and flooring downstairs—and traditional touches to match the exposed oak beams.

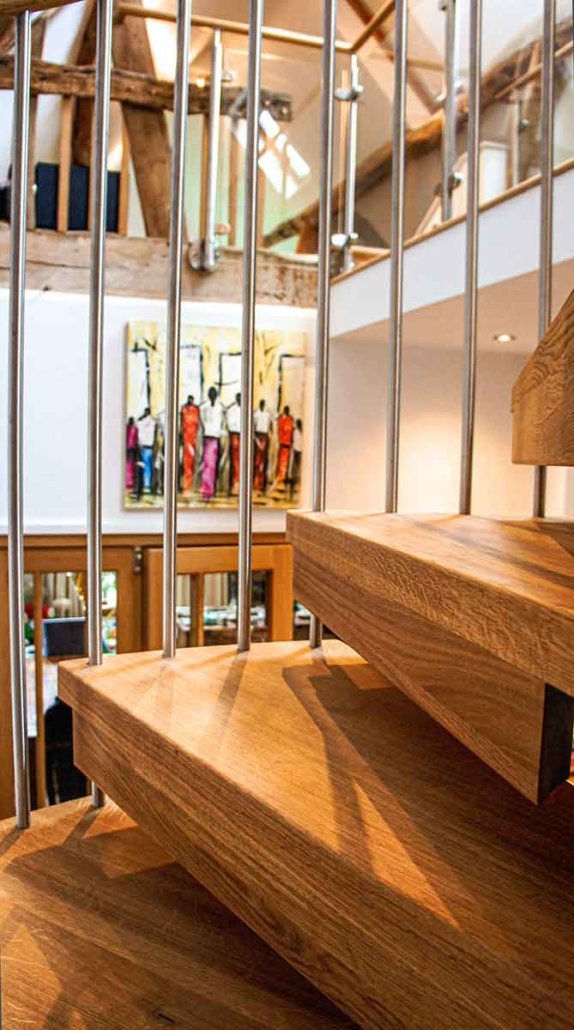

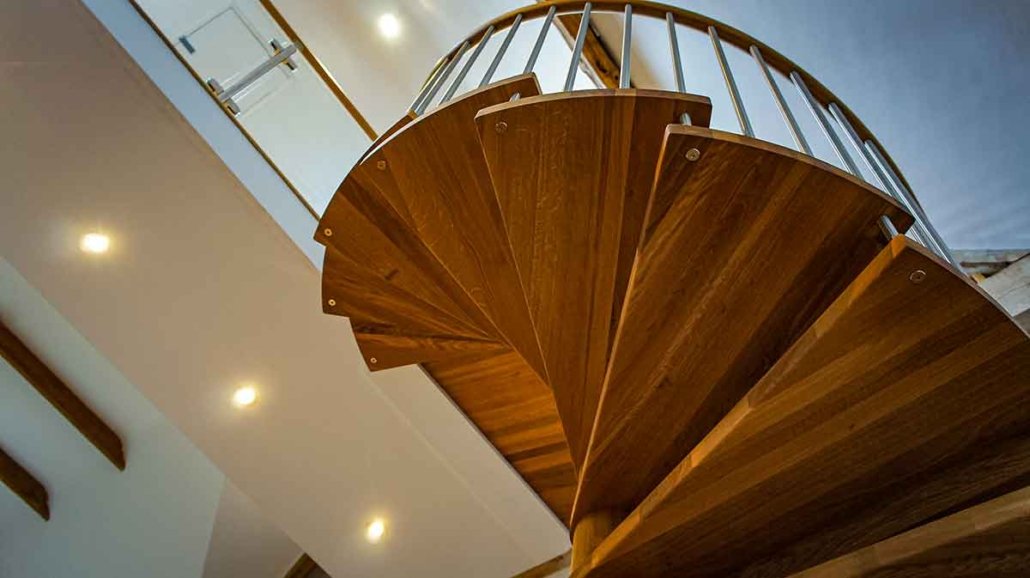

The chosen Model 71 spiral staircase featured solid oak treads, centre column, and handrail, with brushed stainless steel spindles to coordinate with the landing balustrade we also provided. This balustrade, protecting both sides of the walkway, was built with brushed stainless posts and toughened glass infill panels.
The Brief
Our customer required
- A spiral staircase to reach her bridge connecting the upstairs rooms
- Use of oak to match existing oak beams in barn
- 2m headroom on spiral below sloping roof

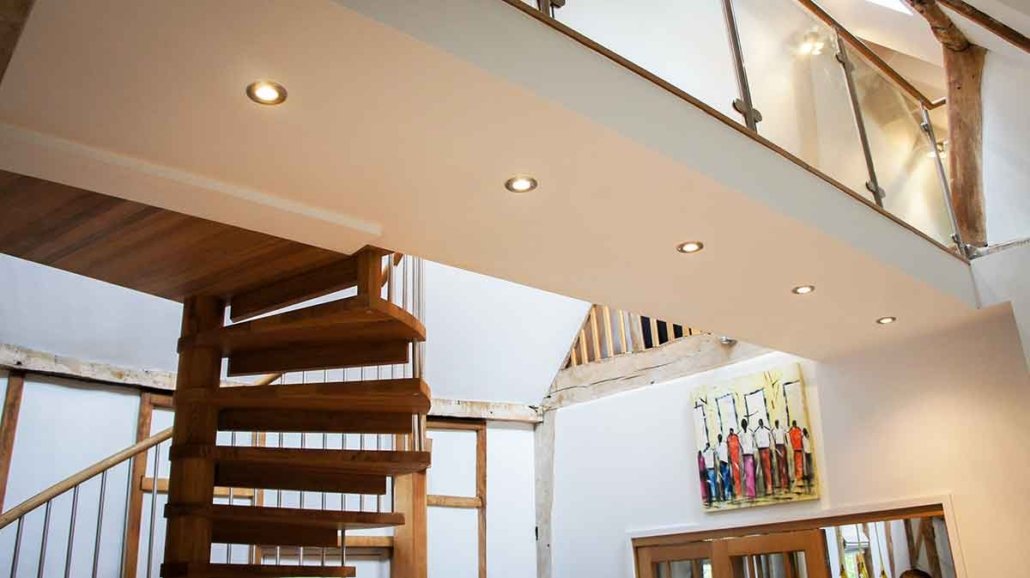

- Glass balustrade along bridge
- A space saving solution to replace existing half turn stair
The Solution
After a showroom visit our customer selected the model 71 spiral staircase
- This was made with a specific platform shape to ensure headroom clearance

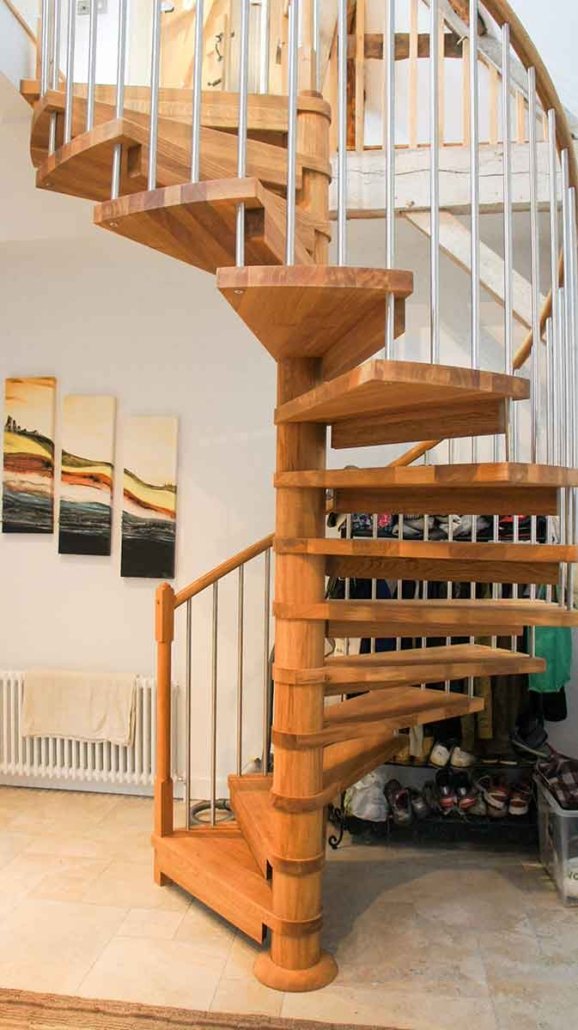

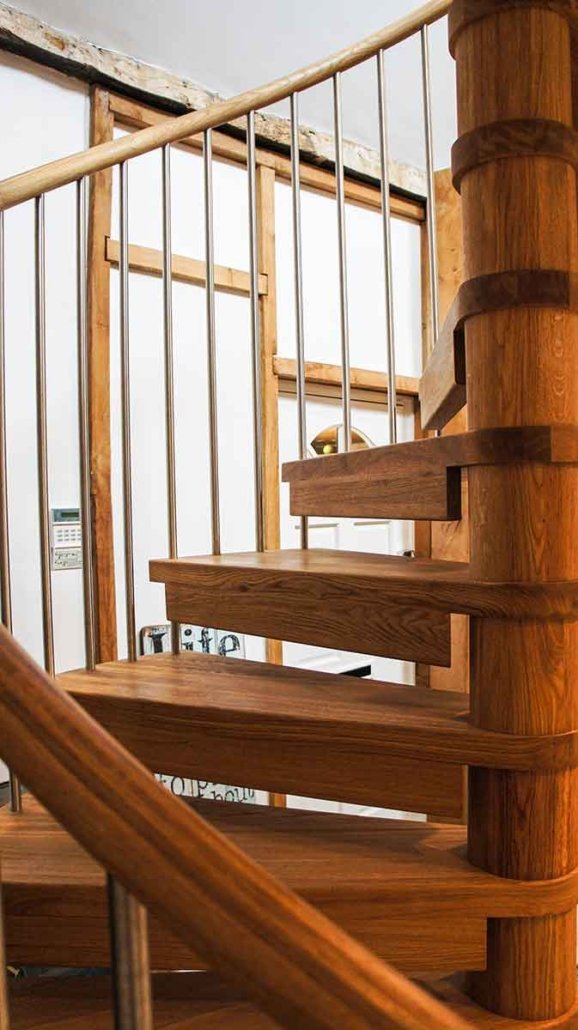

- Manufactured in oiled oak treads, column and handrails to match beams in property
- Large enough in diameter to meet ‘main stair’ regulations
- Glass balustrade on balcony for protection
Spiral Staircase Romsey- Technical Specifications
| Floor to floor height | 3205mm |
| Risers | 15 @ 214mm |
| Spiral Diameter | 1900mm |
| Tread Type | 50mm Oak |
| Riser Infill | Special L shaped treads |
| Balustrade Type | 20mm Ø Stainless Steel Spindles |
| Handrail | 50mm Ø Oak |
| Centre Column | Oak Barrels |
| Finish of Timber | Oiled |
| Additional | 10m glass landing balustrade supplied |
