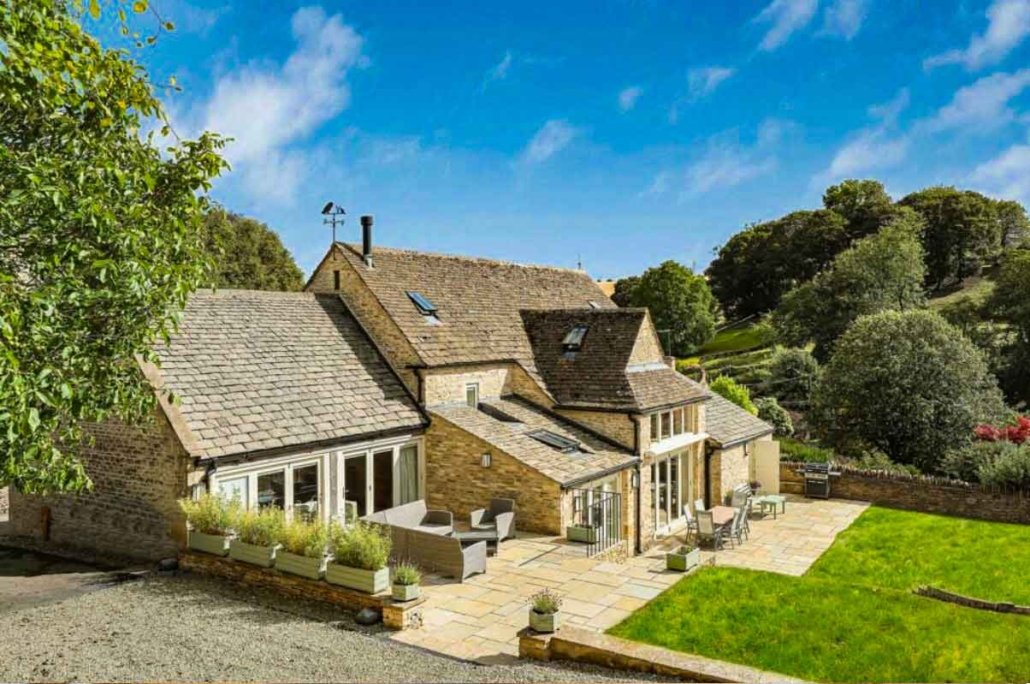

Two Model 71 spiral staircases were provided to a developer converting barns into high-spec dwellings.
Both were needed to reach a small room in the eaves, which could serve as a bedroom or study.

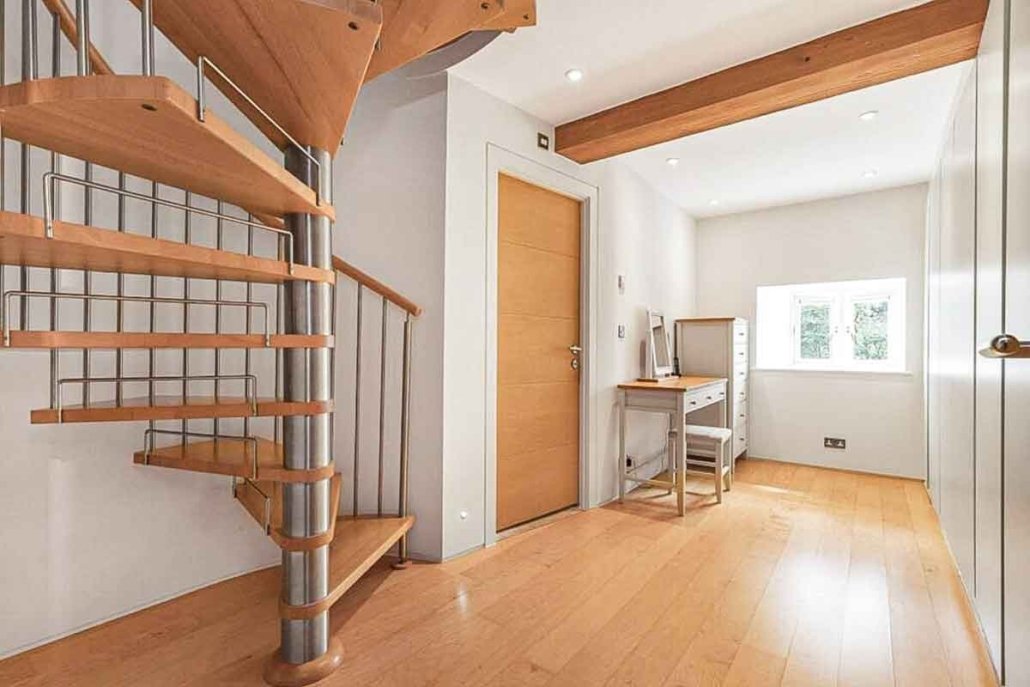

The staircases featured oak treads and handrails, complemented by brushed stainless steel columns and spindles.
The downstairs exit on each was carefully planned to follow a curved wall, ensuring the first tread didn’t extend too far forward.
The Brief
Our client required
- 2 x modern space saving spiral stairs for a barn conversion
- Natural timber to tie in with the wooden beams on show
- A clean and modern look to match the new interior
The Solution
We supplied our model 71 spiral staircase which –
- Enabled up to get the first tread in the right position
- Was made with solid oak treads and handrail to match beams

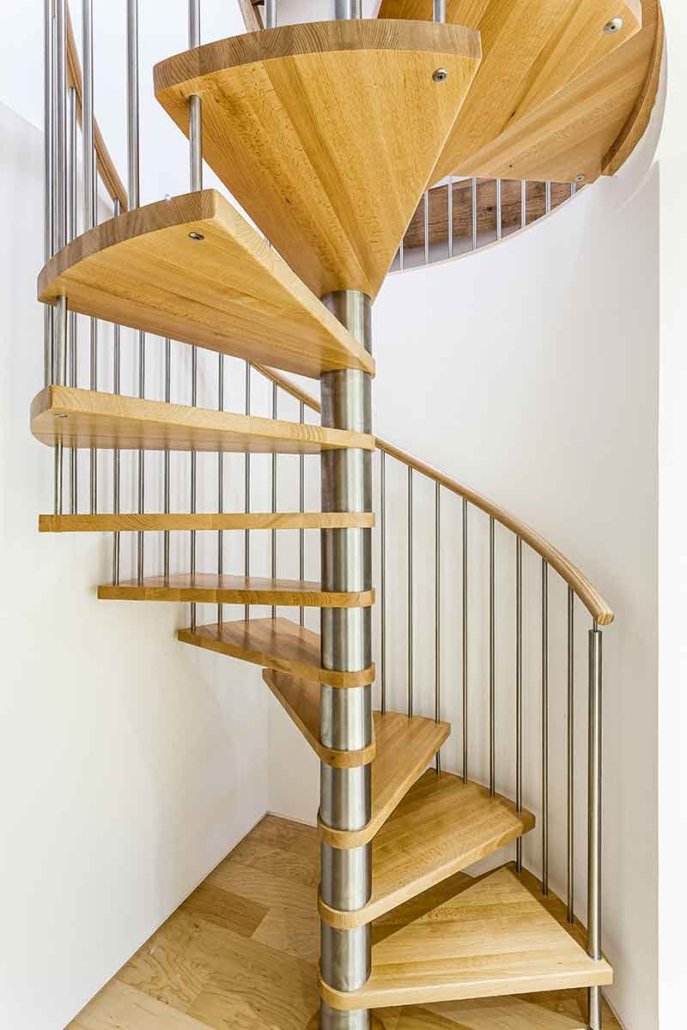

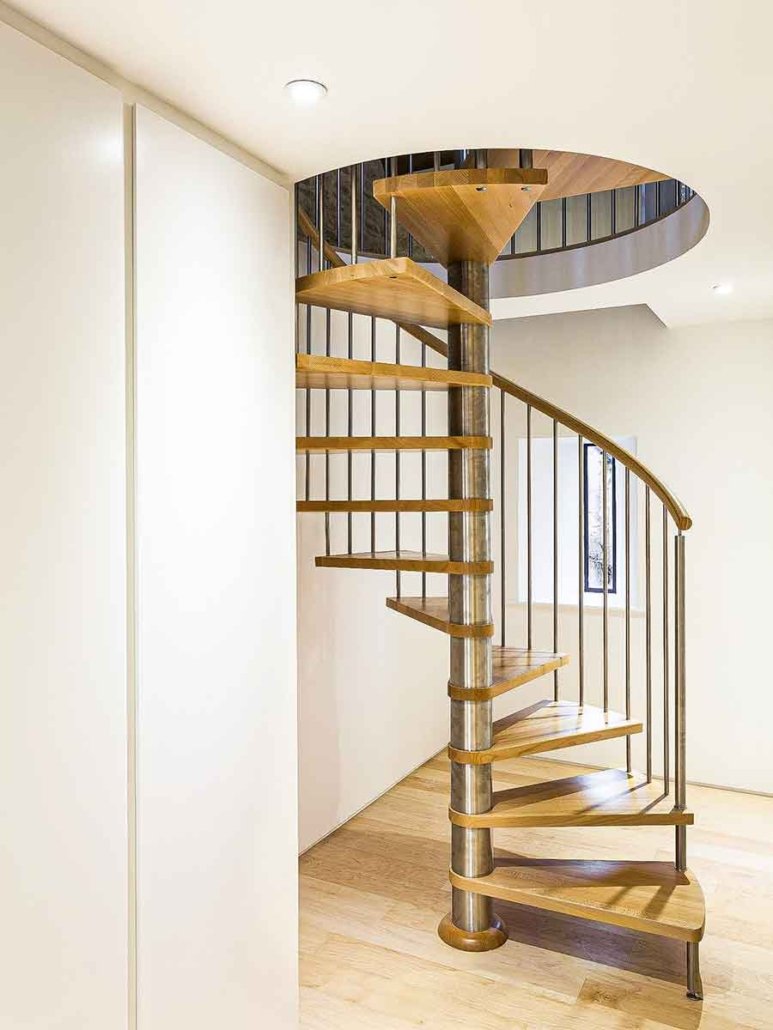

- Brushed stainless spindles and column maintained the modern appearance
Spiral Staircase Gloucester- Technical Specifications
| Floor to floor height | 2500mm |
| Risers | 12 @ 208.3mm |
| Spiral Diameter | 1300mm |
| Clear Tread Width | 550mm |
| Tread Type | 40mm Oak |
| Balustrade Type | 16mm Ø Stainless Steel Spindles |
| Handrail | 50mm Ø Oak |
| Centre Column | Stainless Barrels |
| Finish of Steel | Brushed Stainless |

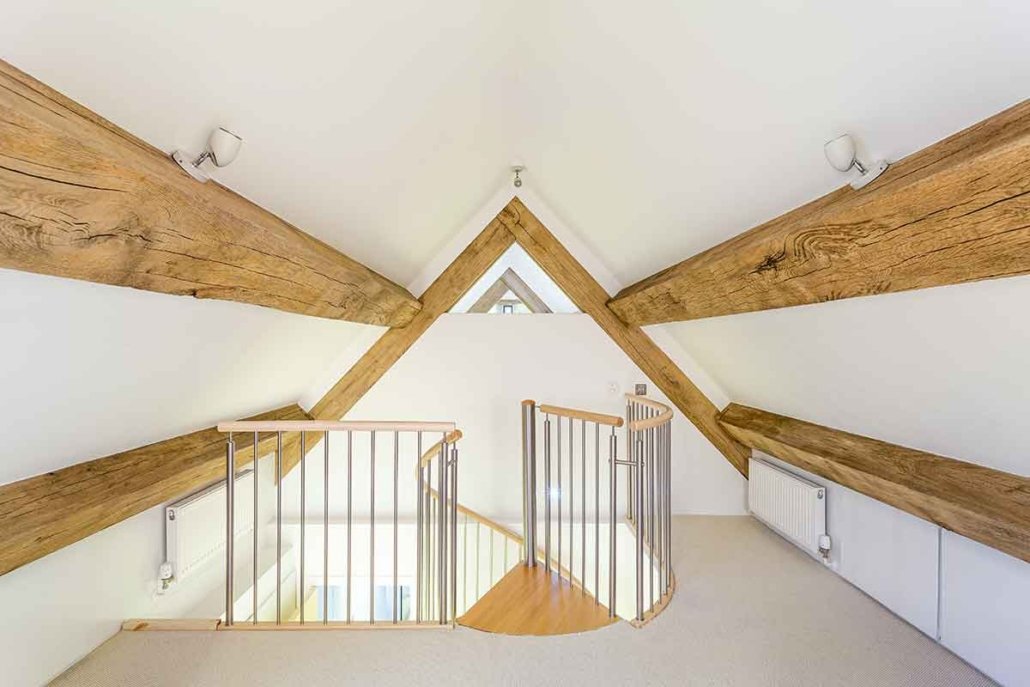

| Additional | Landing Balustrade to both spirals |
