Our client was building a new property right on the beach in Bognor. The spiral staircase was designed to access a walkway upstairs that led to bedrooms on either side.

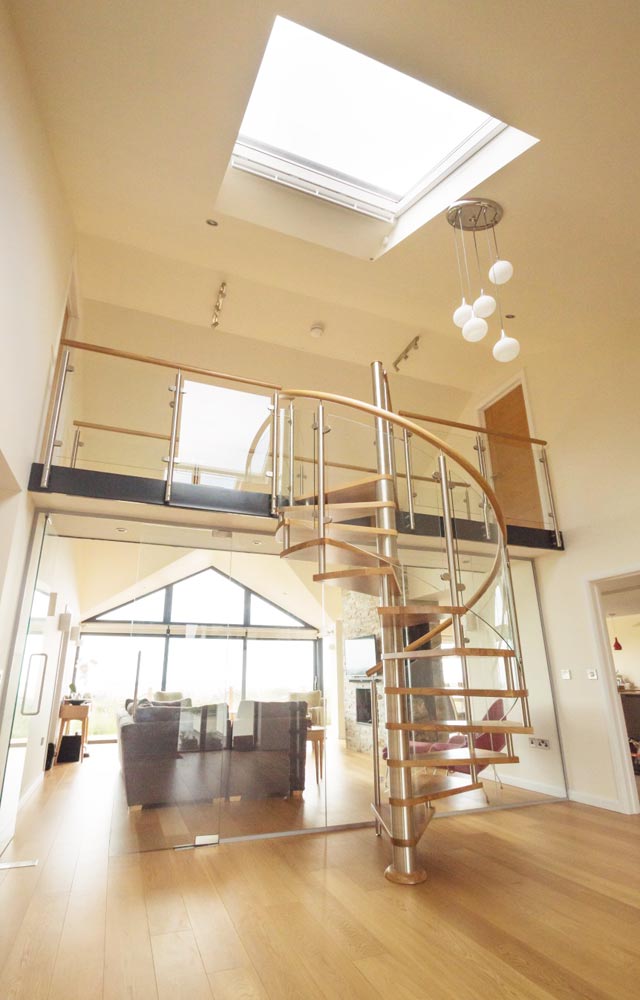

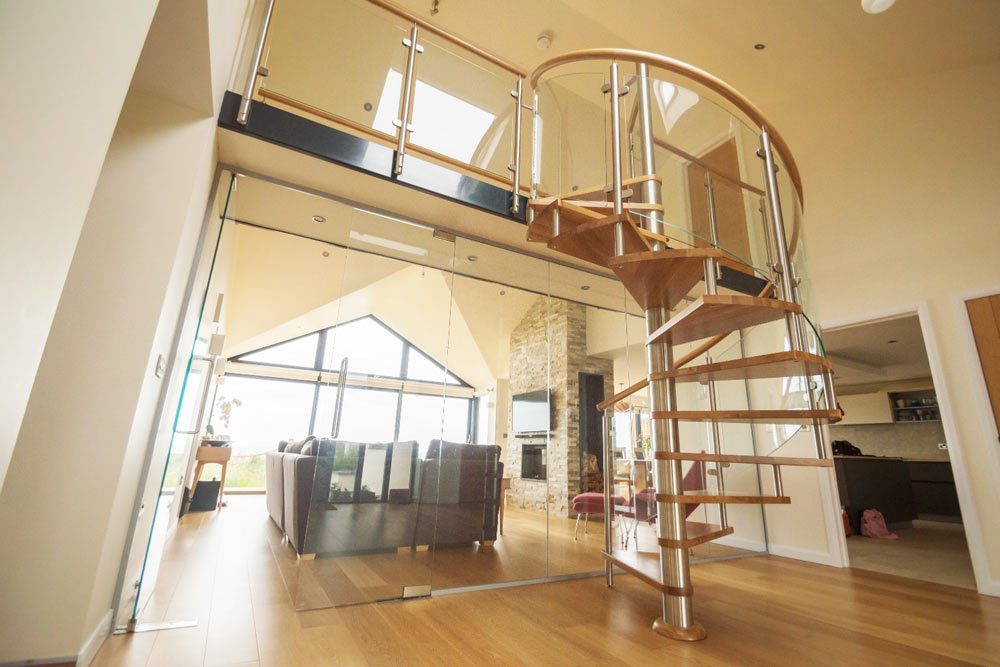

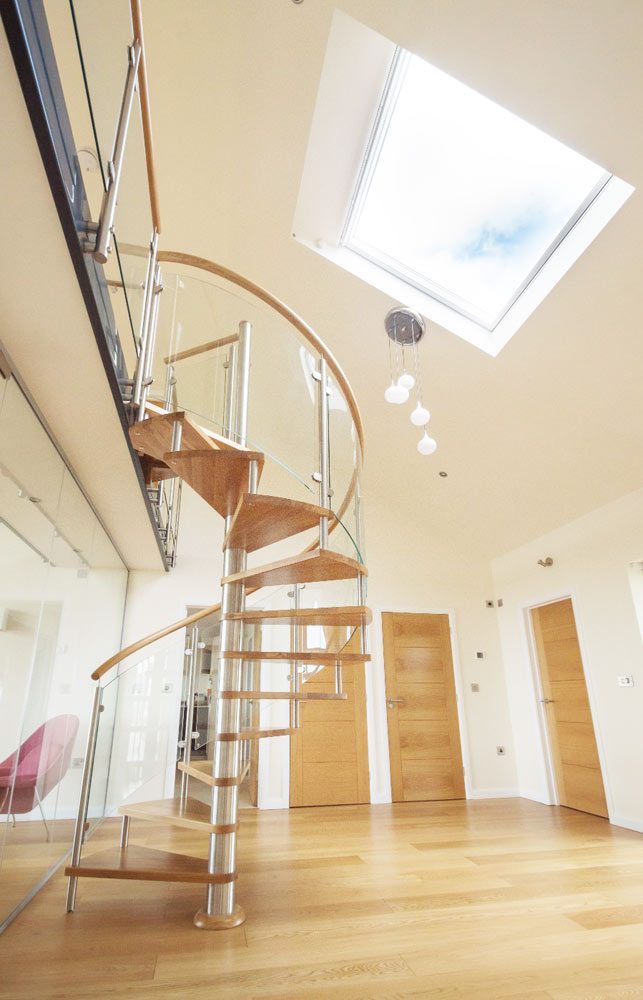

Positioned as the centerpiece in the hallway and the first thing seen upon entering, it needed to make a strong impression. It also had to be as open as possible to preserve the view of the large front windows overlooking the beach and sea—a truly wonderful setting.
Although it was the main staircase in the house, it only served two rooms upstairs. The building inspector approved a category B spiral staircase (secondary domestic spiral stair) for the walkway above, so it was built with a 1500mm diameter, providing the required 600mm clear tread width.
The Brief
Our client needed
- A space-saving staircase to lead up to the bridge
- Use natural timber finishes to match surrounding flooring
- Deliver a visual impact to those entering the property
The Solution
Our customer selected the Model 71 spiral after a visit to our showroom
- Custom Made to ensure height and rotation met the setting
- Produced in solid Oak to match the flooring and door frames
- 1500mm smallest diameter possible to comply

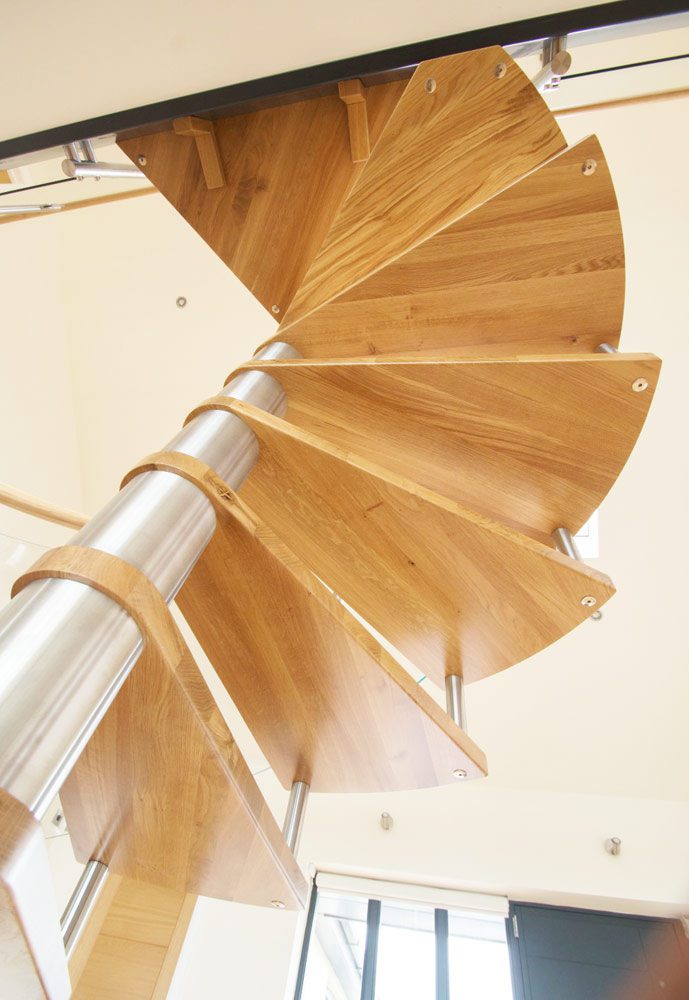

- Open risers and glass panels to keep things light and open

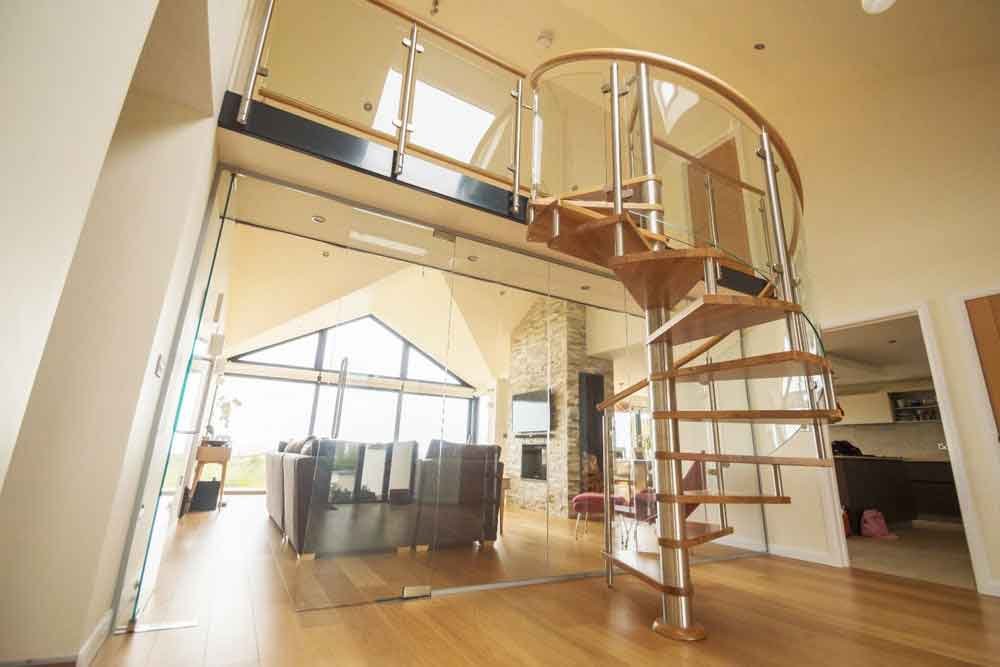

Bespoke wooden spiral staircase project in Bognor Regis. Space-saving timber spiral stair for a new private home.
Spiral Staircase Bognor Regis- Technical Specifications
| Floor to floor height | 2742mm |
| Risers | 14 @ 195.8mm |
| Spiral Diameter | 1500mm |
| Clear Tread Width | 600mm |
| Tread Type | 40mm Oak |

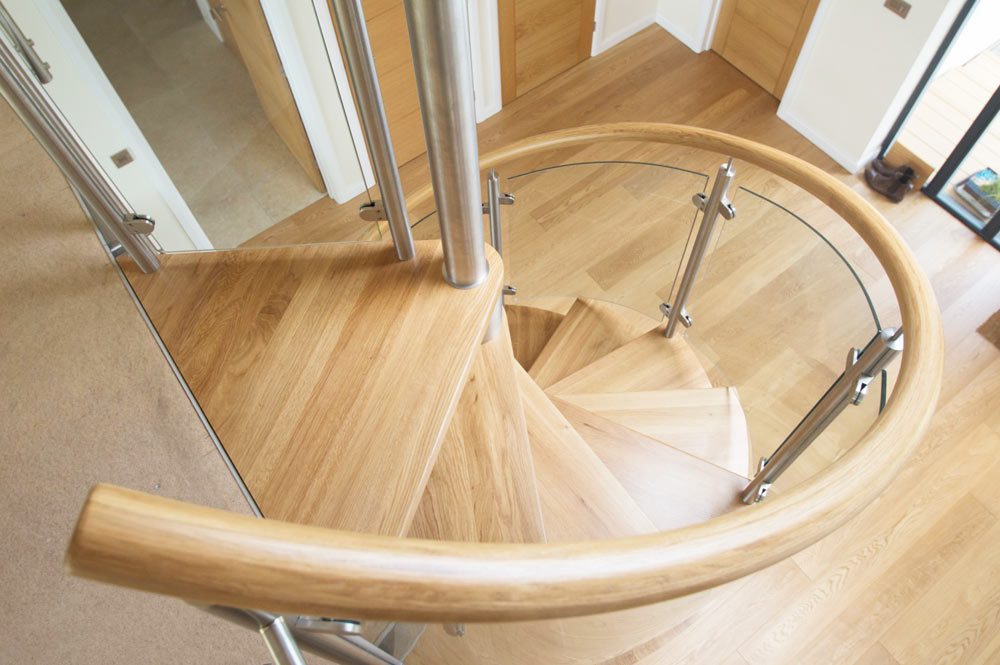

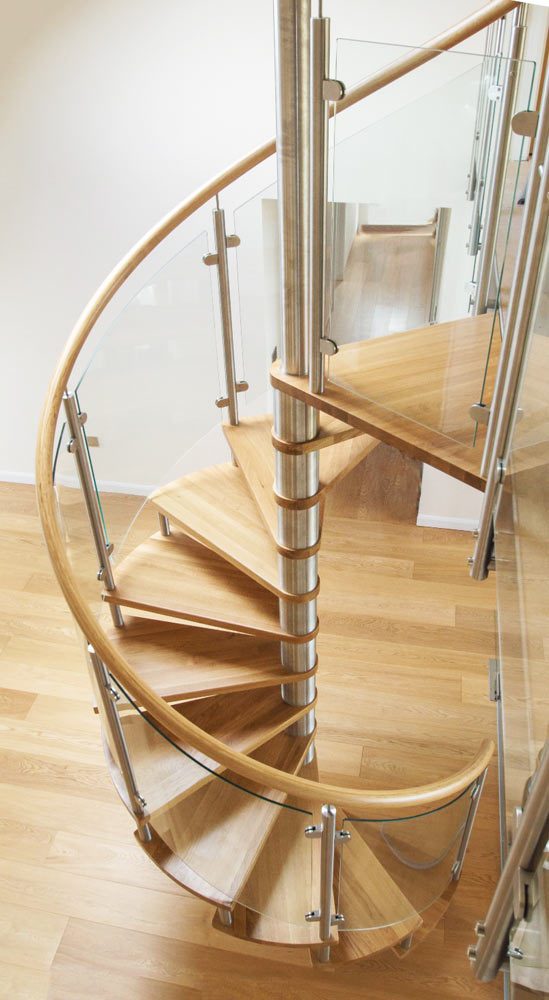

| Balustrade Type | 8mm curved glass panels & stainless newels |

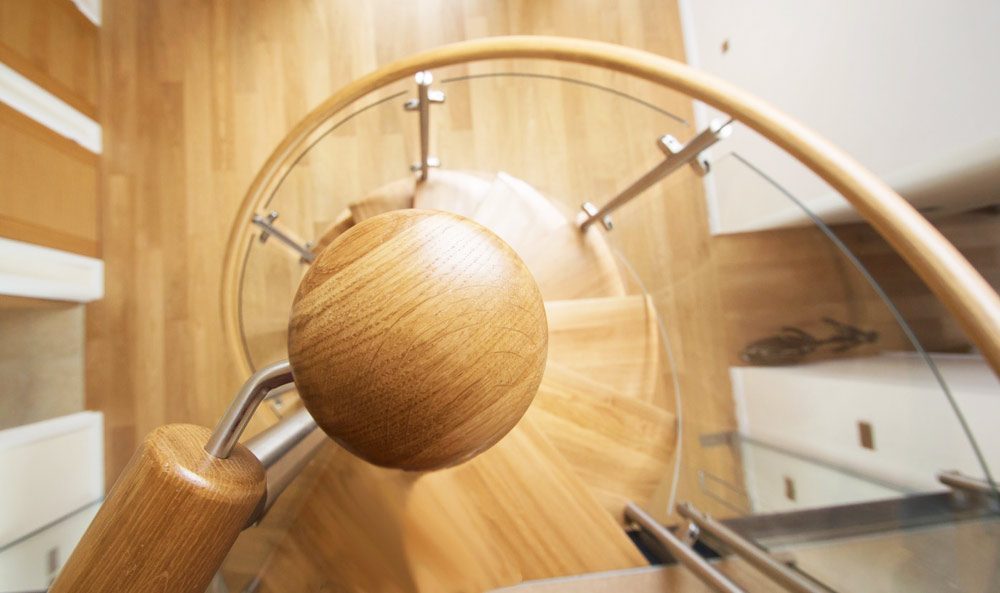

| Handrail | 50mm Ø Oak |

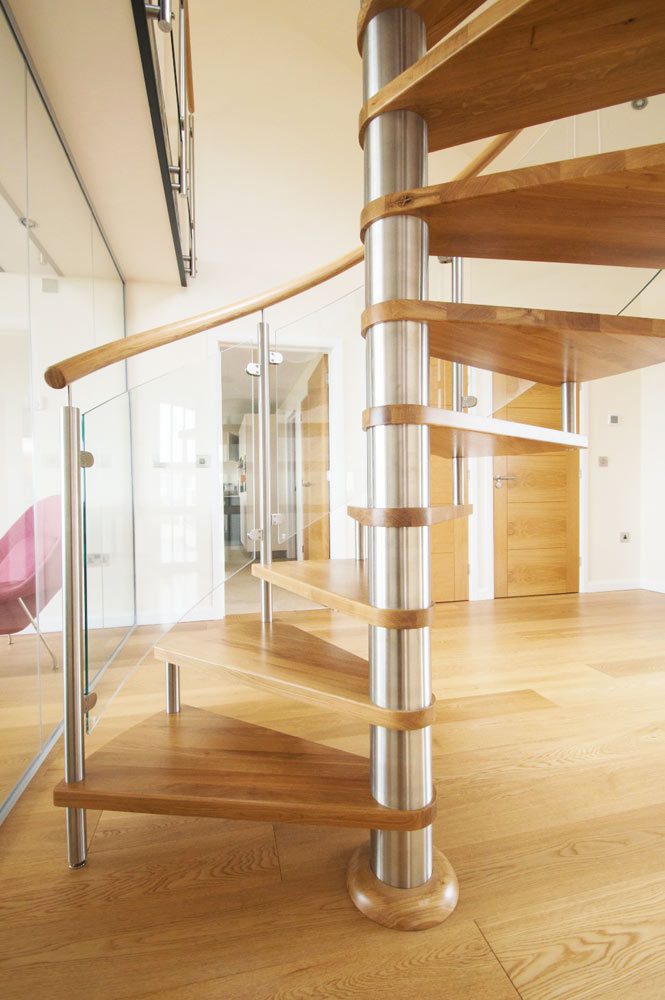

| Centre Column | 140mm Ø |
| Finish of Steel | Brushed Stainless Steel |
| Additional | 6m Landing Balustrade |
