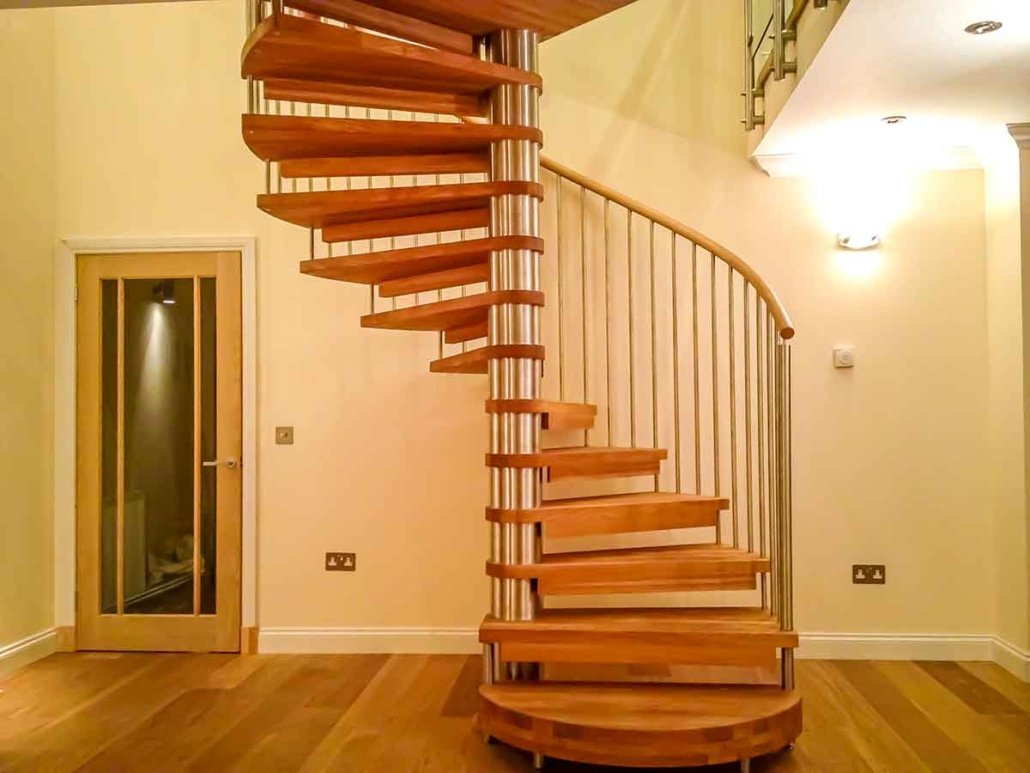

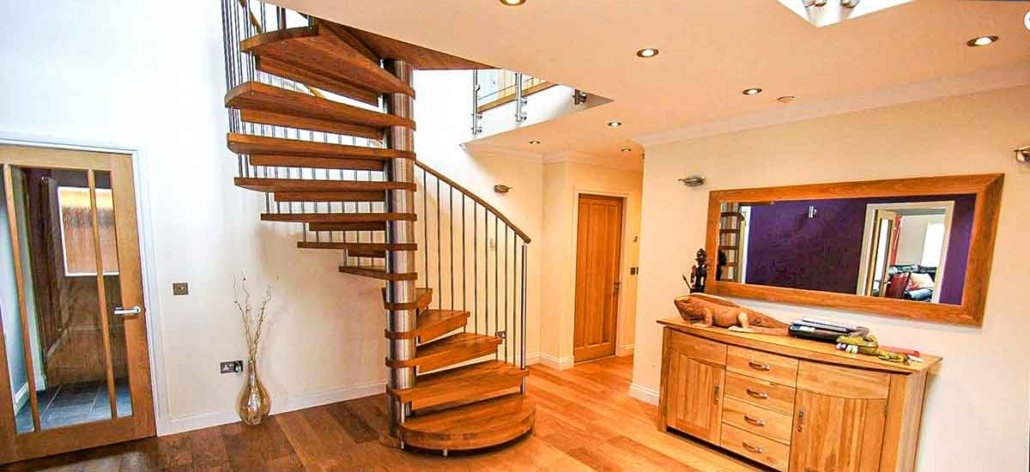

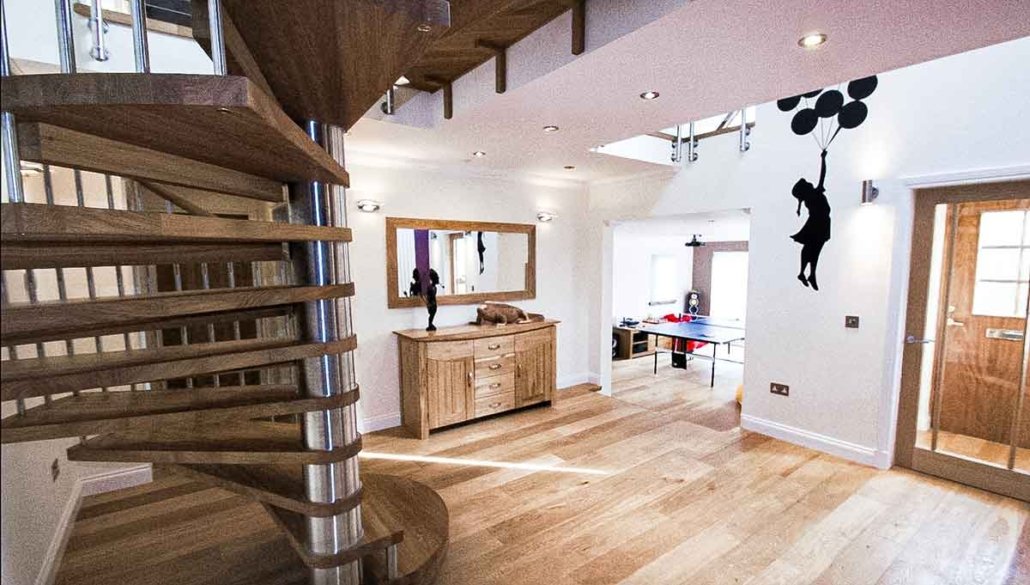

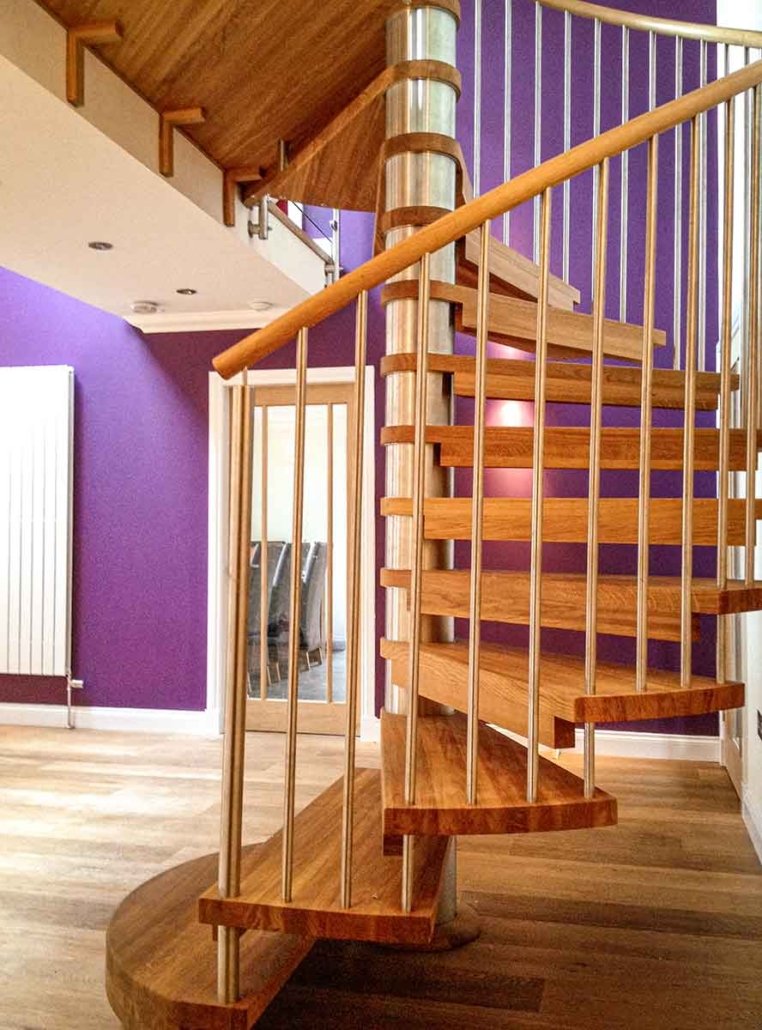

This grand spiral staircase was supplied to a customer in Aberdeen as the main access to the upstairs living space in a refurbishment, so it needed to be large enough to meet regulations.
The Model 71 spiral staircase is available up to 2200mm in diameter, and this one measured 2100mm.
We enlarged the lower two treads to create a striking entrance to the flight and added special L-shaped treads to comply with the 100mm riser gap rule.

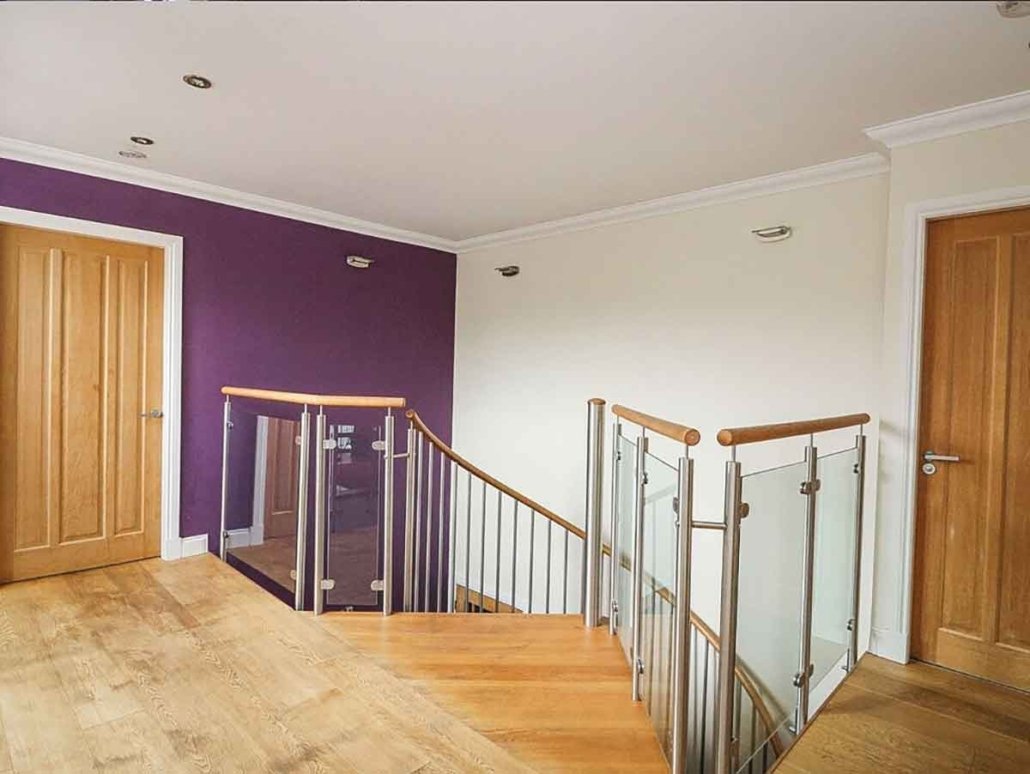

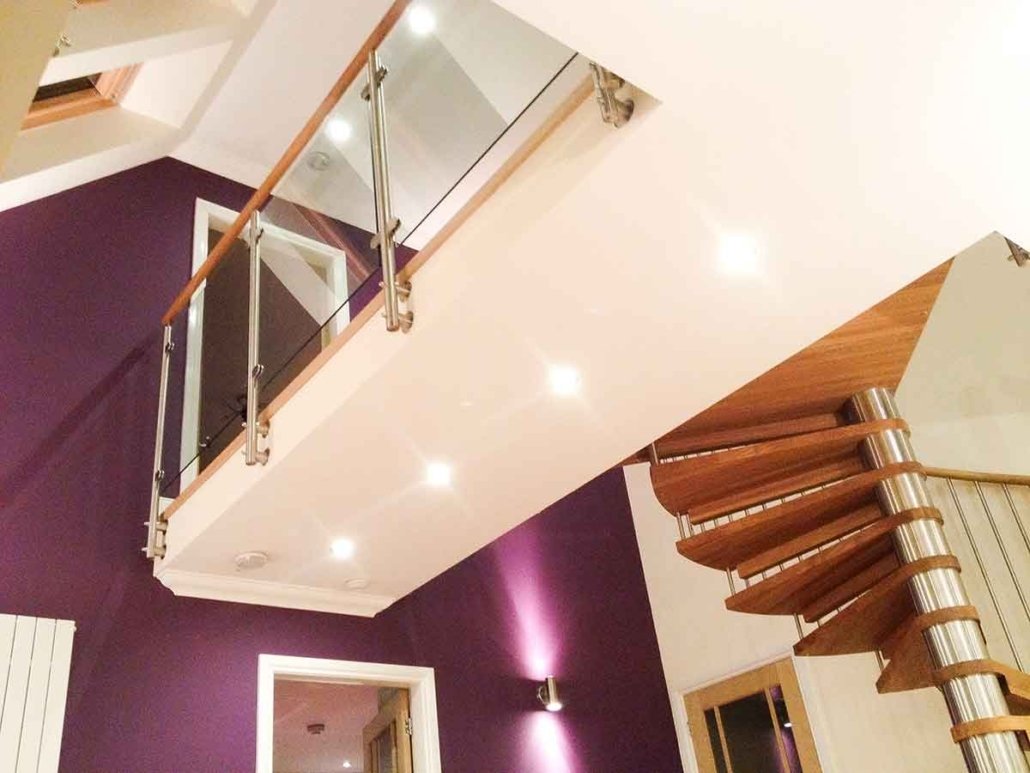

The client’s spacious upstairs walkway required landing balustrades for safety, but instead of matching the staircase spindles, we used glass infill panels to allow more light through. These were secured between brushed stainless steel newel posts, side-fixed to the floor.
The Brief
Our client was looking for
- A large spiral staircase to access a bridge walkway above
- A striking stair which created an impression on those entering the property
- Glass landing balustrade along the walkway
- Oak to match the flooring in the house
- Entry of the spiral to face the front door to aid assent
The Solution
We delivery the custom made model 71 spiral staircase
- Enlarged bottom steps to face the front door
- Solid Oak treads and handrail to match their flooring
- Glass balustrade with stainless posts and oak handrail upstairs
- Huge 2100mm diameter to fill the void and create a visual impression
Spiral Staircase Aberdeen- Technical Specifications
| Floor to floor height | 2650mm |
| Risers | 13 @ 203.85mm |
| Spiral Diameter | 2100mm |
| Treads Type | 50mm Oak |
| Riser Type | L shape infill piece |
| Balustrade Type | 20mm Ø Stainless Spindles |
| Handrail | 50mm Ø Oak – in one piece |
| Finish of timber | Matt varnish |
| Landing Balustrade | 8m landing balustrade with glass infill panels |
| Additional | bottom two steps enlarged |
