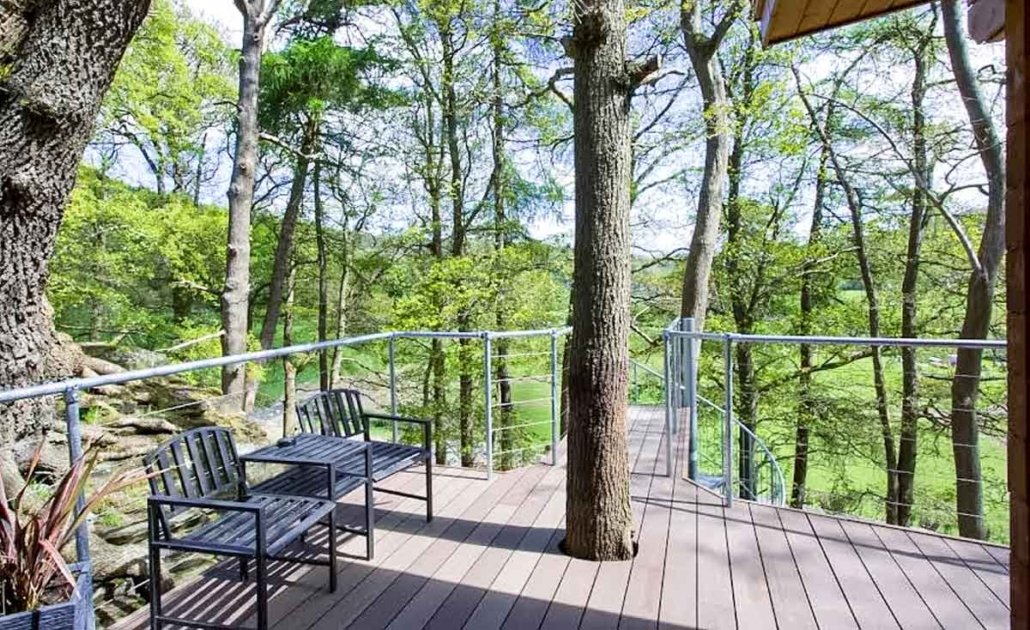

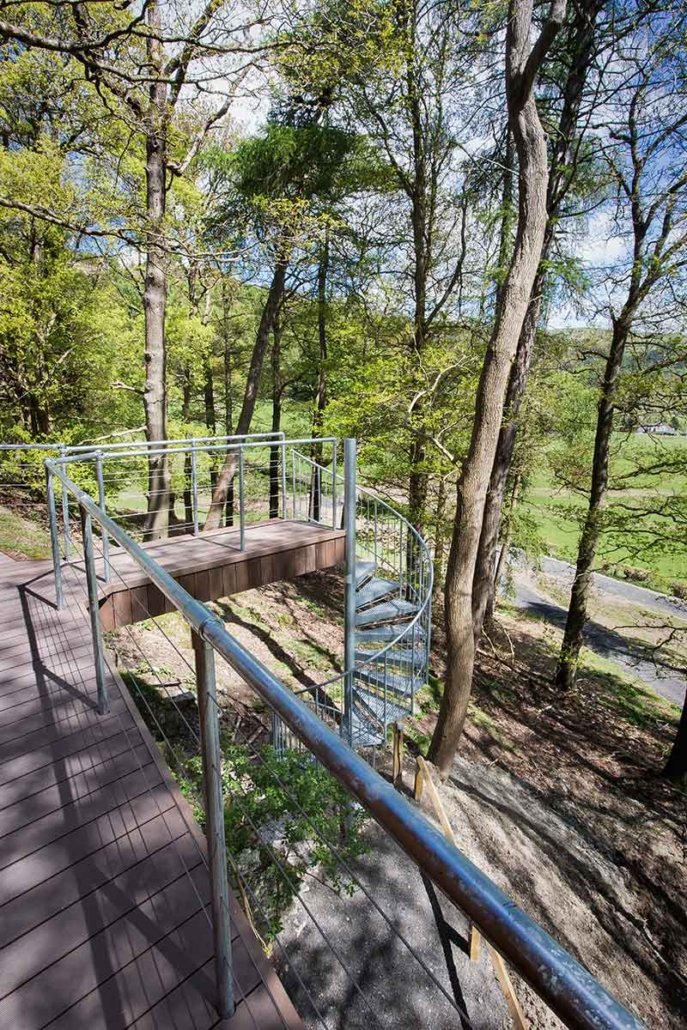

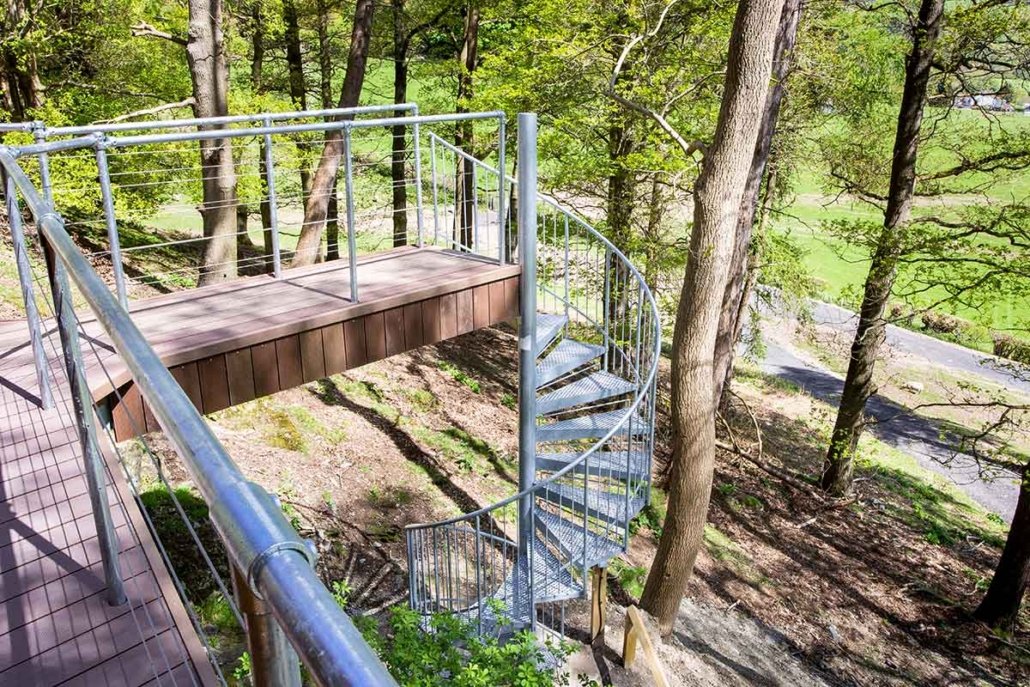

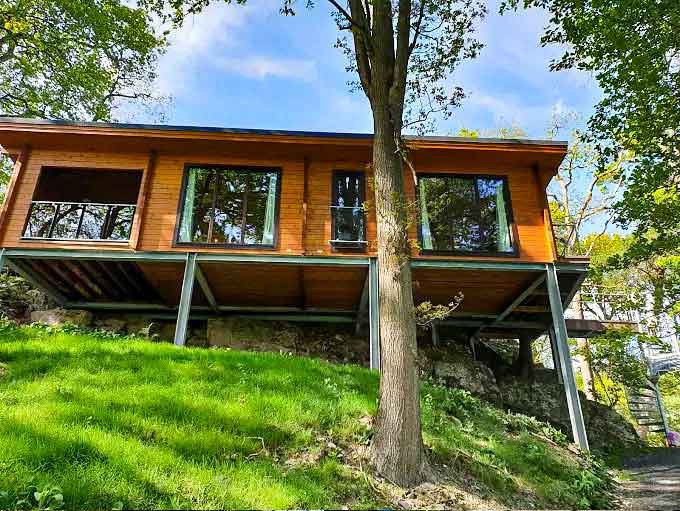

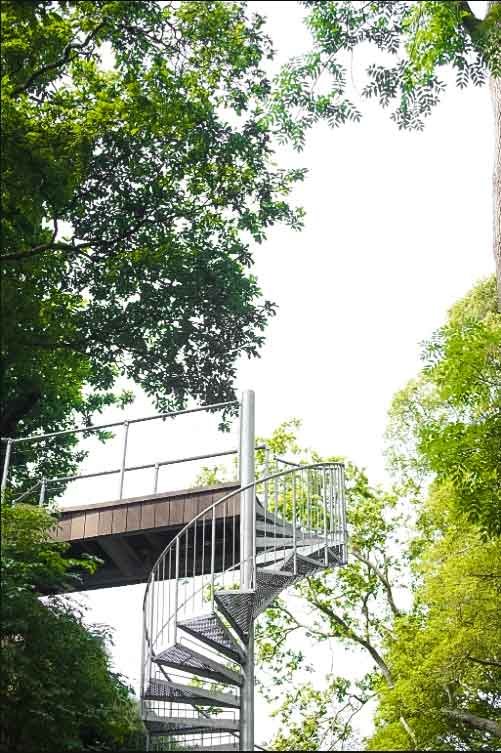

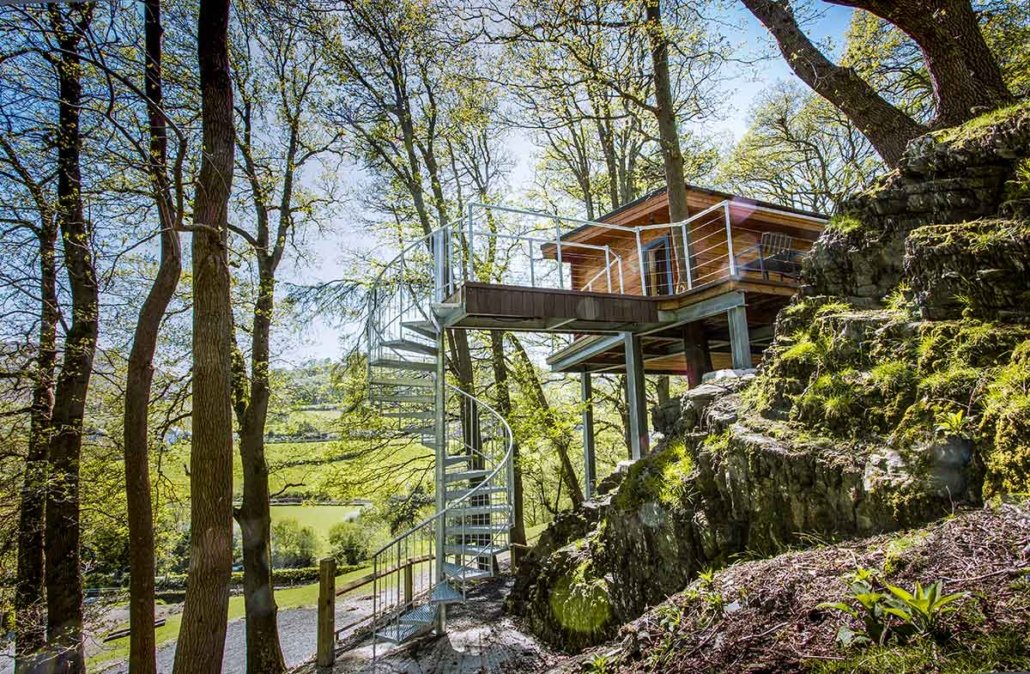

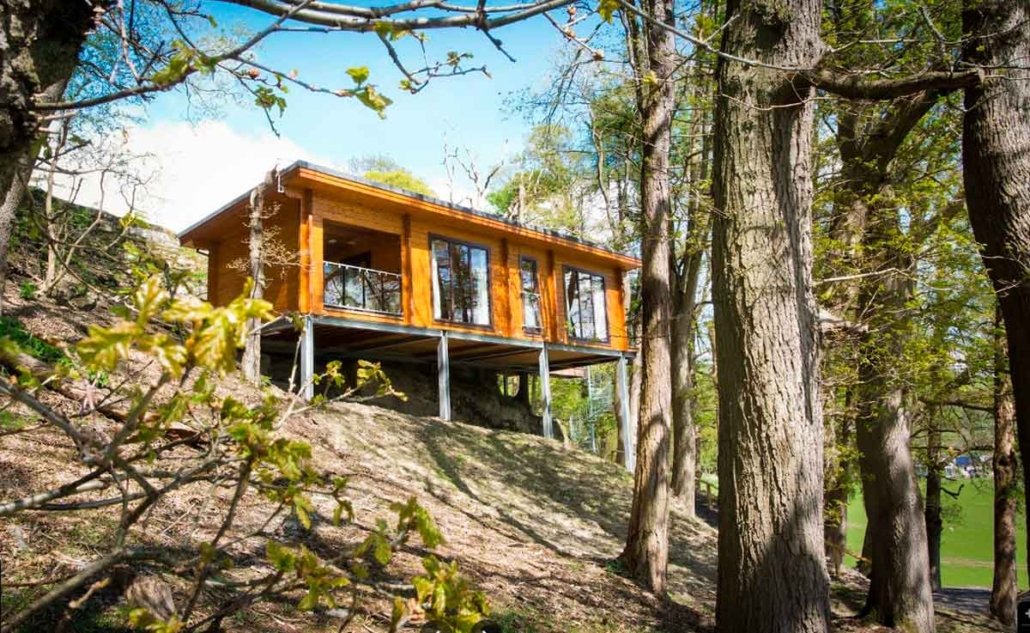

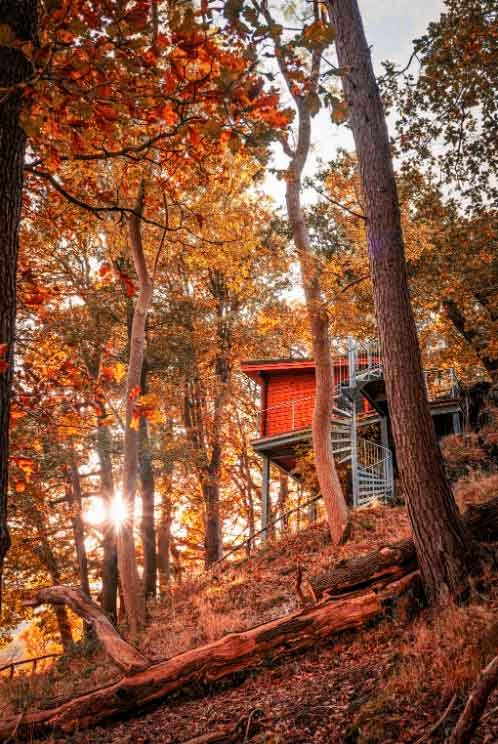

Our customer built an elevated cabin deep in the woods of Glyndyfrdwy, Denbighshire, Wales, as a holiday home for those seeking to escape the hustle and bustle of everyday life and immerse themselves in nature. Due to the height, a traditional straight staircase would have taken up too much space, so a spiral staircase was the obvious space-saving choice. We designed a 20-riser spiral stair to reach the existing walkway of the cabin, made from mild steel with vertical spindles, non-slip perforated treads, and a steel handrail. The entire staircase was factory-galvanised for protection against the elements.
Brief
- A space saving way to access a log cabin
- a weather resistant finish
- A sculpturally attractive solution
- Sturdy and robust for holiday goers
The Solution
- a bespoke external spiral staircase 1500mm in diameter
- fully galvansied finish for protection
- 18 risers with a special bracket to fasten to existing walkway
- Made in mild steel with solid balustrade
Outdoor Spiral Staircase Wales- Technical Specifications
| Floor to floor height | 4375mm |
| Risers | 20 @ 218mm |
| Spiral Diameter | 1500mm |
| Clear Tread Width | 650mm |
| Tread Type | Non slip perforated steel |
| Balustrade Type | 10mm Ø vertical stainless spindles |
| Handrail | 37,3mm Ø Steel |
| Newel posts | 37,3mm Ø Steel |
| Finish | Galvanised |
| Additional | Special fixing plate to connect to walkway |
