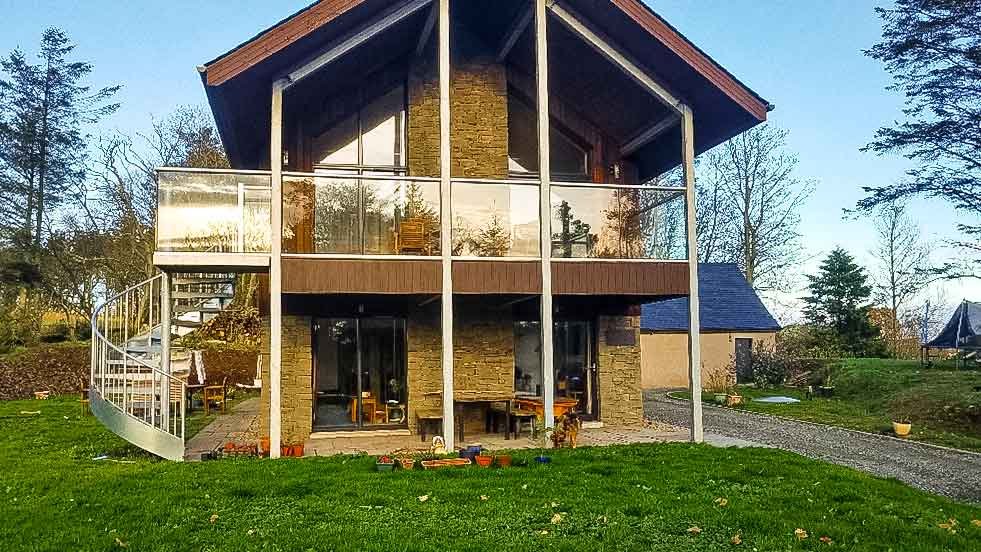

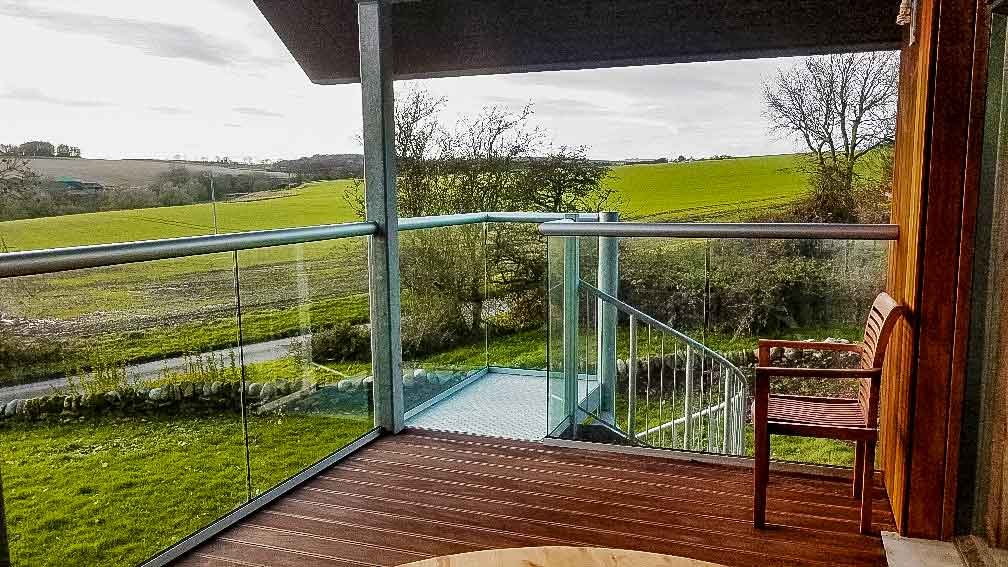

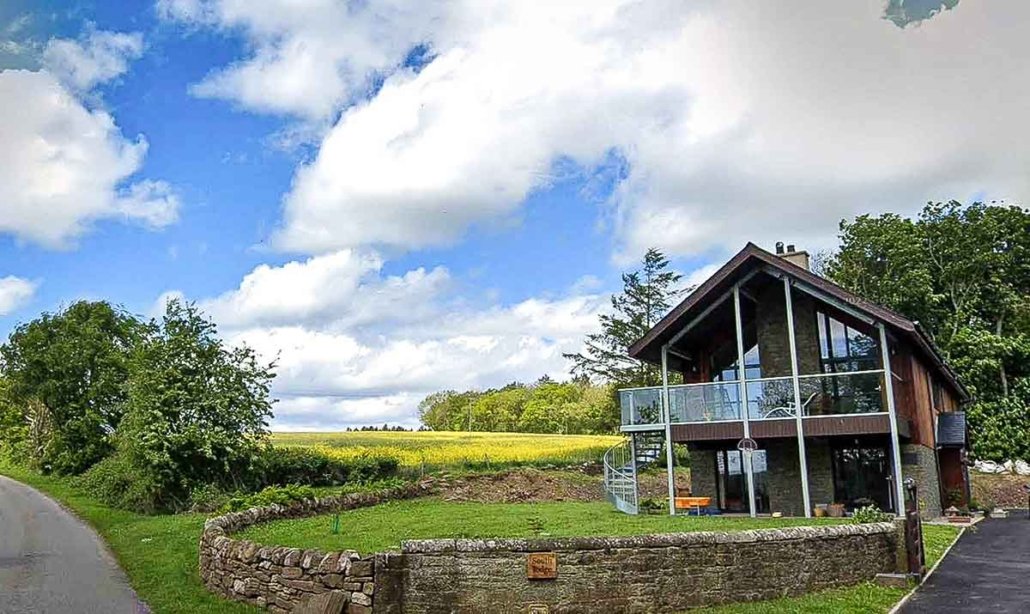

Our customer was based on the North Sea coast near Montrose and was carrying our some refurbishment works to his property. This involved adding a balcony to the front of the building to take in the views across the filed. This balcony was to have an easy access to the garden below.

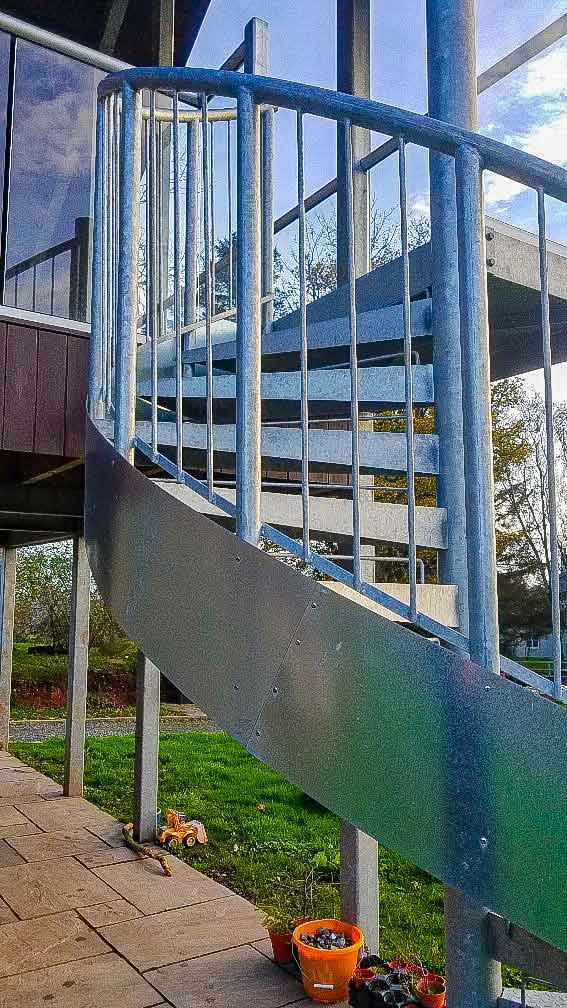

A spiral staircase was called for with its minimal footprint and its sculptural qualities. This was supplied in steel with a galvanised finish to ensure it could withstand the battering from the North Sea. To add a nice swoop to the stair and to soften its appearance a thin external fascia piece was added to the outer side of the stair.
Brief
- Provide a space saving access to the garden from the new balcony
- Ensure it was large enough for regular use
- Make sure it can withstand the harsh conditions of the North Sea
- Compliant with Scottish Building regulations
Summary

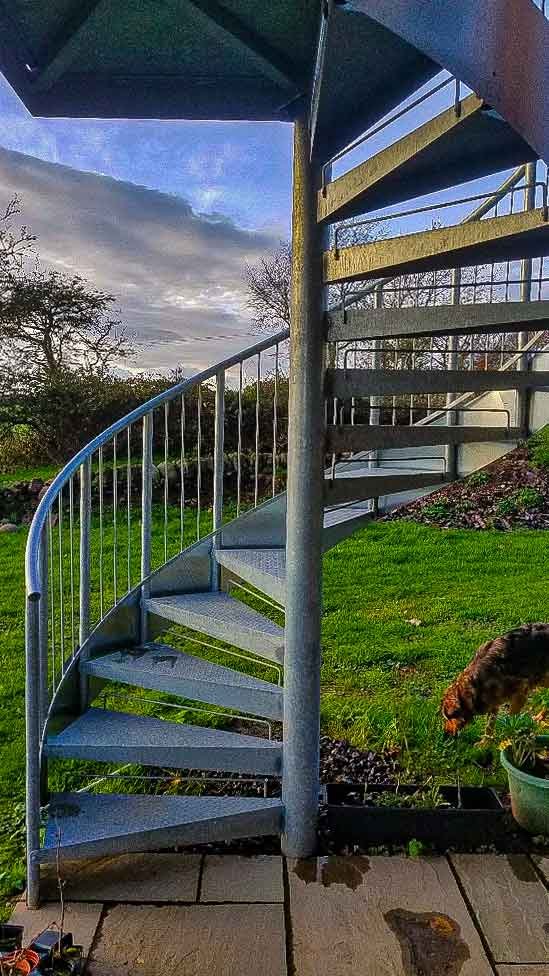

- A spiral staircase was supplied never taking up more space than its outer diameter
- 2000mm diameter in total to ease of use
- Fully galvanised to withstand and protect against the elements

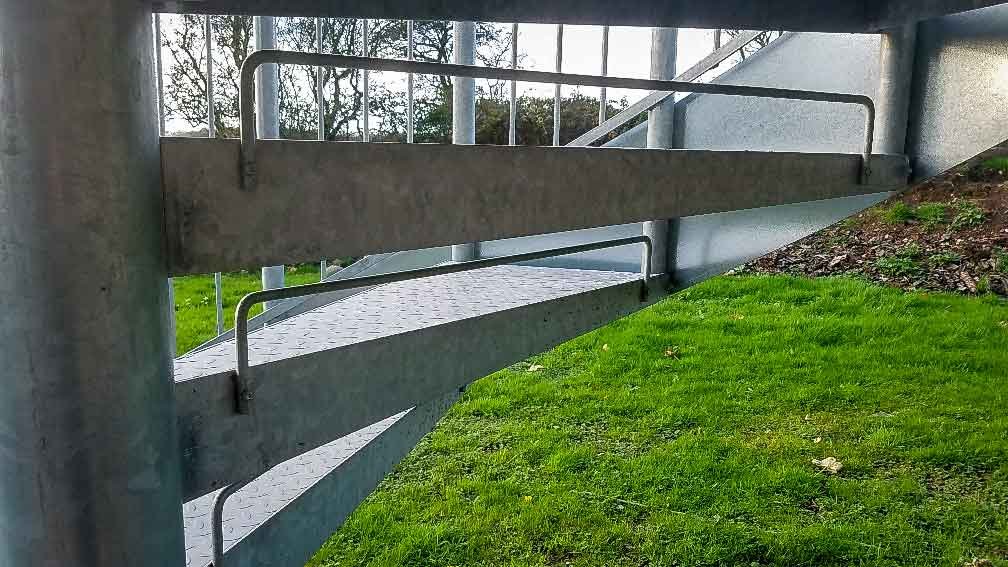

- 900mm clear tread with and riser /spindles gaps less than 100mm to comply
Outdoor Spiral Staircase Montrose – Technical Specifications
| Floor to floor height | 2880mm |
| Risers | 14 @ 205.71mm |
| Spiral Diameter | 2000mm |
| Clear Tread Width | 900mm |

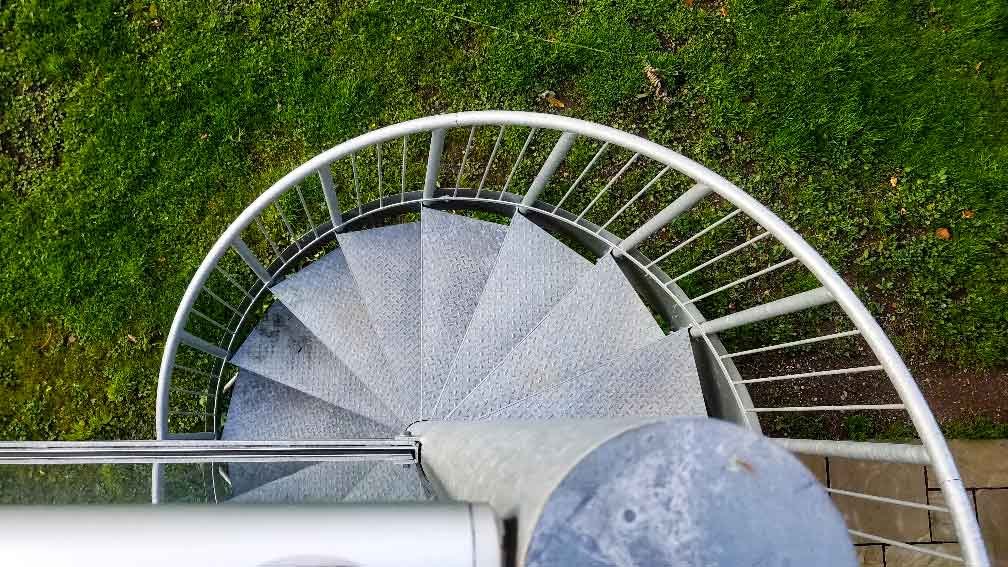

| Tread Type | Chequer plate steel |
| Balustrade Type | Vertical 10mm steel spindles |

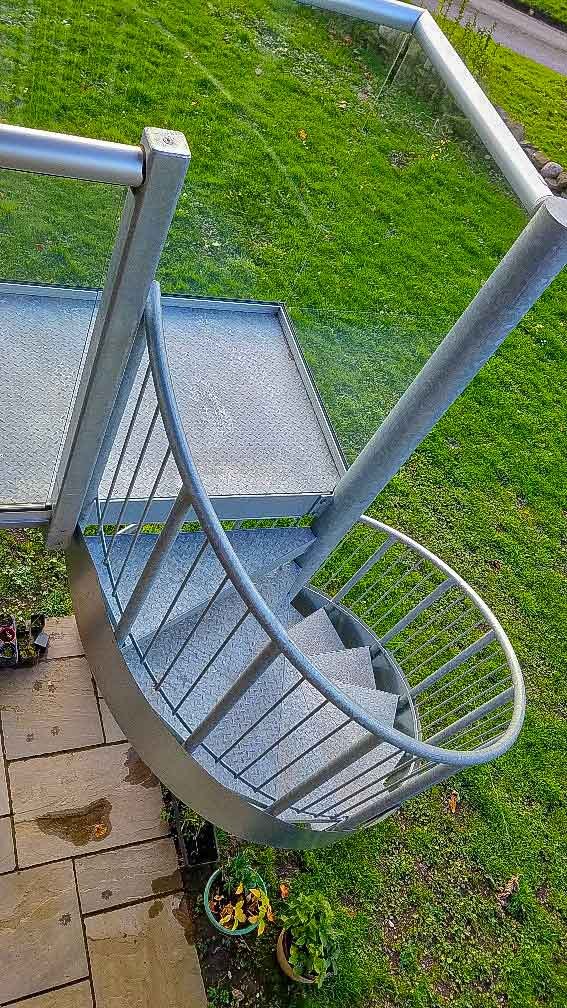

| Handrail | 42.4mm Ø Steel |
| Centre Column | 140mm Ø |
| Finish of Steel | Galvanised |
| Additional | 1.5mm outer steel fascia |
