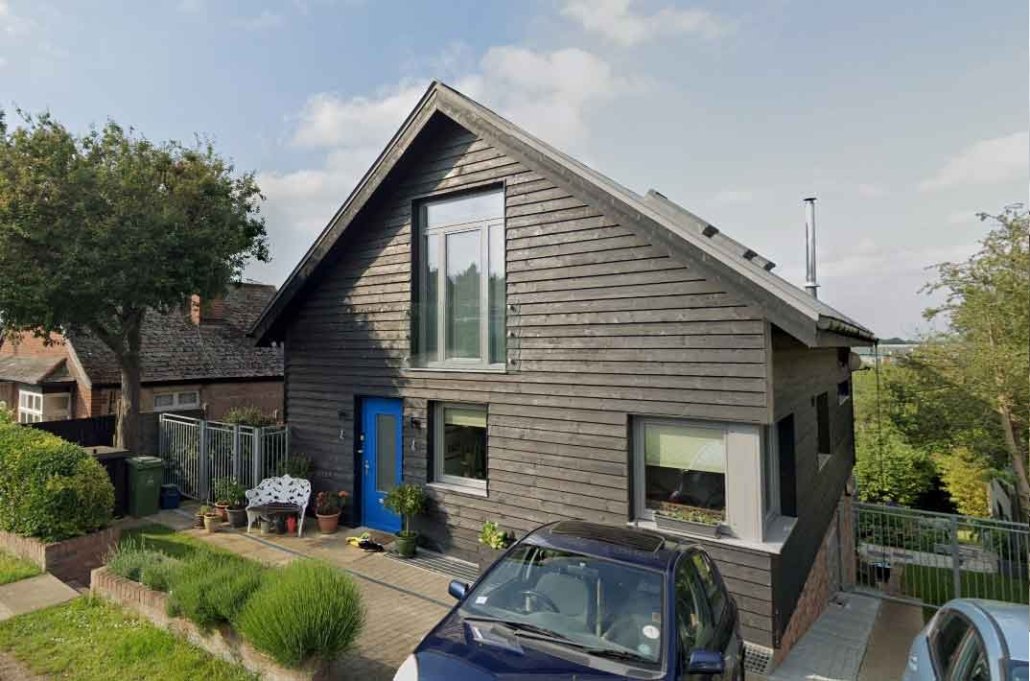

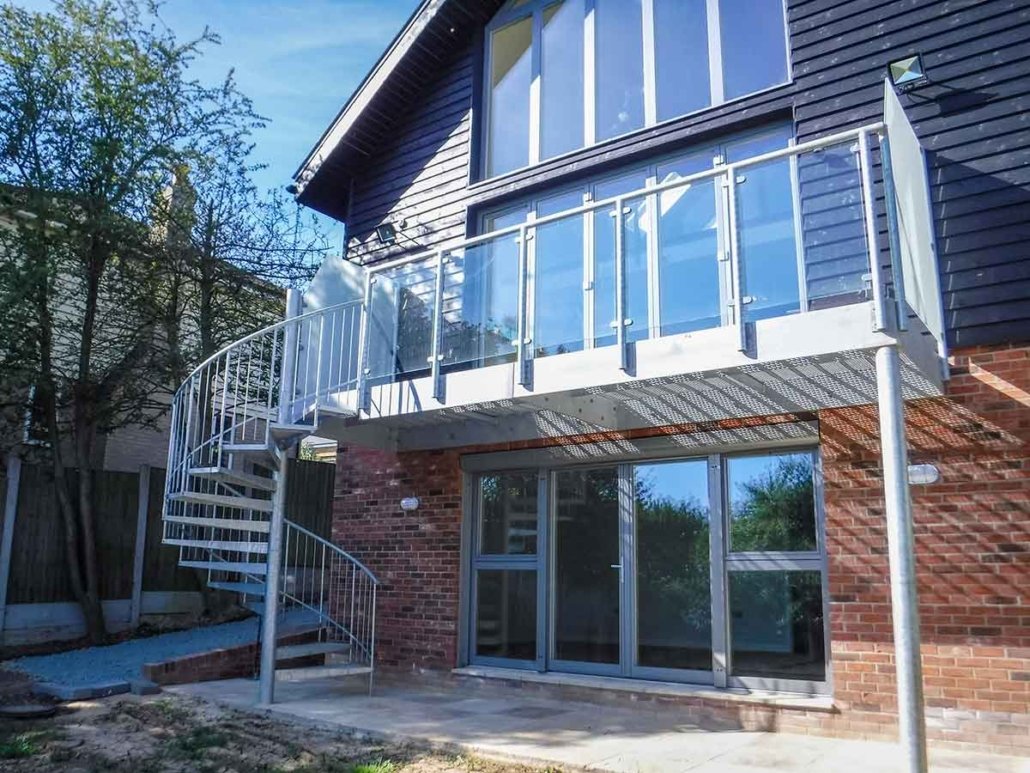

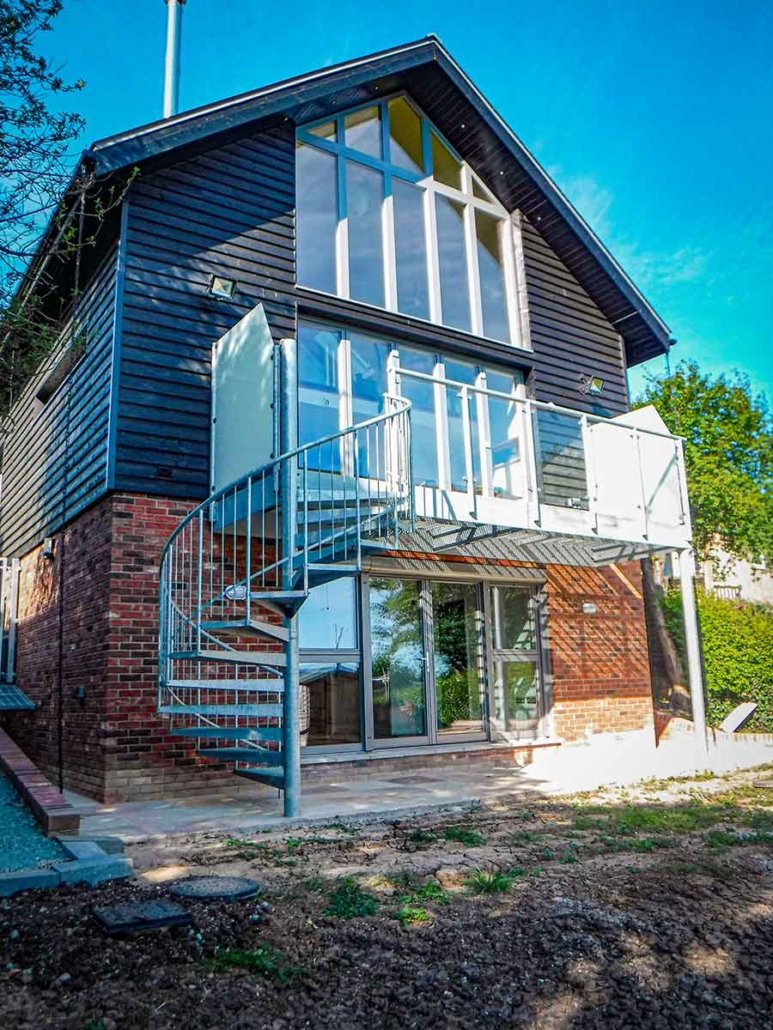

Our client built a new property in Maldon, Essex, backing onto the River Chelmer estuary with stunning views over a nature reserve. They wanted not only a quick and easy route to the garden but also a raised balcony area to relax and enjoy the scenery. A spiral staircase was the obvious choice, with its minimal footprint preserving space in the garden below. The 6m balcony ran along the building and was supported at the outer corners by a post and the central column of the spiral stair.
To keep the design light and open, the balcony featured steel newels and a handrail with toughened glass infill panels for maximum transparency. On either side, sections of 1800mm frosted glass panels provided privacy screens.
Brief
- A space saving way to access the garden to rear of house

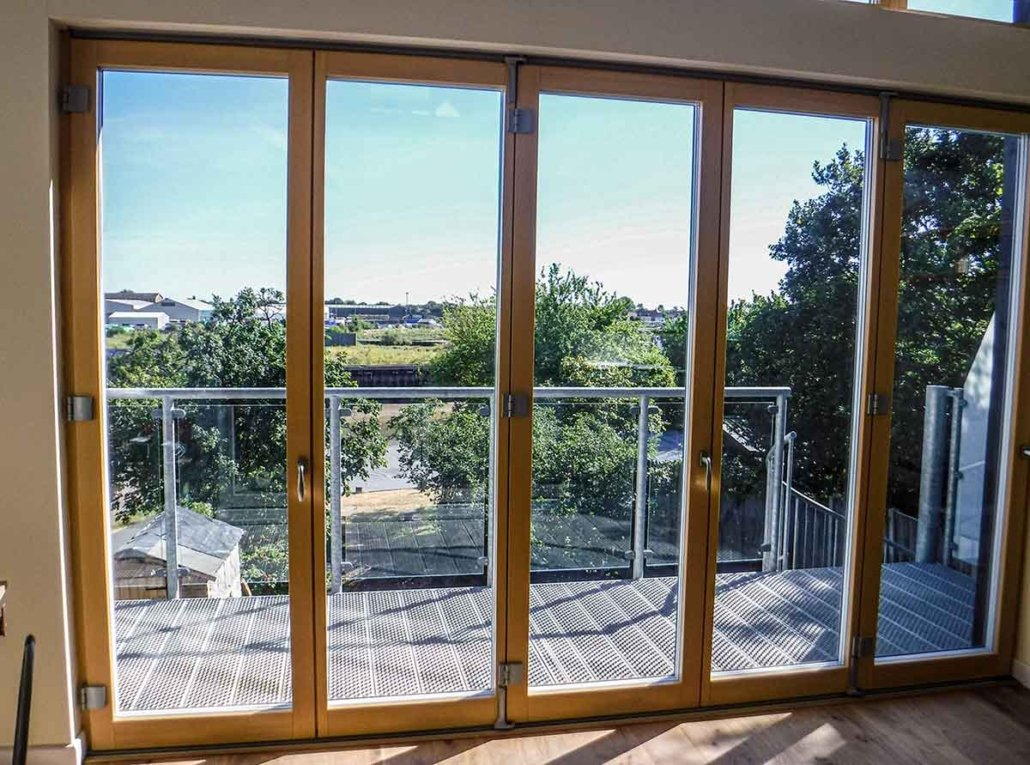

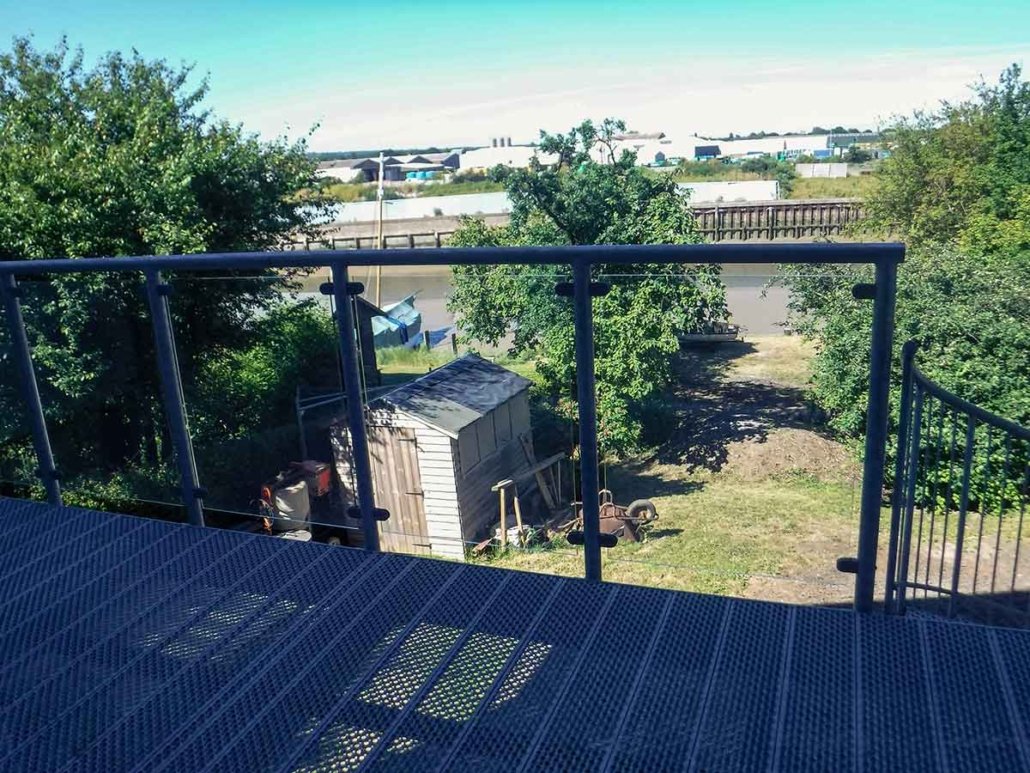

- A platform to enjoy views across the estuary
- Weather resistant finish
- Privacy screens to either side of platform
- A wide enough stair to use comfortably
The Solution
- a custom made spiral staircase keeping its footprint within its diameter
- a 1.6 x 6m balcony level with the internal floor above
- Supplied fully galvanised for protection from the elements

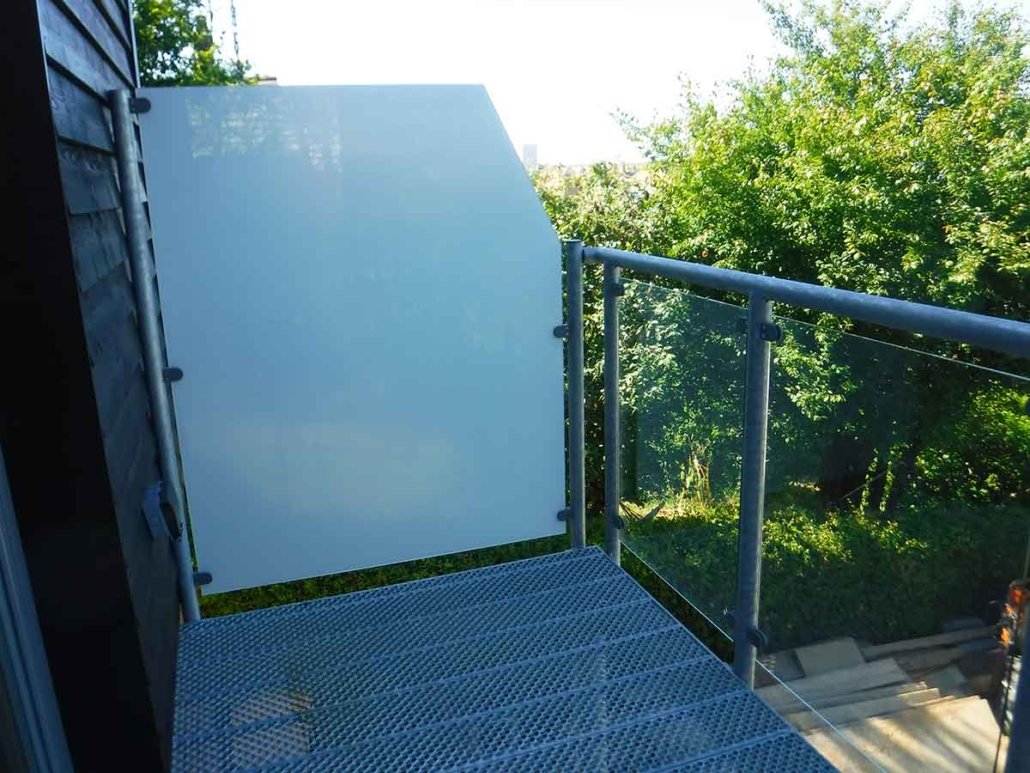

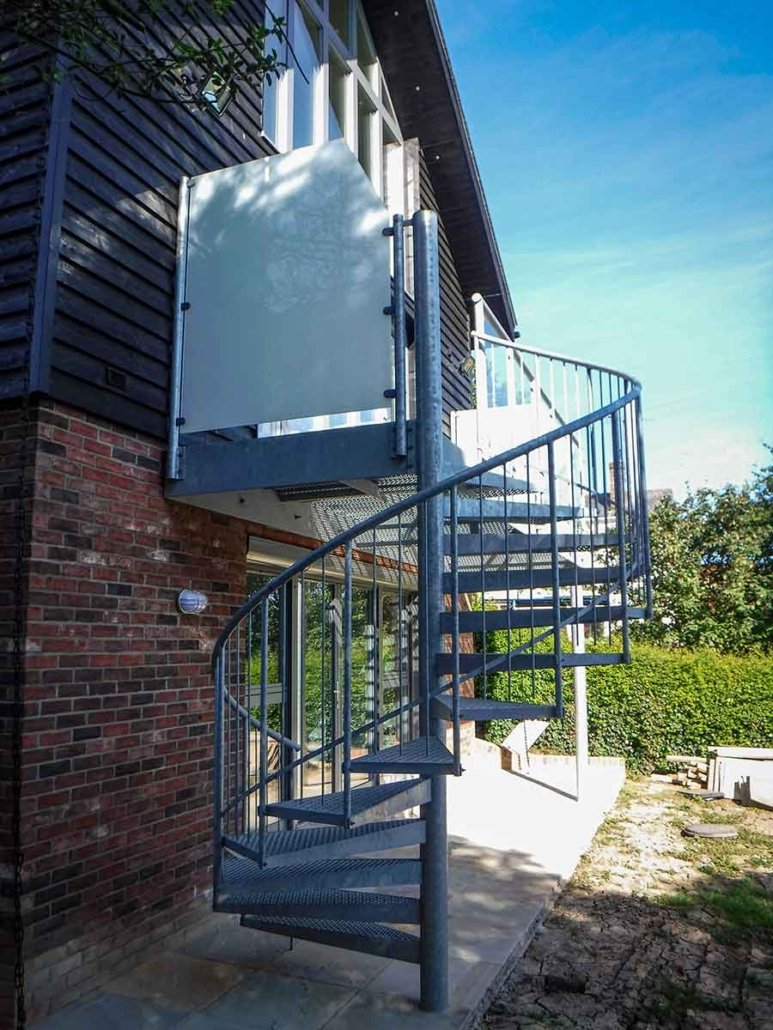

- Specially made frosted glass privacy screens to either side of the balcony
- 2200mm diameter providing a 1000mm clear tread width
Outdoor Spiral Staircase Maldon- Technical Specifications
| Floor to floor height | 2870mm |
| Risers | 14 @ 205mm |
| Spiral Diameter | 2200mm |
| Clear Tread Width | 1000mm |
| Tread Type | Non slip perforated steel |
| Balustrade Type | 10mm Ø vertical stainless spindles |
| Handrail | 42,4mm Ø Steel |
| Newel posts | 37,3mm Ø Steel |
| Finish | Galvanised |
| Additional | 6 x 1.6m balcony with glass balustrade |
