Spiral Staircase Bath

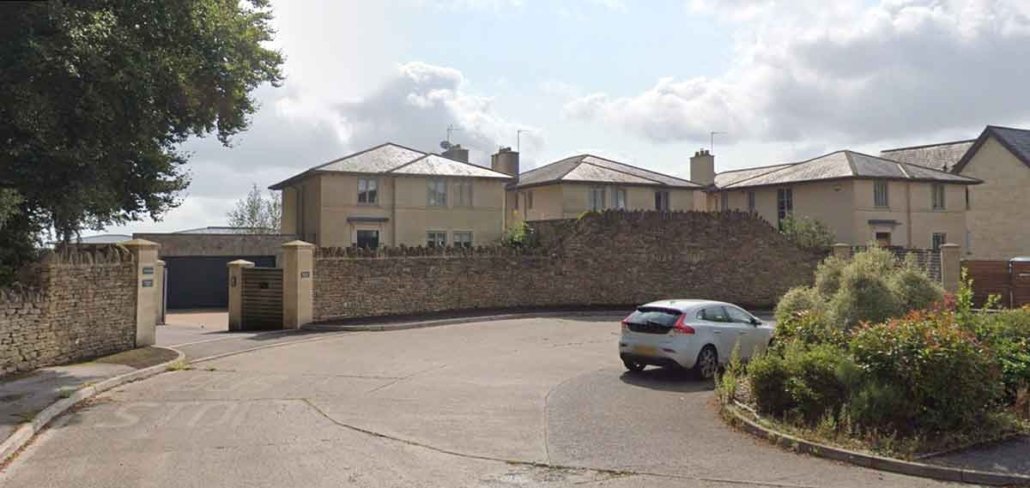

Our client for this project was a property developer based in Somerset, building three new townhouses.

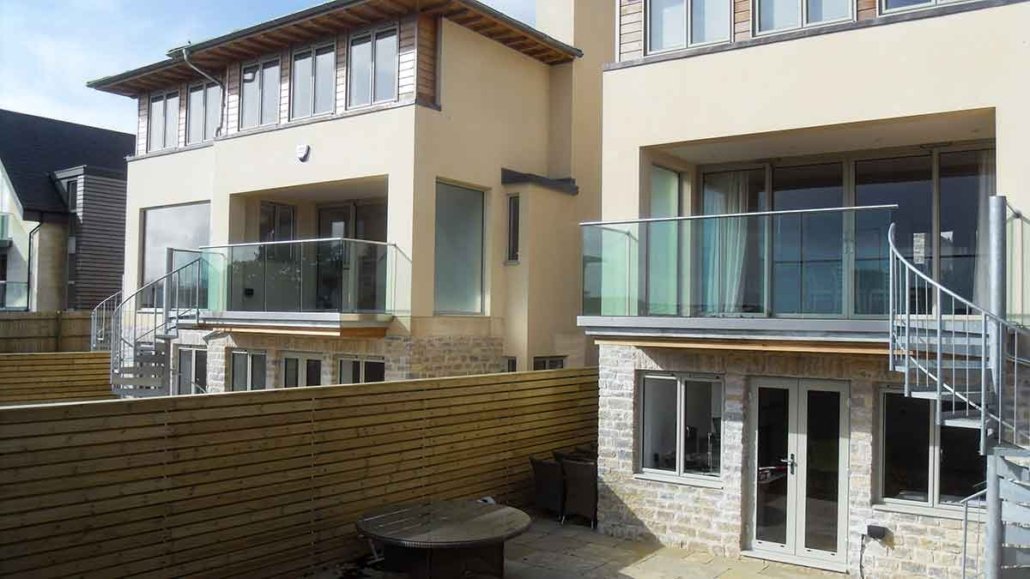

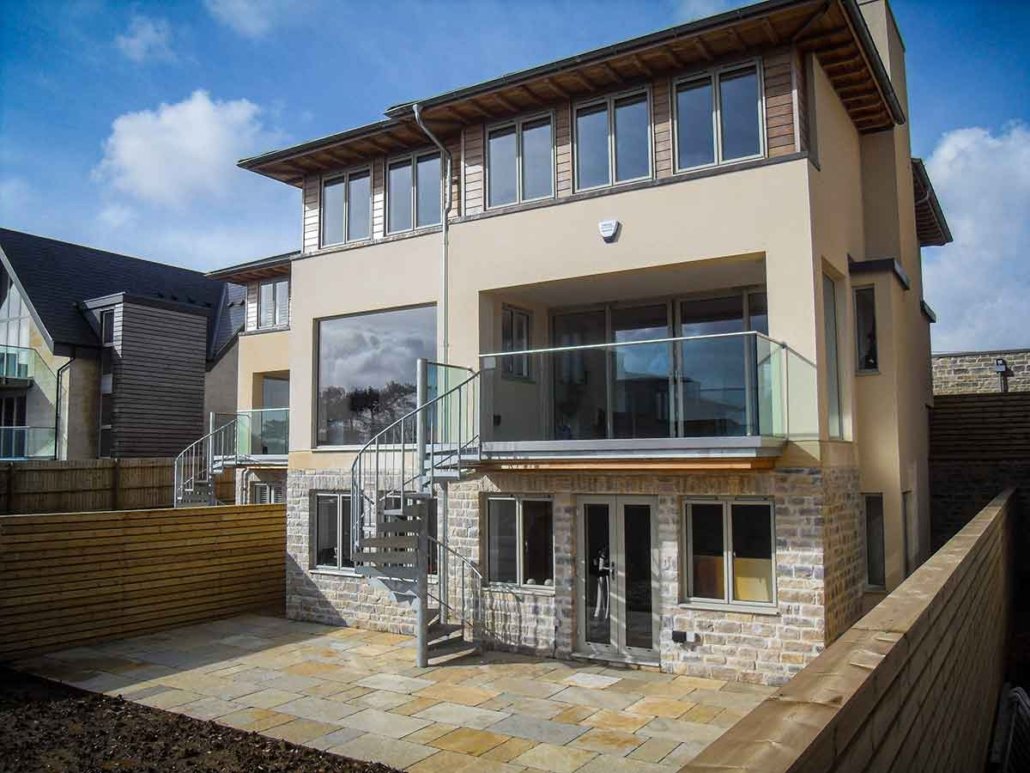

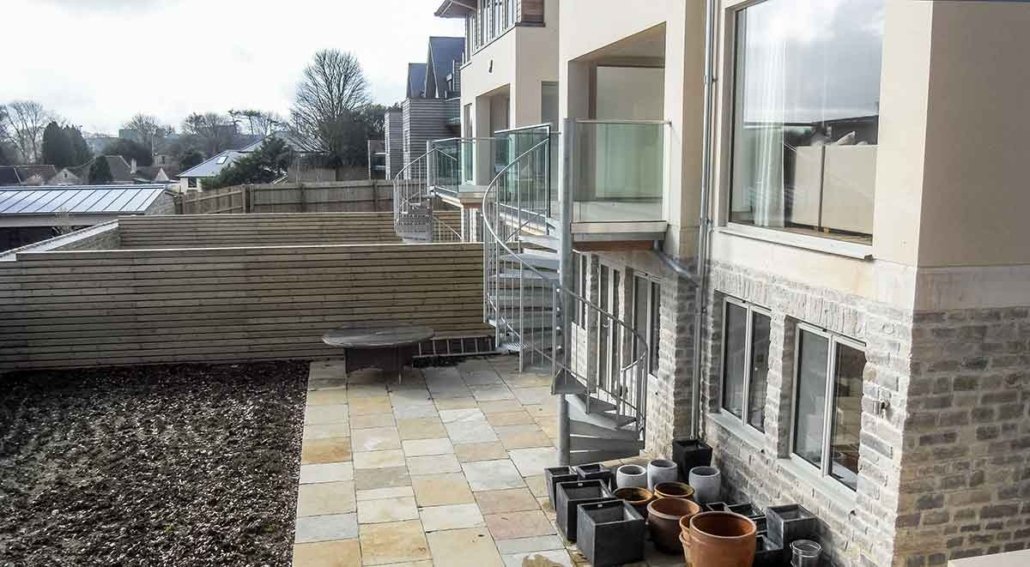

They needed a spiral staircase at the rear of each home to connect the balcony to the garden below, offering a space-efficient solution that also served as a sculptural feature.

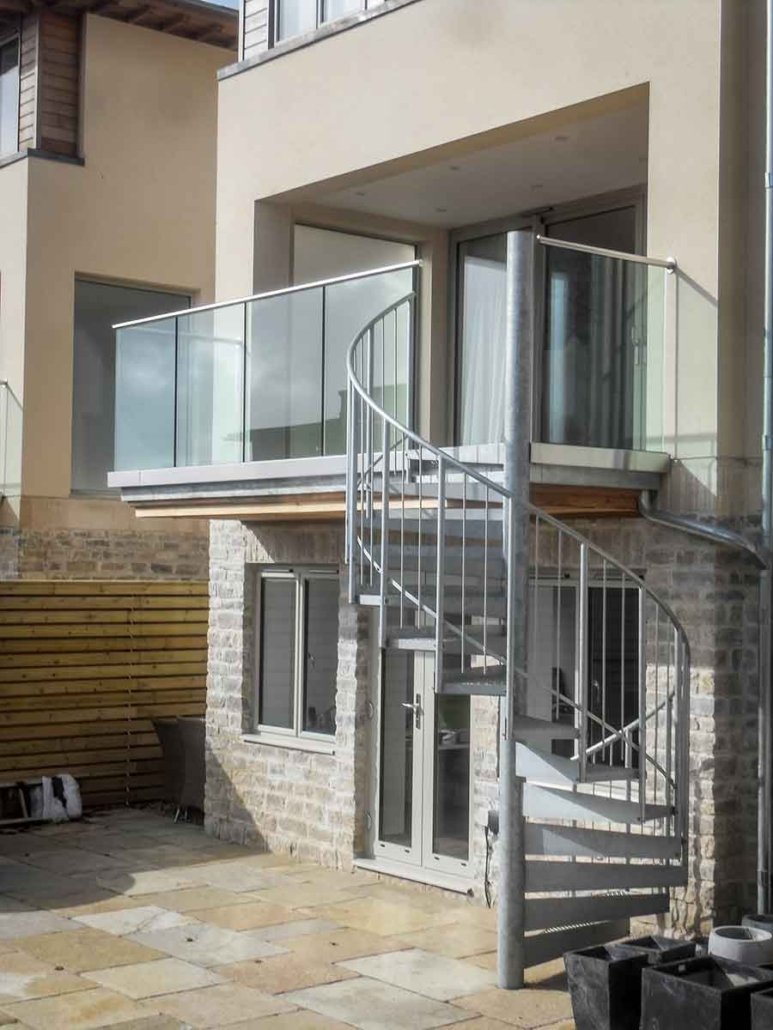

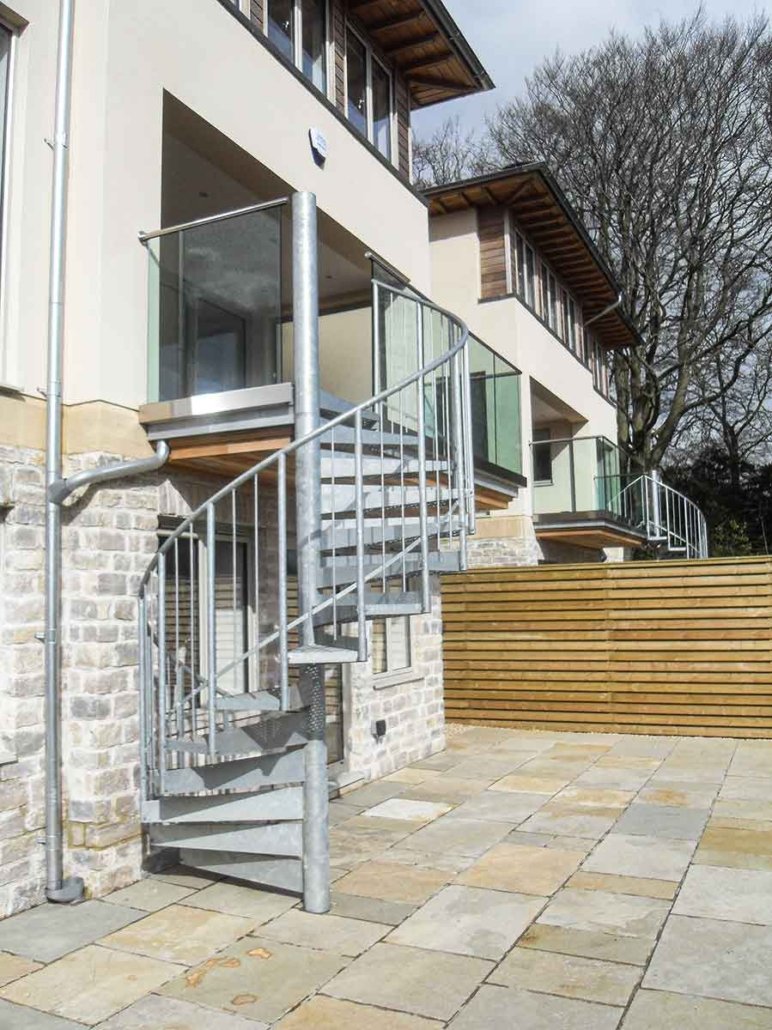

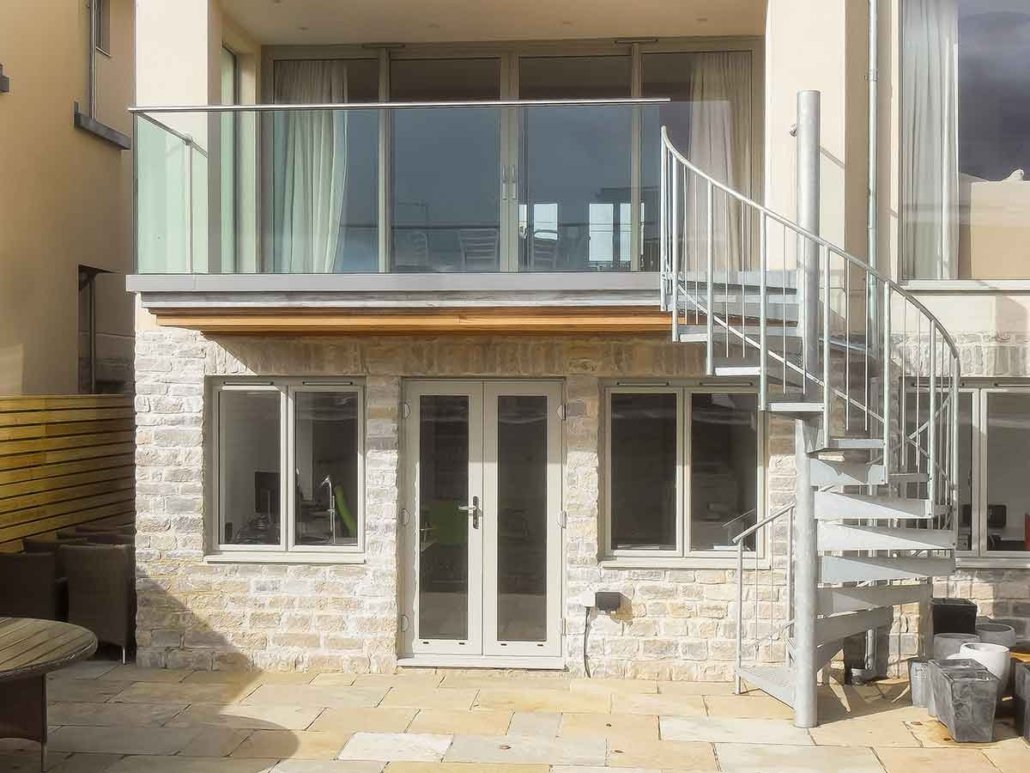

Each staircase was a simple galvanised spiral design with non-slip perforated steel treads, a steel handrail, and spindles, all fully galvanised to withstand the elements. Since the platform was part of the building’s structure, we created a flange at the top of the spiral to bolt directly to the balcony, rather than using a separate top platform.

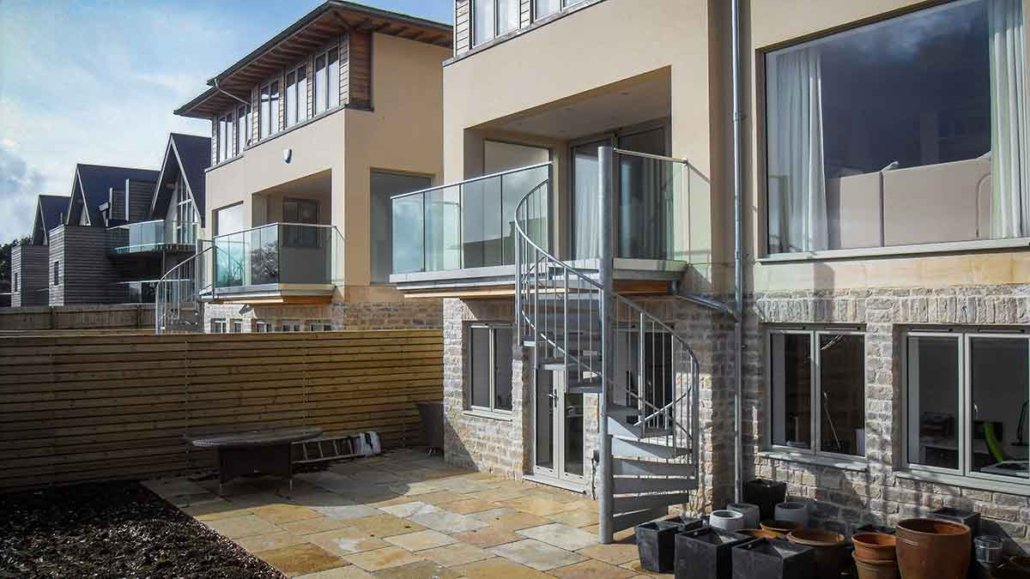

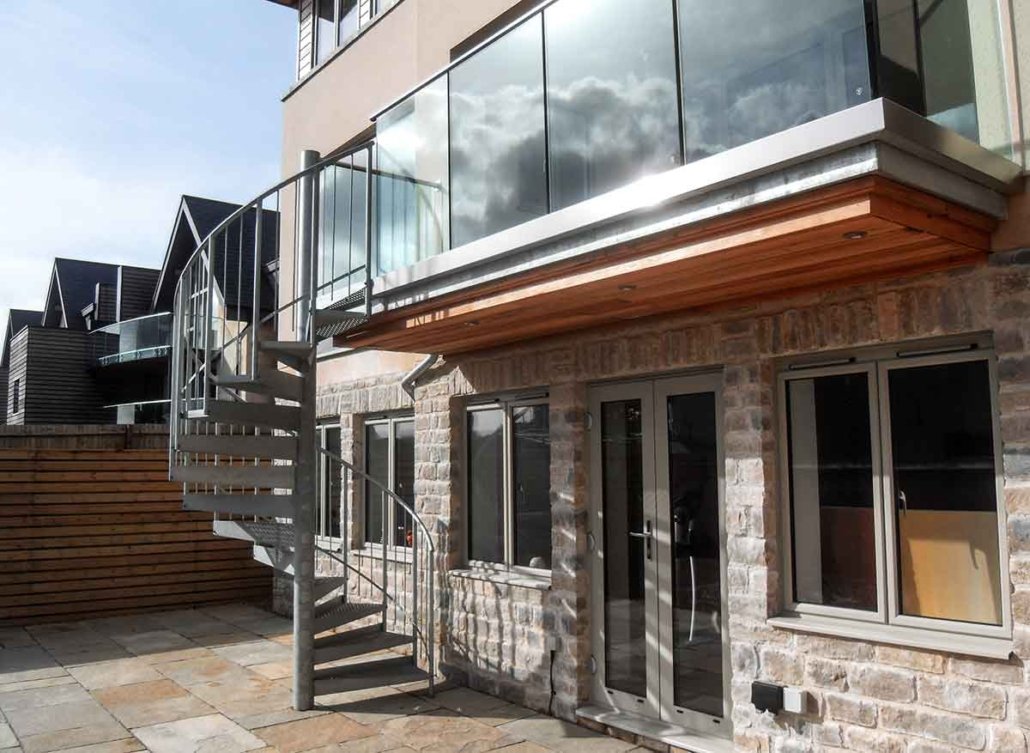

The balconies featured frameless glass balustrades on two sides, giving them an open and transparent look.

Brief

• Design and deliver three spiral stairs to lead to existing balconies
• Special connection detail at top of platform to connect to balcony
• Ensure the structure meet building regulations
• Finish the steel to prevent deterioration

The Solution

• We supplied 3 custom made steel spiral stairs
• A unique flange welded to top of each spiral column for fixing
• Spiral stair built to category B requirements with an 800mm clear tread width
• Supplied fully galvanised to prevent rust
