Spiral Staircase Inverness

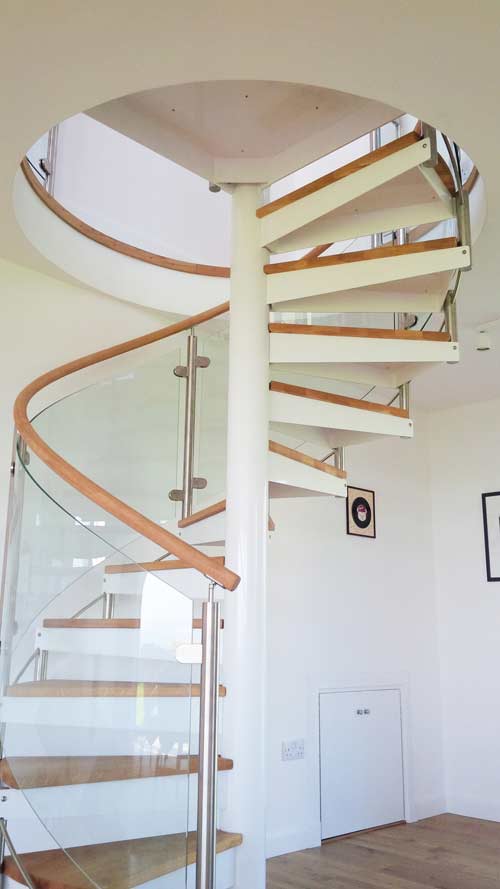

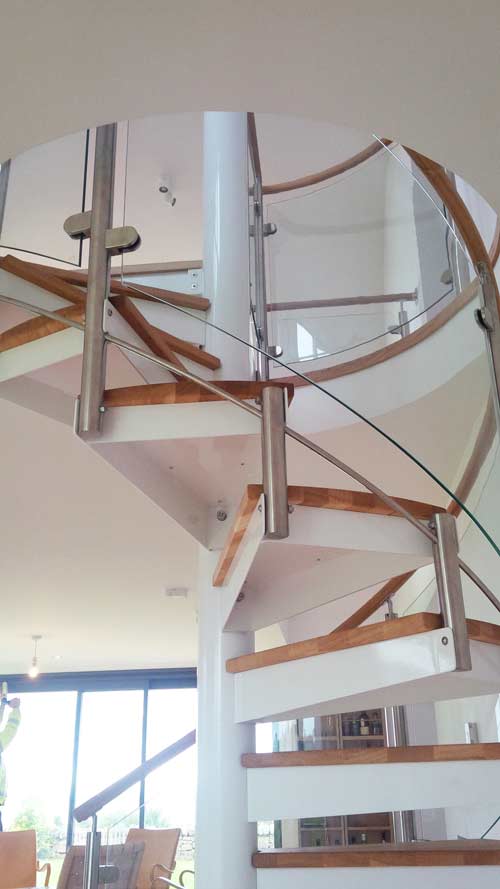

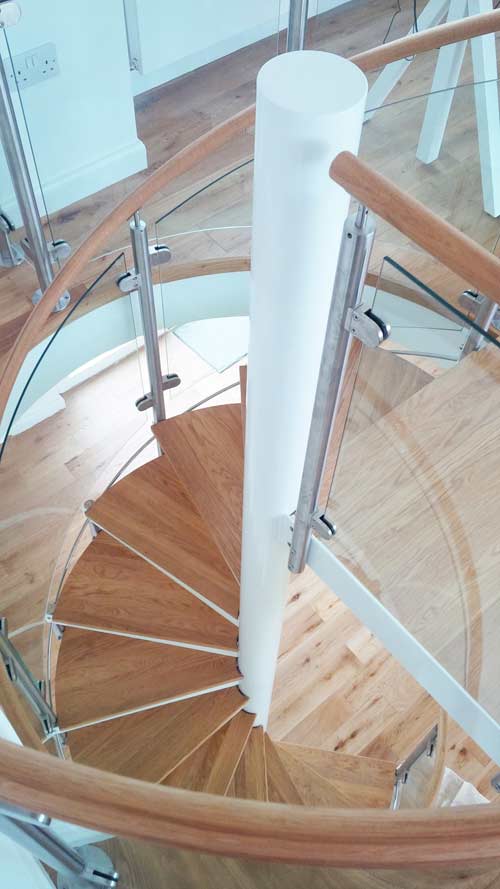

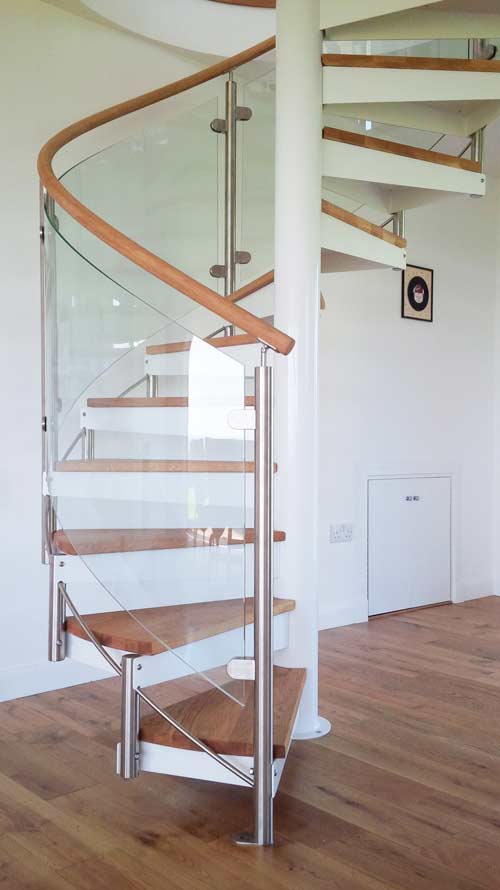

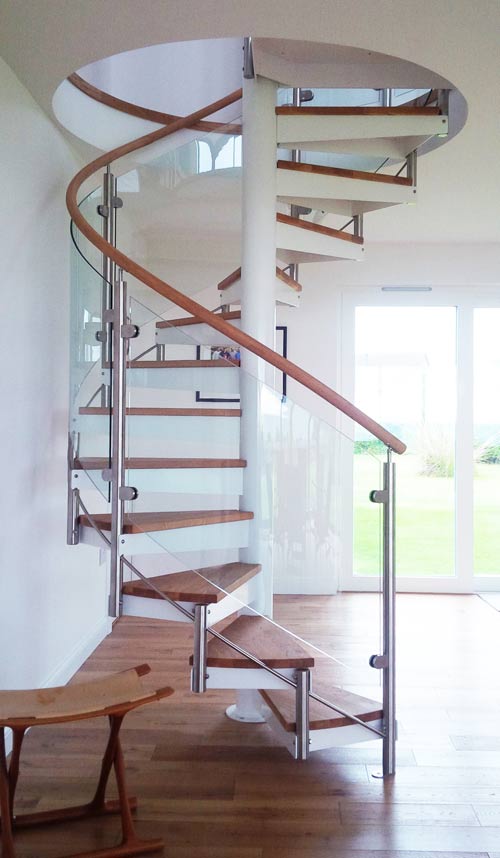

A bespoke yet small spiral staircase was required for an extension in Inverness.  Our client was accessing a bedroom and bathroom above the new living room downstairs.  The roof was sloping above so a great deal of care and attention ensured there were no headroom issues.  The cient wanted to encourage the passage of light so decided to go for curved glass panels wrapping around the spiral which really opened up the room.  Stainless steel posts held the glass panels in place and an oak handrail was placed on top to match the oak treads.  Matching landing balustrade with glass was included around the opening upstairs.

Spiral Staircase Inverness- Technical Specifications

Floor to floor height2742mm
Risers14 @ 195.8mm
Spiral Diameter1450mm
Clear Tread Width600mm
Tread Type30mm Oak on steel plate
Balustrade Type8mm curved glass panels
Handrail50mm Ø Oak
Centre Column140mm Ø
Finish of SteelPowder Coated

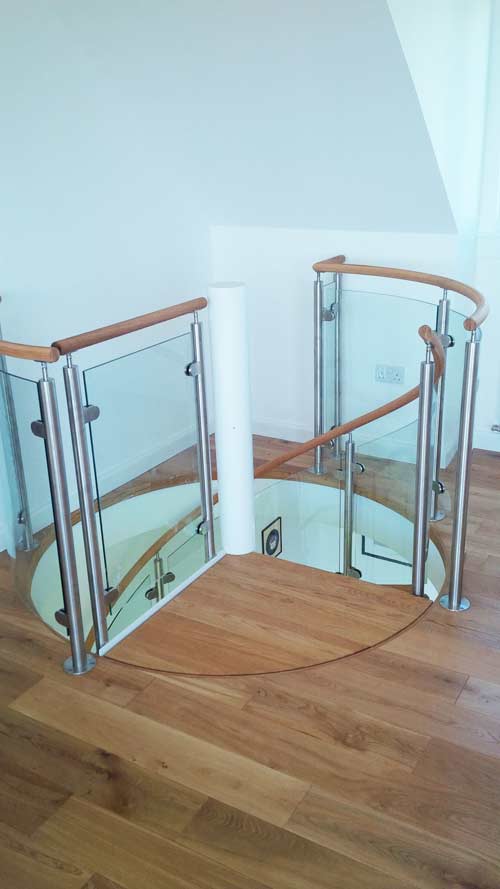

AdditionalLanding Balustrade to match
