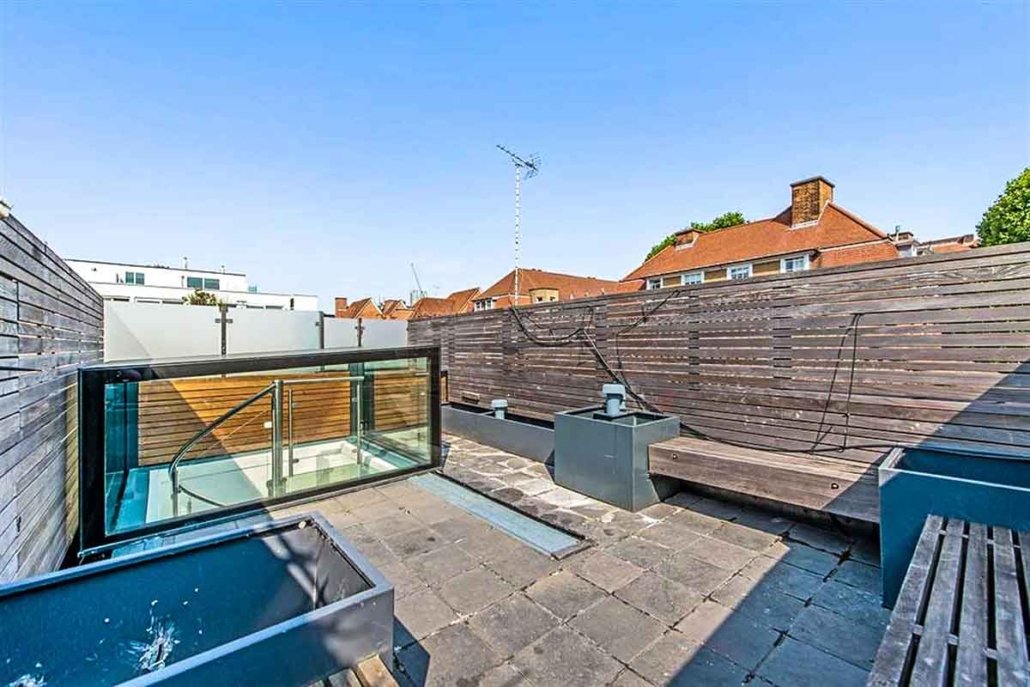

For a renovated property in Shoreditch, East London, the client required a compact spiral staircase to provide access to a roof terrace while maintaining a light, contemporary aesthetic.
The Brief
The client was looking for –
- Compact spiral staircase for roof terrace access
- Space-efficient solution suitable for an urban property
- Modern, open design to maximise light
- Minimal visual impact within the interior
- stainless steel elements to match the kitchen
The Solution
Our model 76 spiral staircase offered her –

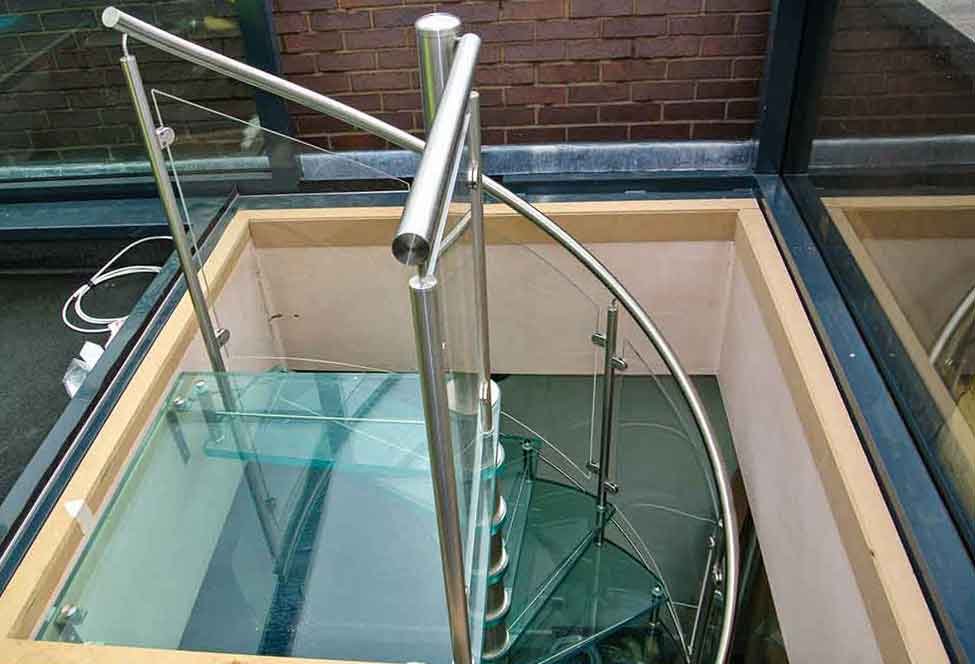

- 16 risers with a square top platform

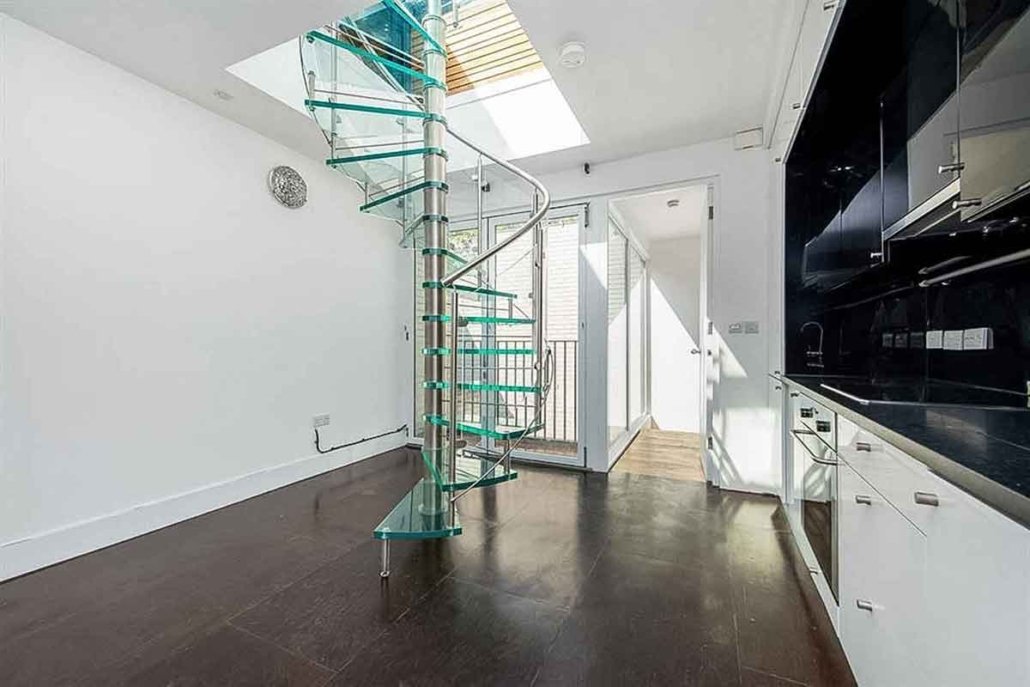

- 30mm laminated glass treads to enhance openness

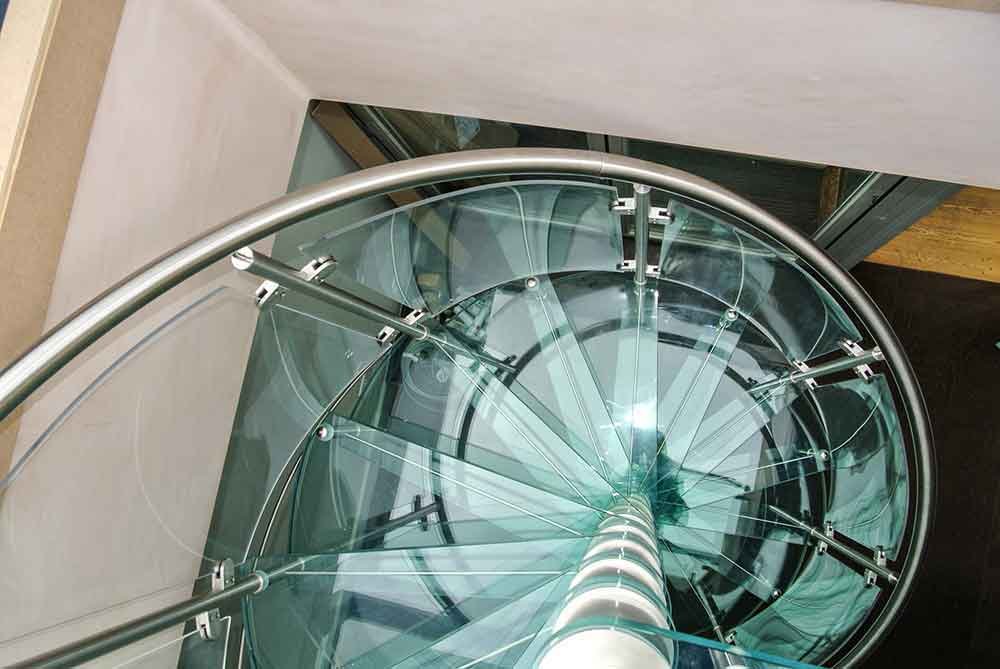

- Curved glass perimeter panels for a clean, contemporary finish

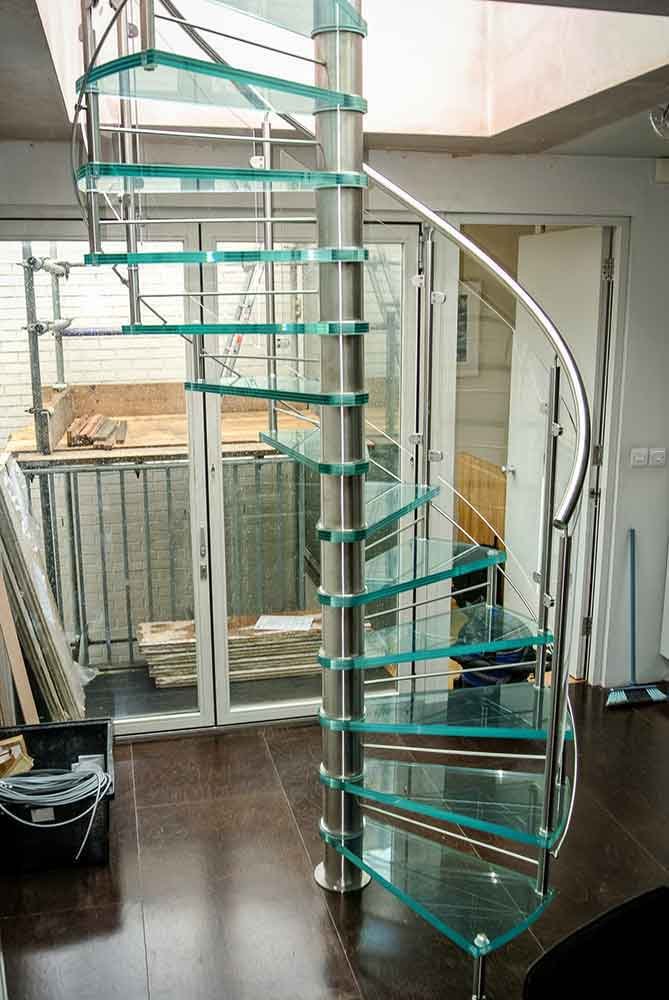

- Brushed stainless steel central column
- Staircase delivered late in the build programme to prevent damage to the glass treads
- Customised solution for height and rotation

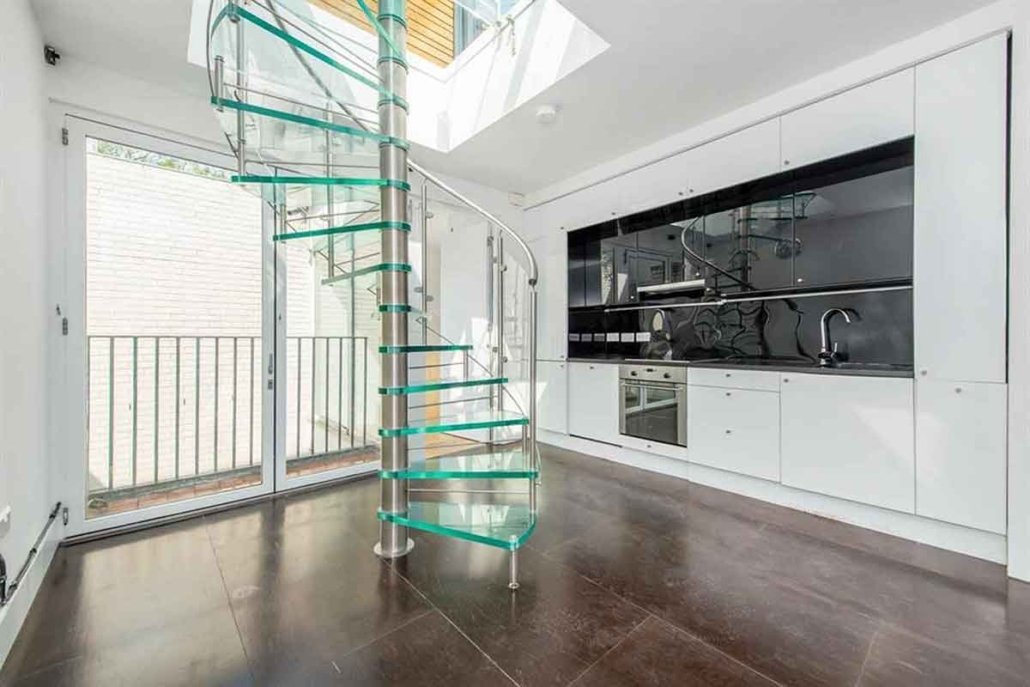

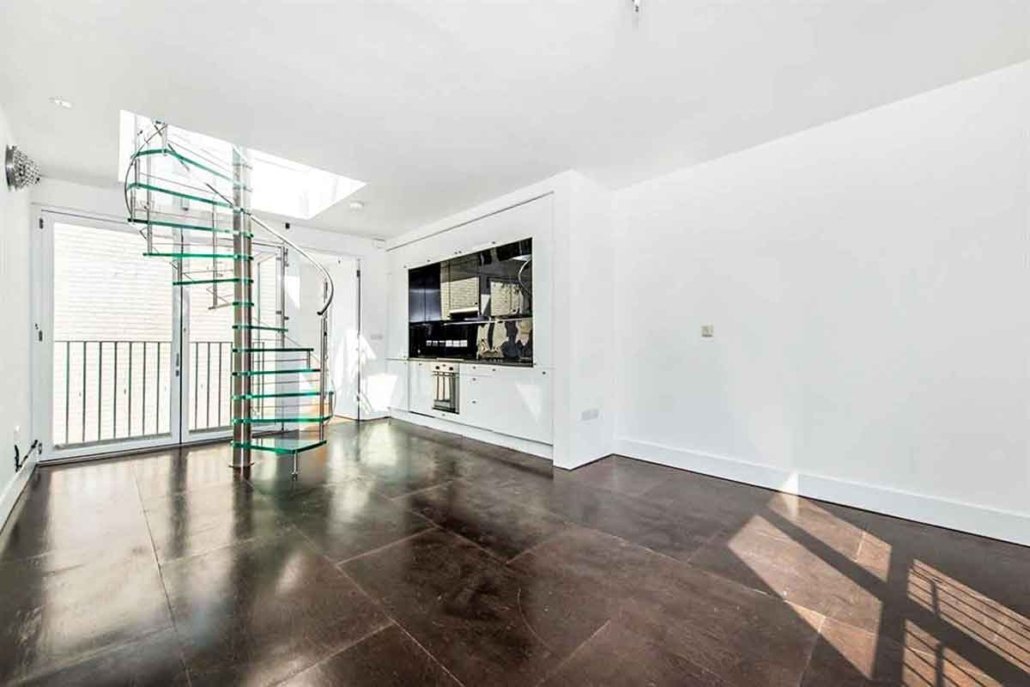

The completed staircase provides a sleek, space-saving route to the roof terrace while acting as a striking architectural feature within the home. The client later shared photographs following installation, showcasing the light and airy result.
Spiral Staircase Shoreditch- Technical Specifications
| Floor to floor height | 3385mm |
| Risers | 16 @ 211.5mm |
| Spiral Diameter | 1500mm |
| Clear Tread Width | 610mm |
| Tread Type | 30mm Laminated Glass |
| Balustrade Type | 8mm curved glass panels |
| Handrail | 37,7mm Ø Stainless Steel |
| Centre Column | Brushed Stainless Barrels |
| Finish of Steel | Brushed Stainless Steel |
| Additional | riser bars to reduce riser gap |
