Name: F20Z Spiral Staircase
SKU: 28177
Availability: InStock

F20Z Spiral Staircase

F20Z Spiral Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,960.00 – £5,556.00

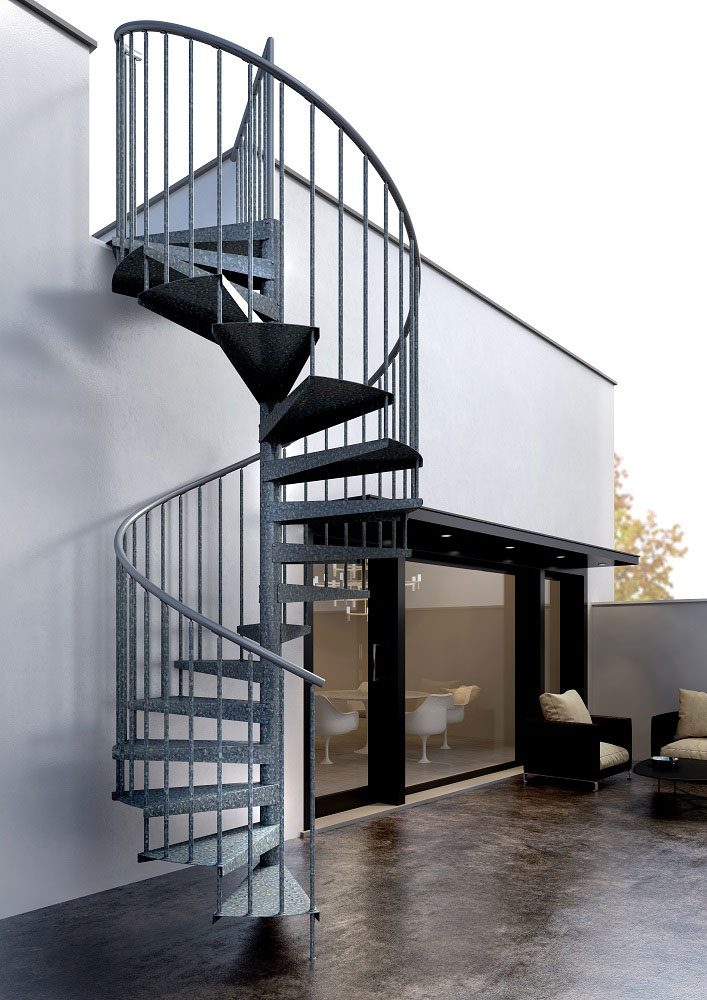

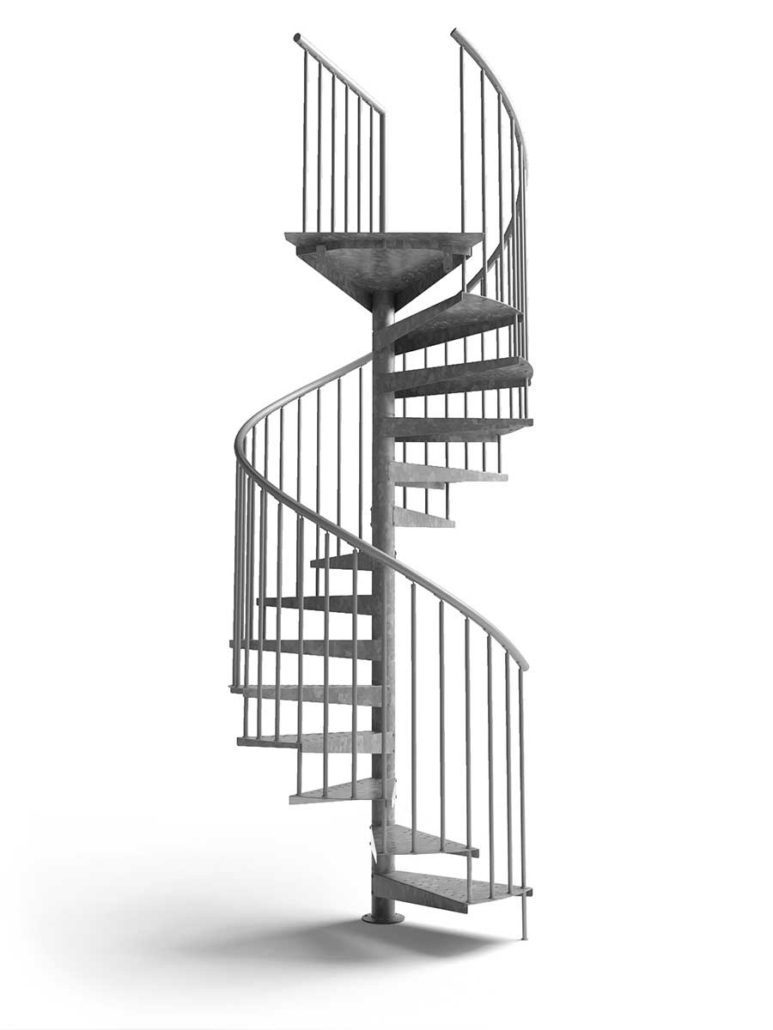

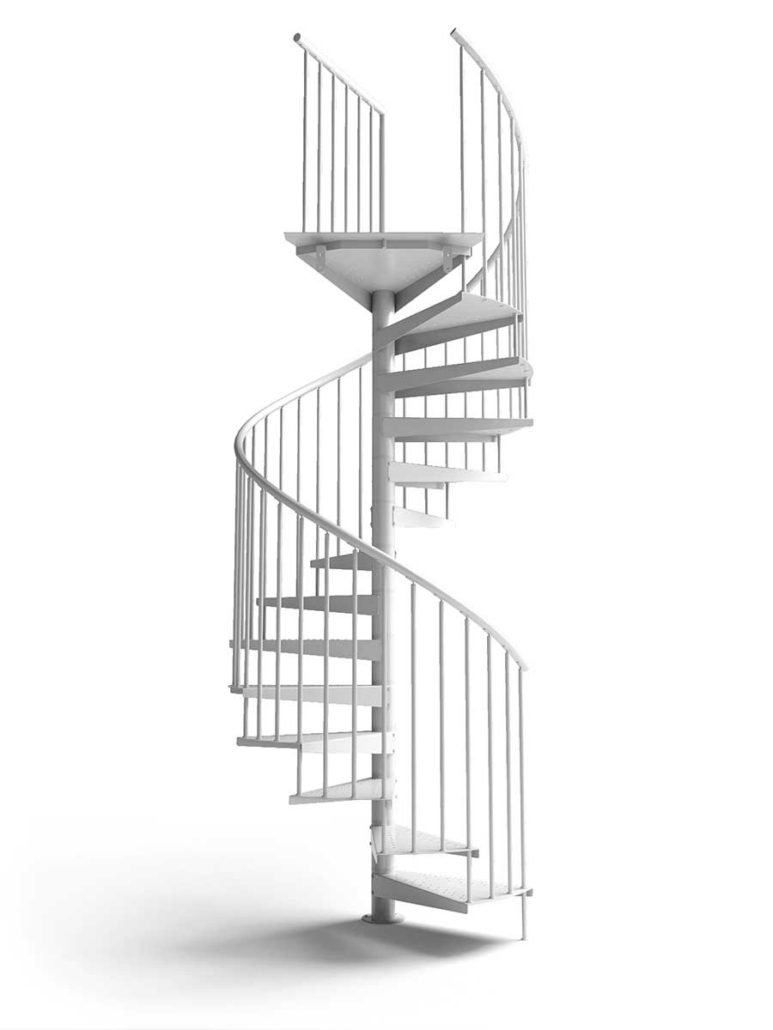

The F20Z Spiral Staircase is an elegant and high-quality external staircase designed for home use. It features pressed steel treads, vertical steel spindles, and a nylon handrail. This staircase is fully galvanised to withstand the elements and offers an optional powder-coated finish. Available in five diameters and heights ranging from 2100mm to 3500mm, the F20Z is an ideal solution for your outdoor spiral staircase needs.

Floor to Floor Height

Diameter

Steelwork Finish

Riser Bars

Clear

SKU: N/A Categories: External spiral stair, F20Z Spiral Stair, metal spiral staircase, outdoor spiral staircase, steel spiral stair

Need some assistance? Speak to the spiral experts 01794 522444

Technical Information

Application	External Use
Heights	2100-3500mm (for others please contact office)
Diameters	1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm
Treads	Pressed Steel perforated treads
Spindles	20mm diameter steel
Handrail	42mm diameter Nylon
Top Platform	60 degree Triangle
Finish of Steelwork	-Galvanised -Galvanised and powder coated White -Galvanised and powder coated Light Grey -Galvanised and powder coated Grey -Galvanised and powder coated Black

Steel Finishes

Building Regulations - Please read and understand before purchase

Before purchasing, it is crucial to verify the suitability of your chosen spiral staircase with your local building control department. Their requirements may differ based on the spiral’s use and location. It is the client’s responsibility to ensure that all necessary permissions have been obtained before any purchase is made.
We are glad to address any inquiries you may have prior to your purchase, but ultimately, your building control officer will make the final decision. Our contact number is 01794 522444.

F20Z Spiral Staircase Rotations

Circular Opening

Square Opening

Mezzanine

10 Risers

Clockwise & Anticlockwise

11 Risers

Clockwise & Anticlockwise

12 Risers

Clockwise & Anticlockwise

13 Risers

Clockwise & Anticlockwise

14 Risers

Clockwise & Anticlockwise

15 Risers

Clockwise & Anticlockwise

16 Risers

Clockwise & Anticlockwise

Delivery Info

The F20Z Spiral Staircase is a custom-made order, dispatched directly from our factory in Italy and delivered to your doorstep.

Delivery times typically range from 4 to 6 weeks post-order, but may extend during the summer and Christmas seasons.

Due to the bespoke nature of this product, cancellations are not accepted.

Upon the staircase’s arrival in the UK, the transport company will contact you to schedule a convenient delivery date. Deliveries are ‘kerbside,’ with most vehicles featuring a tail-lift and pump truck, enabling the pallet to be moved to a secure location on level ground. Receipt of the goods, in good condition, will require your signature. Deliveries are usually made between 8am and 5pm on weekdays.

Delivery charges are included for mainland UK addresses.

For delivery quotes to Northern Ireland, the Channel Islands, Scottish Isles, Isle of Wight, and Isle of Man, please contact our office.

01794 522444 info@completestairsystems.co.uk

Frequently asked Questions

What Size of opening do I need in the floor?

The hole in the upper floor should be at least 50mm larger than the spiral diameter you are buying. This is to allow for a knuckle gap clearance as you ascend the spiral. The opening in the floor can be circular or square. For example, a 1500mm diameter spiral would need a 1550mm diameter or 1550 x 1550mm square minimum hole size.

How long does delivery take?

The F20Z Spiral is made to order and produced in Italy. It generally takes 4-6 weeks to received your spiral.

What Diameter do I need?

The required specifications will differ based on the application, the size of the opening in the floor above, and the applicable building regulations. If a building control officer is overseeing your project, it’s important to confirm the acceptable diameter with them, as they will be approving the work. Typically, areas with higher foot traffic necessitate a larger diameter, while those with less traffic can have a smaller one.

How difficult is the spiral to install?

In the majority of instances, the spiral is installed in a day by 2 people. This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade. Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

Where does the spiral start and finish?

The entry and exit points of the spiral are a crucial element to consider. If you have a look at the above plan drawings you will be able to see where you get on and get off the spiral. Each model can be assembled clockwise or anticlockwise. If in doubt – please get in touch – 01794 522444.
