Name: F20 Spiral Staircase
SKU: 27740
Availability: InStock

F20 Spiral Staircase

F20 Spiral Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,694.00 – £4,626.00

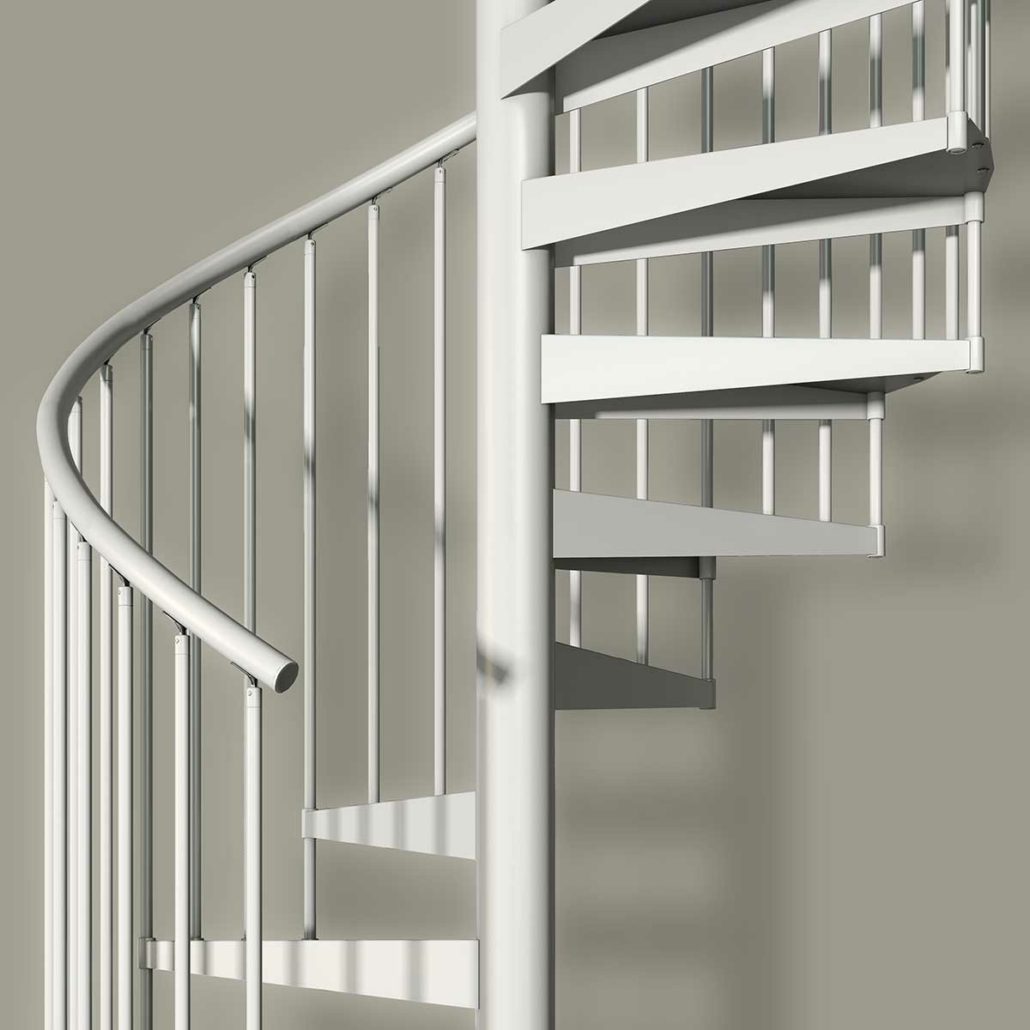

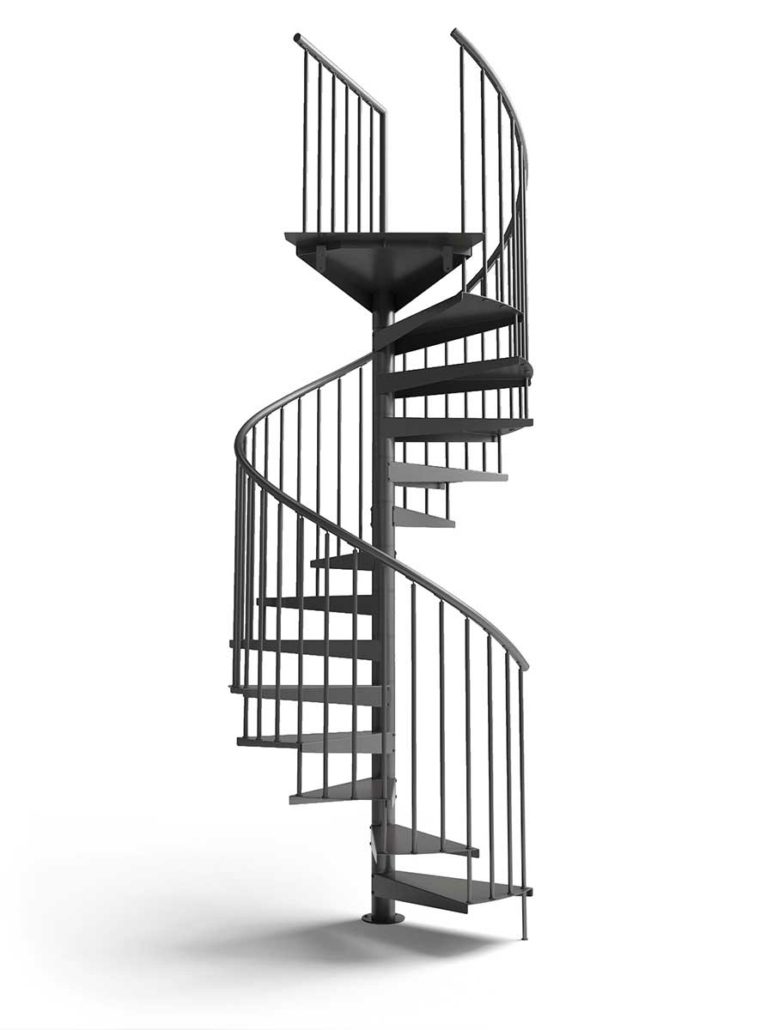

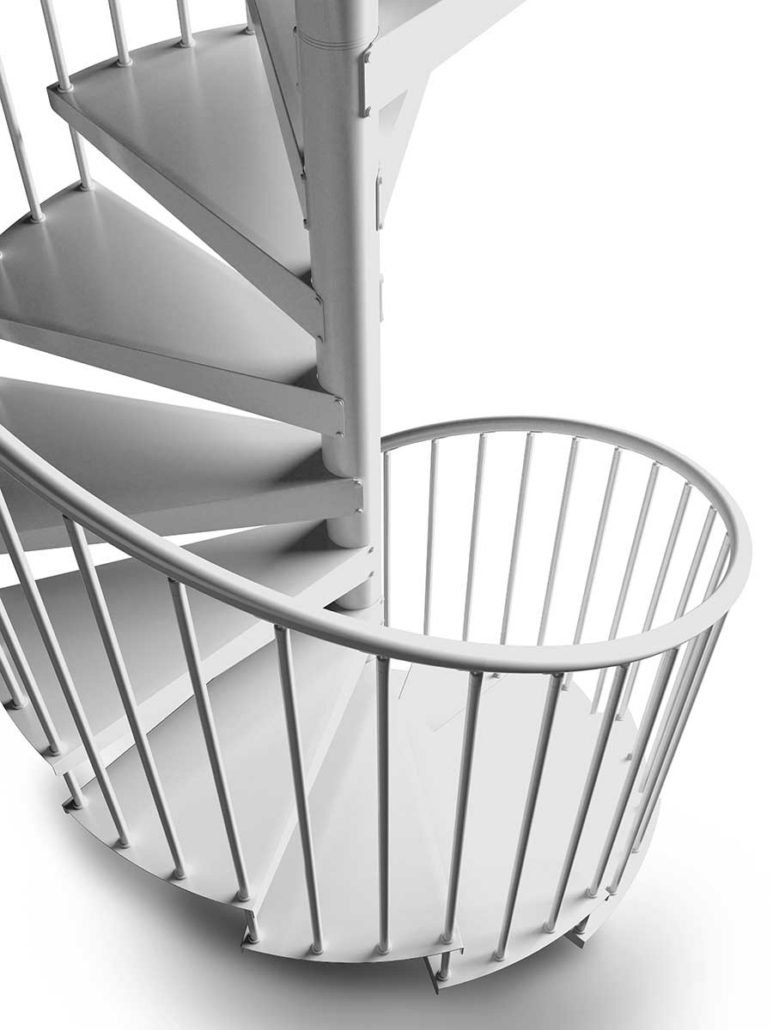

The F20 Spiral Staircase is a high-end, tailor-made spiral staircase kit that is made to order. Crafted with pressed steel treads, it includes vertical steel spindles and a nylon handrail. The kit is designed for self-assembly and offers five different diameters, along with a choice of four distinct powder-coated finishes.

The F20 adds a touch of elegance and modernity to any residence.

Floor to Floor Height

Diameter

Steelwork Finish

Riser Bars

Landing Balustrade

Clear

SKU: N/A Categories: F20 Spiral Stair, metal spiral staircase, steel spiral stair

Need some assistance? Speak to the spiral experts 01794 522444

Technical Information

Application	Internal Use
Heights	2100-3500mm (for others please contact office)
Diameters	1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm
Treads	40mm Beechwood
Spindles	20mm diameter steel
Handrail	42mm diameter Nylon
Top Platform	60 degree Triangle
Finish of Steelwork	Powder Coated – White, Light Grey, Grey or Black
Finish of Timber	Oak Stain, Walnut Stain, Stone Stain, Wenge Stain

Steel Finishes

Building Regulations - Please read and understand before purchase

It is important to check the suitability of your chosen spiral with you local building control department before purchasing. Their requirements will vary depending on the use of the spiral and its setting. It is our clients responsibly to ensure the relevant permissions have been sought and granted prior to making any purchase.
We are happy to answer any questions you might have before your purchase but it is your building control officer that will have the final say. We are on 01794 522444

Balustrade for Landing

If you require additional balustrade to protect your opening upstairs, this is available in 1m lengths that can be cut, joined and adjusted to suit. If you have a circular opening the nylon handrail can be curved on site.

An individual kit consists of;-

9 x 20mm diameter Steel spindles
1m length of handrail to match stair
1 x floor support post
1 x handrail to handrail connecting piece
1 x spindle to spindle connector
1 x spindle to wall connector

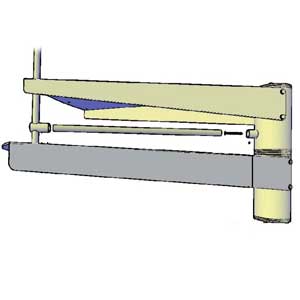

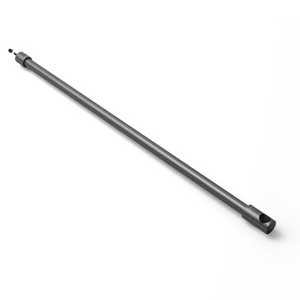

Riser infill Bars

Riser bars are designed to minimise the gap between stair steps.

UK regulations stipulate that the space between treads must not exceed 100mm, a safety measure to prevent children from slipping through.

These bars consist of a 20mm steel bar installed horizontally across the steps, maintaining an open riser while closing the gap.

Generally, the riser bars can be powder-coated to match the steelwork’s color.

To include riser bars in your order, simply select ‘YES’ in the riser bar dropdown menu.

Should you be uncertain about the necessity of riser bars, consult your building control officer.

While these bars can be installed after the staircase is assembled, ordering them separately will incur an additional delivery charge.

F20 Spiral Staircase Rotations

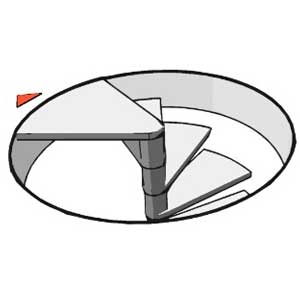

Circular Opening

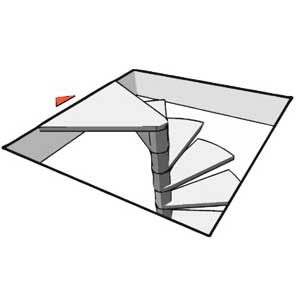

Square Opening

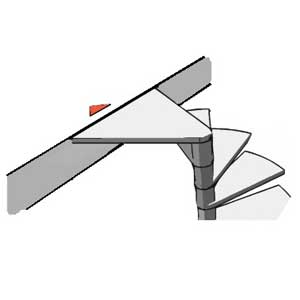

Mezzanine

10 Risers

Clockwise & Anticlockwise

11 Risers

Clockwise & Anticlockwise

12 Risers

Clockwise & Anticlockwise

13 Risers

Clockwise & Anticlockwise

14 Risers

Clockwise & Anticlockwise

15 Risers

Clockwise & Anticlockwise

16 Risers

Clockwise & Anticlockwise

Delivery Info

The F20 Spiral Staircase is considered a custom made order and it is dispatched directly from the factory in Italy and delivered to your door.

Delivery times are generally between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery. This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain. A signature will be required to accept the goods and confirm they have arrived in good condition. The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444 info@completestairsystems.co.uk

Frequently asked Questions

What Size of opening do I need in the floor?

The hole in the upper floor should be at least 50mm larger than the spiral diameter you are buying. This is to allow for a knuckle gap clearance as you ascend the spiral. The opening in the floor can be circular or square. For example, a 1500mm diameter spiral would need a 1550mm diameter or 1550 x 1550mm square minimum hole size.

How long does delivery take?

The F20 Spiral is made to order and produced in Italy. It generally takes 4-6 weeks to received your spiral.

What Diameter do I need?

Your requirement will vary depending on the application, the opening you have in the floor above and the building regulations. If you have building control officer involved with the work you are doing, please check what diameter they would be happy with as they are signing off the work. Generally, higher traffic areas would require a larger diameter and low traffic areas would have a smaller diameter.

How difficult is the spiral to install?

In the majority of instances, the spiral is installed in a day by 2 people. This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade. Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

Where does the spiral start and finish?

The entry and exit points of the spiral are a crucial element to consider. If you have a look at the above plan drawings you will be able to see where you get on and get off the spiral. Each model can be assembled clockwise or anticlockwise. If in doubt – please get in touch – 01794 522444.
