Modern Steel and glass staircase Winchester

You are here: Home1 / Modern Staircases2 / Model 500 Staircase3 / Modern Steel and glass staircase Winchester

Modern Steel & Glass Staircase in Winchester new build

  • Right-circled Right-circled

    Winchester, Hampshire

  • Right-circled Right-circled

    Build Type - New Build

  • Right-circled Right-circled

    Model - Model 500 Staircase

  • Right-circled Right-circled

    Style - Modern and Zig Zag

  • Right-circled Right-circled

    Materials - Beech, Steel and Glass

  • Right-circled Right-circled

    Shape - Quarter Turn

The Brief

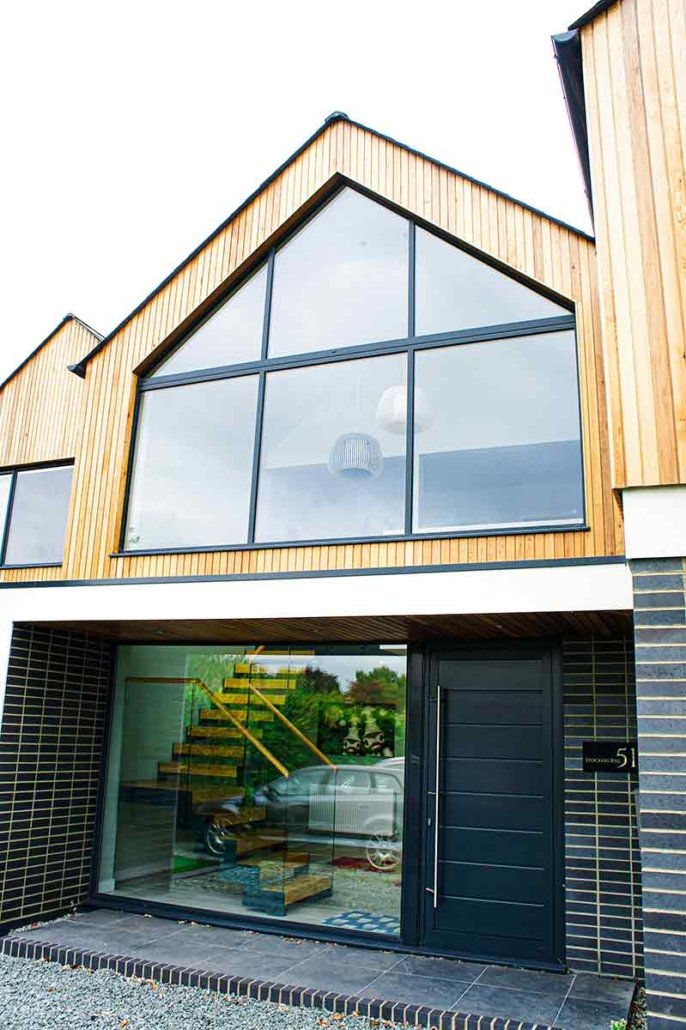

The client engaged us to create a striking feature staircase in their new-build Winchester home that would complement the large entrance hall and allow natural light from the expansive front windows to flow through the space.

The Solution

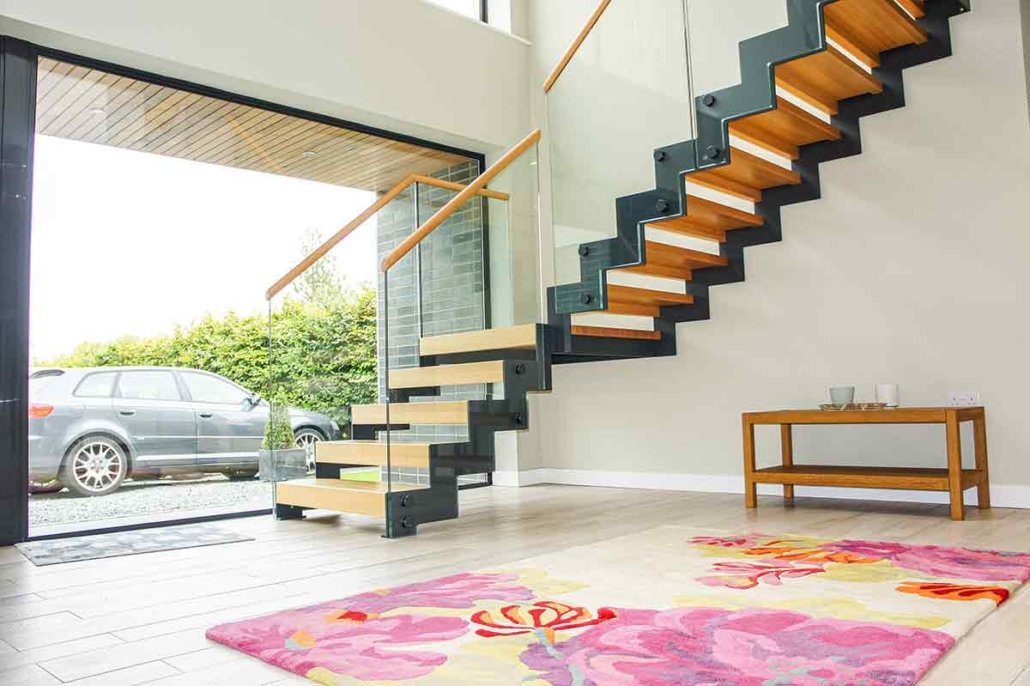

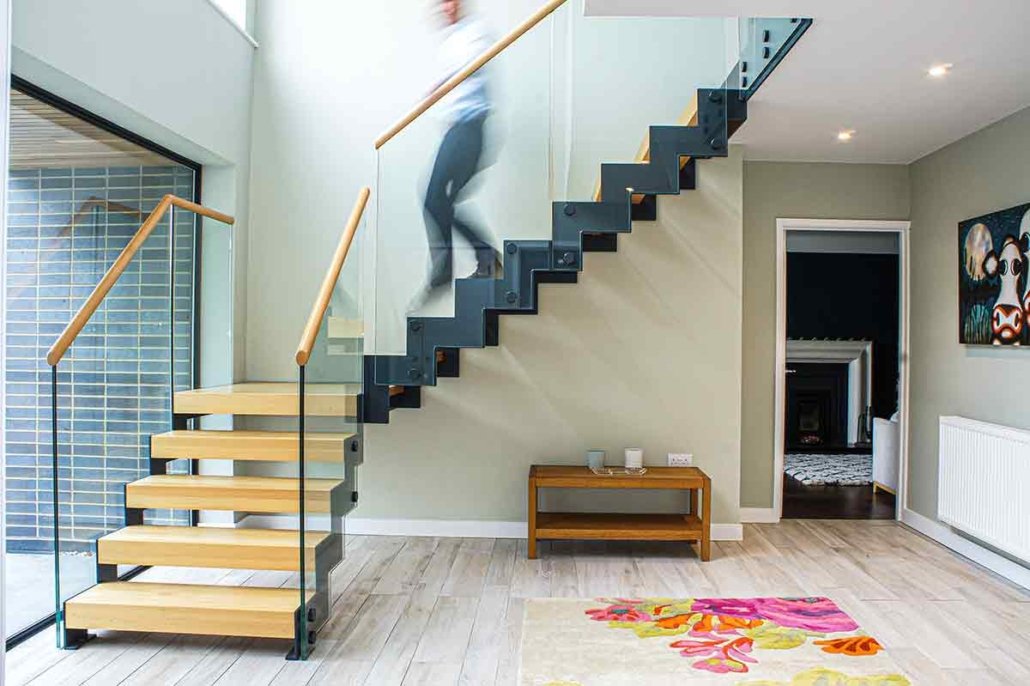

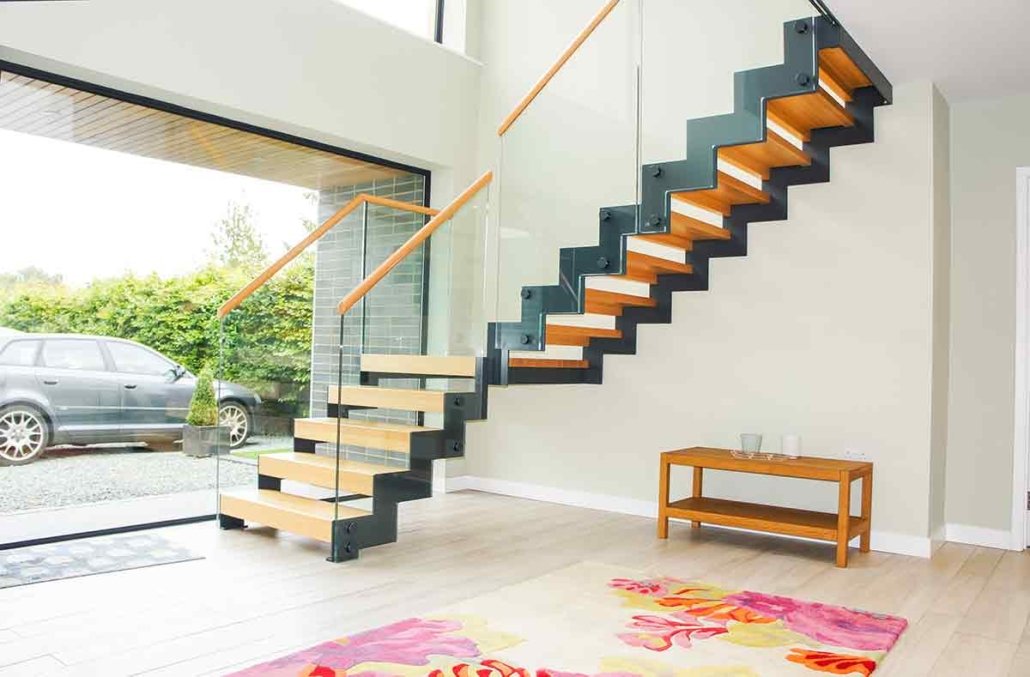

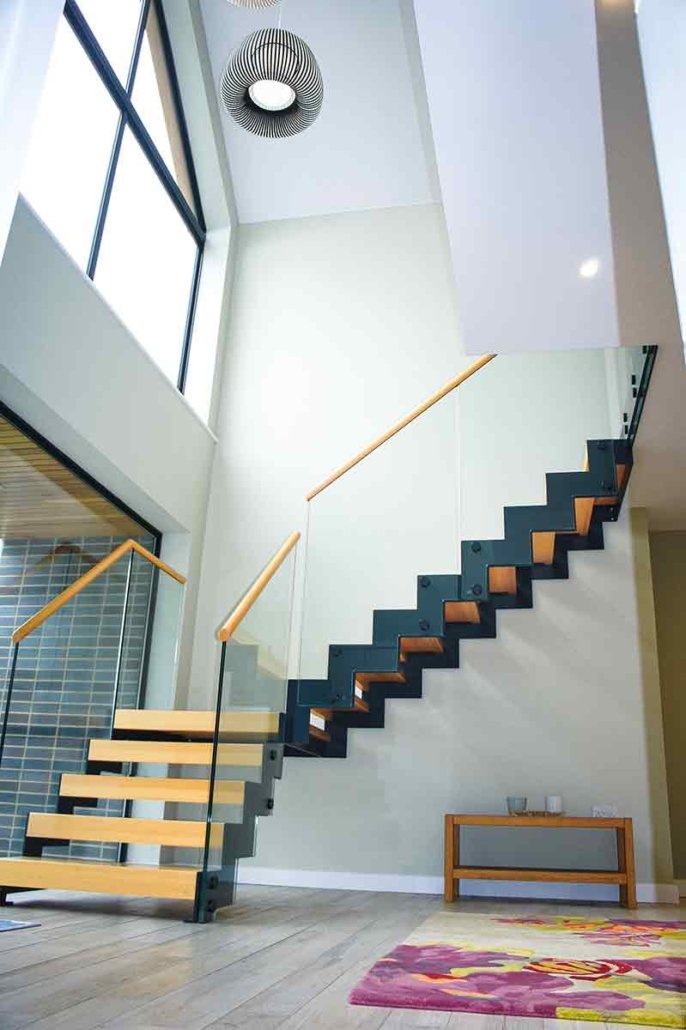

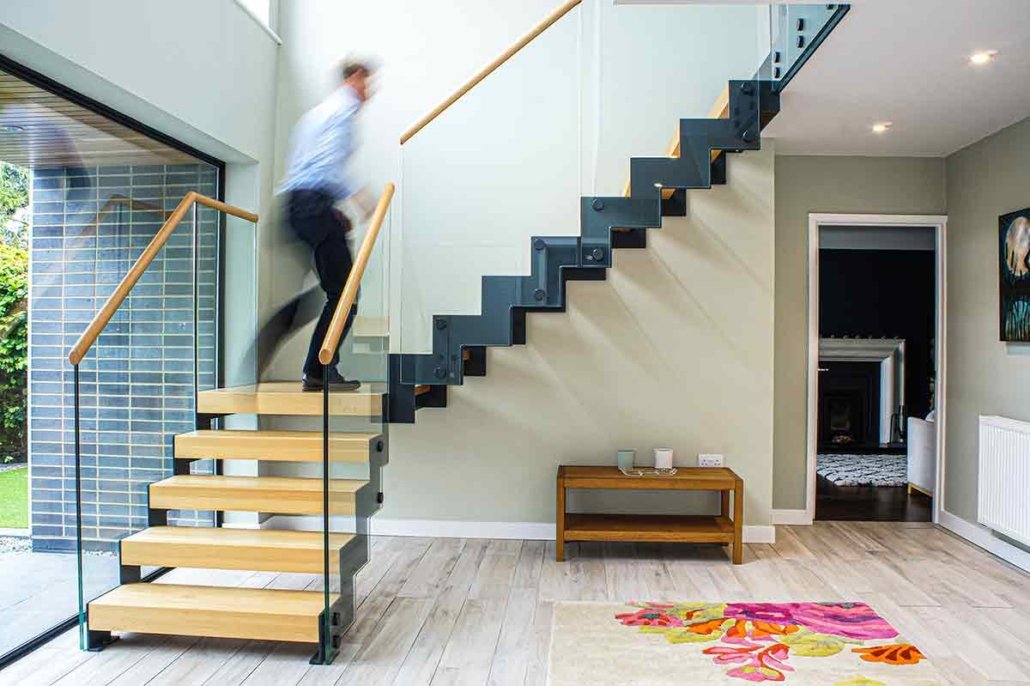

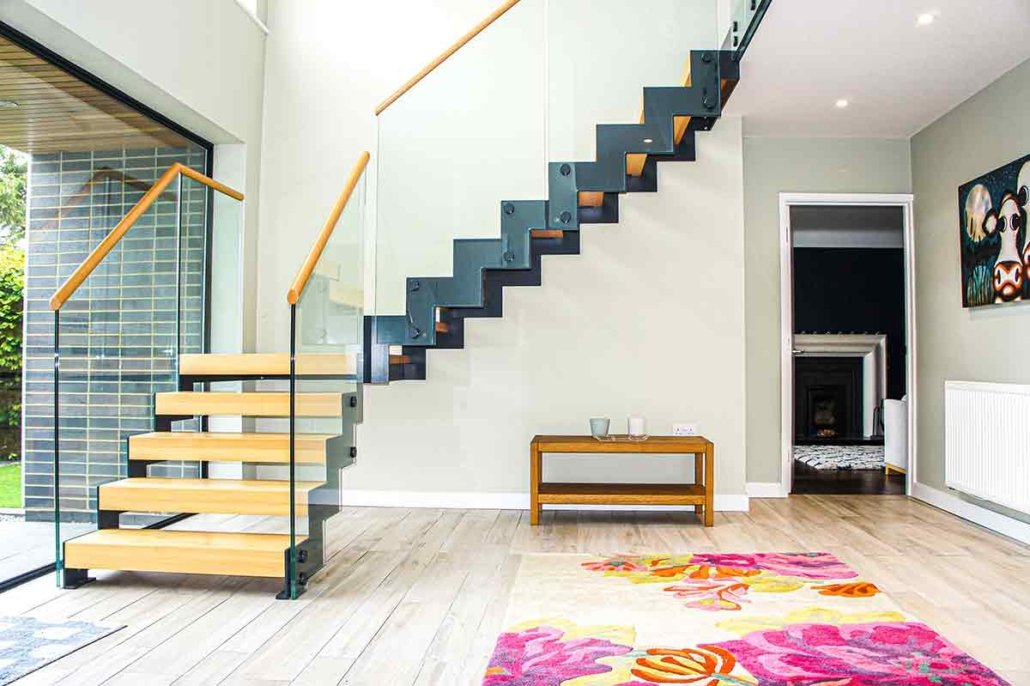

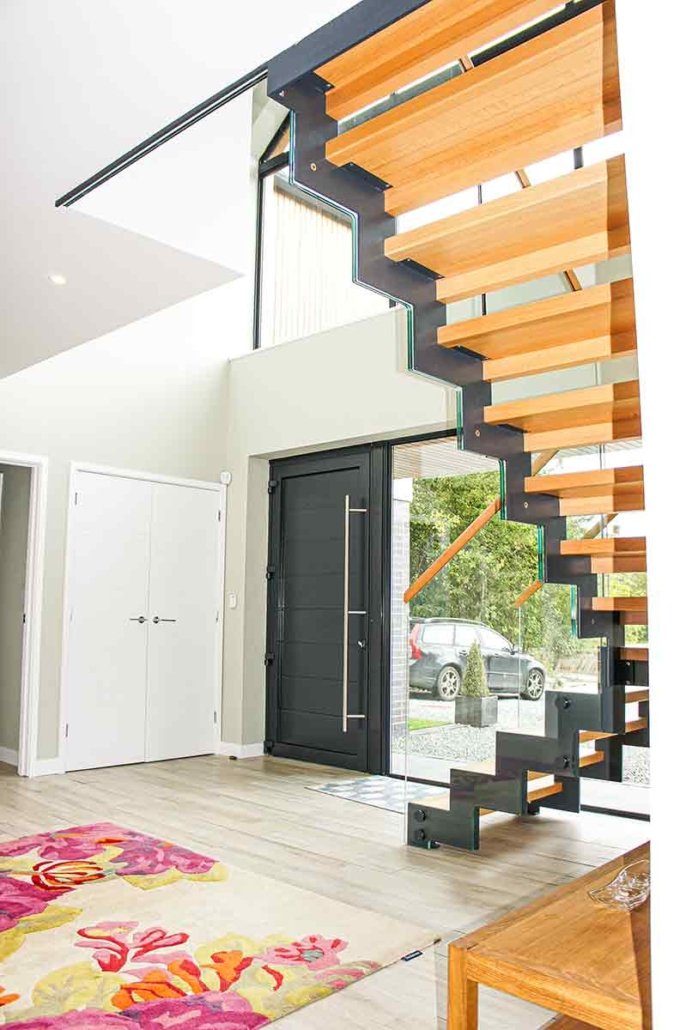

  • Designed a bespoke Model 500 staircase with slim steel stringers and hardwood timber treads to create a modern, open aesthetic.

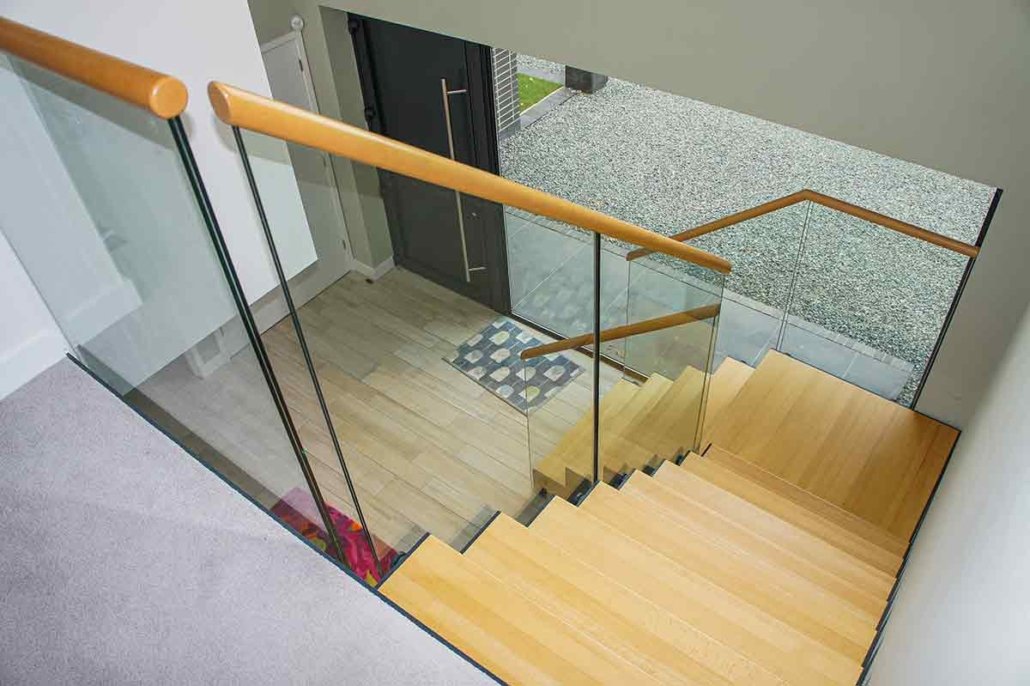

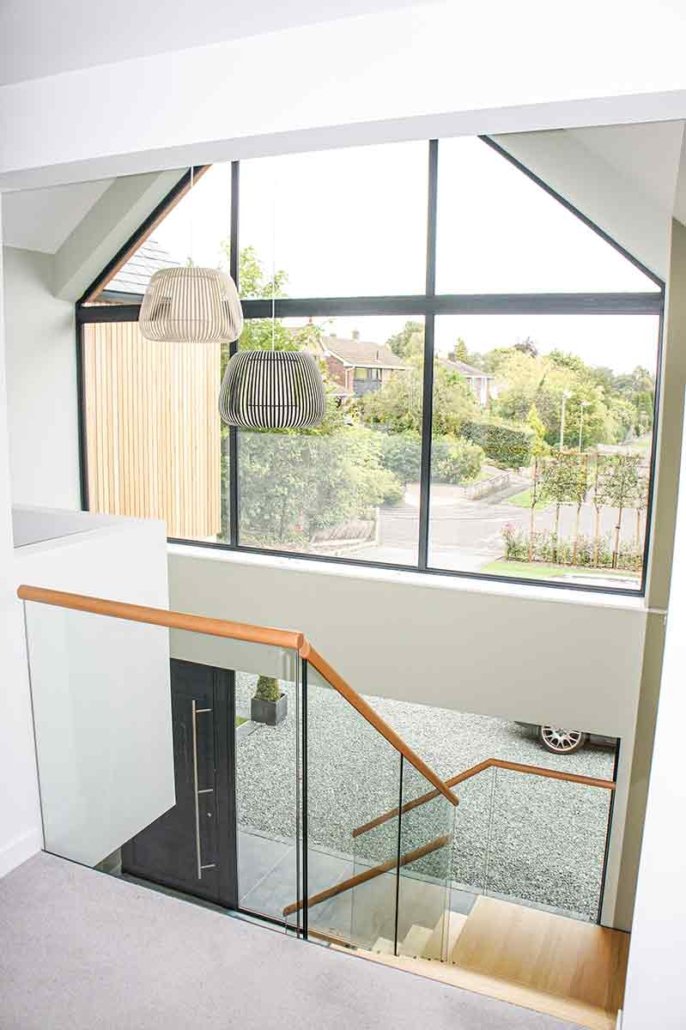

  • Chose zig-zag steel stringers and a frameless glass balustrade to maintain open sightlines and accentuate light flow
  • Integrated a beech downstand to the front of treads for UK building-regulation compliance and to visually unify the stair profile.
  • Selected finishes and materials that harmonised with the hall’s interior, making the staircase a central architectural feature.

Modern Steel and Glass staircase in Winchester new build – Technical Specifications

Floor to floor height2742mm
Risers14 @ 195.8mm
Stair ConfigurationQuarter Turn with platform
Tread Width950mm
Tread Type50mm beech with downstand
Balustrade Type17.5mm laminated glass panels
Handrail50mm Ø beech
Stringerszig zag top and bottom
Finish of SteelRAL 7016
Additional2m Landing Balustrade
