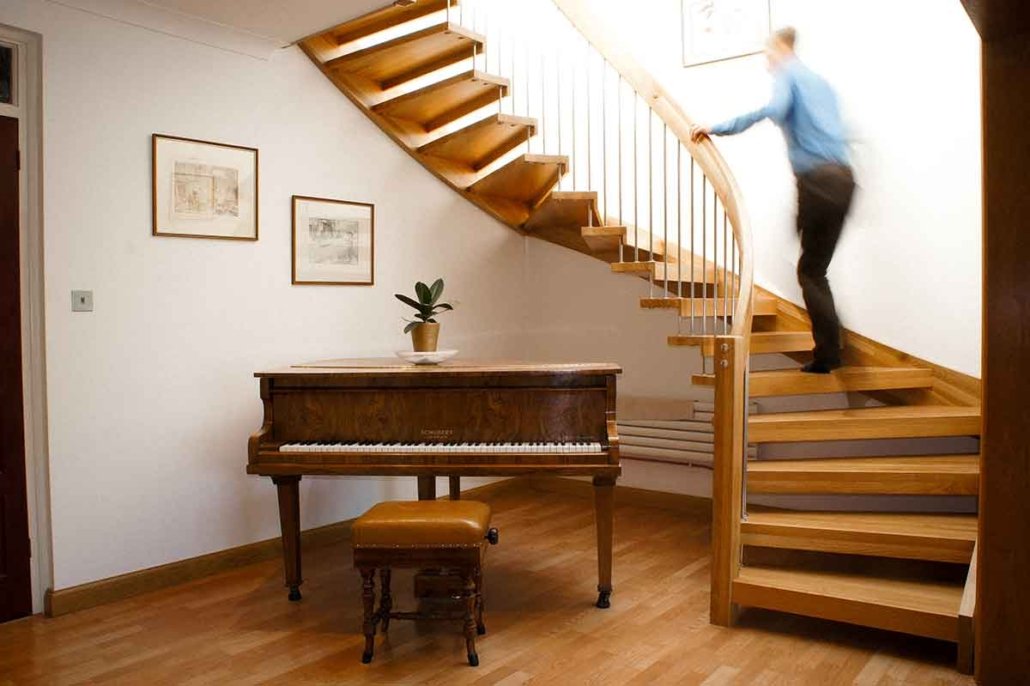

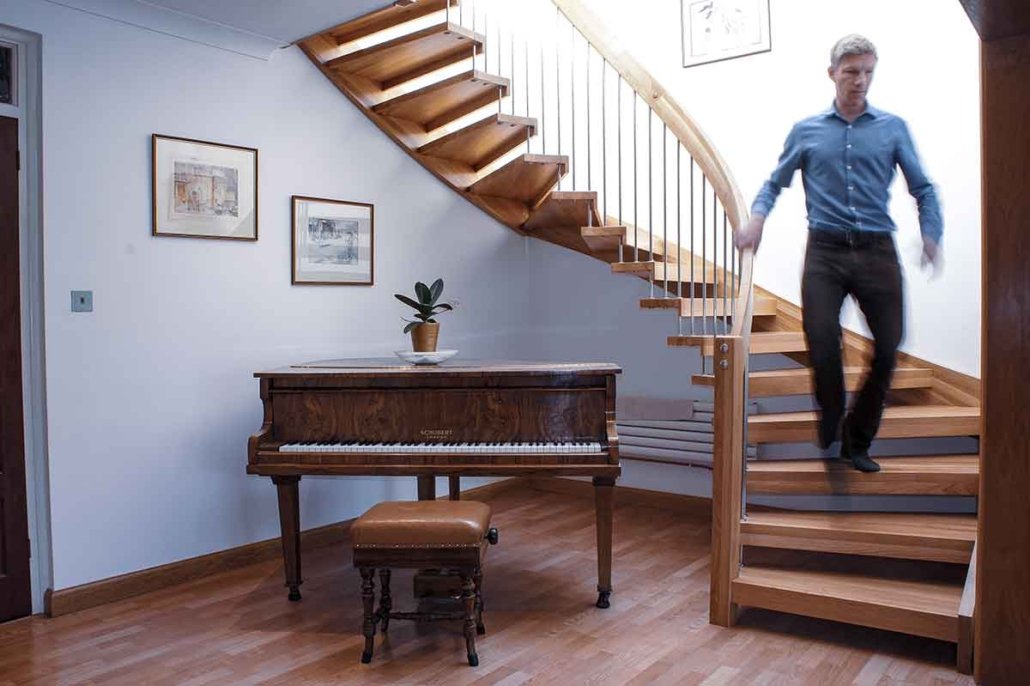

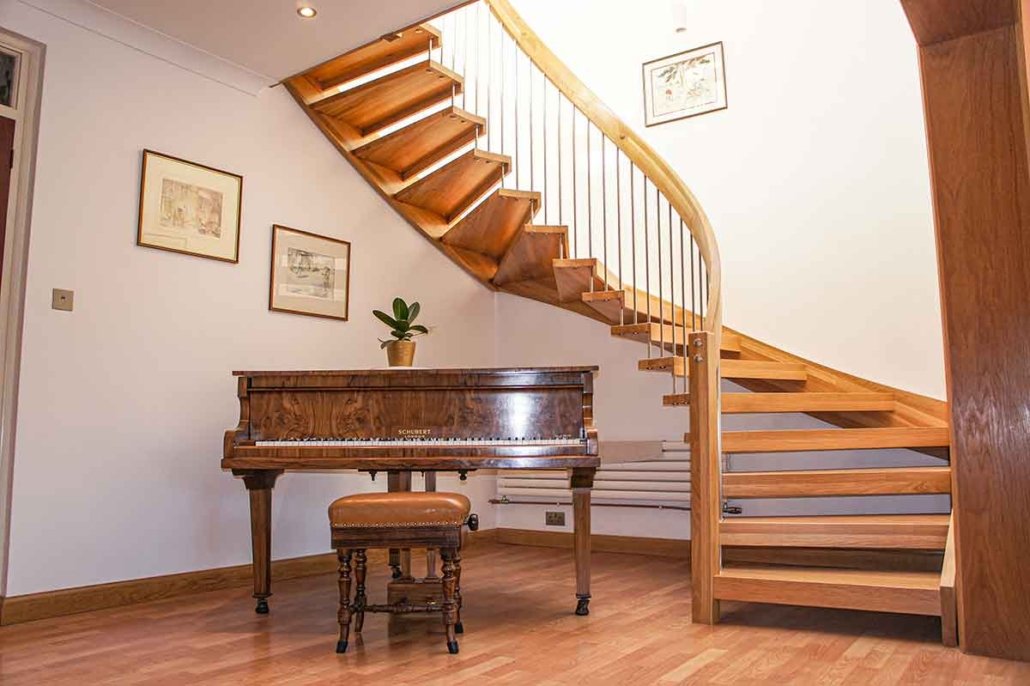

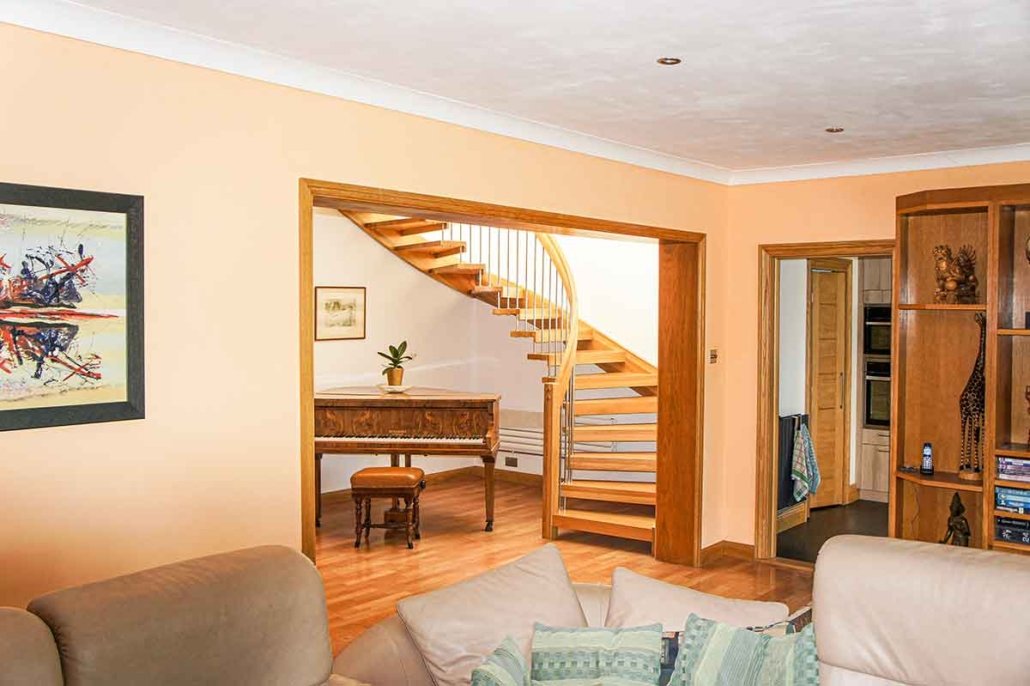

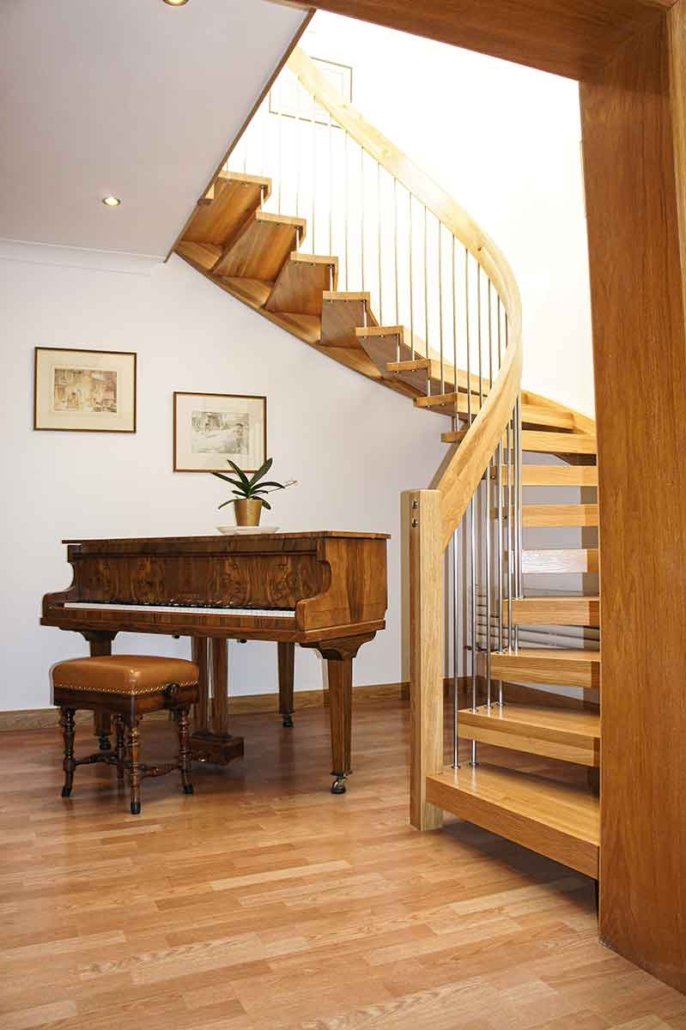

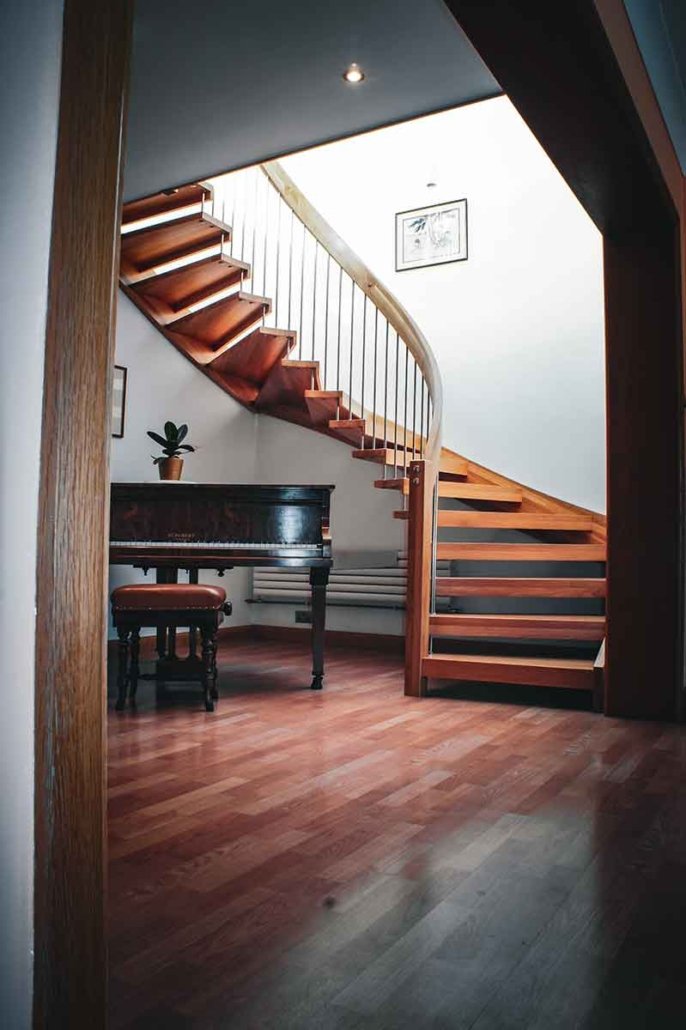

This special helical WF floating staircase was supplied as part of a large residential refurbishment in Longfield, Kent. The design combines a continuous curving handrail to the inner side with tapering treads.
The Brief
The client required a staircase that would:
Perfectly fill the stairwell without dominating the room
Feature solid oak treads with contemporary balustrade detailing
Integrate seamlessly into a major refurbishment project
Deliver a strong architectural presence without overwhelming the space
- Ideally add a curved element to the design
The Solution
We designed and supplied a bespoke WF floating staircase featuring:

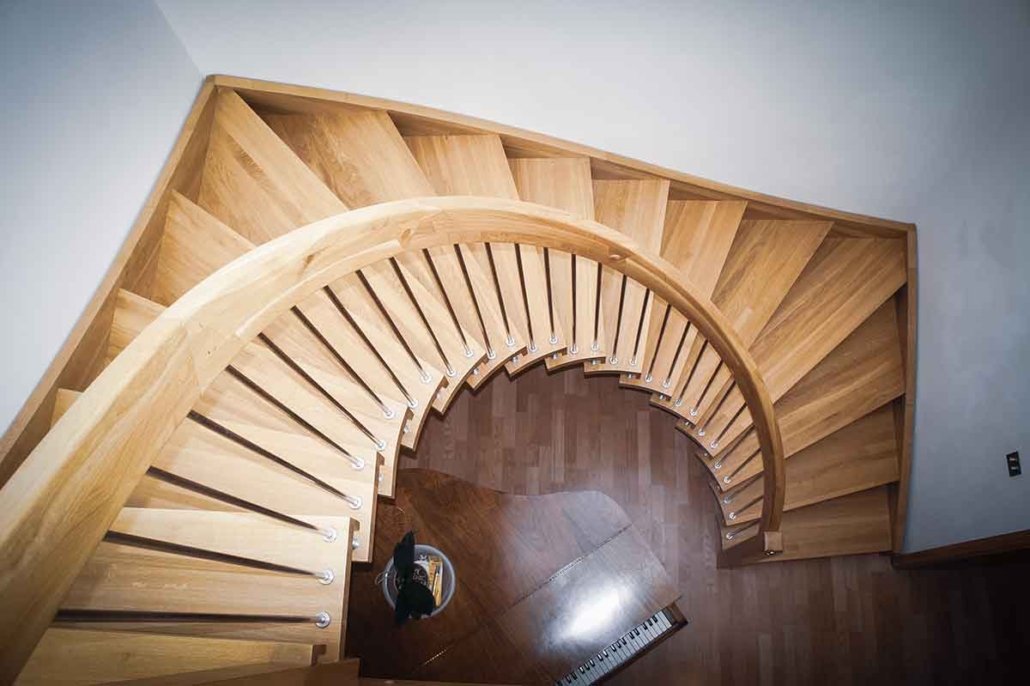

- Continuously curving handrail to the inside of the flight creating a helical effect
- Solid Oak treads and wall stringer to match the flooring
90-degree half turn on the wall side to suit the layout of the walls
Stainless steel spindles, providing a clean, modern contrast to the oak

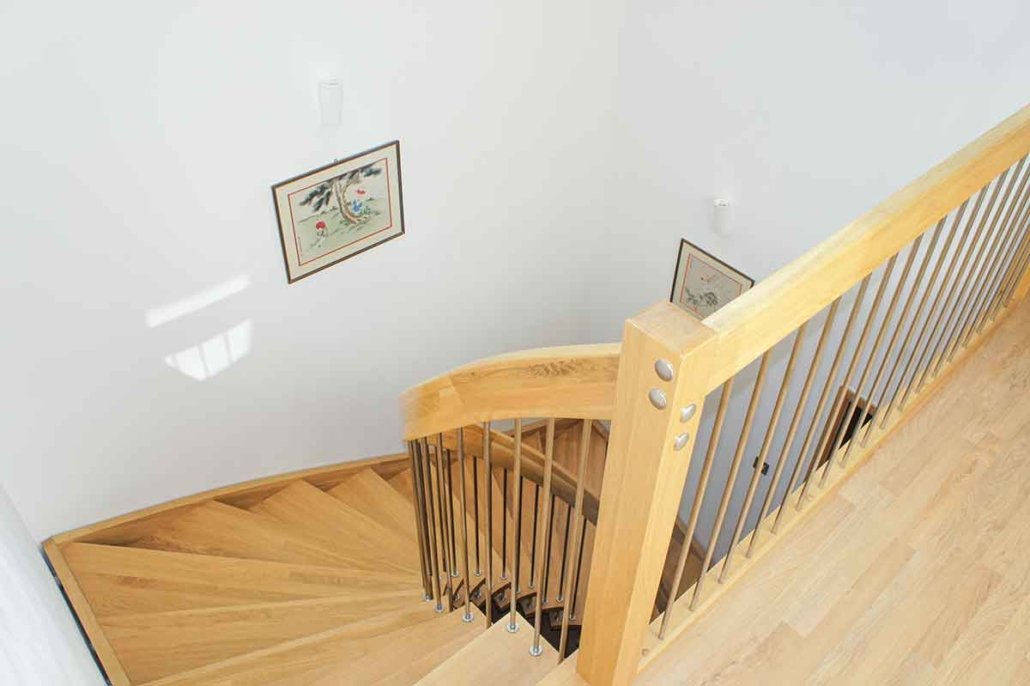

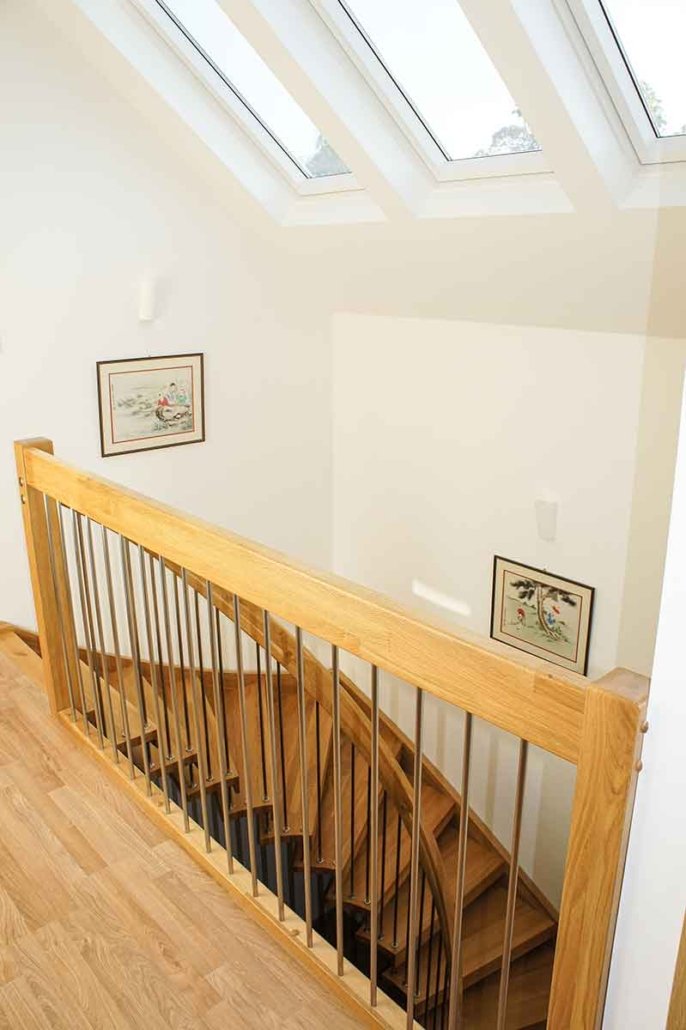

Landing balustrade to match the stair along the edge of the void
Floating staircase in Longfield- Technical Specifications
| Support Structure | WF Style Floating Staircase |
| Floor to floor height | 2890mm |
| Risers | 16 @ 180.63mm |
| Treads | 42mm Oak |
| Stringers | 42mm Oak |
| Balustrade Type | 13mm Ø Stainless Steel Spindles |
| Handrail | 150 x 42mm Oak Handrail |
| Newel Posts | 150 x 42mm Oak newel posts |
| Finish of Timber | Matt Varnished |
| Additional | L shaped treads and landing balustrade across void |
