Mini Space Saving Staircase

Mini Space Saving Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,025.00 – £3,412.00

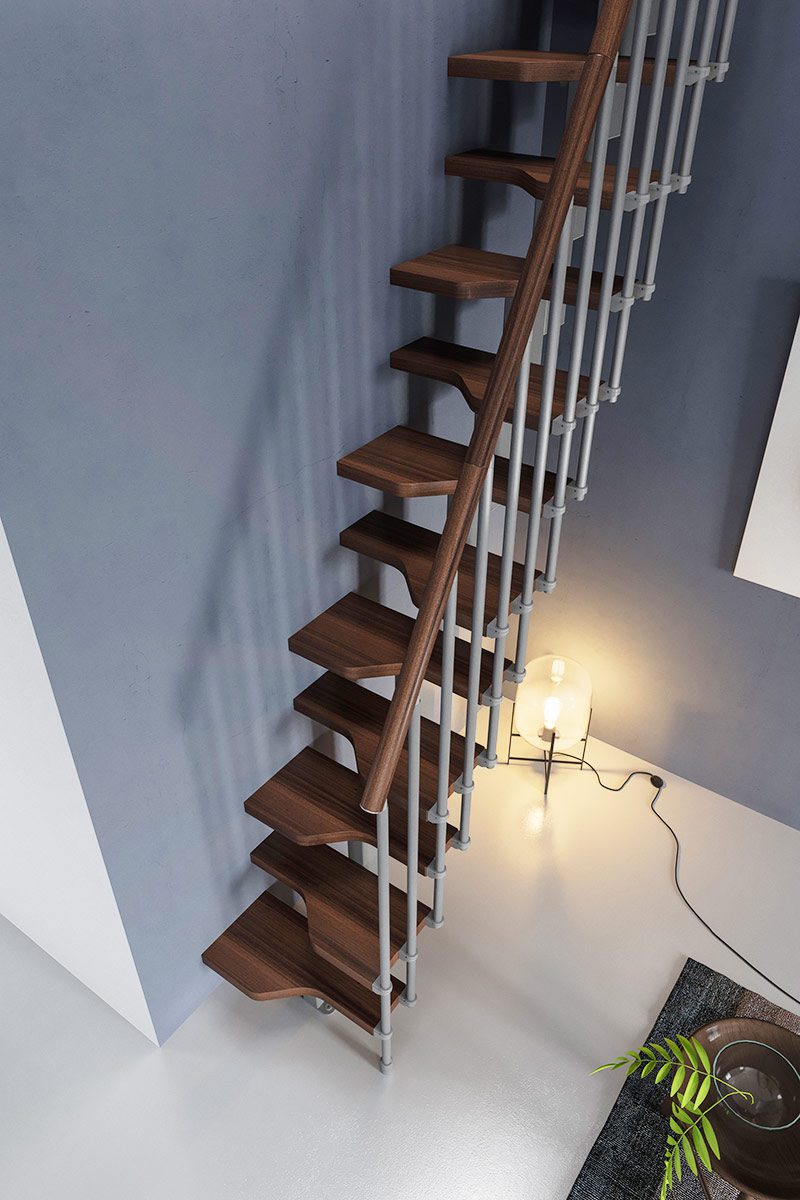

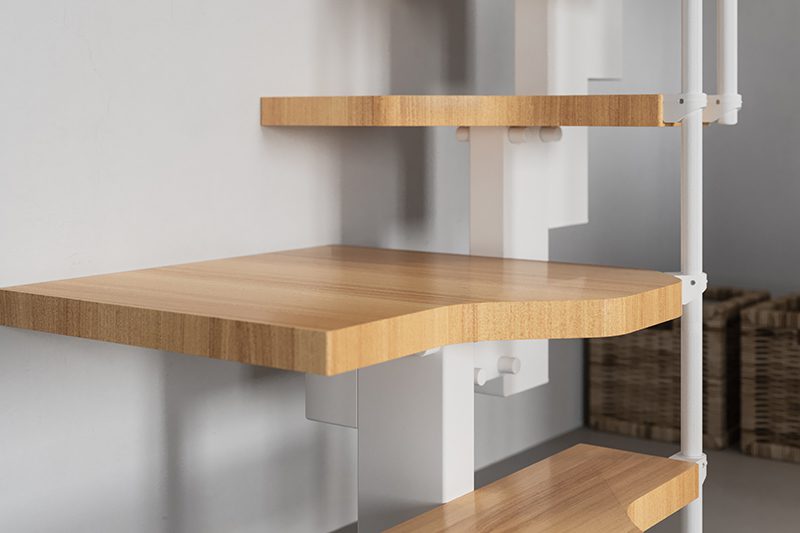

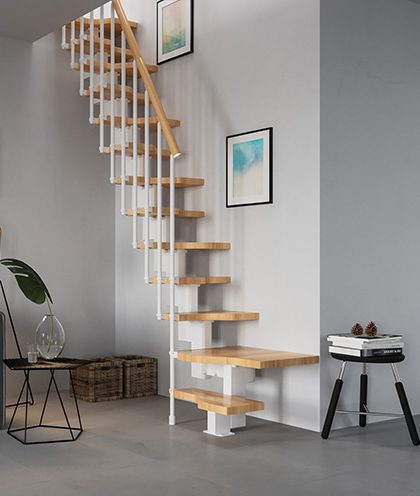

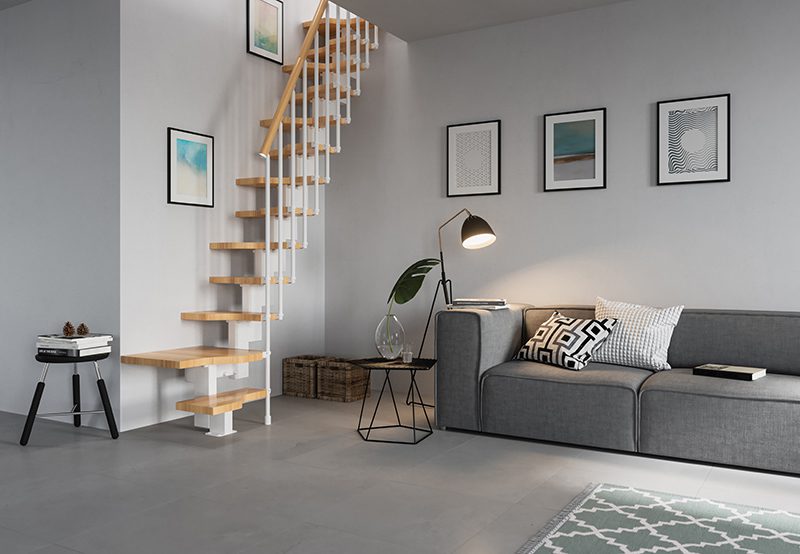

The Mini Space Saving Staircase is an excellent solution for limited spaces. Its unique paddle step design allows it to occupy far less room than traditional staircases. This staircase features a chic interlocking steel spine, solid beech treads, and comes with vertical steel spindles and a matching timber handrail. Available in straight flight, quarter turn, or half turn configurations, it includes small platforms at each turn. The balustrade, consisting of spindles and a handrail, is provided on one side, as staircases typically abut a wall, but an additional balustrade can be purchased for the opposite side if needed.

A staircase that offers minimal footprint with maximal style!

Customise by selecting the height, shape, and accessories, and pick from a broad range of timber and steelwork color options.

Floor to Floor Height

Staircase Shape

Timber Finish

Steelwork Finish

Landing Balustrade

Riser Bars

Balustrade to 2nd Side

Clear

SKU: N/A Categories: Mini, Space Saving Stair

Need some assistance? Speak to the spiral experts 01794 522444

Technical Information

Application	Internal Use – secondary
Heights	2010-3500mm
Stair Width	610mm
Treads	40mm Beechwood – Alternator style
Spindles	20mm diameter steel
Handrail	40mm diameter beech
Finish of Steelwork	Powder Coated – White, Light Grey
Finish of Timber	Natural lacquer White stain Walnut stain Sand stain Cement stain Dove stain Wenge stain

White

Light Grey

Building Regulations - Please read and understand before purchase

It is important to check the suitability of your chosen spiral with your local building control department before purchasing. Their requirements will vary depending on the use of the spiral and it’s setting. It is our clients responsibly to ensure the relevant permissions have been sought and granted prior to making any purchase.
We are happy to answer any questions you might have before your purchase but it is your building control officer that will have the final say. We are on 01794 522444

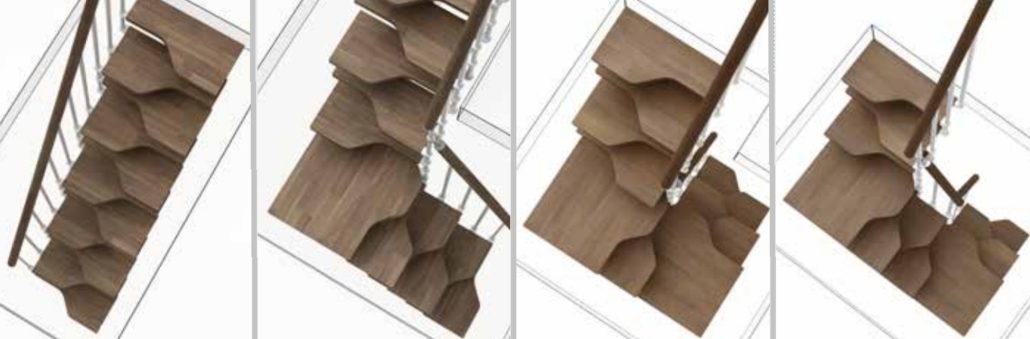

Mini-Space-Saving-Staircase-configurations

Riser infill Bars

Riser bars, which reduce the gap between steps, can be added to your order.

UK regulations require a maximum tread gap of 100mm to prevent small children from slipping through. These bars are made from a 20mm steel bar and are fitted horizontally between the steps to maintain an open riser while minimizing the gap.

To add riser bars to your order, simply choose ‘YES’ in the riser bar dropdown menu. Should you be unsure about the need for riser bars, it is advisable to consult with your building control officer.

While riser bars can be installed after the stairs have been assembled, ordering them separately will incur an additional delivery charge.

Balustrade for Landing

Landing balustrade is available and sold in 1m length kits. Each kit can be adjusted and cut to suit and can be fitted in a straight run or curved.

An individual kit consists of;-

8 x 20mm diameter Steel spindles
1m length of handrail to match stair
1 x floor support post
1 x handrail to handrail connecting piece
1 x spindle to spindle connector
1 x spindle to wall connector

Mini Straight Flight Combinations

Mini Quarter Turn Combinations

Mini Half Turn Combinations

Delivery Info

The Mini Space Saving Staircase is considered a custom made order and it is sourced directly from the factory in Italy and delivered to your door.

Delivery times are typically between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery. This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain. A signature will be required to accept the goods and confirm they have arrived in good condition. The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444 info@spiralstairsystems.co.uk

Frequently asked Questions

What Size of opening do I need in the floor?

This will depend on the shape of the staircase and the height of the floor. Use the configurations guide on the right to see the footprint of each stair in plan view. The hole in the floor above will ideally be the same as the footprint below with the quarter and half turn flights but on the straight run – add a little to the width to allow for knuckle gap clearance.

How long does delivery take?

The Mini Space saver is made to order and produced in Italy. It generally takes 4-6 weeks to received your stair.

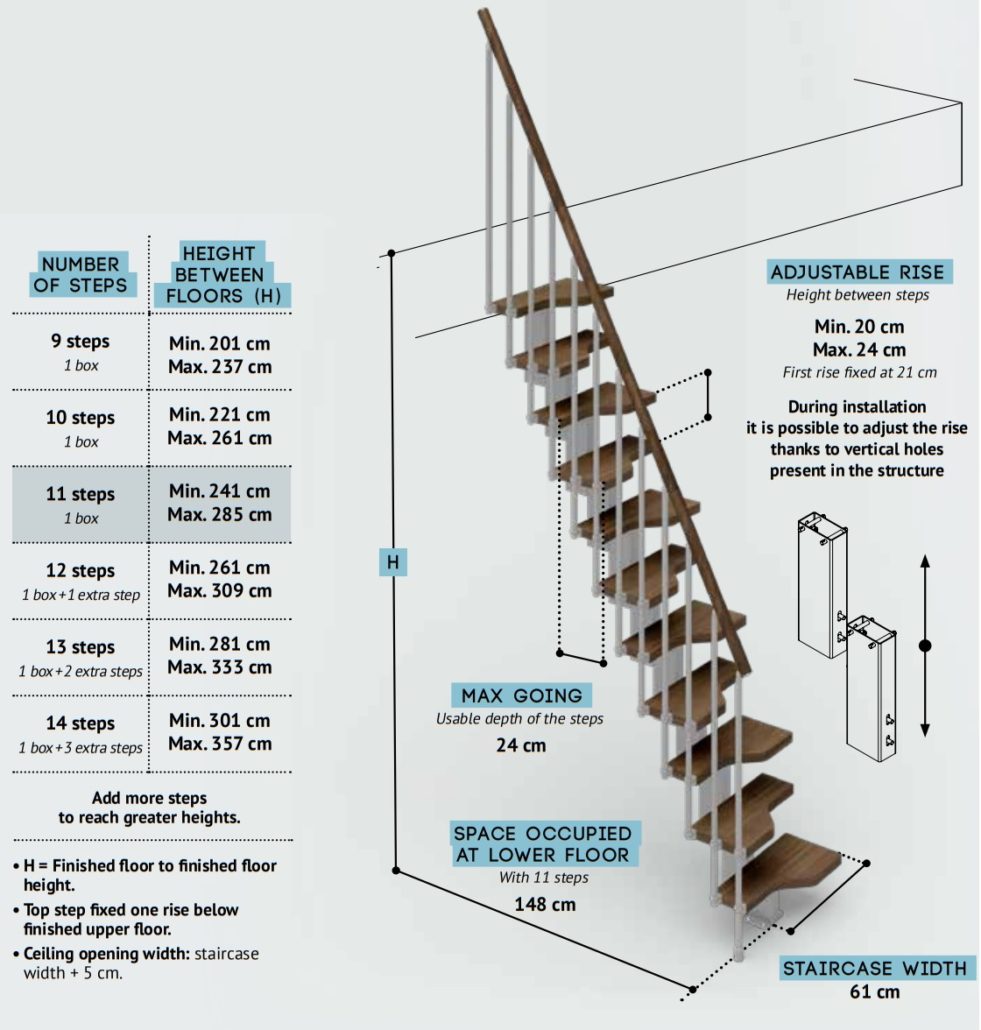

How much space with it need?

This will depend on the height of the floor and the shape of the stair. Plus use the configurations guide on the right to see the footprint plans. A typical 12 riser straight flight would have a total ‘run’ of 1480mm, measured horizontally along the floor.

How difficult is the stair to install?

In the majority of instances, the stair is installed in a day by 2 people. This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade. Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.
