C20 Spiral Staircase

C20 Spiral Staircase

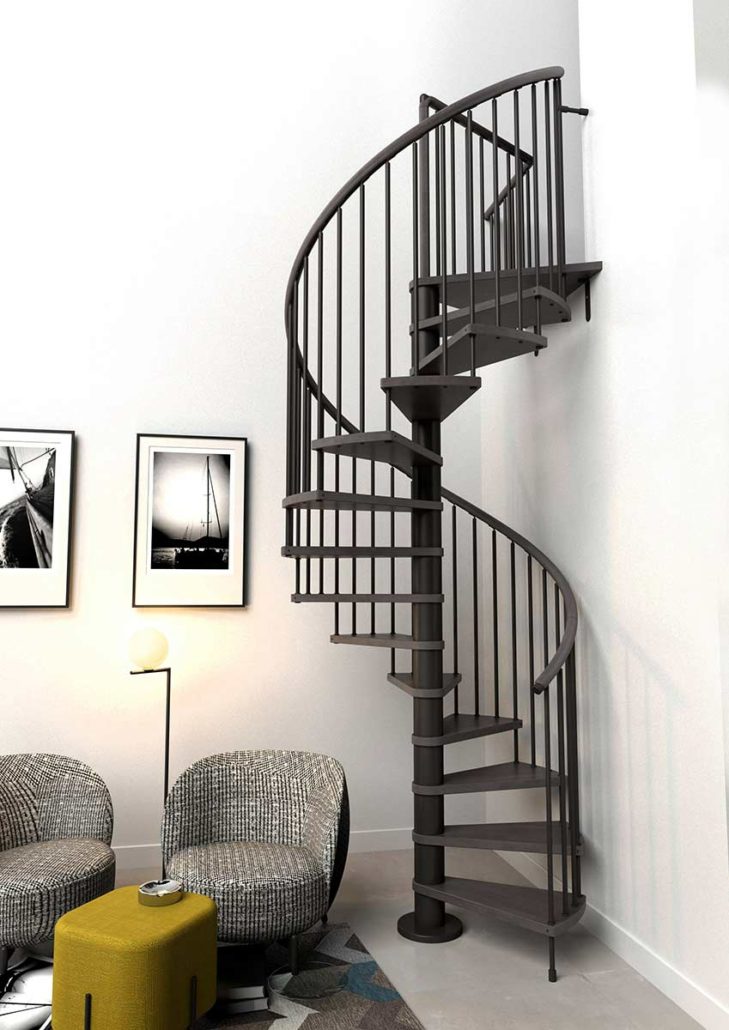

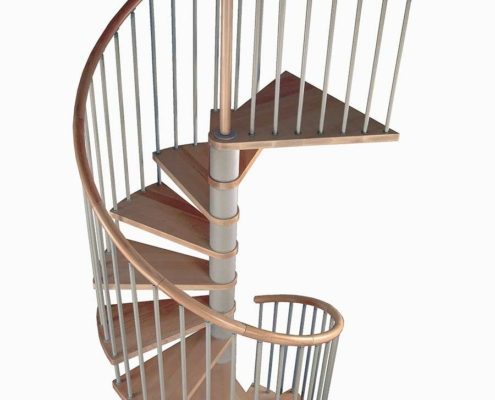

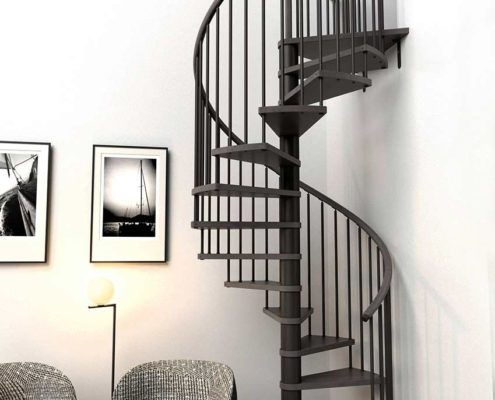

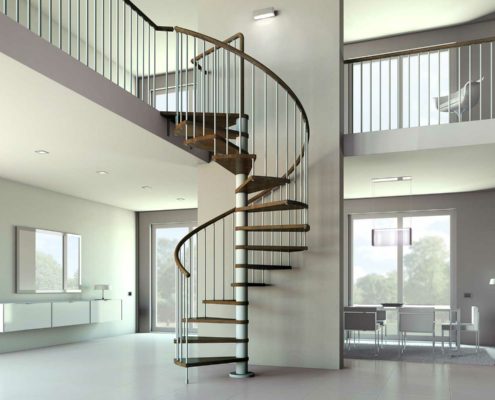

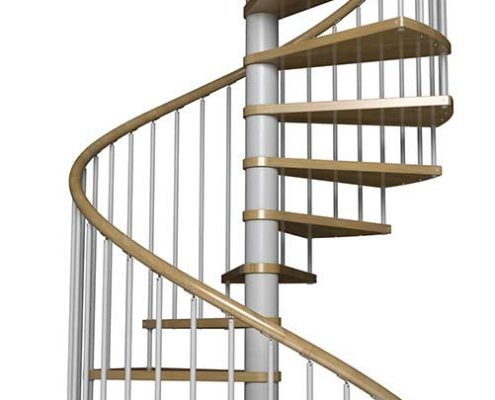

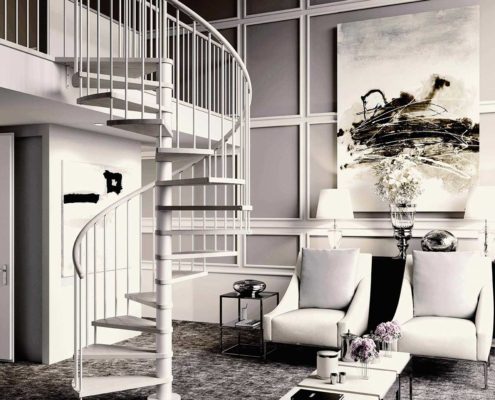

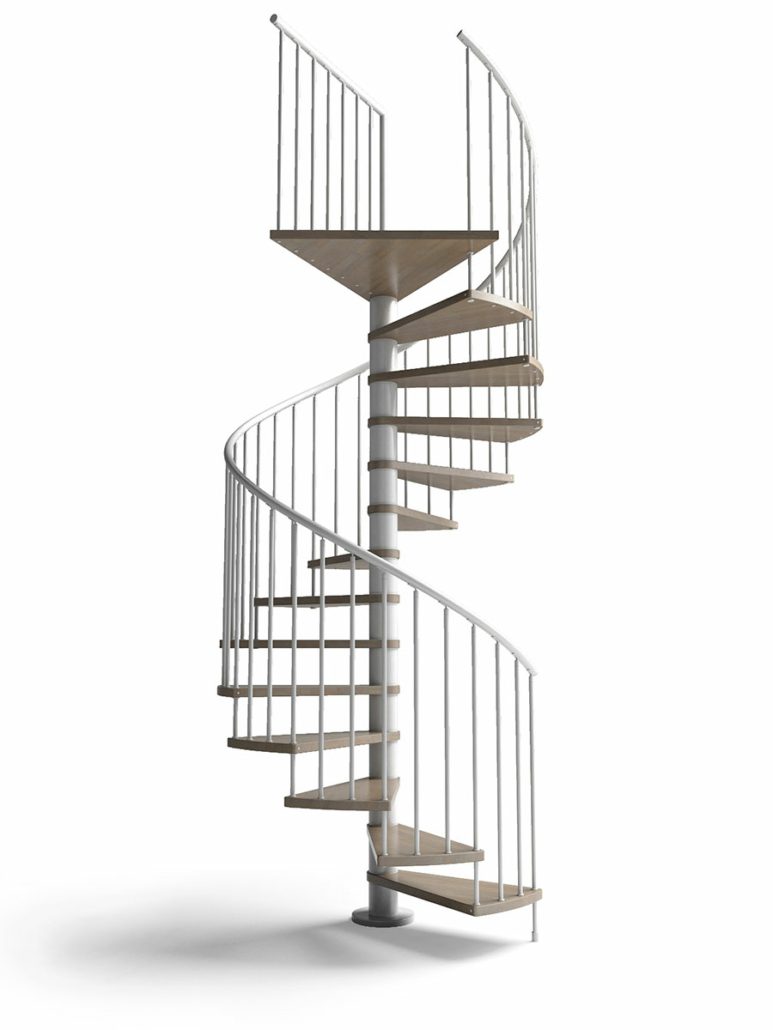

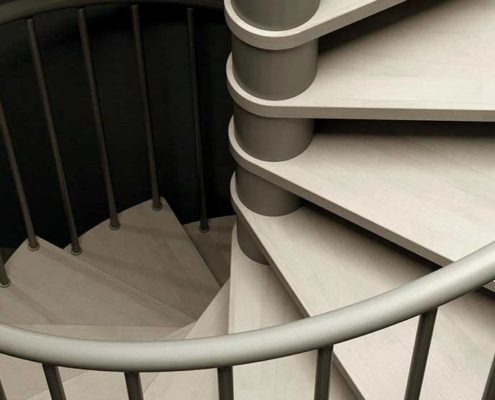

The C20 Spiral Staircase is a premium kit spiral stair for secondary use within a home.  As standard it is supplied with beech treads, vertical steel spindles and a circular PVC handrail coloured to match the steelwork.

What makes this a premium kit spiral compared to standard kit spirals?

  • Choice of 6 different diameters
  • 4 powder coat colours for the steelwork
  • 4 different factory applied oil stains to choose from
  • A timber maintenance kit including wax included in each pack
  • Timber treads have a lovely brushed effect as standard
  • A spray can of touch up paint included for the steel
  • Choice of triangle or trapezoidal platform

The C20 is not an off the shelf solution and is packed to order.   Landing balustrade can be supplied to protect the opening upstairs and riser bars are available to reduce the gap between the treads.

Have a look at some of the plan views and information below and fill out the form at the bottom of the page for a cost.

Treads 40mm  Beech – brushed
Spiral Diameters
1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm
Spindles 20mm Ø Steel
Handrail
Smooth Polyurethane – coloured to match steel OR sectional beech to match treads
Platform
Triangular or Trapezoidal
Finish of Steel
 Powder Coated  – Light Grey,  Grey, White or Black
Finish of Timber
Oiled – Oak Stain, Wenge Stain, Walnut Stain, Stone Stain
Riser Bars to reduce riser gap
Riser bars can be supplied to reduce gap between steps
Additional Landing Balustrade Kits can be ordered
Delivery Time 4-5 weeks from order

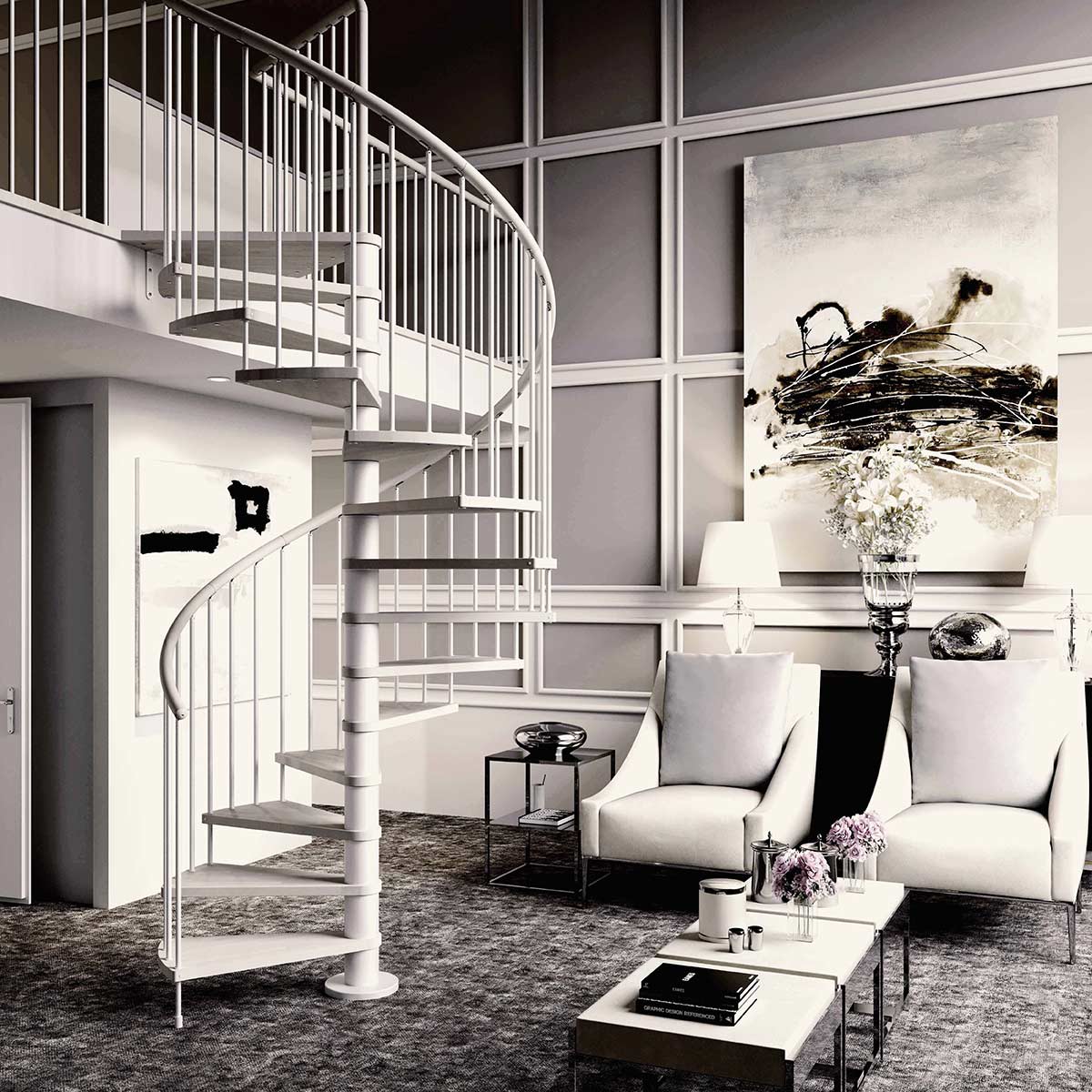

C20-Spiral-Staircase-2

Steel and Timber Finish options

C20 Spiral Staircase Finishes2

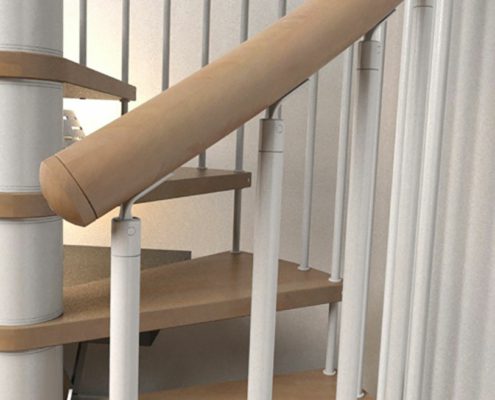

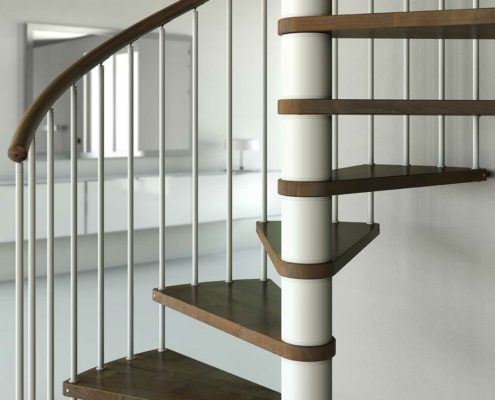

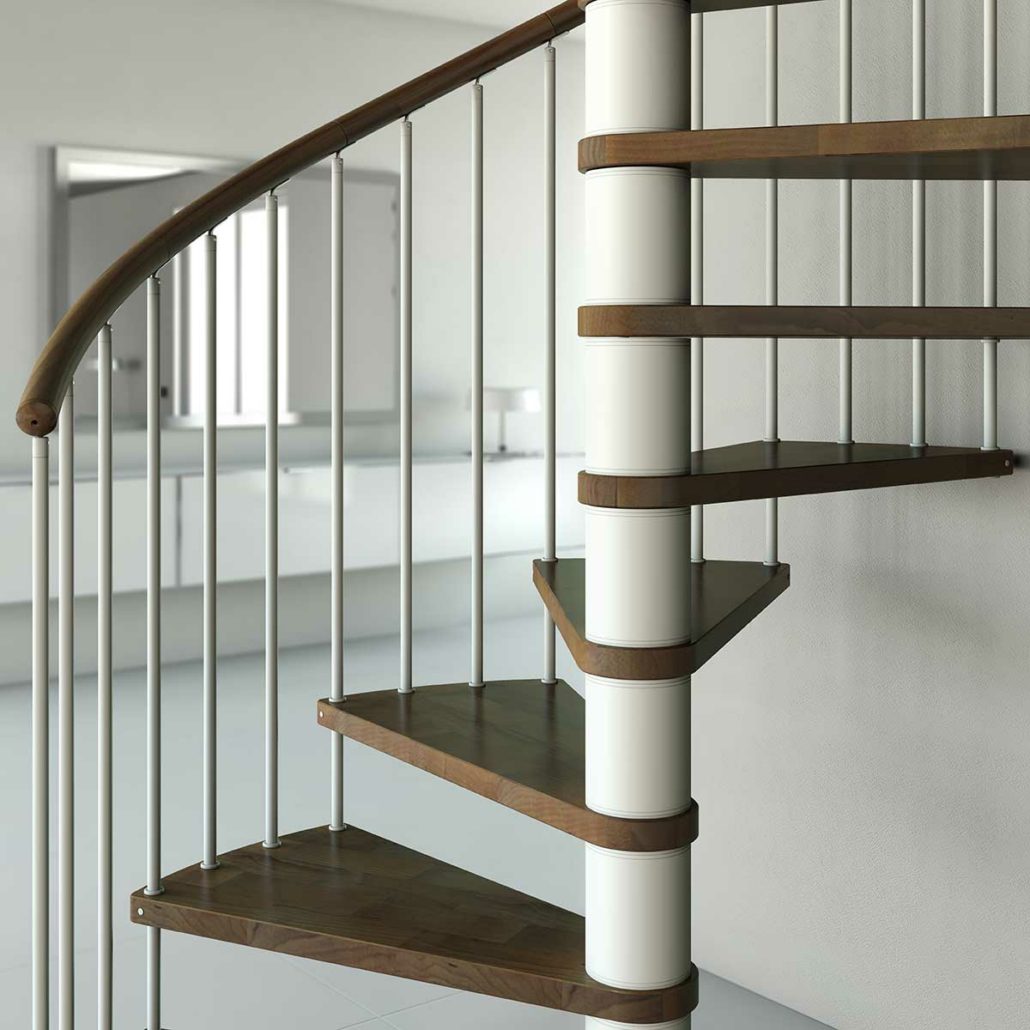

Beech Handrail

C20-Landing-balustrade-timber-handrail

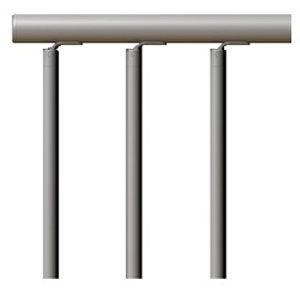

PVC Handrail

C20-Landing-balustrade2

Riser Bar

C20-Spiral-Stair-Riser-Bar-2

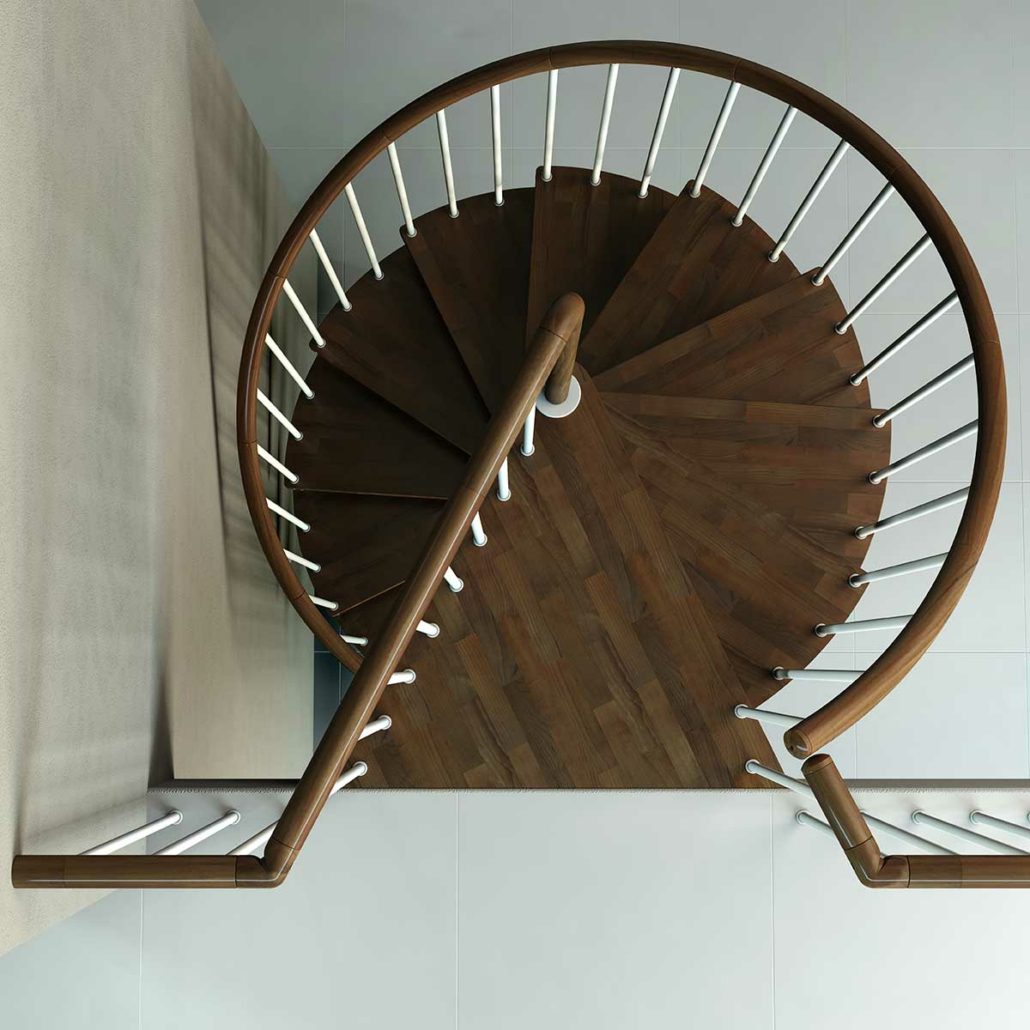

C20 Spiral Rotations

C20-Circular-opening-2

Circular Opening

C20-Square-opening-2

Square Opening

C20-Mezz-opening-2

Mezzanine

C20-layouts-10---risers-plan

10 Risers

C20-layouts-11---risers-plan

11 Risers

C20-layouts-12--risers-plan

12 Risers

C20-layouts-13--risers-plan

13 Risers

C20-layouts-14--risers-plan

14 Risers

C20-layouts-15-risers-plan

15 Risers

C20-layouts-16-risers-plan

16 Risers

Contact us about our C20 Kit Spiral Staircase

Installation Instructions

C20-Spiral-Staircase-Instructions-3
