Wooden Staircase West Sussex

Our client was an existing customer having purchased a WF staircase several years previously (please see Bespoke Staircase West Grinstead) for a outbuilding conversion.  They were replacing the two existing steel staircases and needed a light an open staircase to make the most of the large windows running down the apex of the roof.

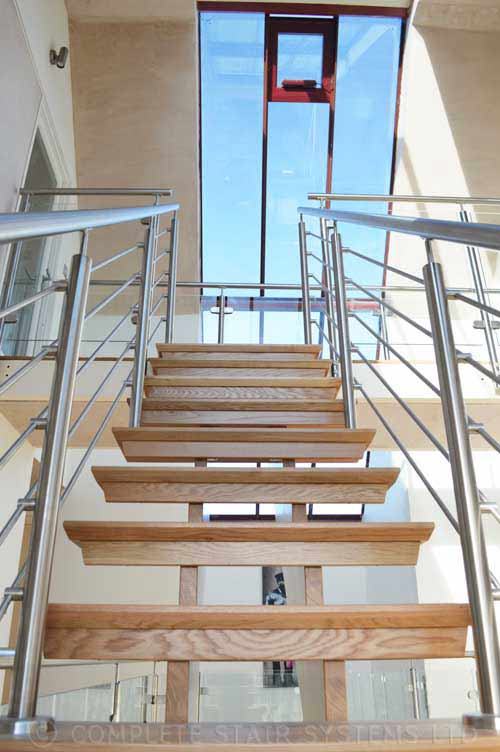

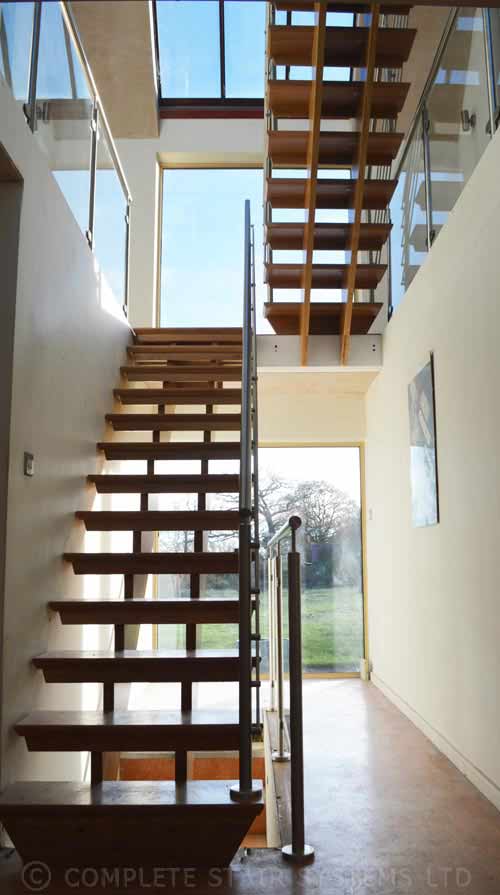

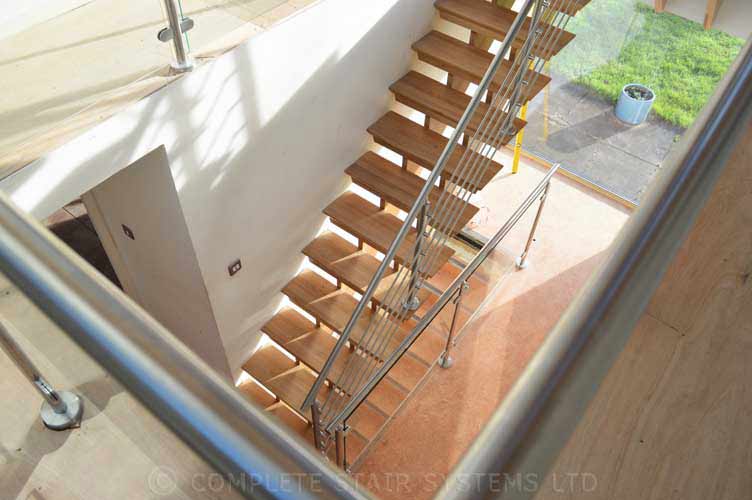

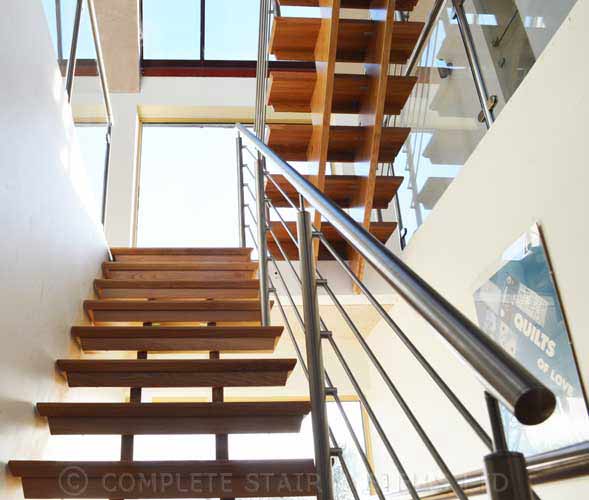

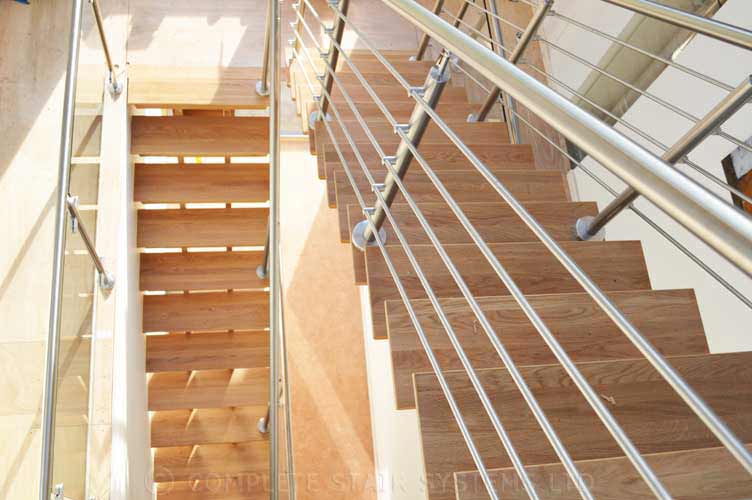

Each staircase was a straight flight running up in a large central void.  They were constructed in solid oak with open risers and supported by the unique double stringer design of the SPIRIT stair system.   Our client requested a brushed stainless steel balustrade system with horizontal rails running up both sides of the upper flight with a stainless steel handrail.  Horizontally we matched the posts and handrail but went with toughened glass infill panels for a stunning, open and light feel.

Solid Oak Staircase

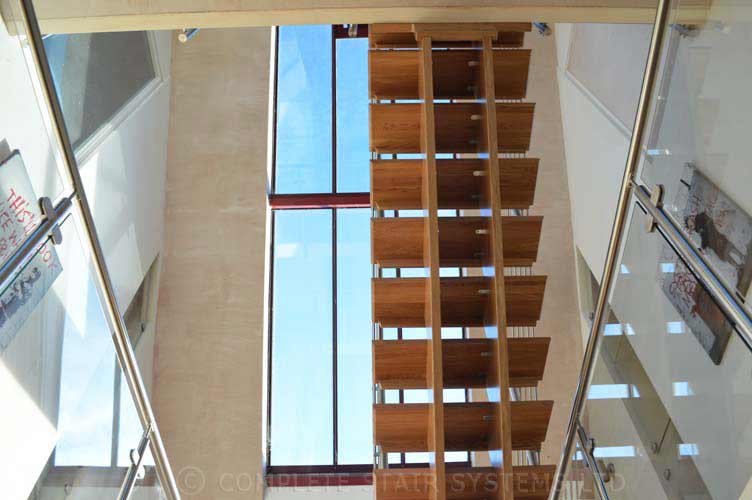

Our Spirit timber staircases are supported by a unique double timber stringer spine.  Two stringers run directly down the centre of the staircase supporting the timber treads.  The stair is available in virtually any hardwood and there is a wide range or balustrade options to compliment the timber of the stair and style of your property.  Staircase can be configured as a straight flight, quarter on half turn depending on the wall location.

If you would like a price for you very own ‘Wooden Staircase West Sussex’, please fill out the form below.

Wooden Staircase West Sussex - Technical Specifications

Support Structure
Spirit Style
Floor to floor height 2840mm
Risers
202.8mm
Treads 42mm Oak
Stringers 42mm Oak
Balustrade Type 10mm Ø horizontal Stainless Steel rails
Handrail 42.4mm Ø Stainless Steel handrail
Newel Posts 42.4mm Ø Stainless Steel
Finish of Timber
Varnished
Additional  landing balustrade with glass panels
