Spiral Staircase Southampton

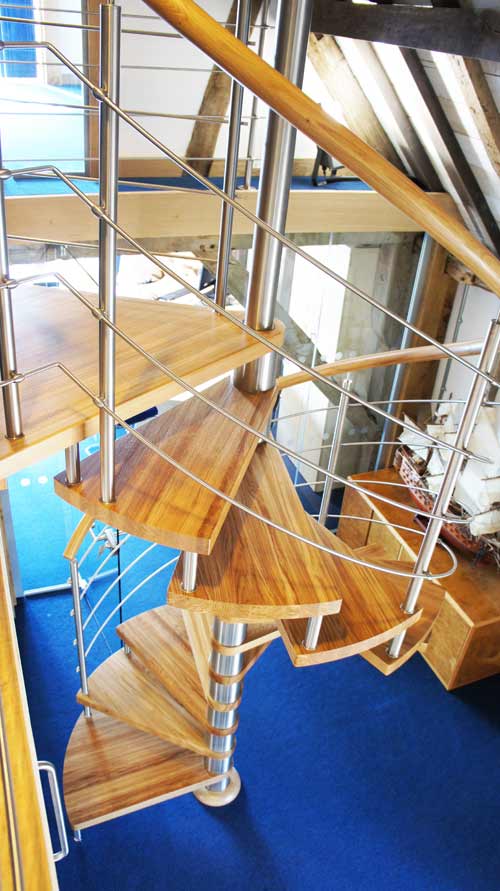

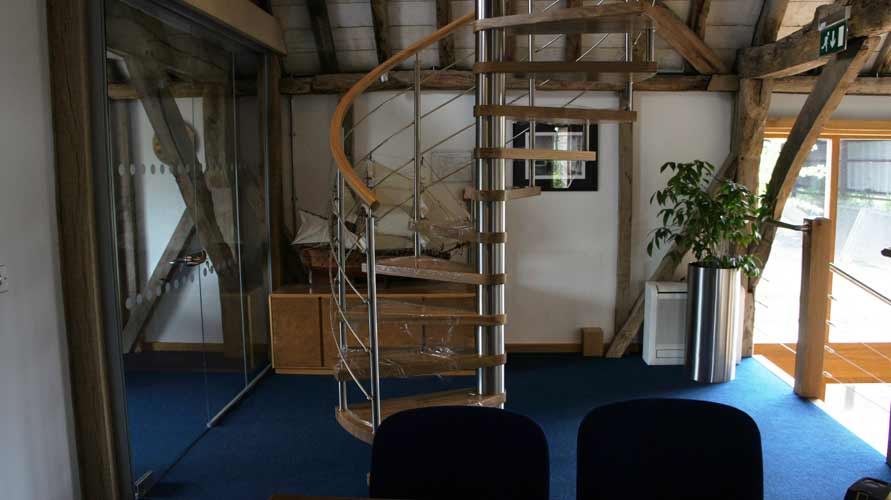

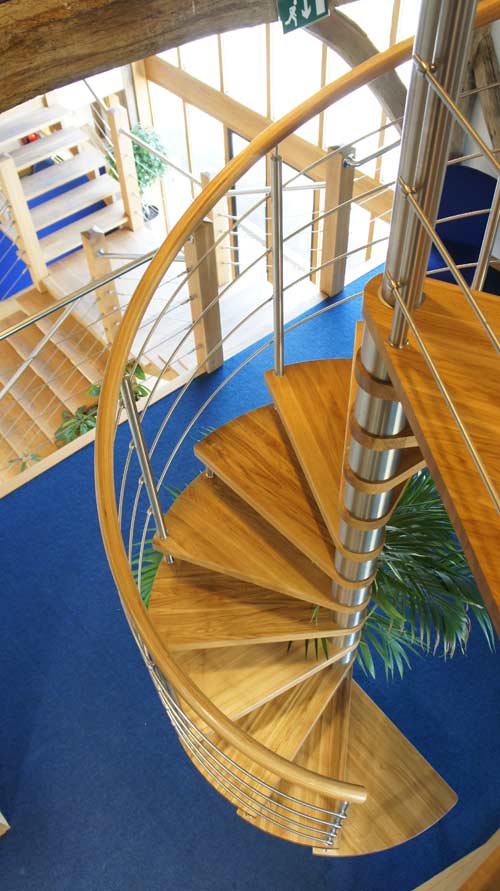

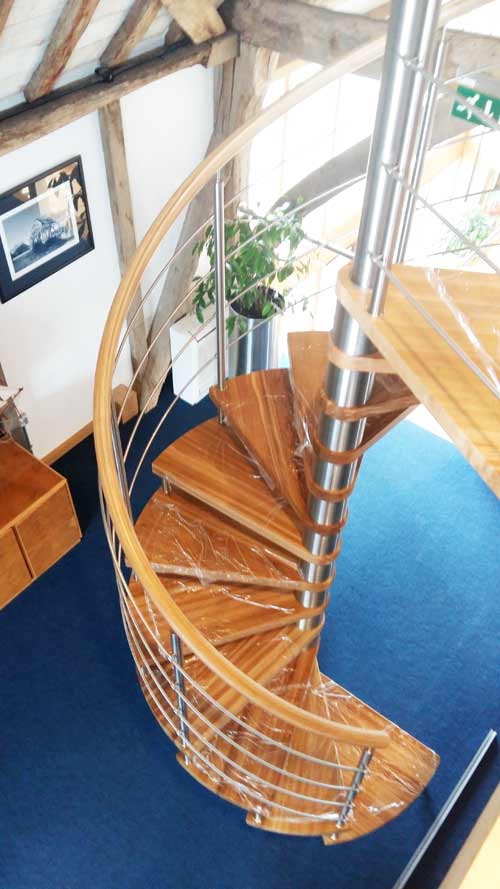

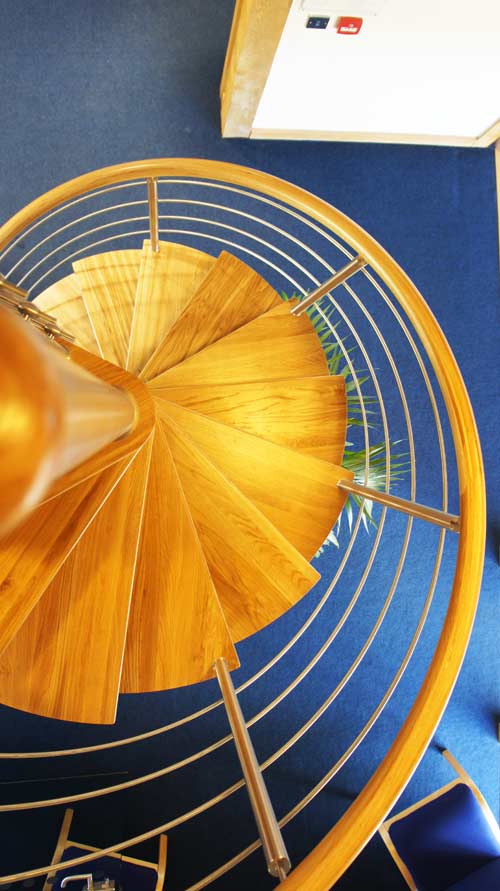

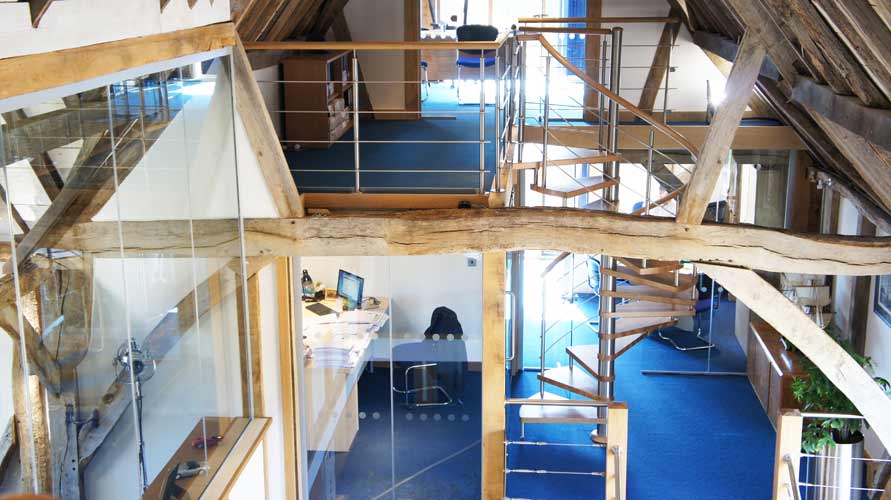

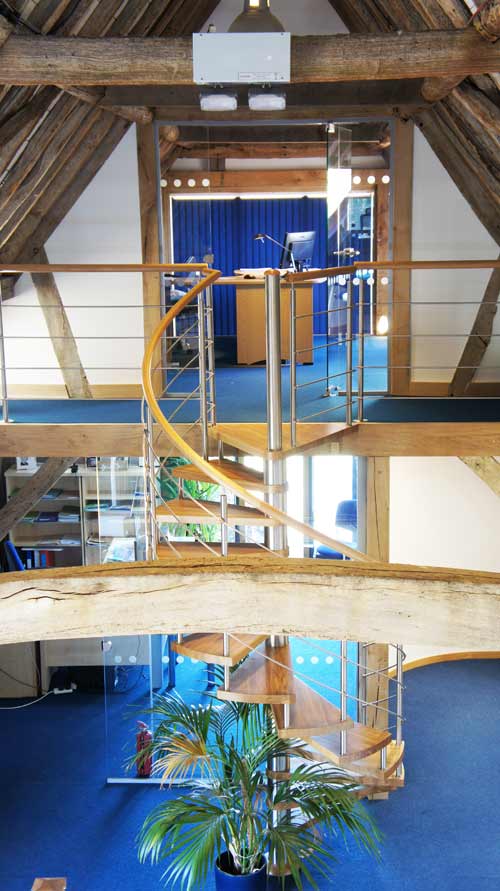

Our client was a local property developer expanding and  improving their own offices.  Two model 71 spiral staircases were supplied to access small mezzanine levels within the eaves of the roof.  A spiral staircase was the  obvious choice given the lack of room and each model was supplied 1500mm in diameter.  They both had oak treads, platform and handrail and  because the office was not frequented by children, horizontal stainless steel bars wrapped around the spiral running parallel with the handrail.  Landing balustrade was supplied around the mezzanine with glass panels.

Spiral Staircase Southampton - Technical Specifications

Floor to floor height2 x 2742mm
Risers14 @ 195.8mm
Spiral Diameter1500mm
Clear Tread Width620mm
Tread Type50mm Oak
Balustrade Typehorizontal stainless steel barsels & stainless newels
Handrail50mm Ø Oak
Centre Column146mm Ø
Finish of SteelBrushed Stainless Steel
AdditionalLanding Balustrade with glass panels

Contact us about project Spiral Staircase Southampton- Model 71
