Spiral Staircase Edinburgh – Model 70
This spiral staircase was supplied to a client involved in extending her barn near Edinburgh.

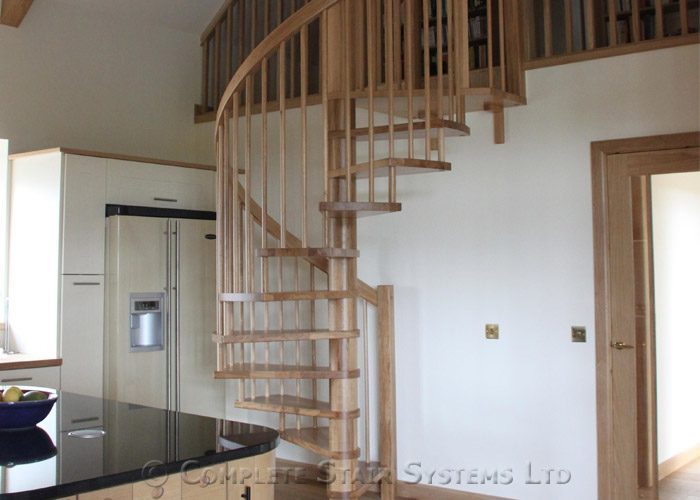

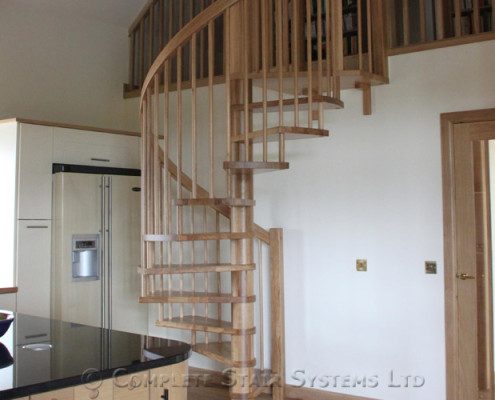

A spiral staircase was required to access a small mezzanine deck which served as a reading gallery overlooking the new kitchen.
Gallery Spiral Staircase

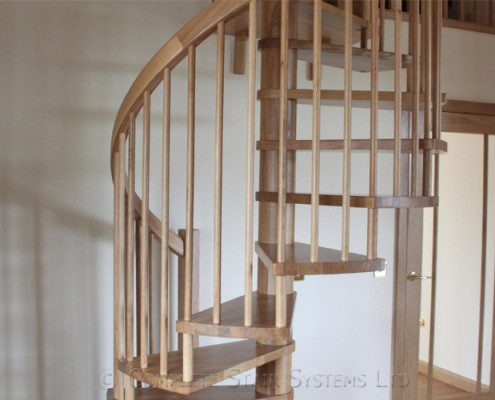

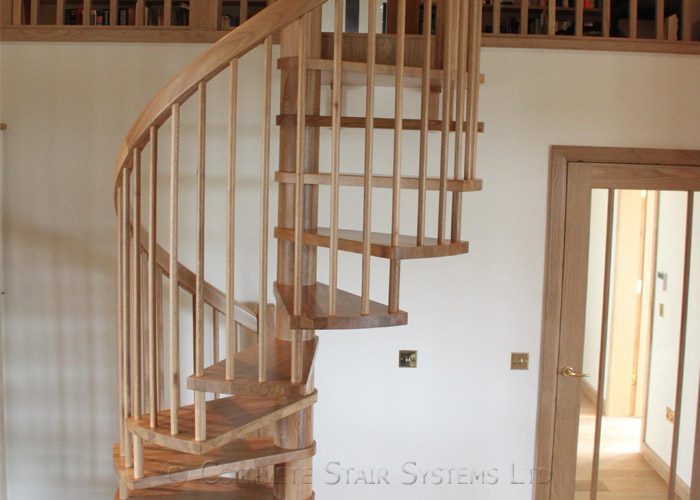

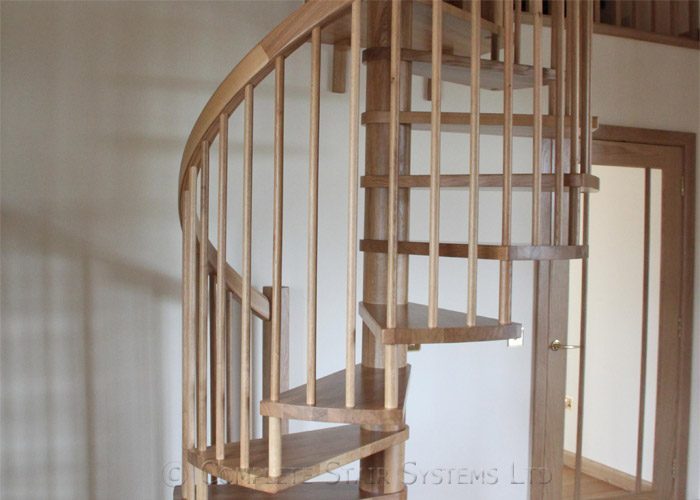

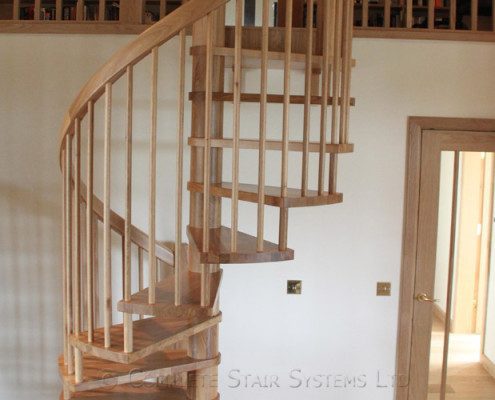

Given there were many original oak beams on view, and that the doors and floor were to be oak, the spiral staircase had to match. The Model 70 spiral was specified which combine solid timber treads, centre column, spindles and handrail. The treads themselves cantilever directly from the centre column without requiring any bulky steel tread supports.
On this particular model we continued the handrail and spindles along the balcony upstairs to complete the spiral.
If you would like a price for this case study ‘spiral staircase Edinburgh’, please fill in the form below.
Download Project Case Study
Spiral Staircase Edinburgh - Model 70- Technical Specifications
| Floor to floor height | 2564mm |
| Risers | 12 @ 213.67mm |
| Spiral Diameter | 1400mm |
| Newel Posts | 60 x 60mm Oak |
| Tread Type | 40mm Oak |
| Balustrade Type | 20mm Ø OakSpindles |
| Handrail | 70 x 40mm Oak handrail in one piece |
| Centre Column | Oak barrels |
| Finish of timber | Matt varnished |
| Additional | 2m matching landing balustrade |
Similar Spiral Stair Projects
Comment on Spiral Staircase Edinburgh from Complete Stair Systems
Ed Butler
"The model 70 was the perfect spiral staircase for this application. A mix of old and new was required and the timber had to match the existing oak on display"
