Bespoke Spiral Staircase London Wine Bar
Our customer for this project was refurbishing a unit for a well known Wine Bar chain in the old BBC centre, West London.
Restaurant Spiral Staircase

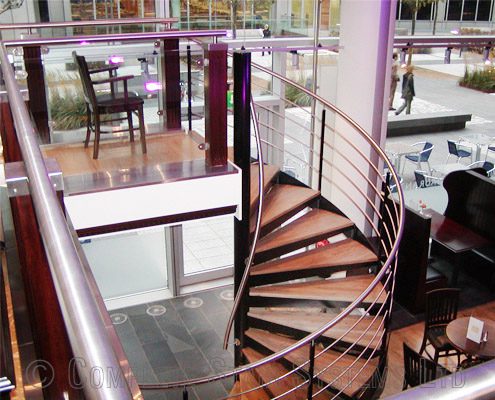

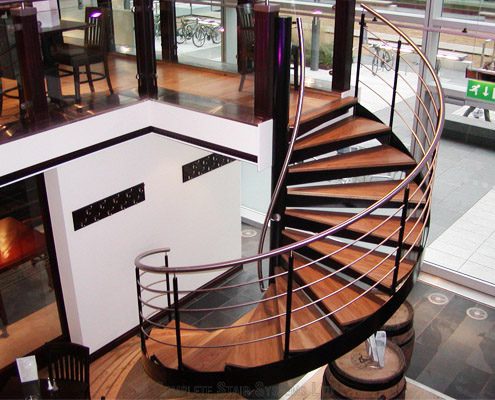

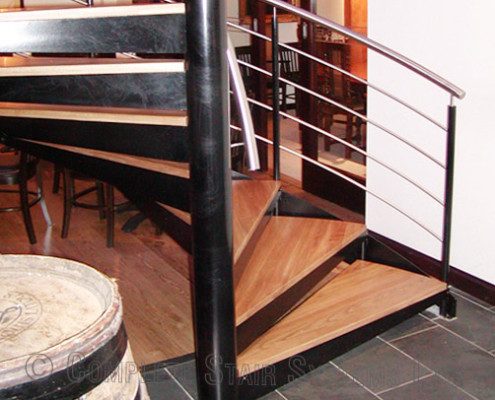

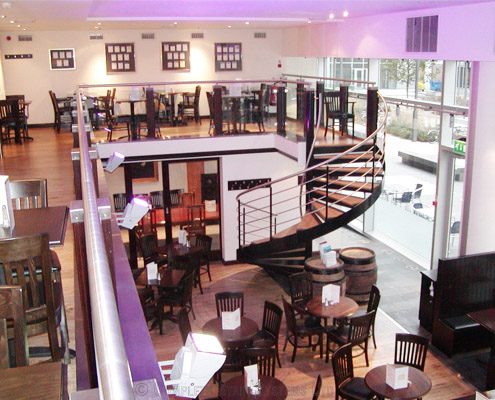

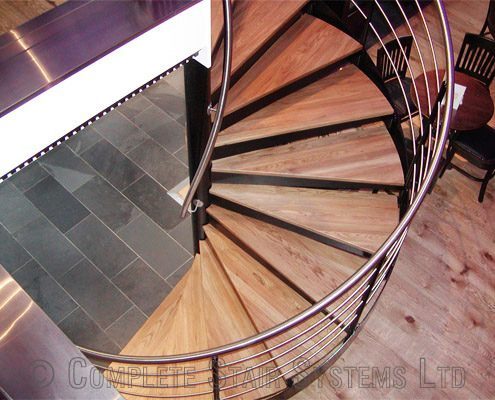

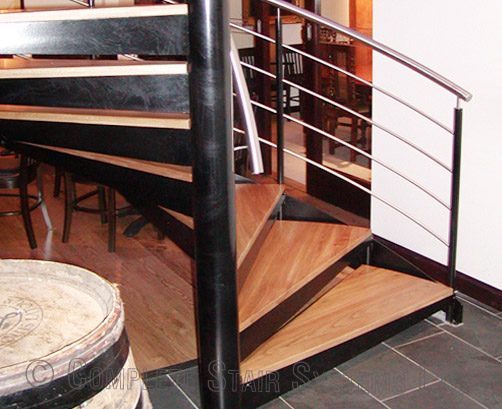

The plans showed the spiral staircase was going to be the first thing customers saw when entering the premises, so we had to create something a little special. Working with our client, we decided on a spiral with a stringer around the circumference of the spiral – thus giving the effect of a helical structure. This, along with the stainless steel horizontal bars in the balustrade created a real ‘sweep’ to the spiral.
We added at stainless steel handrail which we also attached to the centre column and matched the Oak treads to the flooring being installed throughout.
If you would like a price for this project ‘ Bespoke Spiral Staircase London’, either for a commercial or domestic project, please fill in the form below.
Bespoke Spiral Staircase - London Wine Bar - Technical Specifications
| Floor to floor height | 2605mm |
| Risers | 14 @ 186.07mm |
| Spiral Diameter | 2600mm |
| Clear Tread Width | 1100mm |
| Tread Type | 30mm Oak |
| Balustrade Type | 4 x 10mm Ø Stainless Rails |
| Handrail | 42,4mm Ø Stainless Steel |
| Column Handrail | 42,4mm Ø Stainless Steel |
| External Stringer | 300 x 8mm Steel plate stringer |
| Additional | No top platform – column bolted to structure |
Similar Spiral Stair Projects
Comment on Bespoke Spiral Staircase – London Wine Bar from Complete Stair Systems
Nick Rackham
“Although this project was several years ago- I do recall it being manufactured very quickly. Our clients refurbishing the bar were under a strict program but we managed to get it delivered to site within 5 weeks of drawing approval, 1 week before the grand opening”
