Bespoke Spiral Staircase -Shop Manchester
The spiral staircase was supplied to a new shop in the Mailbox Centre in Manchester. The requirement was for a simple yet effective flight which was going to be a focal point without costing the earth. The store was supplying designer beds so they didn’t want attention focused on the spiral!
Shop Spiral Stair

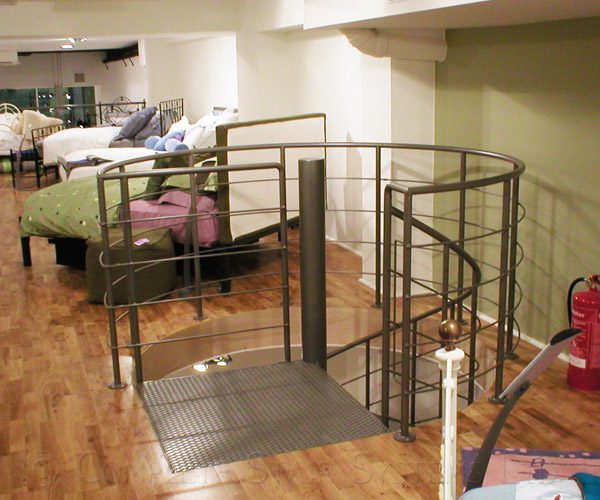

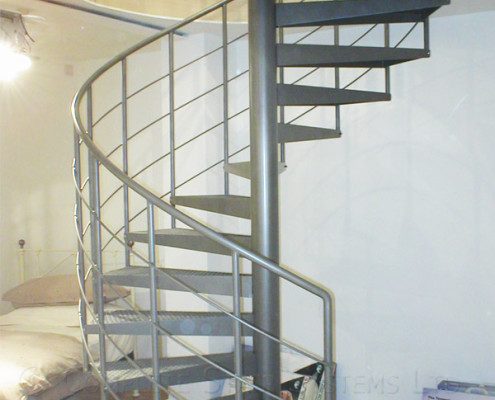

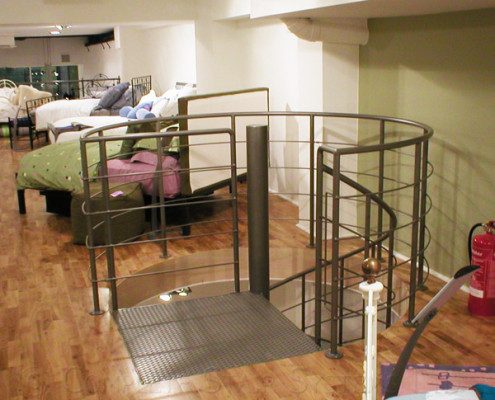

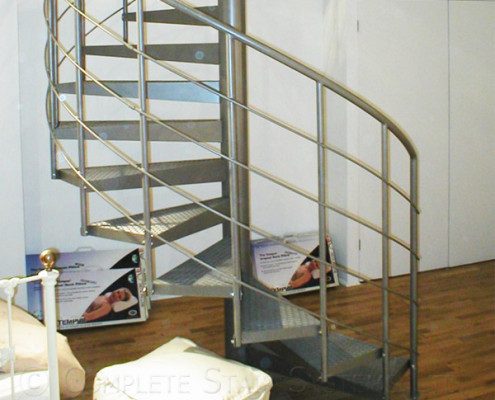

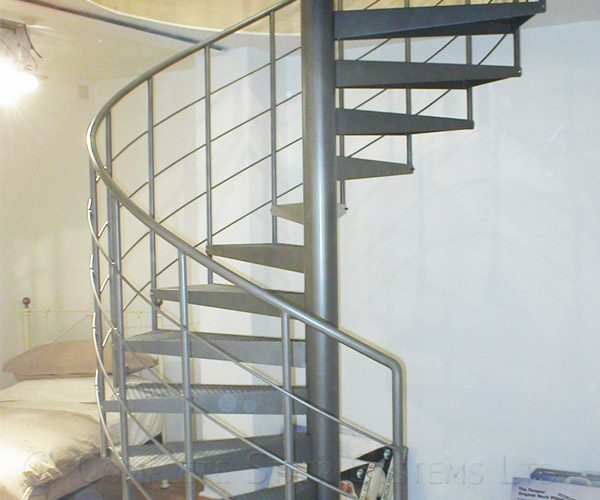

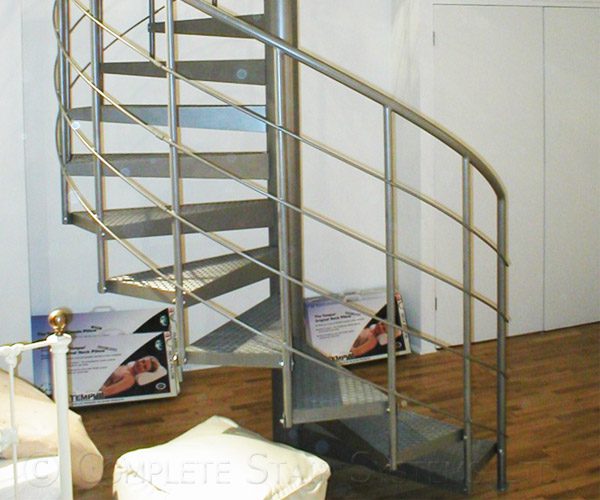

We went for a chequer plate steel tread, a simple steel handrail and four horizontal bars wrapping around the spiral. The flight was powder coated to match some of the other fixtures in the shop and we continued the landing balustrade around the circular opening upstairs.
If you would like a price for this shop spiral staircase for your business or home, please fill out the form below.
Bespoke Spiral Staircase Shop Manchester- Technical Specifications
| Floor to floor height | 2857mm |
| Risers | 15 @ 190.5mm |
| Spiral Diameter | 1600mm |
| Risers | Open |
| Tread Type | Grid Chequer plate |
| Balustrade Type | 4 x 14mm Ø horizontal bars |
| Handrail | 37,7mm Ø Steel |
| Centre Column | 139mm Ø |
| Finish of Steel | Powder Coated Gun metal grey |
| Additional | Landing balustrade around circular opening |
Similar Spiral Stair Projects
Comment on Bespoke Spiral Staircase – Shop Manchester from Complete Stair Systems
Nick Rackham
"As we were involved early in the construction we specified a circular opening with a corner. This enabled us to supply a square platform which I feel is preferable as it gains a two sided fixing point"
