Spiral Staircase Pontefract

You are here: Home1 / Spiral Staircases2 / Glass Spiral Stairs3 / Spiral Staircase Pontefract

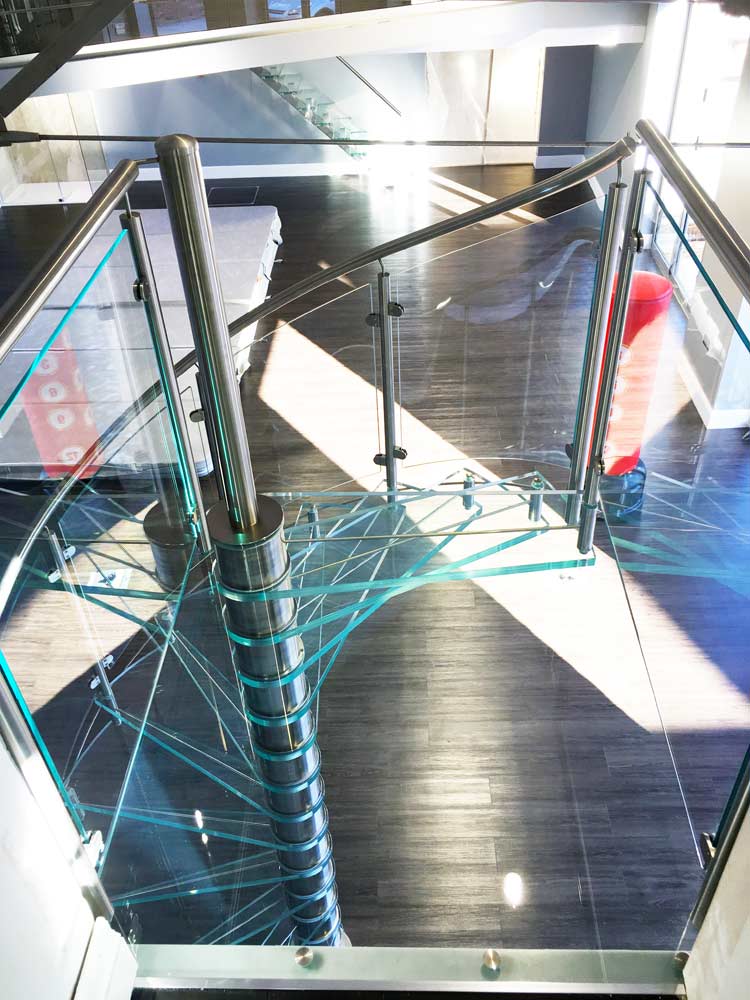

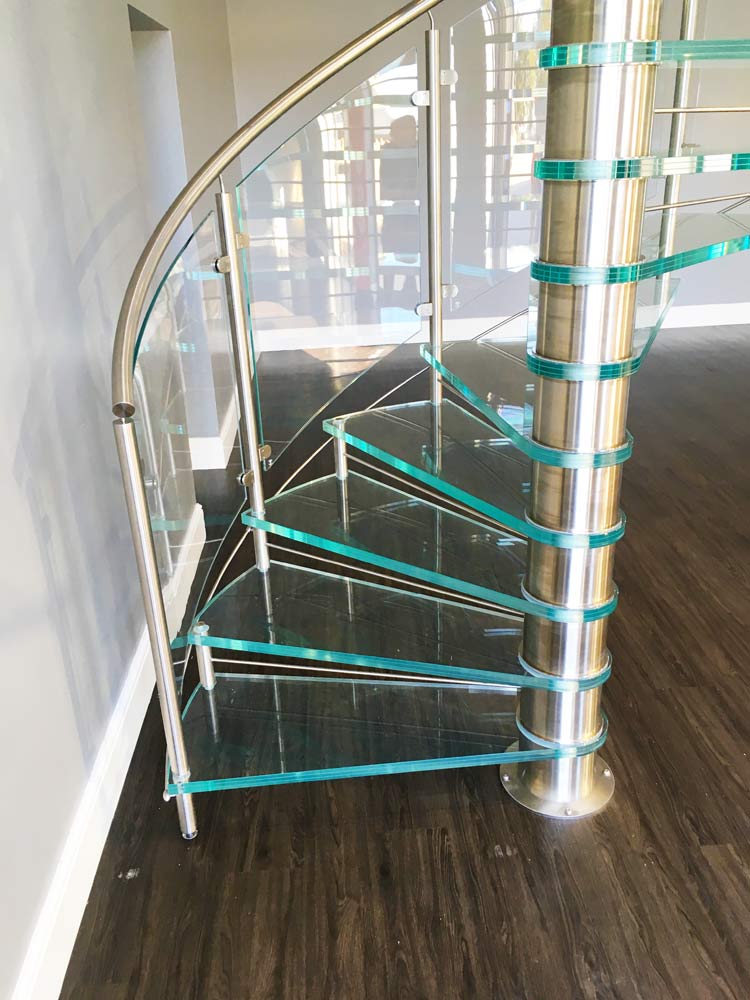

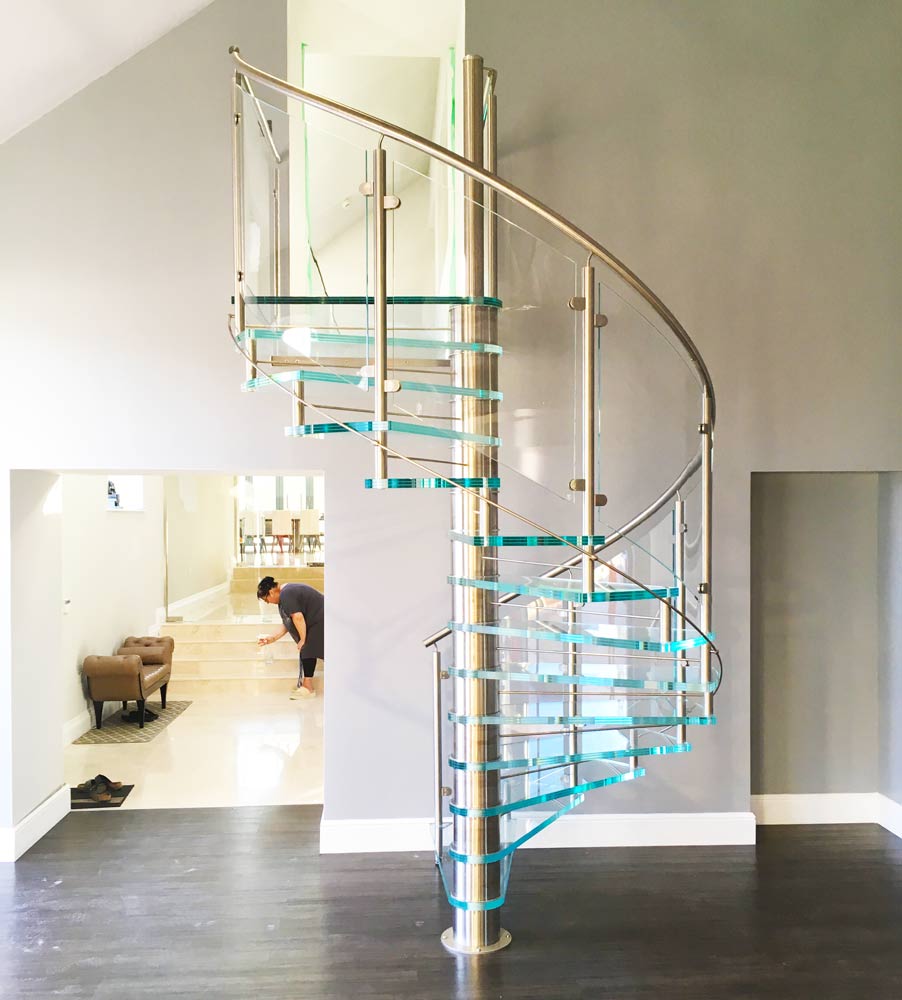

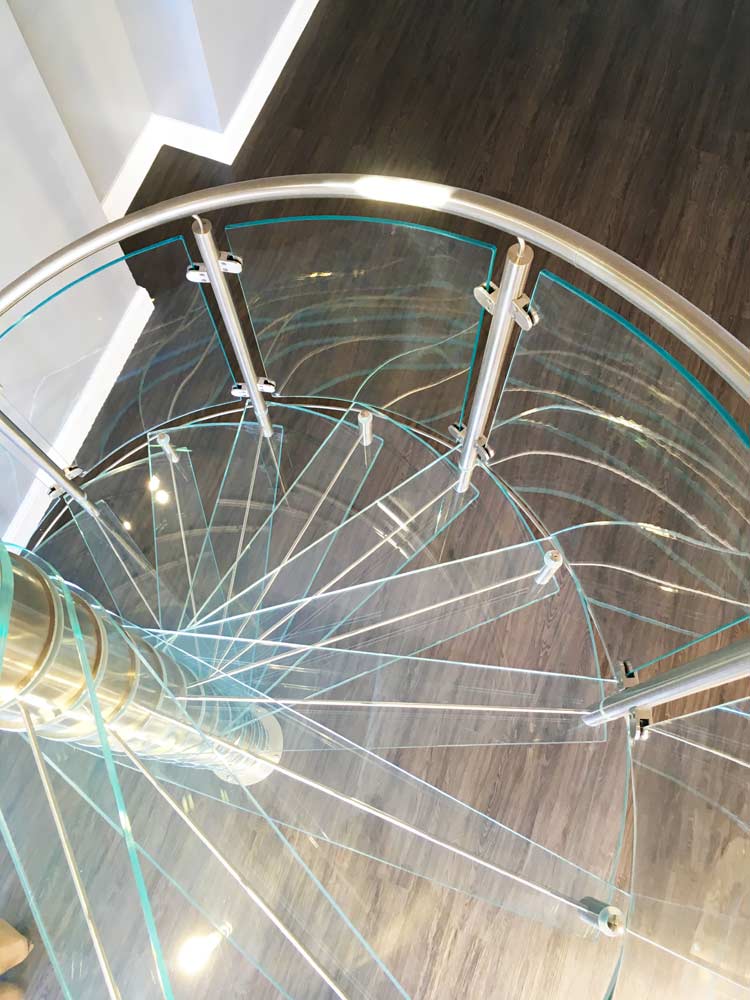

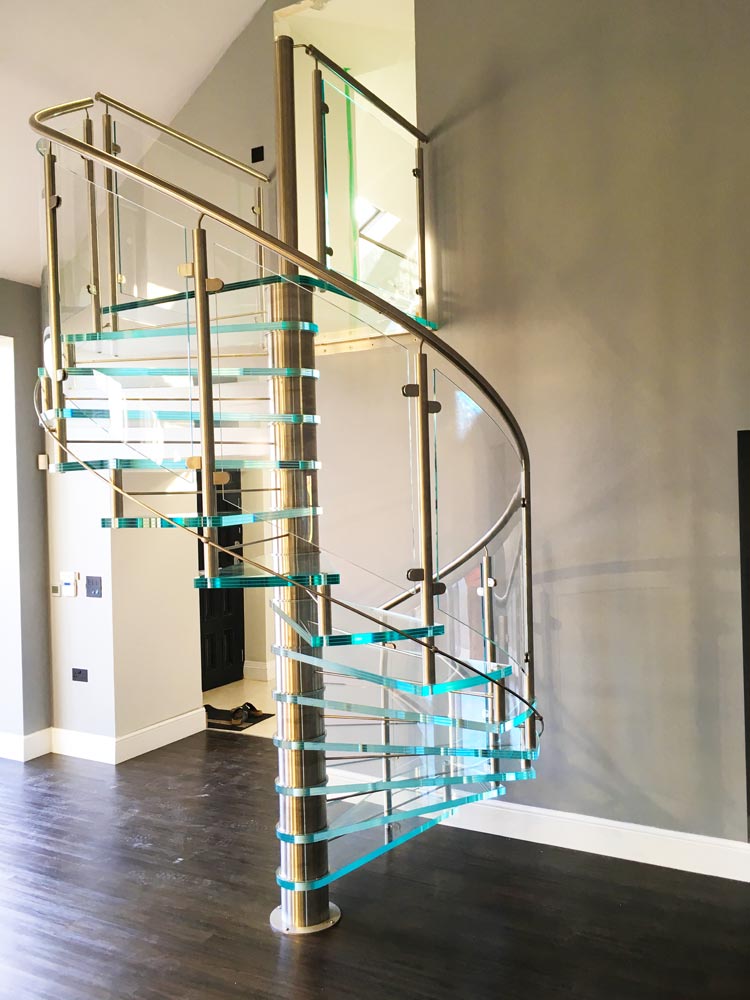

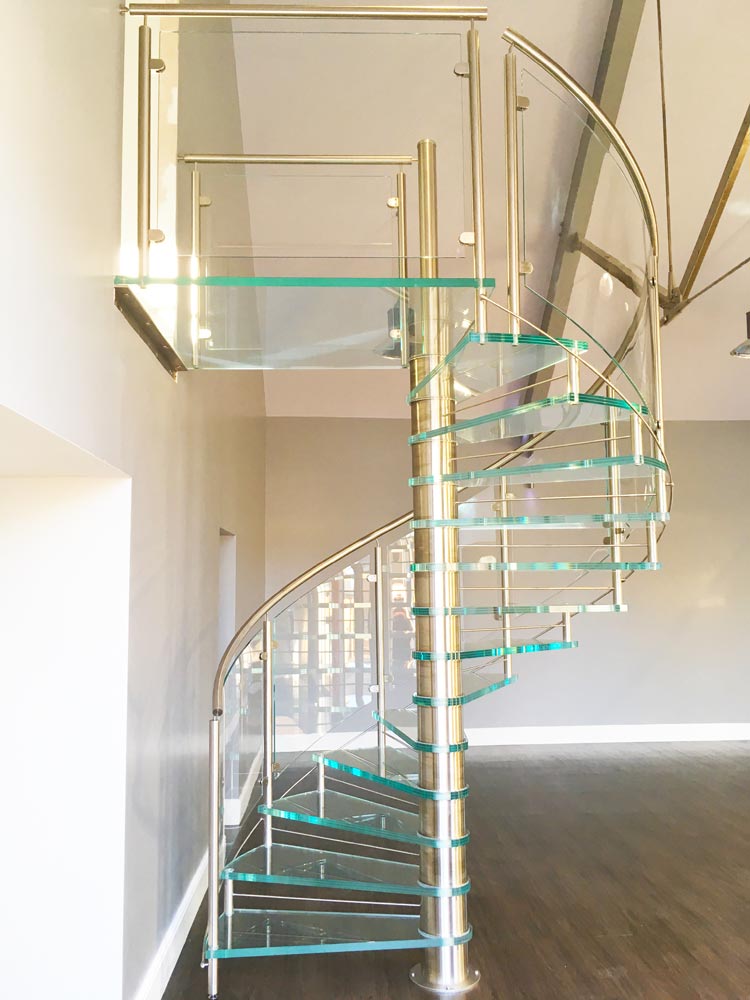

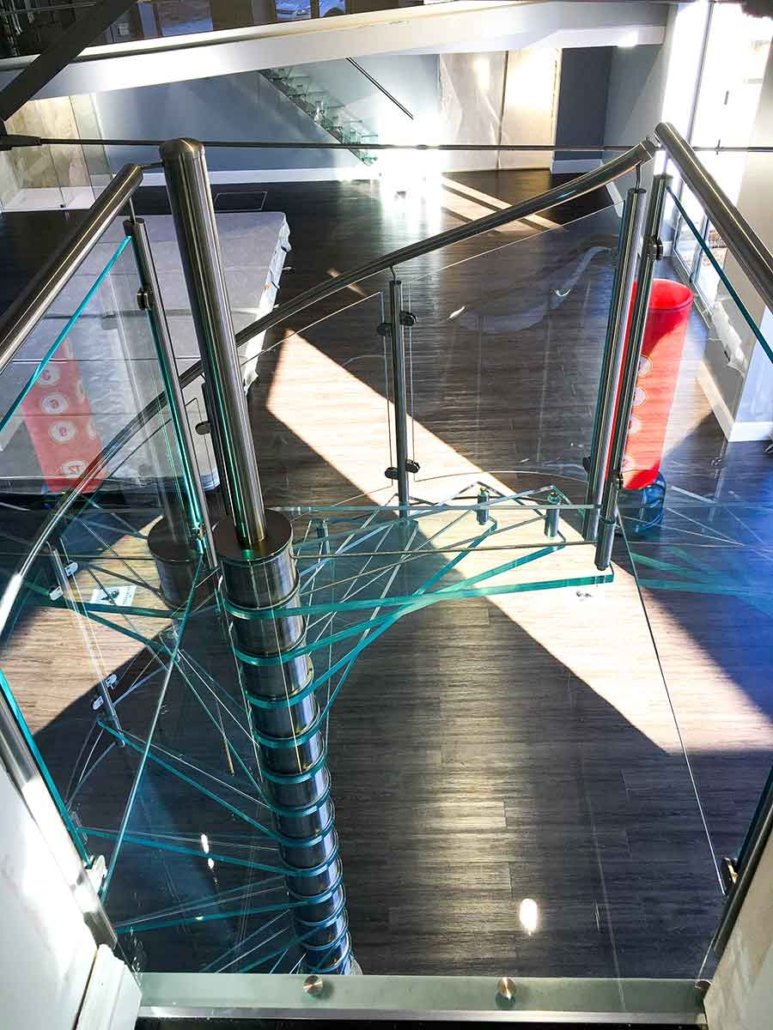

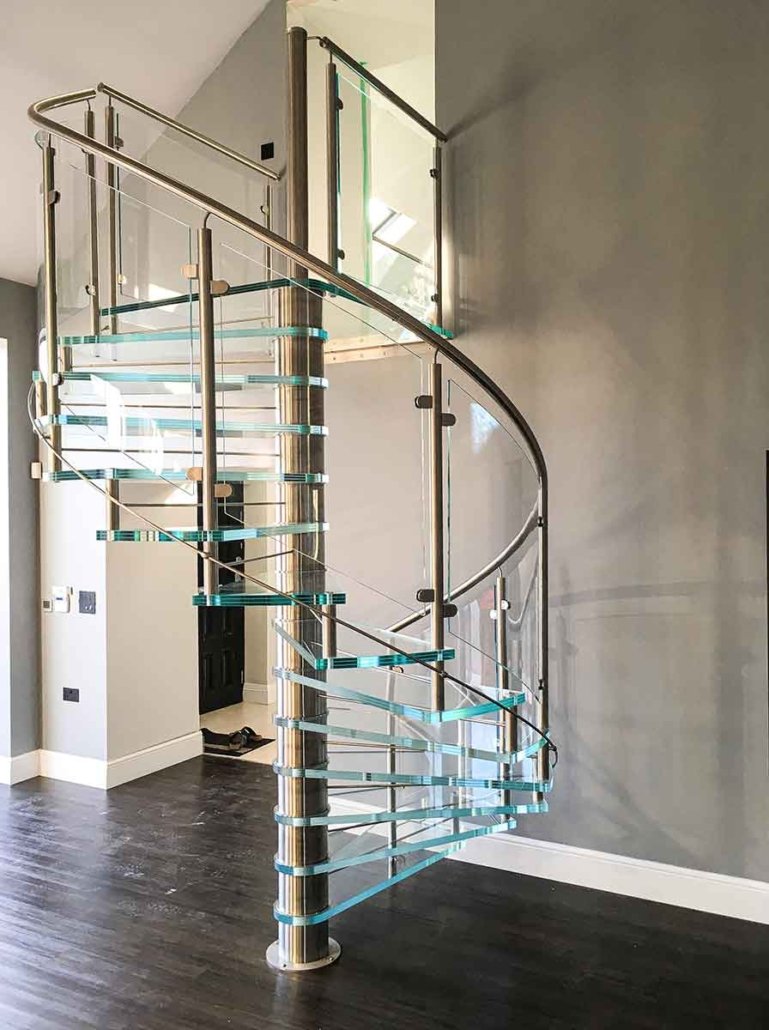

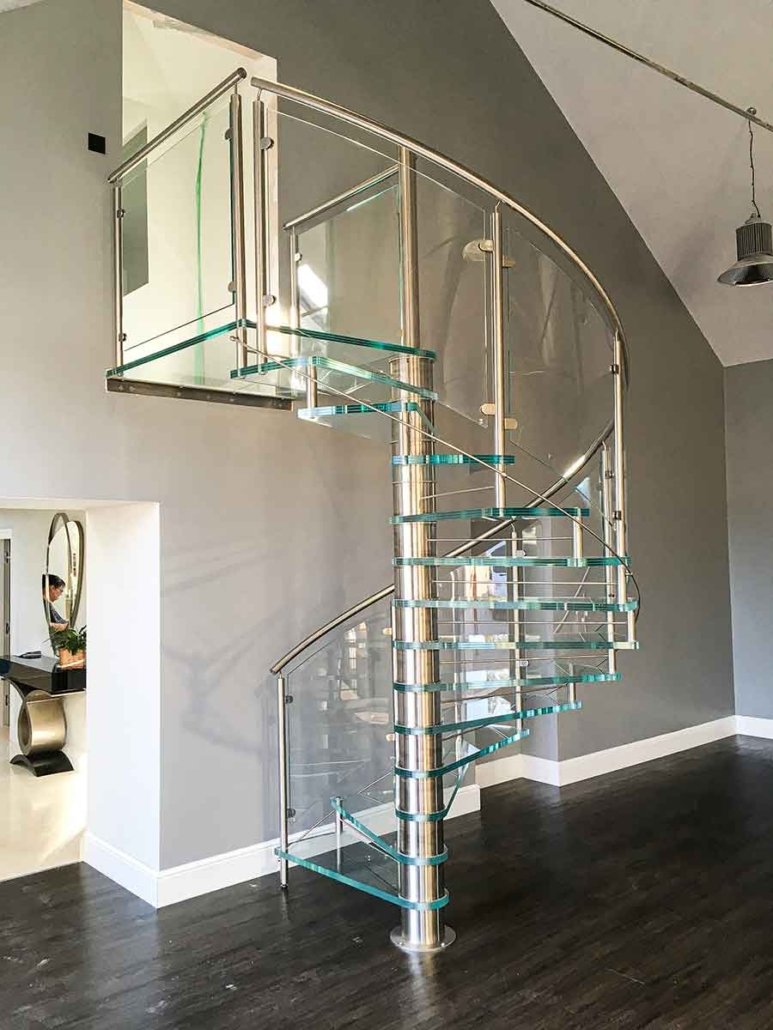

Glass Spiral Staircase in Pontefract barn conversion

  • Right-circled Right-circled

    Pontefract, West yorkshire

  • Right-circled Right-circled

    Build Type -Barn Conversion

  • Right-circled Right-circled

    Model - Model 76 Spiral Stair

  • Right-circled Right-circled

    Style - Fully Transparent and modern

  • Right-circled Right-circled

    Materials - Laminated glass and brushed stainless steel

  • Right-circled Right-circled

    Diameter - 1900mm

Our spiral staircase Pontrefract project was supplied as a main access spiral staircase to a major residential refurbishment project.

The Brief

The client had a challenging brief for this project. They wanted a full size modern style staircase to access the main part of their home but also wanted to minimise its footprint and feeling of scale, whilst creating a wow factor

The Solution

A straight staircase was out of the question due to the extent that it would encroach into the room. The free-standing nature of such a staircase would also make support difficult and its appearance feel heavy, and a normal spiral staircase would restrict the passage of light.

Our answer was to propose our Model 76 glass spiral staircase. The system provides the size and strength required to be specified as a main access stair whilst the glass treads and balustrade optimise the flow of light through the staircase. The toughened laminated treads also mean that the treads are strong enough to support the same use as a traditional residential staircase, allowing the customer to carry out tasks such as moving furniture up and down it. Whilst the impressive, curved glass balustrade adds style to the staircase, it’s specification as safety glass makes it every bit as safe as a traditional spindle balustrade.

Project Recap

  • Main staircase size and usability required whilst minimizing physical footprint and aesthetic impact.
  • Maximise passage of light.
  • Modern appearance.
  • Safe and practical for all to use

Summary

The client was delighted with the end result. Not only did they feel that they had a very practical and usable staircase, but were particularly pleased with how we were able to create such a modern aesthetic with minimal impact in the room. They were also very happy with the flow of light through the staircase.

Spiral Staircase Pontefract- Technical Specifications

Floor to floor height2705mm
Risers14 @ 193.2mm
Spiral Diameter1900mm
Clear Tread Width800mm
Tread Type30mm Laminated Glass
Balustrade Type8mm curved glass panels
Handrail37,7mm Ø Stainless Steel

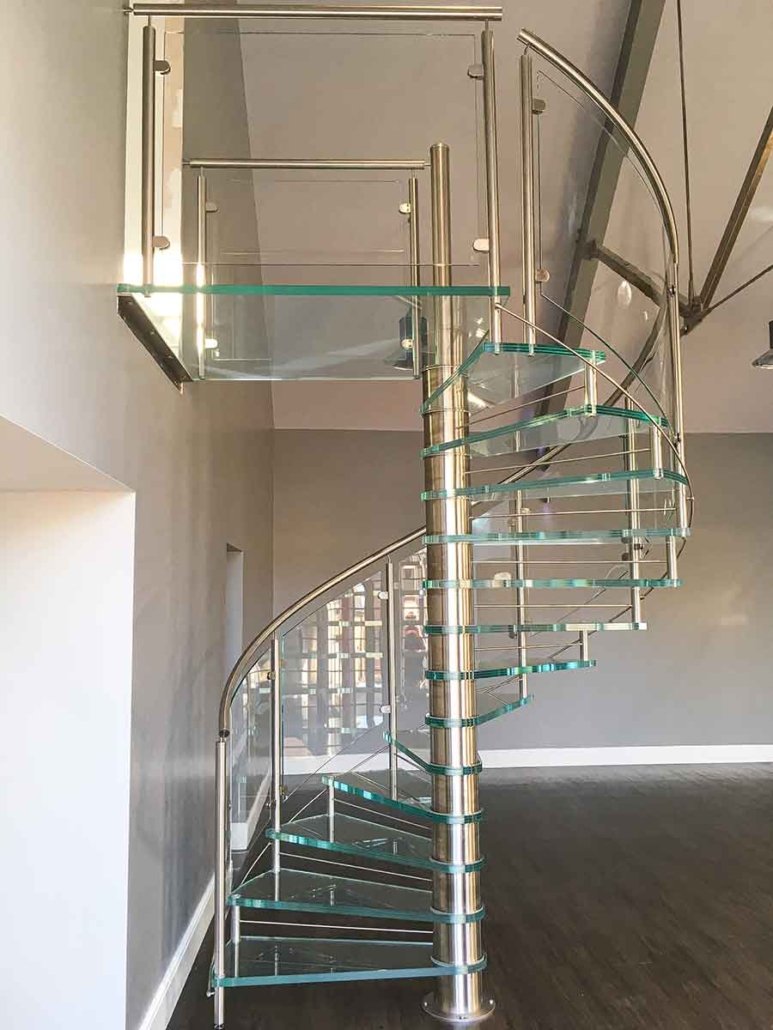

Centre Column146mm Ø
Finish of Steelbrushed stainless steel
AdditionalStainless riser bars to reduce gap

Contact us about project Spiral Staircase Pontefract
