Spiral Staircase Bromley
Case Study -Model 76
Our client was a specialist developer converting a duplex apartment in Bromley, Kent.
Their client was a single gentleman with high specification demands. The developer told us about all the mod cons being included in the property and a top-of-the-range spiral stair was also required to link the levels.

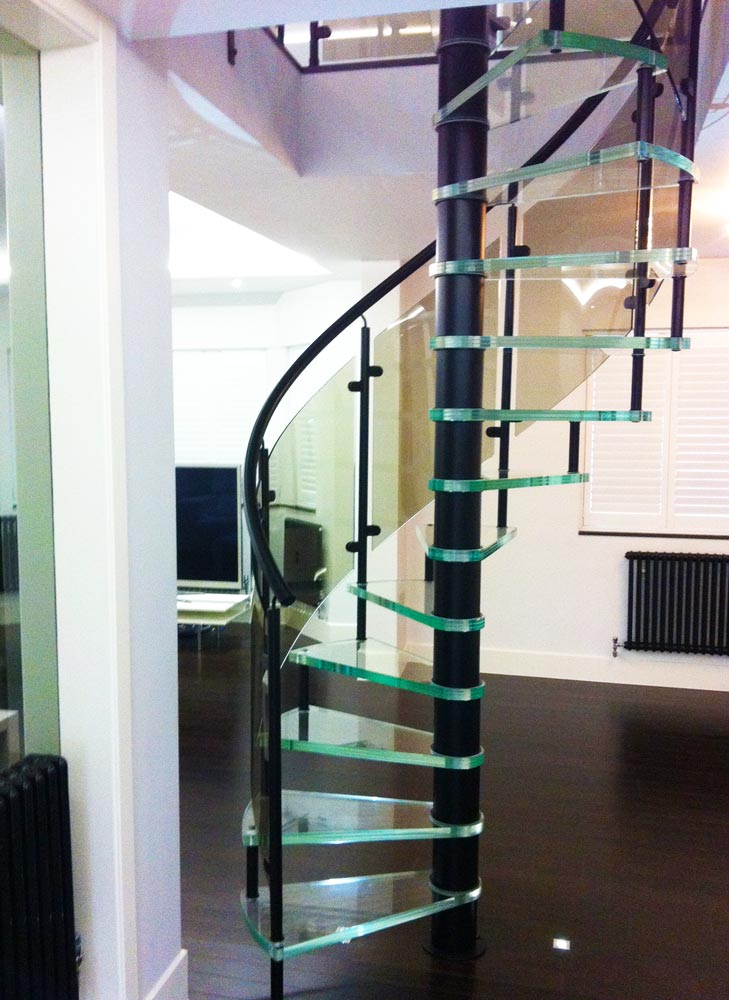

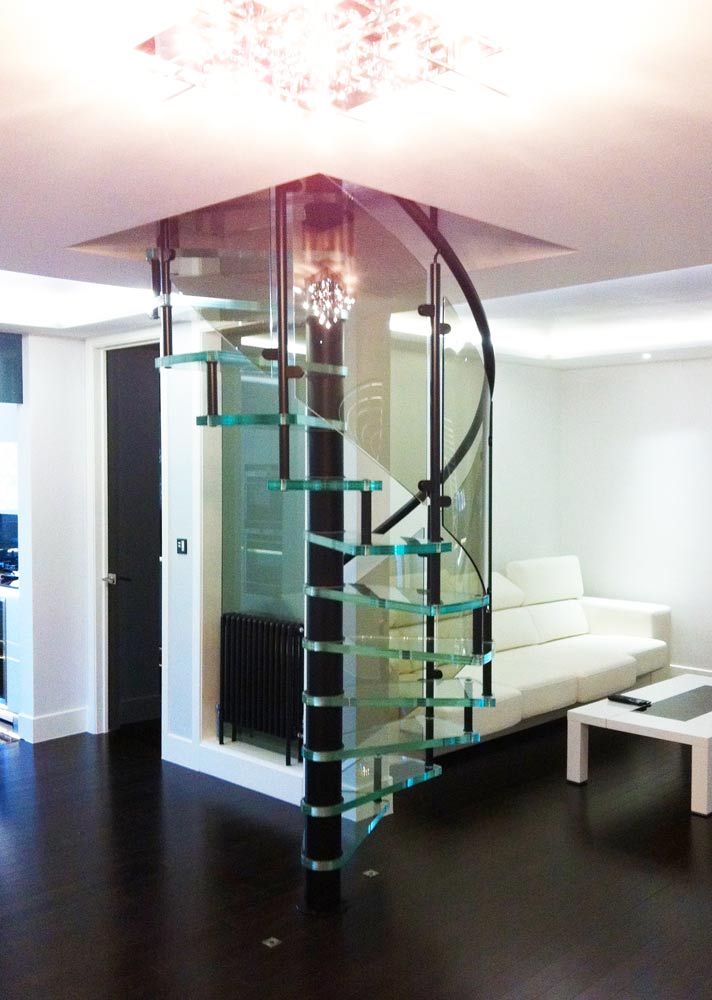

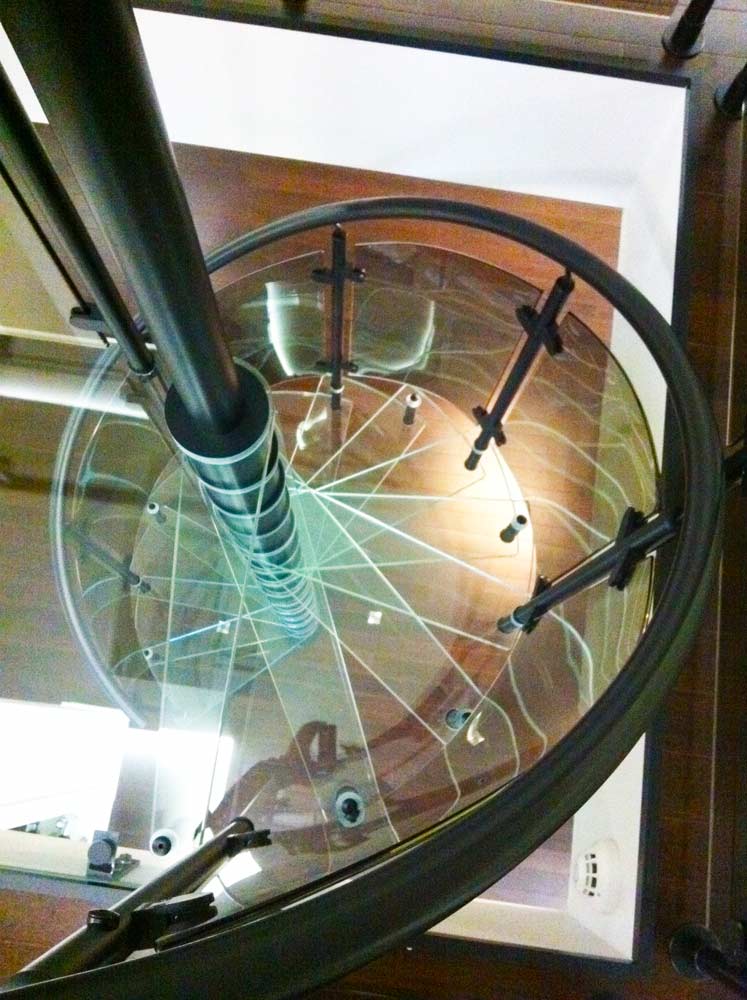

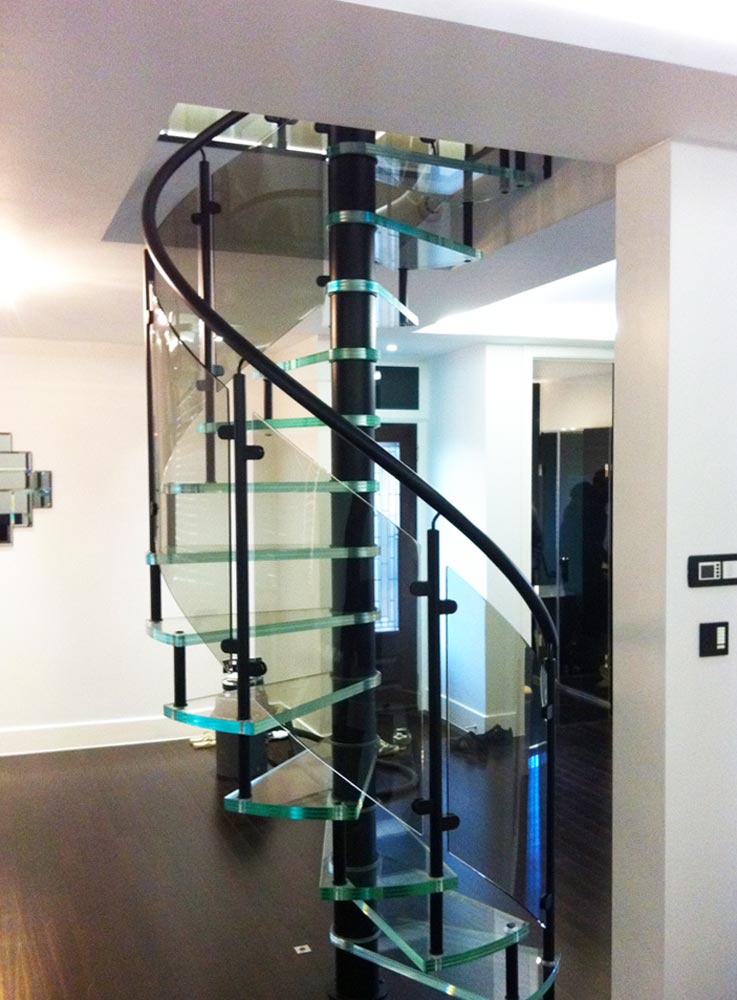

The model 76 was selected but instead of the popular stainless steel elements, the steelwork was powder coated black. The homeowner was keen to keep all fixtures light or dark. The spiral was made with glass treads and curved acrylic panels around the side. These acrylic panels had a slight tint to them as requested.
Spiral Stair Options
Model 76 Spiral Staircase is a custom made model with the options of glass or acrylic treads. Each model supplied is unique, specially made to suit the given floor to floor height and required diameter.
With all custom made spiral staircases it is crucially important to ensure the entry and exit points are correct. The angle of each step, the number of steps and the shape and size of the platform can all influence this. And of course this model can be made in a clockwise assent or anticlockwise.
For full details of the model 76 spiral – please click on the link below.
For a price – please fill out the contact form at the bottom of the page.
Spiral Staircase Bromley Technical Specification
| Floor to floor height | 2610mm |
| Risers | 13 @ 200.7mm |
| Spiral Diameter | 1500mm |
| Clear Tread Width | 610mm |
| Tread Type | 30mm Laminated Glass |
| Balustrade Type | 8mm tinted curved acrylic panels |
| Handrail | 37,7mm Ø Steel |
| Centre Column | 139mm Ø |
| Finish of Steel | Powder Coated Black |

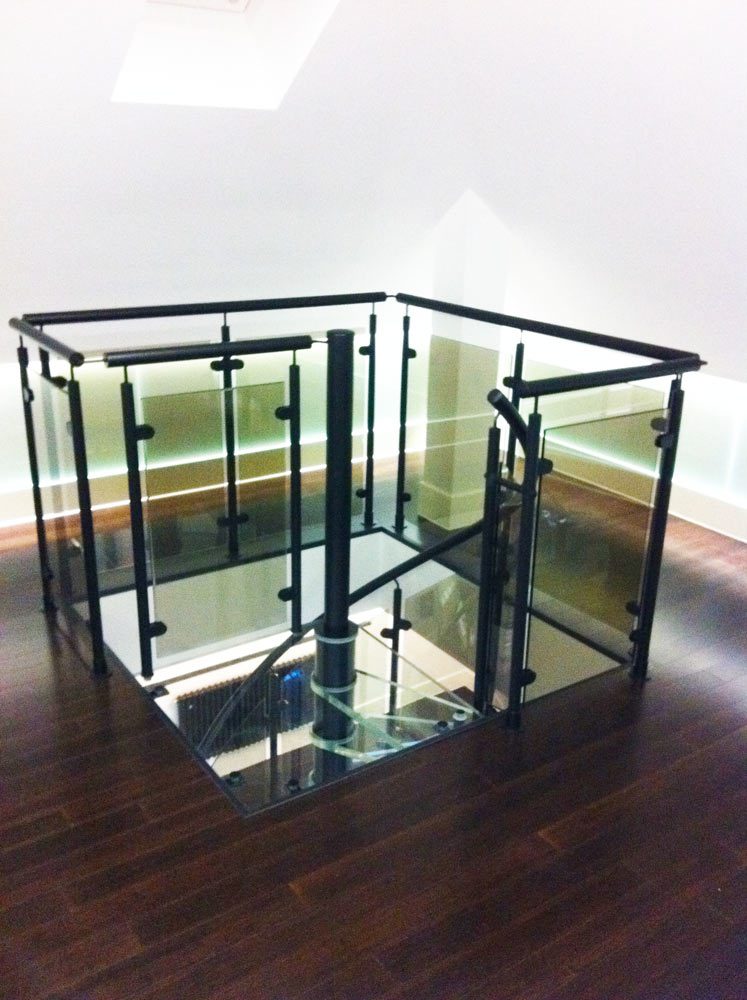

| Additional | Landing Balustrade around opening |
Comment on Spiral Staircase Bromley – Model 76 from Complete Stair Systems
Nick Rackham
"This was a real bachelor’s pad with all the mod cons throughout. All that was missing was a state of the art spiral staircase accessing the upper bedroom!"
