T20 Space Saving Staircase

T20 Space Saving Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,448.00£3,155.00

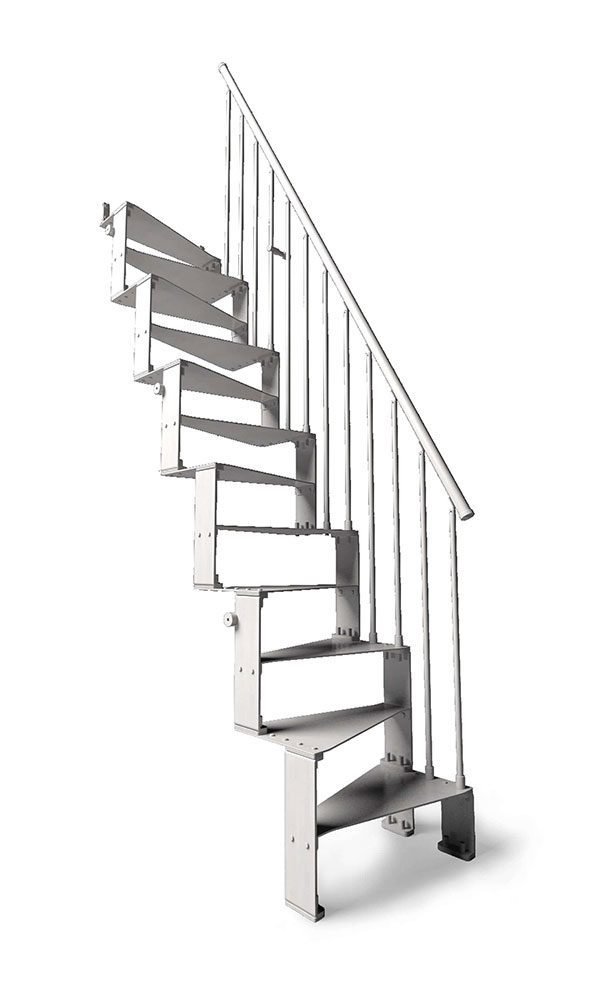

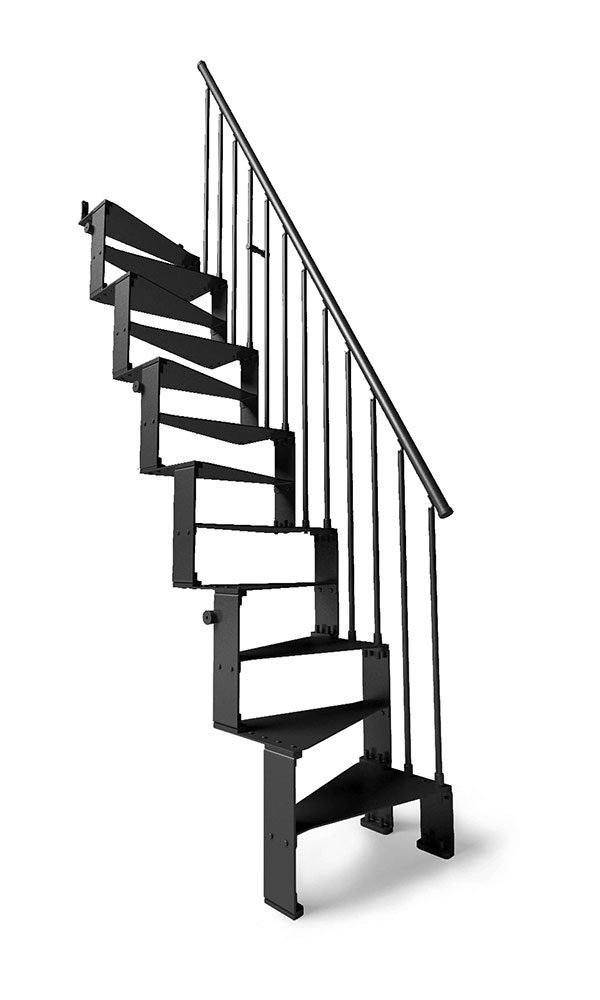

Presenting the T20 for 2024, an innovative space-saving staircase made of steel. This patented design boasts a straight flight with alternating steps to reduce its footprint. The T20 features a distinctive bolt-together system with interlocking components that create the stringers and treads.

Tailored for occasional use in residential areas like lofts or small mezzanines, the T20 offers customisation to meet specific height requirements via a drop-down menu. The height of each step can be fine-tuned with small shims; for example, the 12-riser kit can adjust for heights ranging from 2520mm to 2720mm.

The staircase comes with spindles and a handrail on one side, and there’s an option to install a balustrade on the other side if desired. To enhance safety, additional landing balustrades and riser bars that match can be purchased to fill the spaces between steps. Customers can select from White, Light Grey, Black, or Grey finishes, and the staircase is shipped with detailed assembly instructions.

SKU: N/A Categories: ,

Technical Information

ApplicationInternal Use – secondary applications
Heights2310-2930mm (for others please contact office)
Stair Width640mm
Treads5mm steel
Spindles20mm diameter steel
Handrail42mm diameter Steel
Finish of SteelworkPowder Coated – White, Light Grey, Grey or Black

Steel Finishes

T20 Spiral Staircase Finishes2

Optional Extras

LANDING BALUSTRADE

If you require additional balustrade to protect your opening upstairs, this is available in 1m lengths that can be cut, joined and adjusted to suit.

An individual kit consists of;-

  • 9 x 20mm diameter Steel spindles
  • 1m length of handrail to match stair
  • 1 x floor support post
  • 1 x handrail to handrail connecting piece
  • 1 x spindle to spindle connector
  • 1 x spindle to wall connector
T20-landing-balustrade

PARTIAL RISER INFILL

Riser infill pieces are available to reduce the gap between the steps.

In the UK the regulations require a gap of no larger than 100mm between the treads.  This is a safety rule to prevent young children sliding through the gap.

These riser infills are formed with 3mm plate steel which fit to the rear of the treads with small brackets.  They do not fully enclose the riser, just reduce the gap.

These infill pieces are finished (if wished) in the same powder coated colour as the rest of the steelwork and they can be added to the order by selecting YES on the dropdown above.

If you are unsure if you require them, please check with your building control officer.

These can be fitted retrospectively once the stair is assembled but should they are ordered separately, a further delivery charge would be due.

T20-riser-bar

BALUSTRADE FOR SECOND SIDE

Typically, staircases are installed adjacent to a wall, and the inclusion of a handrail and spindles on one side is adequate.

However, there are instances where a stair is freestanding, away from any wall, necessitating protection on the second side. To address this, we provide an optional ‘balustrade for the second side,’ which comes with sufficient spindles and a handrail to safeguard the open side of the staircase.

Should you require this feature, you can easily select it from the dropdown menu provided.

T20-Space-Saving-Staircase--2nd-side-balustrade2
T20-Space-Saving-Staircase
T20-Space-Saving-Staircase

10 Treads / 11 Risers

T20-space-saving-stair---11-riser-layout---2

11 Treads / 12 Risers

T20-space-saving-stair---12-riser-layout---2

12 Treads / 13 Risers

T20-space-saving-stair---13-riser-layout---s

13 Treads / 14 Risers

T20-space-saving-stair---14-riser-layout---s

Delivery Info

The T20 Spiral Staircase is considered a custom made order and it is dispatched directly from the factory in Italy and delivered to your door.

Delivery times are generally between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery.  This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain.  A signature will be required to accept the goods and confirm they have arrived in good condition.  The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444    info@completestairsystems.co.uk

Frequently asked Questions

The opening in the floor needs to be a minimum of 700mm wide for all models with balustrade to one side (the default option). Should you have balustrade on both sides the opening width would need to be 740mm minimum.  For length of opening you would need a minimum of  1060mm for the 11 riser, 1300mm for the 12 riser, 1540mm for the 13 riser and 1780mm for the 14 riser.  All these dims are minimum and designed to give you sufficient headroom clearance.

The T20 staircase is made to order and produced in Italy.  It generally takes 4-6 weeks to received your spiral.

In the majority of instances, the spiral is installed in a day by 2 people.  This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade.  Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

If you have a look at the above plan drawings you will see the footprint of each stair.  Each stair can be assembled left foot first or right foot first.

Installation Instructions

T20 Installation Instructions
