Bespoke Timber Staircase West Grinstead

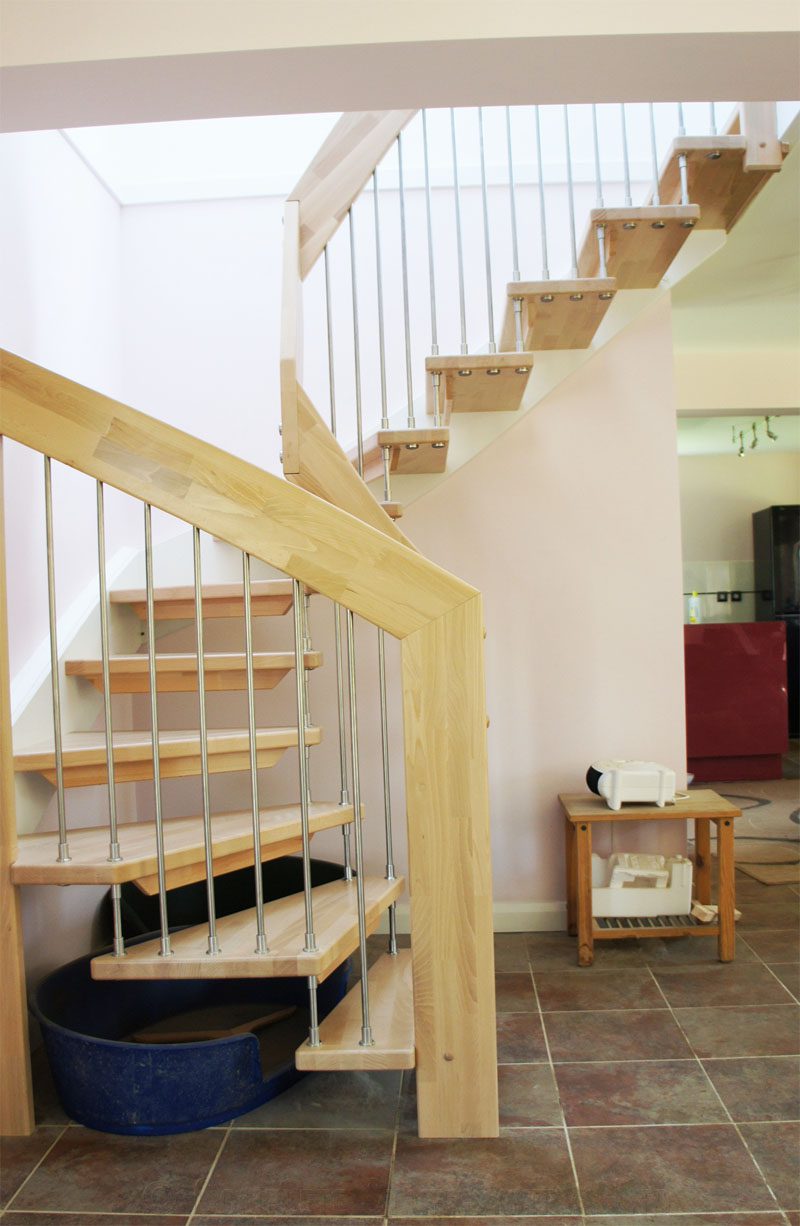

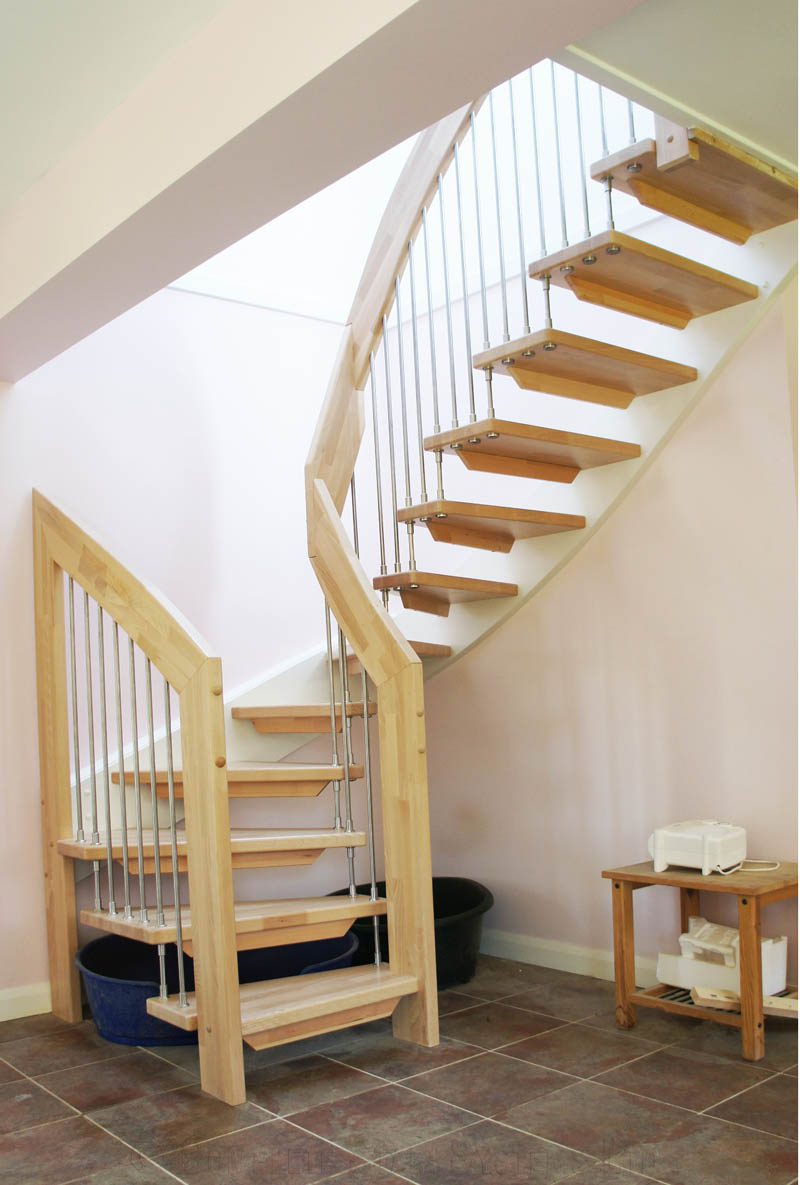

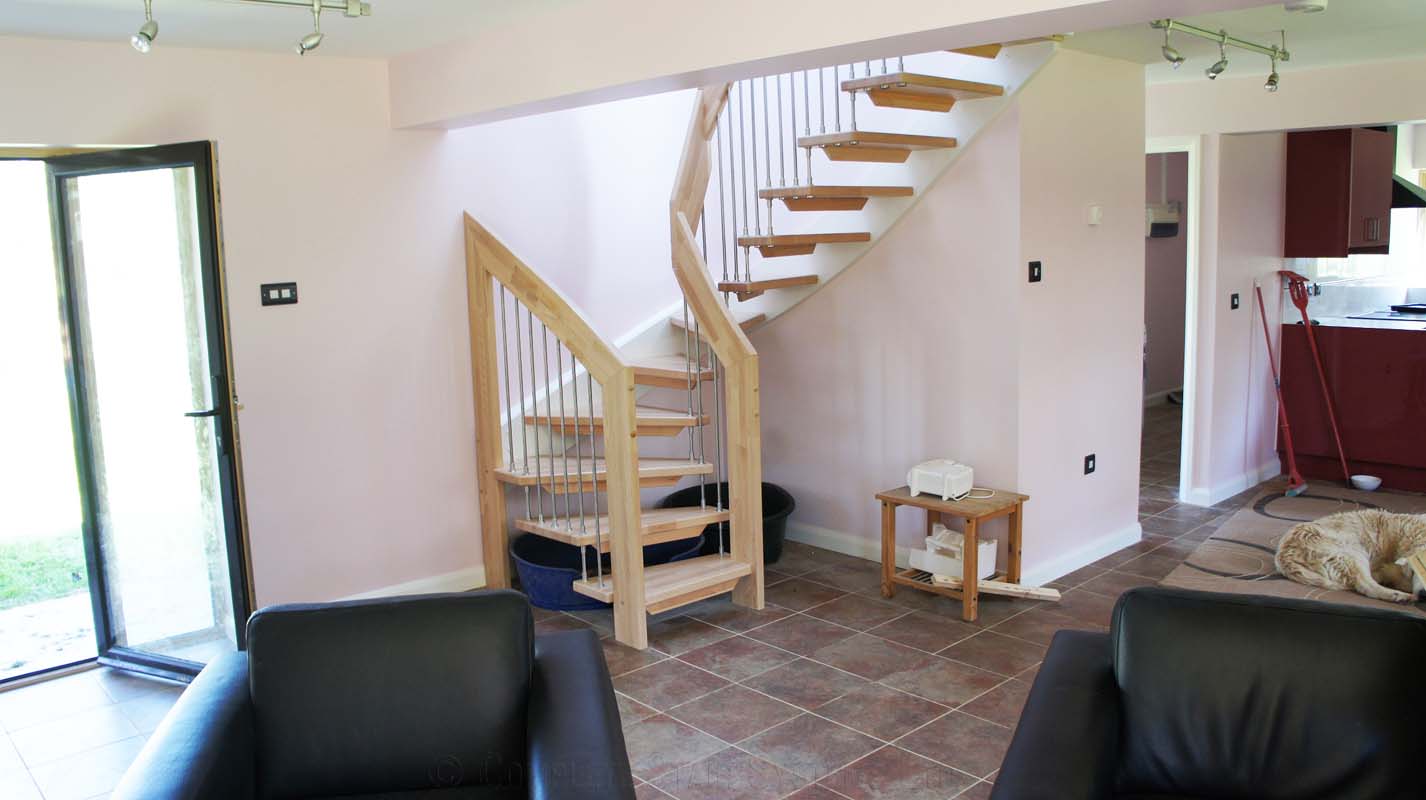

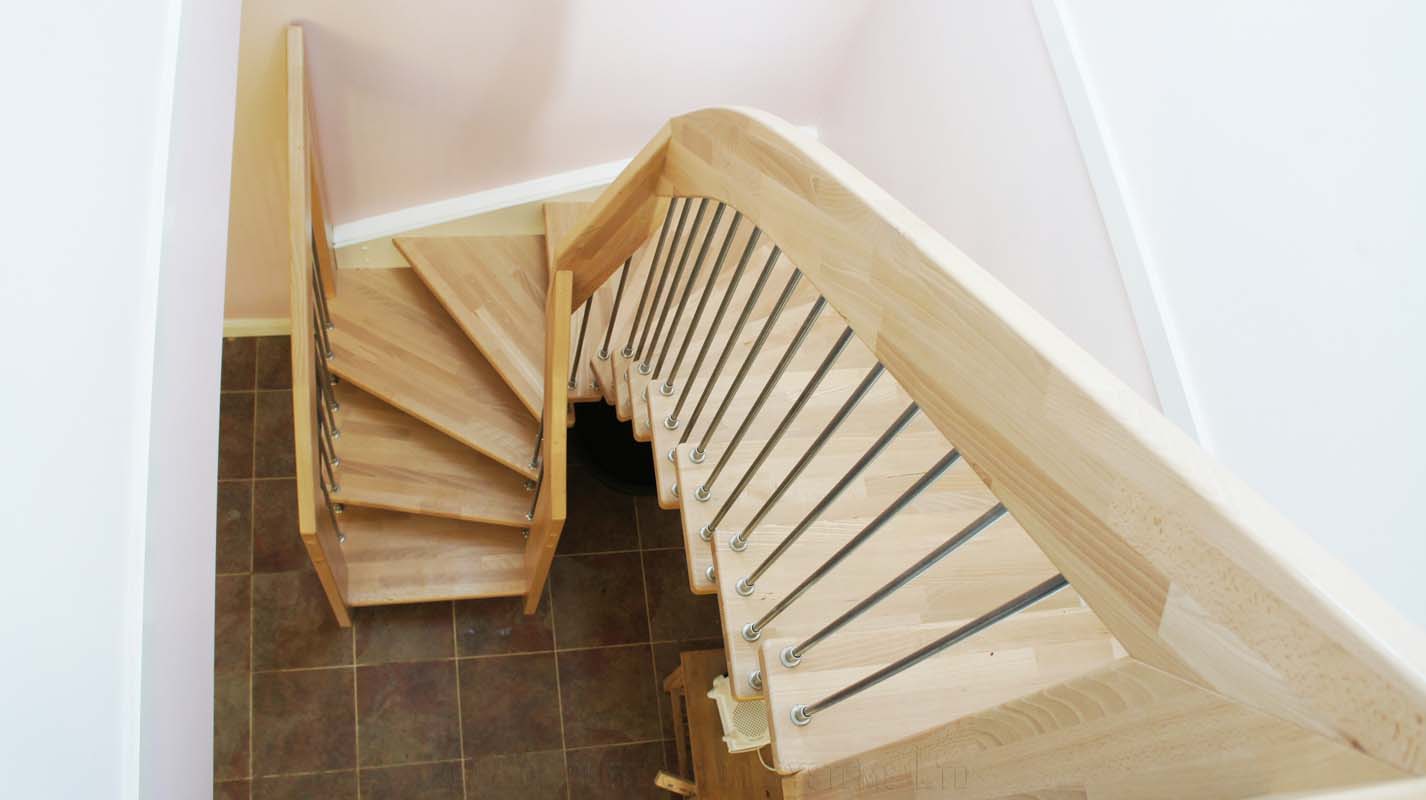

Our customer was converting a barn in West Grinstead and required a timber staircase in a tight spot. A spiral staircase was originally proposed but we suggested a space saving version of our popular WF floating modern timber staircase in a half turn configuration. This model only requires a wall stringer with the treads on the exposed side supported by a special handrail. Not only did our client save space they also had a more user friendly staircase which was modern and light in appearance. To keep costs down the client opted for Beech parquet treads and a white wall stringer.

Space Saving Staircase

The WF staircase is our most open, floating bespoke timber staircase.  It has no stringer to the internal side so the treads appear to hover in mid air allowing the light to pass through.  This works with a specially designed handrail that has a steel core.  The spindles screw up into this handrail and the treads ‘load’ is therefore transferred to the handrail then to the newels top and bottom.  The WF is available as a straight flight, quarter turn or half turn depending on the location of walls.

If you would like a price for your own version of Timber Staircase West Grinstead, please fill out the form below.

Bespoke Timber Staircase West Grinstead - Technical Specifications

Support Structure
WF open Staircase
Floor to floor height 2495mm
Risers
207.9mm
Treads 42mm Beech parquet
Stringers 42mm White timber
Balustrade Type 13mm Ø Stainless Steel Spindles
Handrail 160 x 42mm Beech
Newel Posts 160 x 42mm Beech
Finish of Timber
Varnished

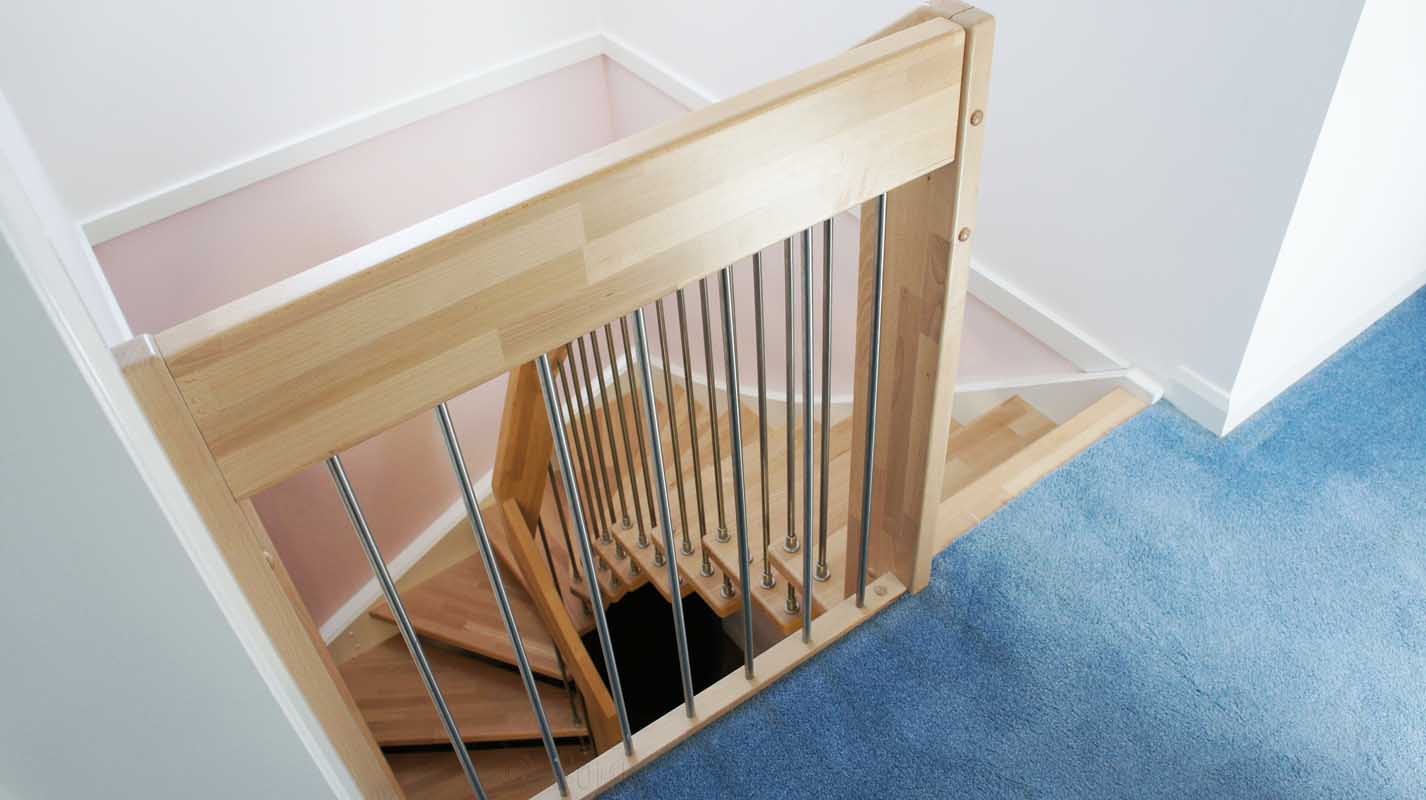

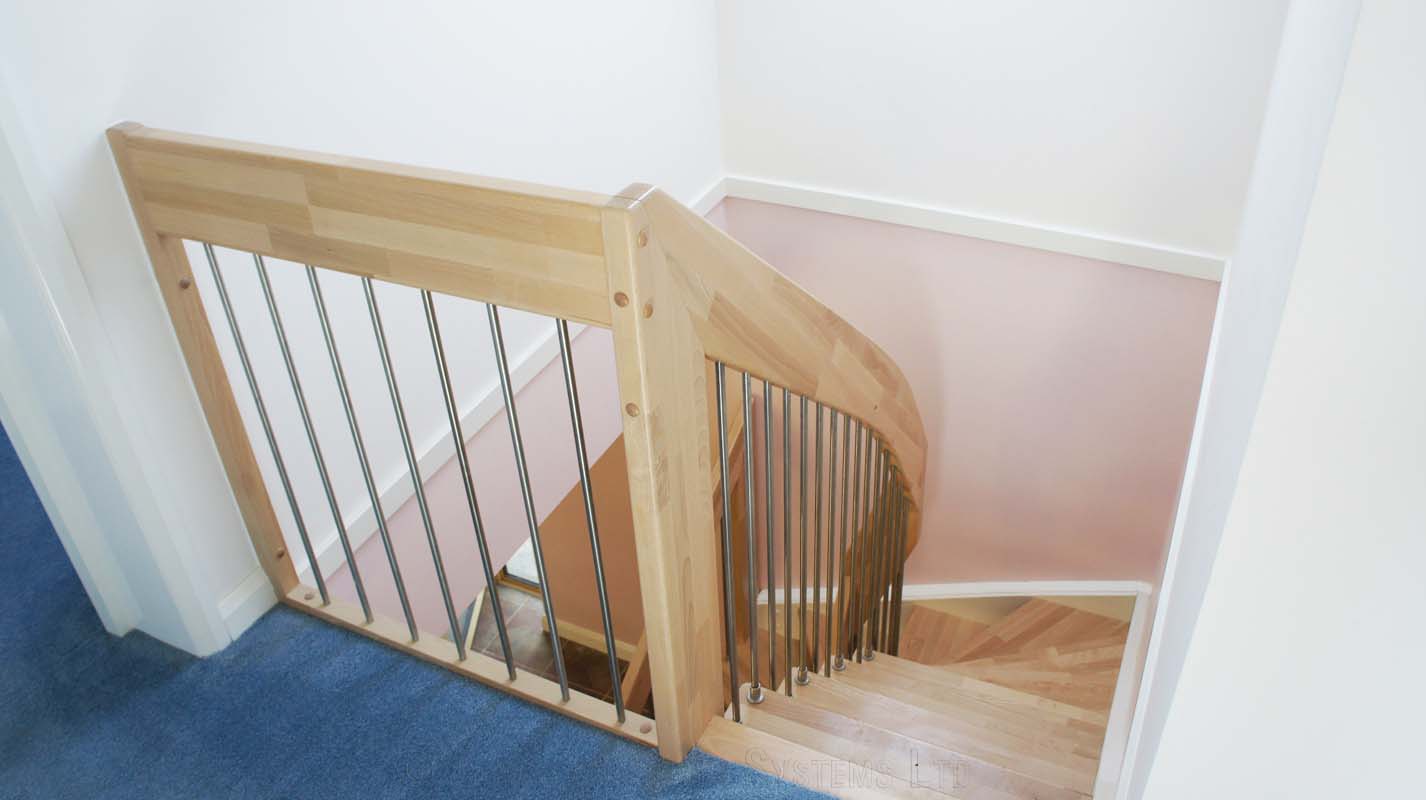

Additional Landing Balustrade

Timber Options
